V9Q-60360F27Hot StreakzTM R/C - Dodge Viper

SHEET: OF COMPANY: DATED: APP.BY: REV: DRAWN BY: DATED: DATED: CHECK BY: MODEL: DRAWING NO: TOY STATE INDUSTRIAL LTD 60360 TX BLOCK DIAGRAM 1.0 1 1 CHENYU 2013/5/3 APPLICANT:TOY STATE INDUSTRIAL LTDMODEL NO.:60360 BLOCK DIAGRAM OF VERSION:TX 27.145MHz STEVEN 2013/5/3 STEVEN 2013/5/3 PAGE NO.:- 1 OF 1 MODEL NO.: 60360 Filter L5 TX ANTENNA 27.145MHZ RF POWER OUTPUT & Modulator Q1 Fundanmental FrequencyOscillator Q2/Y1 27.145MHz Signal CTRL FORWARDControl /BACKWARD 2X1.5VDC Battery. Temperature Control Resistor R2 B+1 B+1 B+1 Clock Timing Generator CPU Generator RAMROMWDTLVR I/O Ports LEFT&RIGHT Signal 1 TURBO B+ B- B- RS 300K

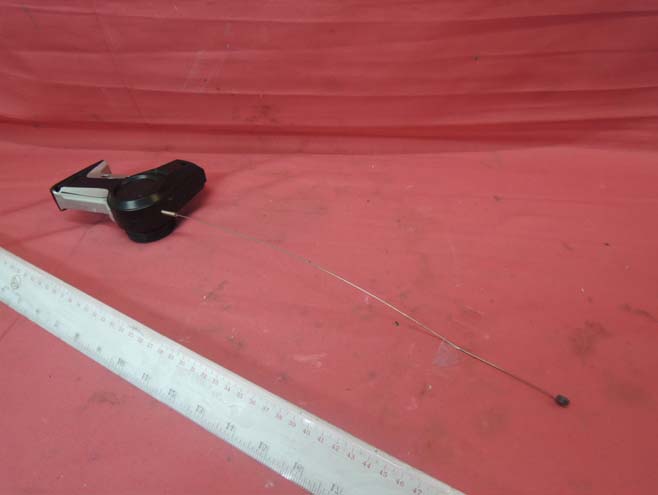

INTERTEK TESTING SERVICE Report No.: 13050249HKG-001 FCC ID: V9Q-60360F27 Equipment Photographs Model: 60361 (External)

Label Size: 35mm x 8mm Label Size: 38mm in diameter

INTERTEK TESTING SERVICE Report No.: 13050249HKG-001 FCC ID: V9Q-60360F27 Equipment Photographs Model: 60361 (Internal) INTERTEK TESTING SERVICE Report No.: 13050249HKG-001 FCC ID: V9Q-60360F27 Equipment Photographs Model: 60361 (Internal)

FCC ID: V9Q-60360F27 Model: 60361 Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls a receiver to move forward, backward, left turn and right turn. The circuit of the transmitter comprises of, 1. An RF Oscillator Consisting: Y1 (27.145MHz) , Q1 2. RF Amplifier and Modulator Consisting: Q2 3. Encoder Consisting: U1 (PW0288) 4. Filter Consisting: L5 5. A Power Supply Consisting: Two 1.5V “AAA” battery The transmitter uses an external, integral and non-detachable antenna. The nominal rated field strength is 67.5dBuV/m @ 3m Production tolerance of field strength is +/- 3dB Antenna gain is 0dBi

Analysis Report Report No.: 13050249HKG-001 The Equipment Under Test (EUT) is a transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 3.0 V DC source (2 x 1.5V “AAA” batteries). The EUT has two control levers to control the receiver to move forward, backward, left and right. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, left turn and right turn. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 67.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 70.5dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0034mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0034mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

AB ID SELECT COMPANY: TOY STATE INDUSTRIAL LTD MODEL: VER: DATE: DWN: CHK: 2013/05/03 CHENYU DATE: APP. : DATE: APPLICANT:TOY STATE INDUSTRIAL LTDMODEL NO:60360 PAGE NO:1 OF 1 TX SCHEMATIC FOR MODEL NO. 60360-27MHz 60360 TX 27MHZ 2013/05/032013/05/03 STEVEN STEVEN T1/L4 NC C12NC L2/L6 2.2uH 1 ANT C11 75p Q2 2SC3356 C9 120P C5 47P R6 100R C7 47P C10 150p R7 470R C1 NC BAT DC1.5*2=3V R1 100K L3/L5 6.8uH/Q>95 R4 22K Y1 27.145MHz Q1 2SC1815GR L1/L7 2.2uH MUSIC RB 0R LEFT FW R2 2.2R C13 100UF/10V RIGHT BW C2 102 C6 NC C8 102 RS 300k 1 2 3 4 1 P00 25 P01 20 P02 19 P03 18 P10 17 P11 16 P12 15 P13 14 P20 13 P21 12 P22 11 P23 22 OSC 24 /RESET 2 PWM+/DAC 4 PWM- 3 VDD_SPK 10 VDD 21 VSS 5 VSS_SPK 9 P30 8 P31 7 P32 6 P33 23 VDD 26 VSS1 27 NC 28 NC U1 PW0288 TURBO C4 104 C3 104 J4/J5 0R J2/R5 0R J1/J3 0R R8 2.2R R3 2.2R CTRL 38KHZ SIGNAL CRTL SIGNAL J4/J5 J4/J5

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13050249HKG-001 i FCC ID: V9Q-60360F27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Toy State International Ltd. BRAND NAME: N/A, MODEL: 60361, 60362 FCC ID: V9Q-60360F27 Grantee: Toy State International Ltd. Grantee Address: Unit 905, 9/F., West Wing, Tsim Sha Tsui Centre, 66 Mody Road, TST East, Kowloon, Hong Kong. Contact Person: Jason Ng Tel: 0755-36806243 Fax: 0755-28700487 e-mail: [email protected]; [email protected] Manufacturer: ShenZhen Nanling Toys Products Co., Ltd. Manufacturer Address: 132 Busha Road, Nanling Village, Buji Town, 518114 Brand Name: N/A Model: 60361 Additional model: 60362 Type of EUT: Transmitter Description of EUT: Hot Streakz TM R/C – Dodge Viper (60361), Hot Streakz TM R/C – Ford F-150 (60362), Serial Number: N/A FCC ID / IC: V9Q-60360F27 Date of Sample Submitted: May 05, 2013 Date of Test: May 06, 2013 to May 20, 2013 Report No.: 13050249HKG-001 Report Date: June 10, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13050249HKG-001 ii FCC ID: V9Q-60360F27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Toy State International Ltd. BRAND NAME: N/A, MODEL: 60361, 60362 FCC ID: V9Q-60360F27 TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13050249HKG-001 iii FCC ID: V9Q-60360F27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs..................................................................................... 6 5.0 Product Labelling................................................................................................ 6 6.0 Technical Specifications..................................................................................... 6 7.0 Instruction Manual...................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13050249HKG-001 FCC ID: V9Q-60360F27 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 60361 INTERTEK TESTING SERVICE Report No: 13050249HKG-001 FCC ID: V9Q-60360F27 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 60361
