V9Q-60510F27DUB FREAKZ RC 27MHz TX

RADIO CONTROL CONTROL FREAKZ OWNER’S MANUAL TM CONTROLLERVEHICLE Batteries Not IncludedIncluded AA/LR6 AA/LR6 x3x6 7+ #60510 1 MUTE SWITCH NOTE:For best performance, always use alkaline batteries only. CAUTION Important Battery Information • Dispose of batteries properly. • Do not dispose of batteries in fire. • Use only batteries of the type recommended. • Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Remove batteries from R/C vehicle and controller if vehicle will not be used for a long period of time. BATTERY INSTALLATION This unit is equipped with a mute switch. Use the mute switch when “Quiet Time” is needed. It is located on either the controller or the vehicle. GETTING STARTED STRONG BATTERY MEANS OPTIMUM PERFORMANCE Save the battery by turning off vehicle when not in use. ONOFF Remove the R/C vehicle and controller from the package. Insert batteries into the R/C vehicle and controller to begin full function play (see “Battery Installation” section for further details). ENG CONTROLLER 1.5v 1.5v 1.5v 1. To remove battery cover, loosen screw to open. 2. Insert 3 “AA” batteries into the controller. Be sure the + and – are properly matched. R/C VEHICLE 1.5v 1.5v 1.5v 1.5v 1.5v 1.5v 1. To remove battery cover, loosen screw to open. 2. Insert 6 “AA” batteries into the vehicle. Be sure the + and – are properly matched. Sounds Turbo Boost Turn Right/Left Drive Forward/Reverse 2 After play, always turn vehicle off. Remove batteries from controller and R/C vehicle when not in use or when storing. Leakage may occur and cause damage if left for a long period of time. OPERATING R/C VEHICLE ONOFF Turns in All Directions! A djust Trim Switch on bottom of R/C vehicle to ensure precision driving T urn ON/OFF switch located on bottom of R/C vehicle to the ON position (as shown) ENG Win the Race with a Turbo Boost! Drive Forward / Turbo Boost SoundsDrive Reverse TWO GREAT WAYS TO PLAY! 3 R/C VEHICLE DOES NOT MOVE • Are the + and – contacts correctly matched in the controller? • Are the metal contact tabs touching, rusty or dirty in controller? • Are there batteries in the vehicle and controller? • Is the power switch turned on? • Are the batteries weak or out of power? R/C VEHICLE MOVES BY ITSELF • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by. R/C VEHICLE RUNS SLOWLY • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by. • Are the batteries weak or out of power? PERFORMANCE DROP, INCONSISTENT MOVEMENT OR FAILS TO RUN Check batteries. If necessary, replace the batteries in the R/C vehicle and controller with new alkaline batteries. TROUBLESHOOTING AND CARE FOR R/C VEHICLE Radio waves control the R/C vehicle. Care for your vehicle and it will provide hours of fun! Avoid water, heat, sand and high impact crashes! TREAT YOUR R/C VEHICLE WELL Store in safe place.No direct sunlight.No rain or water.No sand or dust. No Collisions. R/C vehicle may get stuck on carpet or grass. Avoid running 2 vehicles with the same radio control frequencies. LIMITED RADIO CONTROL RANGE While R/C vehicle may be visible at a distance, full operational control may be lost. Hold controller high in the air and direct vehicle back. INTERFERENCE Other radio signals may cause loss of control. Remove vehicle from an area of interference. ENG 4 MADE IN SHENZHEN, CHINA TOY STATE INTERNATIONAL LIMITED 1 PEKING ROAD, KOWLOON, HONG KONG IN THE INTEREST OF BETTER QUALITY AND VALUE, WE ARE CONSTANTLY IMPROVING AND UPDATING OUR PRODUCTS. CONSEQUENTLY, PICTURES IN THIS INSTRUCTION SHEET MAY SOMETIMES DIFFER FROM THE MODEL ENCLOSED. For questions, e-mail our Consumer Service Dept. at [email protected] Or Call 1-877-473-8015 www.toystate.com NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1). This device may not cause harmful interference. 2). This device must accept any interference received including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These Limits are designed to provide reasonable protection against harmful interference in a residential installation. This generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try and correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE This radiocommunication device complies with all the requirements of Industry Canada Standard RSS-310. Operation is subject to the follwing two conditions: 1). This device may not cause harmful interference. 2). This device must accept any interference received, including interference that may cause undesired operation. Field Strength and measurement distance: 27.195MHz - 60.49 dBμ V/m at 3 meter. 49.890MHz - 61.61 dBdB V/m at 3 meter. This device complies with the limits of standard RSS-310 issue 1. INDUSTRY CANADA NOTICE: CANADA ONLY “Modifications not authorized by the manufacturer may void …

Text truncated - open the document above for the full version.

Toy State International Ltd. 19/F, One Peking, No1 Peking Road Tsimshatsui,, Kowloon, Hong Kong POWER OF ATTORNEY FCC ID: V9Q-60510F27 Date: June 20, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Shenzhen CTL Electromagnetic Technology Co., Ltd.(MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTL Electromagnetic Technology Co., Ltd. (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on June 20, 2012. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Toy State International Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Wayne Lee (Senior Project Engineer)

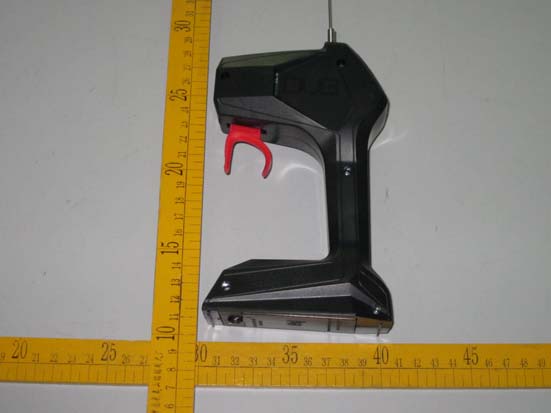

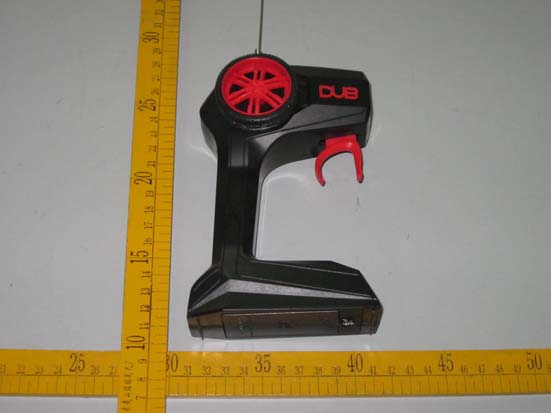

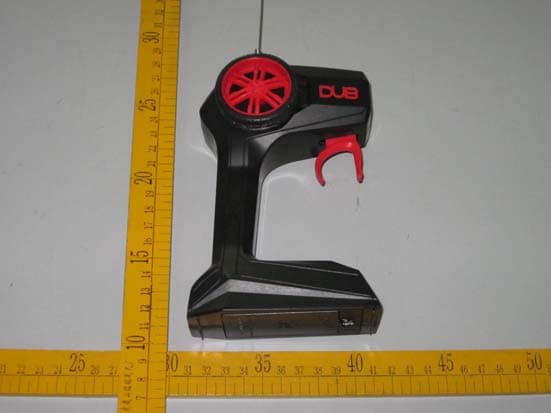

6. External and Internal Photos of the EUT External Photos

FCC ID Label Information 1. Label location: 2. FCC ID Label: Toy State International Ltd. Model: 60510 FCC ID: V9Q-60510F27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos ......................End of Report........................

Operation Description Q2、Y1、L2、R1、R3、C4、C5 constitute 27.145MHz oscillator，Q1 is a modulator and RF amplifier. the modulation signal provided by IC1. The output of Q1 has the matching network consisting of L1、L4、L3、C9、C1、C3 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground, and Power Source The antenna length is 38cm. There is no external ground connection. The ground is only that of the printed circuit board.

COMPANY: TOY STATE INDUSTRIAL LTD MODEL: VER: DATE: DRAWN BY: CHECK BY: 2011/06/18 DATE: 27M 60510TX APP. BY: DATE: ID2(B CODE) ID1(A CODE) TRY-ME Car Sound Trubo P10P11P12P13P20P21P22P23P30P31P32P33 TEST P43P42P41P40 VSS VDD VO1 VO OSCO OSCI VCC IC1 PM1475 1 2 FRONT 1 2 LEFT 1 2 C14 220UF R9 75K +/-1% 1 2 BACK 1 2 RIGHL C3 150PF C8100PF C4 103 L2 2.2UH C10 NC C1 332 L5 220UH Y1 27.145MHz ANT C6 103 R1 100K R2 10K C9 100PF Q2 2SC1815GR C5 47P R3 220R R4 2.2K Q38050 C11 100UF D1 IN4148 Z1 9V1 L1 2.2UH Q1 2SC3356/R25 R5 47R L3 0.75uH C12 47PF 1 2 1 23 S3 L4 6.8UH C13 100UF RF-DATA DC-DC DC-DC +4.5V RF-DATA 4.5V 4.5V

Shenzhen CTL Electromagnetic Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-89486187 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.227 Report Reference No......................: CTL11068365-S-WF Compiled by ( position+printed name+signature)..: File administrators Andy Zhang Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Kendy Wang Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: June 28, 2011 Representative Laboratory Name.: Shenzhen CTL Electromagnetic Technology Co., Ltd. Address.............................................: Zone B，4/F, Block 20，Guangqian Industrial Park, Longzhu Road,Nanshan,Shenzhen 518055 China. Test Firm..........................................: Bontek Compliance Testing Laboratory Ltd Address.............................................: 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Applicant’s name............................: Toy State International Ltd. Address.............................................: 19/F, One Peking, No1 Peking Road Tsimshatsui, Kowloon, Hong Kong Test specification: Standard ...........................................: FCC Part 15.227: Operation within the band 26.96–27.28 MHz. TRF Originator ..................................: Shenzhen CTL Electromagnetic Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Electromagnetic Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Electromagnetic Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Electromagnetic Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : DUB Freakz RC Trade Mark .......................................: / Model/Type reference.......................: 60510 Modulation .......................................: AM Work Frequency...........................: 27.145 MHz Antenna Type..............................: Undetachable Power Suplly...............................: DC 4.5V from battery FCC ID .............................................: V9Q-60510F27 Result................................................: Positive V1.0 Page 2 of 18 Report No.: CTL11068365-S-WF T E S T R E P O R T Test Report No. : CTL11068365-S-WF June 28, 2011 ______________________________________________________________________________________________ Date of issue Equipment under Test : DUB Freakz RC Model /Type : 60510 Applicant : Toy State International Ltd. Address : 19/F, One Peking, No1 Peking Road Tsimshatsui, Kowloon, Hong Kong Manufacturer Shen Zhen Nan Ling Toys Products Co, Ltd Address 132 Busha Road,Nanling Village, Buji Town Longgang Shenzhen, Canton, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 18 Report No.: CTL11068365-S-WF Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 5 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. Conducted Emissions Test 9 4.2. Radiated Emission Test 10 4.3. Occupied Bandwidth 13 4.4. Antenna Requirement 14 5. TEST SETUP PHOTOS OF THE EUT .......................................... 15 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 16 V1.0 Page 4 of 18 Report No.: CTL11068365-S-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.227: Operation within the band 26.96–27.28 MHz. ANSI C63.4-2003 V1.0 Page 5 of 18 Report No.: CTL11068365-S-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : June 18, 2011 Testing commenced on : June 22, 2011 Testing concluded on : June 27, 2011 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ● Other (specified in blank below) DC 4.5V from battery 2.3. Short description of the Equipment under Test (EUT) Wireless toy controller work at 27.145 MHz. For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: o - supplied by the manufacturer o - supplied by the lab o Length (m) : / Shield : / Detachable : / o Manufacturer : Model No. : V1.0 Page 6 of 18 Report No.: CTL11068365-S-WF 2.6. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: V9Q-60510F27 filing to comply with Section 15.227 of the FCC Part 15, Subpart C Rules. 2.7. Modifications No modifications were implemented to meet testing criteria. V1.0 Page 7 of 18 Report No.: CTL11068365-S-WF 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Roa…
