V9Q-62050F27British Secret Service R/C - Aston Martin DB5

MODEL NO: 62050 PAGE NO:1 OF 1 TX BLOCK DIAGRAM APPLICANT: TOY STATE INDUSTRIAL LTD COMPANY: TOY STATE INDUSTRIAL LTD MODEL: VER: 00 DATE: 2012-4-13 DWN. YHYANG CHK. DATE: APP. DATE: 62050TX BLOCK DIAGRAM TX ANTENNA KEY PAD FW/BW/LT/RT /MUSIC/WEAPON U1 ENCODE3 X AAA BATTERIES 4.5V CARRIER GENERATOR Q1 & Y1 FREQUENCY 27.145M MODULATION & AMPLIFIER Q2 C5,C6 & L5 FILLTER

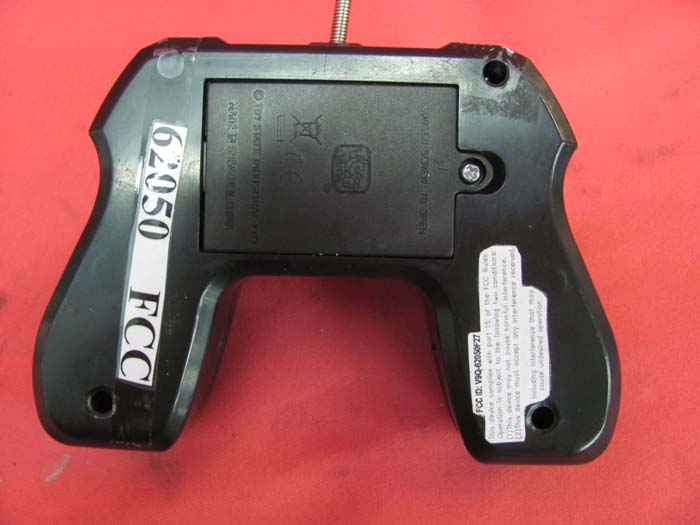

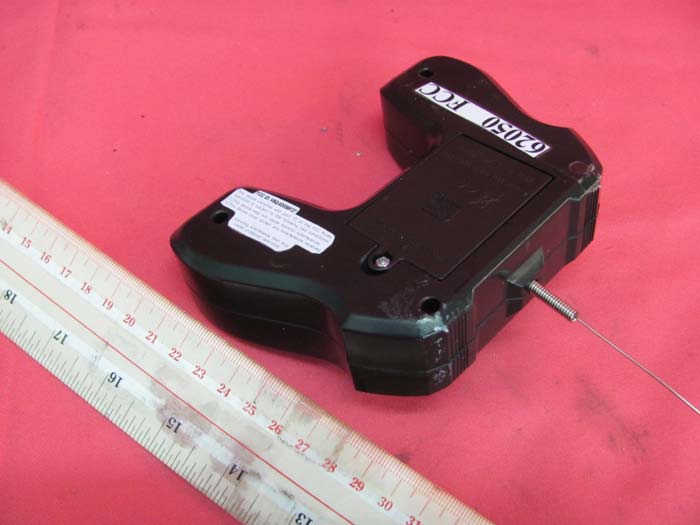

INTERTEK TESTING SERVICE Report No.: HK12040944-1 FCC ID: V9Q-62050F27 Equipment Photographs Model : 62051 (External) INTERTEK TESTING SERVICE Report No.: HK12040944-1 FCC ID: V9Q-62050F27 Equipment Photographs Model : 62051 (External)

FCC ID: V9Q-62050F27 FCC Label and Location FCC ID: V9Q-62050F27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID label size 27 x 1 mm FCC Statement label size 44 x 7 mm

INTERTEK TESTING SERVICE Report No.: HK12040944-1 FCC ID: V9Q-62050F27 Equipment Photographs Model : 62051 (Internal) INTERTEK TESTING SERVICE Report No.: HK12040944-1 FCC ID: V9Q-62050F27 Equipment Photographs Model : 62051 (Internal) INTERTEK TESTING SERVICE Report No.: HK12040944-1 FCC ID: V9Q-62050F27 Equipment Photographs Model : 62051 (Internal)

FCC ID: V9Q-62050F27 Model: 62051 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit consisting: U1 PM1504 2. A RF Oscillator (27.145MHz) consisting: X1 3. A Filter Network consisting: L5, C5, C6 4. A RF Modulator and Amplifier consisting: Q1, Q2 5. A Power Supply consisting: 3 x AAA size batteries The transmitter uses an external, integral and non-detachable antenna.

APPLICANT: TOY STATE INDUSTRIAL LTD DATE: APP. DATE: CHK. DWN. YHYANG DATE: 2012-04-13 VER: 00 MODEL: 62050TX 27.145MHz TOY STATE INDUSTRIAL LTD COMPANY: TX CIRCUIT DIAGRAMPAGE NO:1 OF 1 MODEL NO: 62050(TX 27.145MHZ) P10P11P12P13P20P21P22P23P30P31P32P33 TEST P43P42P41P40 VSSCVSSDVO1B VDD VCC OSCI U1 PM1504 R5 91K±1% +- 4V5 BATT C6 10P ANT R3 10K C7NC L2 2.2UH Q2 2SC3356 R4 100R L5 7.5uH C1 103 L3 2.2UH X1 27.145MHz R1 100K Q1 2SC1815GR C2 47P R2 220R C5 200P C3 47P C4 100P FW BW LT RT GUN MUSIC C9 100uF C10 104 C13 NC R7 2.2R C11 103 R05 NC RFPOWER RFPOWER

INTERTEK TESTING SERVICES Report No.: HK12040944-1 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12040944-1 Toy State International Ltd. Application For Certification (Original Grant) (FCC ID: V9Q-62050F27) Transmitter Prepared and Checked by: Approved by: Signed On File Kung Wing Cheong, Steven Engineer Chan Chi Hung, Terry Assistant Supervisor Date: July 20, 2012 INTERTEK TESTING SERVICES Report No.: HK12040944-1 FCC ID: V9Q-62050F27 i GENERAL INFORMATION Toy State International Ltd. BRAND NAME: N/A, MODEL: 62051 FCC ID: V9Q-62050F27 Grantee: Toy State International Ltd. Grantee Address: 19/F., One Peking, No.1 Peking Road, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Sylvia Siu Tel: 0755-28700378 Fax: 0755-28700487 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 62051 Additional Model: 62052 Asst No.: 62050 Type of EUT: Transmitter Description of EUT: British Secret Service R/C – Aston Martin DB5 Serial Number: N/A FCC ID: V9Q-62050F27 Date of Sample Submitted: April 20, 2012 Date of Test: April 20, 2012 to May 04, 2012 Report No.: HK12040944-1 Report Date: Jul 20, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12040944-1 FCC ID: V9Q-62050F27 ii SUMMARY OF TEST RESULT Toy State International Ltd. BRAND NAME: N/A, MODEL: 62051 FCC ID: V9Q-62050F27 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 Pass Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12040944-1 FCC ID: V9Q-62050F27 iii Table of Contents 1.0 General Description........................................................................................................1 1.1 Product Description............................................................................................................1 1.2 Related Submittal(s) Grants..............................................................................................1 1.3 Test Methodology...............................................................................................................1 1.4 Test Facility.........................................................................................................................1 2.0 System Test Configuration............................................................................................2 2.1 Justification.........................................................................................................................2 2.2 EUT Exercising Software..................................................................................................2 2.3 Special Accessories...........................................................................................................2 2.4 Equipment Modification.....................................................................................................2 2.5 Measurement Uncertainty.................................................................................................2 2.6 Support Equipment List and Description........................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12040944-1 FCC ID: V9Q-62050F27 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 62051 INTERTEK TESTING SERVICE Report No: HK12040944-1 FCC ID: V9Q-62050F27 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 62051
