V9Q-62060F27For Your Eyes Only R/C - Aston Martin DBS V12 (Quantum of Solace)

B

COMPANY: DATED: APP.BY: REV: DRAWN BY: DATED: DATED: CHECK BY: MODEL: DRAWING NO: SHEET: OF TOY STATE INDUSTRIAL LTD 62061 TX 27M BLOCK DIAGRAM 1.0 1 1 Zhou 2012/4/28 APPLICANT:-TOY STATE INDUSTRIAL LTD MODEL NO:-62061 BLOCK DIAGRAM OF VERSION:- TX 27.145MHz XIONG 2012/4/28 XIONG 2012/4/28 PAGE NO:- 1 OF 1 MODEL NO:- 62061 Filter L5/C6 TX ANTENNA 27.145MC RF POWER OUTPUT & Modulator Q1 Fundanmental Frequency Oscillator Q2/Y1 27.145MHz Signal 1 Signal 2 F/FRONT/MUSIC Control /SIDE/B/L/R 3X1.5VDC Battery. Temperature Control Resistor R7 B+1 B+1 B+1 Clock Timing Generator CPU Generator RAM ROM WDT LVR I/O Ports R5 100K

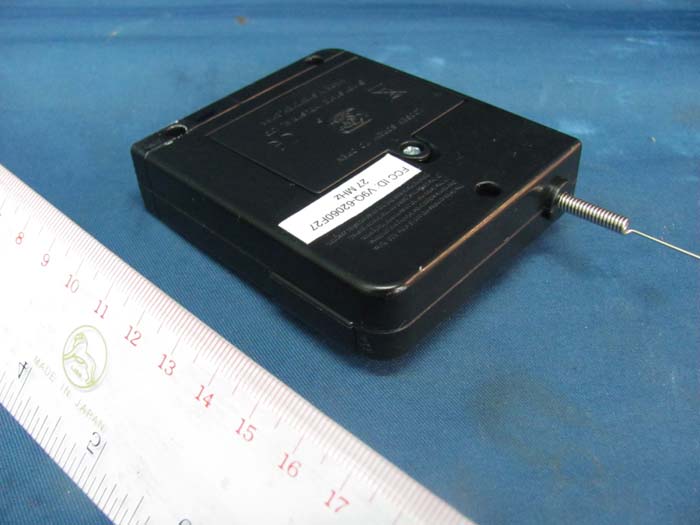

INTERTEK TESTING SERVICE Report No.: HK12040942-1 FCC ID: V9Q-62060F27 Equipment Photographs Model : 62061 (External) INTERTEK TESTING SERVICE Report No.: HK12040942-1 FCC ID: V9Q-62060F27 Equipment Photographs Model : 62061 (External)

FCC ID: V9Q-62060F27 FCC Label and Location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: V9Q-62060F27 27MHz Label size: 34 x 9mm Size: 24 x 2.5 mm Size: 8 x 2.5 mm

INTERTEK TESTING SERVICE Report No.: HK12040942-1 FCC ID: V9Q-62060F27 Equipment Photographs Model : 62061 (Internal) INTERTEK TESTING SERVICE Report No.: HK12040942-1 FCC ID: V9Q-62060F27 Equipment Photographs Model : 62061 (Internal) INTERTEK TESTING SERVICE Report No.: HK12040942-1 FCC ID: V9Q-62060F27 Equipment Photographs Model : 62061 (Internal)

FCC ID: V9Q-62060F27 Model: 62061 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit consisting: U2 PM1504 2. A RF Oscillator (27.145MHz) consisting: Q4, Y2 3. A Filter Network consisting: C13, C18 4. A RF Modulator and Amplifier consisting: Q3 5. A Power Supply consisting: 3 x AAA size batteries 6. Buttons consisting: Drive, Front Wheelie, Side Wheelie, Music with, Turn L/R The transmitter uses an external, integral and non-detachable antenna.

SHEET: 1 OF 1 COMPANY: DATED: APP.BY: REV: DRAWN BY: DATED: DATED: CHECK BY: MODEL: DRAWING NO: TOY STATE INDUSTRIAL LTD 62061 TX 27.145MHZ 1.0 Zhou 2012/4/28 TX SCHEMATIC FOR MODEL NO 62061- 27.145MHz APPLICANT:-TOY STATE INDUSTRIAL LTD MODEL NO:-62061 PAGE NO:- 1 OF 1 XIONG XIONG 2012/4/28 2012/4/28 P10 P11 P12 P13 P20 P21 P22 P23 P30 P31 P32 P33 TEST P43 P42 P41 P40 VSSC VSSD VO1B VDD VCC OSCI U2 PM1504 R10 91K + - 4V5 BATT C13 33P ANT1 C14 103P R11 10K L2 2.2UH Q3 2SC3356 R12 10R L1 8.2uH C16 103P L6 2.2UH Y2 27.145MHz R13 100K Q4 2SC1815GR C17 47P R14 220R C18 200P C19 39P C20 100P FW BW Left Right Front Side C21 220uF C22 104 Music R15 2R2 R16 NC C23 102P RFPOWER RFPOWER

INTERTEK TESTING SERVICES Report No.: HK12040942-1 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement Pass

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12040942-1 Toy State International Ltd. Application For Certification (Original Grant) (FCC ID: V9Q-62060F27) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Kwok Yeung, Kenneth Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: Jul 13, 2012 INTERTEK TESTING SERVICES Report No.: HK12040942-1 FCC ID: V9Q-62060F27 i GENERAL INFORMATION Toy State International Ltd. BRAND NAME: N/A, MODEL: 62061 FCC ID: V9Q-62060F27 Grantee: Toy State International Ltd. Grantee Address: 19/F., One Peking, No.1 Peking Road, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Sylvia Siu Tel: 0755-28700378 Fax: 0755-28700487 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 62061 Additional Model: 62063 Asst No.: 62060 Type of EUT: Transmitter Description of EUT: For Your Eyes Only R/C – Aston Martin DBS V12 (Quantum of Solace) Serial Number: N/A FCC ID: V9Q-62060F27 Date of Sample Submitted: April 20, 2012 Date of Test: April 20, 2012 to May 04, 2012 Report No.: HK12040942-1 Report Date: Jul 13, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12040942-1 FCC ID: V9Q-62060F27 ii SUMMARY OF TEST RESULT Toy State International Ltd. BRAND NAME: N/A, MODEL: 62061 FCC ID: V9Q-62060F27 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 Pass Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12040942-1 FCC ID: V9Q-62060F27 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipment List and Description ................................................................ 3 3.0 Emission Results...............................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12040942-1 FCC ID: V9Q-62060F27 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 62061 INTERTEK TESTING SERVICE Report No: HK12040942-1 FCC ID: V9Q-62060F27 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 62061
