V9Q-80350F271st R/C - Dump Truck

COMPANY: DATED: APP.BY: 1 1 REV: DRAWN BY: DATED: DATED: CHECK BY: MODEL: DRAWING NO: SHEET: OF TOY STATE INDUSTRIAL LTD 80350 TX 27M BLOCK DIAGRAM 1.0 1 1 SU 2012/3/13 APPLICANT:-TOY STATE INDUSTRIAL LTD MODEL NO:-80350 BLOCK DIAGRAM OF VERSION:- TX 27.145MHz XIONG 2012/3/13 XIONG 2012/3/13 PAGE NO:- 1 OF 1 MODEL NO:- 80350 Filter L3/C3 TX ANTENNA 27.145MC RF POWER OUTPUT & Modulator Q1 Fundanmental Frequency Oscillator Q2/Y1 27.145MHz Signal 1 Signal 2 FORWARD Control /BACKWARD 3X1.5VDC Battery. Temperature Control Resistor F1/R6 B+1 B+1 B+1 Clock Timing Generator CPU Generator RAM ROM WDT LVR I/O Ports R4 300K

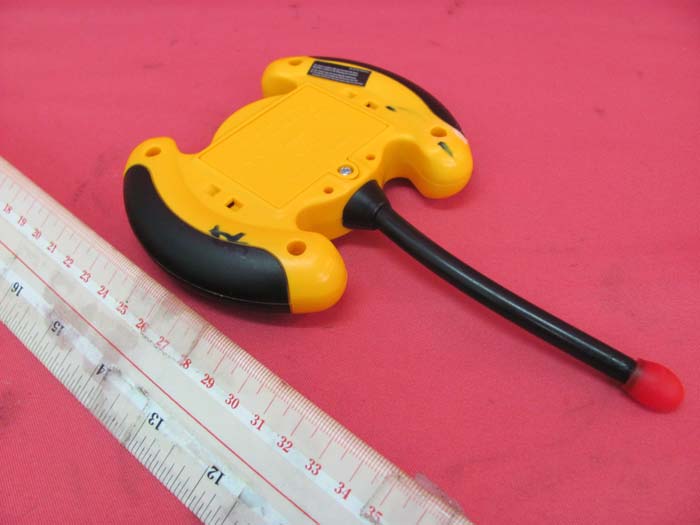

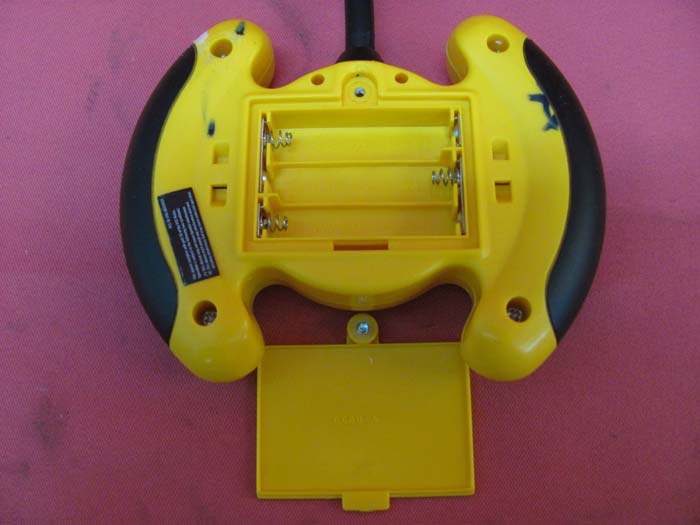

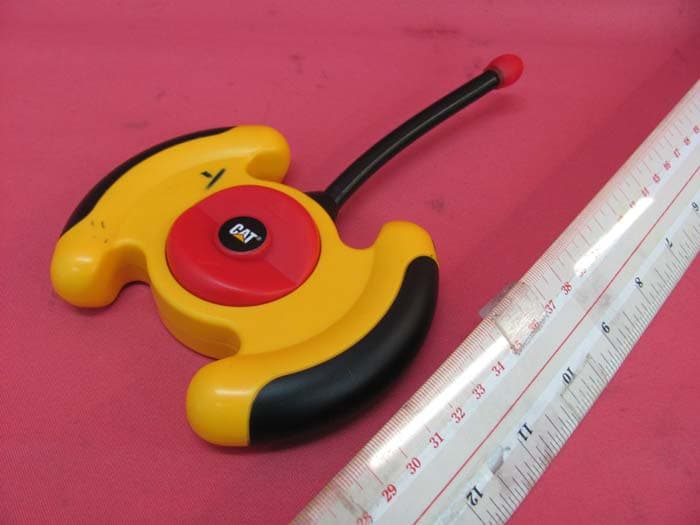

INTERTEK TESTING SERVICE Report No.: HK12040938-1 FCC ID: V9Q-80350F27 Equipment Photographs Model : 80351 (External) INTERTEK TESTING SERVICE Report No.: HK12040938-1 FCC ID: V9Q-80350F27 Equipment Photographs Model : 80351 (External)

FCC ID: V9Q-80350F27 FCC Label and Location FCC ID: V9Q-80350F27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label size 24 x 9 mm

INTERTEK TESTING SERVICE Report No.: HK12040938-1 FCC ID: V9Q-80350F27 Equipment Photographs Model : 80351 (Internal) INTERTEK TESTING SERVICE Report No.: HK12040938-1 FCC ID: V9Q-80350F27 Equipment Photographs Model : 80351 (Internal) INTERTEK TESTING SERVICE Report No.: HK12040938-1 FCC ID: V9Q-80350F27 Equipment Photographs Model : 80351 (Internal)

FCC ID: V9Q-80350F27 Model: 80351 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit consisting: U1 SN5543 2. A RF Oscillator (27.145MHz) consisting: Y1 3. A Filter Network consisting: L3, C3 4. A RF Modulator and Amplifier consisting: Q1, Q2 5. A Power Supply consisting: 3 x AAA size batteries The transmitter uses an external, integral and non-detachable antenna.

COMPANY: DATED: APP.BY: 1 1 REV: DRAWN BY: DATED: DATED: CHECK BY: MODEL: DRAWING NO: SHEET: OF TOY STATE INDUSTRIAL LTD 80350 TX 27M SCH 1.0 1 1 SU 2012/3/13 APPLICANT:-TOY STATE INDUSTRIAL LTD MODEL NO:-80350 TX SCHEMATIC FOR MODEL NO 80350- 27.145MHz XIONG 2012/3/13 XIONG 2012/3/13 PAGE NO:- 1 OF 1 B+1 Q2 2SC1815GR Q1 2SC3356 C4 103 R1 100K C5 47P R3 1K C15 NC C12 47P R5 220R C10 103 C8 180P R2 47K C1 100P C3 47P C9 NC C2 103 1 PWM+/DAC 2 VDD-SPK 3 PWM- 4 VSS-SPK 5 BP10 6 BP11 7 BP12 8 BP13 9 BP03 10 BP02 11 BP01 12 VSS 13 OSCI 14 VDD 15 BP00 16 /RESET U1 SN5543 R4 300K J1 R6 2.2R B1 4.5V R7 100K C6 104 C7 103 C11 100uF R8 100K L1 2.2uH L2 2.2uH T1 NC L3 8.2uH Y1 27.145MHz ANT FW BW R9 NC J2 J3 F1 400mA

INTERTEK TESTING SERVICES Report No.: HK12040938-1 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 Figure 1 Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12040938-1 Toy State International Ltd. Application For Certification (Original Grant) (FCC ID: V9Q-80350F27) Transmitter Prepared and Checked by: Approved by: Signed On File Kung Wing Cheong, Steven Engineer Chan Chi Hung, Terry Assistant Supervisor Date: July 20, 2012 INTERTEK TESTING SERVICES Report No.: HK12040938-1 FCC ID: V9Q-80350F27 i GENERAL INFORMATION Toy State International Ltd. BRAND NAME: N/A, MODEL: 80351 FCC ID: V9Q-80350F27 Grantee: Toy State International Ltd. Grantee Address: 19/F., One Peking, No.1 Peking Road, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Sylvia Siu Tel: 0755-28700378 Fax: 0755-28700487 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 80351 Additional Model: 80352 Asst No.: 80350 Type of EUT: Transmitter Description of EUT: 1 st R/C – Dump Truck Serial Number: N/A FCC ID: V9Q-80350F27 Date of Sample Submitted: April 20, 2012 Date of Test: April 20, 2012 to May 04, 2012 Report No.: HK12040938-1 Report Date: Jul 20, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12040938-1 FCC ID: V9Q-80350F27 ii SUMMARY OF TEST RESULT Toy State International Ltd. BRAND NAME: N/A, MODEL: 80351 FCC ID: V9Q-80350F27 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 Pass Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12040938-1 FCC ID: V9Q-80350F27 iii Table of Contents 1.0 General Description........................................................................................................1 1.1 Product Description............................................................................................................1 1.2 Related Submittal(s) Grants..............................................................................................1 1.3 Test Methodology...............................................................................................................1 1.4 Test Facility.........................................................................................................................1 2.0 System Test Configuration............................................................................................2 2.1 Justification.........................................................................................................................2 2.2 EUT Exercising Software..................................................................................................2 2.3 Special Accessories...........................................................................................................2 2.4 Equipment Modification.....................................................................................................2 2.5 Measurement Uncertainty.................................................................................................2 2.6 Support Equipment List and Description.........................................................................3 3.0 Emission Results …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12040938-1 FCC ID: V9Q-80350F27 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 80351 INTERTEK TESTING SERVICE Report No: HK12040938-1 FCC ID: V9Q-80350F27 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 80351
