V9Q-90410F27TurboChargers R/C - Yur So Fast TM

4 For questions, e-mail our Consumer Service Dept. at [email protected] Or Call 1-877-473-8015 www.toystate.com NOTE: This de vice compl ie s with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this devic e may not cause harmful interference, and (2) this de vic e must accept any interference recei ved, including interference that may cause un de si red operation. Warning: Cha nges or modifications to this un it not expr essly appr oved by the party responsibl e for complia nce could void the use r’s authority to operate the equipment. NOTE: This equ ipment ha s been tested and found to compl y with the limits for a Cla ss B dig ital de vic e, pursuant to Part 15 of the FCC Rules. These limits are desig ned to pr ovid e reasona ble protection ag ainst ha rmful interference in a residentia l installa tion. This equipment generates, uses and can rad ia te rad io frequency energy and, if not installe d and used in accordance with the instructions, may cause harmful interference to rad io communications. However, the re is no gu arantee that interference will not occu r in a particula r installa tion. If this equipment does cause ha rmful interference to rad io or televisi on reception, which can be de termined by turning the equ ipment off and on, the user is encouraged to try to correct the interference by one or more of the following measur es: - Reorie n t or rel ocate the recei ving antenna. - Incr ease the separation between the equipment and recei ver. - Connect the equipment into an outlet on a circuit different from tha t to which the recei ver is conn ected. - Consult the de aler or an experienced rad io/TV techn ic ia n for hel p. FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE “Modifications not authorized by the manufacturer may void users authority to operate the devic e.” This toy and all accessori es need to be periodically examined for potential hazards and any potentially hazardous parts be repaired or replaced. MANUFACTURER’S NOTE ATTENTION PARENTS CLEANING AND MAINTAINING ENG www.toystate.com CONTROLLERVEHICLE Batteries Not IncludedBatteries Not Included RADIO CONTROL NITRO CHARGER 6+ #90410 OWNER’S MANUAL Brush areas where dirt and dust ge t trapped. Wipe body off with a soft rag or tact cloth.Do not clean vehicle with chemicals or water. 3 x AAA/LR034 x AA/LR6 MADE IN SHENZHEN, CHINA TOY STATE INTERNATIONAL LIMITED 66 MODY ROAD, KOWLOON, HONG KONG IN THE INTEREST OF BETTER QUALITY AND VALUE, WE ARE CONSTANTLY IMPROVING AND UPDATING OUR PRODUCTS. CONSEQUENTLY, PICTURES IN THIS INSTRUCTION SHEET MAY SOMETIMES DIFFER FROM THE MODEL ENCLOSED. WARNING: Not suitable for children under 36 months due to small parts. Choking hazard. HOT WHEELS and associated trademarks and trade dress are owned by, and used under license from Mattel. ©2013 Mattel. All Rights Reserved. After play, always turn vehicle off. Remove batteries from controller and R/C vehicle when not in use or when storing. Leakage may occur and cause damage if left for a long period of time. Turbo Mode Tur n Left & Right Drive Forward & Reverse Turns In All Directions! Accelerate With Turbo Boost! ENG TROUBLESHOOTING AND CARE FOR R/C VEHICLE 3 R/C VEHICLE DOES NOT MOVE • Are the + and – contacts correctly matched in the controller? • Are the metal contact tabs touching, rusty or dirty in controller? • Are there batteries in the vehicle and controller? • Is the power switch turned on? • Are the batteries weak or out of power? R/C VEHICLE MOVES BY ITSELF • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by. R/C VEHICLE RUNS SLOWLY • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by. • Are the batteries weak or out of power? PERFORMANCE DROP, INCONSISTENT MOVEMENT OR FAILS TO RUN Check batteries. If necessary, replace the batteries in the R/C vehicle and controller with new alkaline batteries. Radio waves control the R/C vehicle. Care for your vehicle and it will provide hours of fun! Avoid water, heat, sand and high impact crashes! TREAT YOUR R/C VEHICLE WELL Store in safe place.No direct sunlight.No rain or water.No sand or dust. No Collisions. R/C vehicle may get stuck on carpet or grass. Avoid running 2 vehicles with the same radio control frequencies. LIMITED RADIO CONTROL RANGE While R/C vehicle may be visible at a distance, full operational control may be lost. Hold controller high in the air and direct vehicle back. INTERFERENCE Other radio signals may cause loss of control. Remove vehicle from an area of interference. ENG 21 OPERATING R/C VEHICLE NOTE: For best performance, always use alkaline batteries only. CAUTION Important Battery Information • Dispose of batteries properly. • Do not dispose of batteries in fire. • Use only batteries of the type recommended. • Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Remove batteries from R/C vehicle and controller if vehicle will not be used for a long period of time. GETTING STARTED Remove the R/C vehicle and controller from the package. Insert batteries into the R/C vehicle and controller to begin full function play (see “Battery Installation” section for further details). ENGENG CONTROLLER TO REPLACE THE BATTERIES LOOSEN SCREW TO OPEN 1.5V 1.5V 1.5V 1. To remove battery cover, loosen screw to open. 2. Insert 3 “AAA” batteries into the controller. Be sure the + and – are properly matched. R/C VEHICLE TO REPLACE THE BATTERIES LOOSEN SCREW TO OPEN 1.5V1.5V1.5V1.5V 1. To remove battery cover, loosen screw to open. 2. Insert 4 “AA” batteries into the vehicle. Be sure the + and – are properly matched. Adjust Trim Switch on bottom of R/C vehicle to ensure precision driving BATTERY INSTALLATION ONOFF ONOFF PLAYDEMOOFF PLAYDEMOOFF ONOFF ONOFF PLAYDEMOOFF PLAYDEMOOFF Turn ON/OFF switch located on bottom of R/C vehicle to the ON position (as shown) STRONG BA…

Text truncated - open the document above for the full version.

COMPANY: DATED: APP.BY: 1 1 REV: DRAWN BY: DATED: DATED: CHECK BY: MODEL: DRAWING NO: SHEET: OF TOY STATE INDUSTRIAL LTD 90410 TX 27M BLOCK DIAGRAM 1.0 1 1 CHEN 2013/9/27 APPLICANT:-TOY STATE INDUSTRIAL LTDMODEL NO:-90410 BLOCK DIAGRAM OF VERSION:- TX 27.145MHz XIAO 2013/9/27 XIAO 2013/9/27 PAGE NO:- 1 OF 1 MODEL NO:- 90410 Filter L3/C8 TX ANTENNA 27.145MC RF POWER OUTPUT & Modulator Q2 Fundanmental FrequencyOscillator Q1/Y1 27.145MHz Signal 1 Signal 2 3X1.5VDC Battery. Temperature Control Resistor R6 VDD VDD VDD Clock Timing Generator CPU Generator RAMROMWDTLVR I/O Ports FORWARD/BACKWARD Control LEFT/RIGHT VDD TRUBO X1 455K

TOY STATE INTERNATIONAL LIMITED Unit 905, 9/F, West Wing, Tsim Sha Tsui Centre,66 Mody Road, TST East, Kowloon, H.K. Phone: (852) 2757-8281Fax: (852) 2318-1884E-mail: [email protected] Letter of Agency 〝I, an officer ofToy State International Ltd.do hereby authorize lntertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice.〞 l further certify that no party(as defined in§ §§ § 1.2002(b)of 1.2002(b)of1.2002(b)of 1.2002(b)of CFR CFRCFR CFR 47.2004)to 47.2004)to47.2004)to 47.2004)to this thisthis this application, application,application, application, including includingincluding including myself, myself,myself, myself, is isis is subject subjectsubject subject to toto to a aa a denial denialdenial denial of ofof of federal federalfederal federal benefits, benefits,benefits, benefits, that thatthat that includes includesincludes includes FCC FCCFCC FCC benefits, benefits,benefits, benefits, pursuant pursuantpursuant pursuant to toto to Section SectionSection Section 5301 53015301 5301 of ofof of the thethe the Anti-Drug Anti-DrugAnti-Drug Anti-Drug Abuse AbuseAbuse Abuse Act ActAct Act of ofof of 1988,21 1988,211988,21 1988,21 U.S.C.,862. U.S.C.,862.U.S.C.,862. U.S.C.,862. Dated this8 th dayOctof 2013 By Signature Jason Ng Printed Name Quality Assurance Manager Title Remark: The person who signs this authorization letter mustbe the grantee contact of record in the Grantee Code data base. Nov 2011

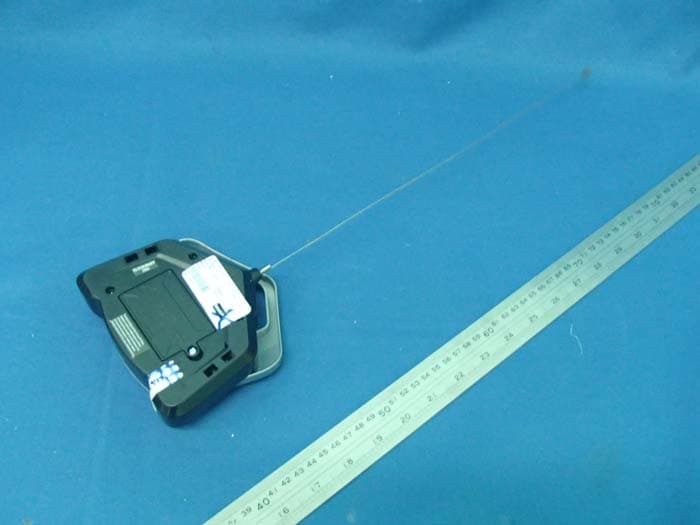

INTERTEK TESTING SERVICE Report No.: 13091199HKG-001 Equipment Photographs Model : 90411 (External) FCC ID: V9Q-90410F27

INTERTEK TESTING SERVICE Report No.: 13091199HKG-001 Equipment Photographs Model : 90411 (Internal) FCC ID: V9Q-90410F27 INTERTEK TESTING SERVICE Report No.: 13091199HKG-001 Equipment Photographs Model : 90411 (Internal) FCC ID: V9Q-90410F27 INTERTEK TESTING SERVICE Report No.: 13091199HKG-001 Equipment Photographs Model : 90411 (Internal) FCC ID: V9Q-90410F27 INTERTEK TESTING SERVICE Report No.: 13091199HKG-001 Equipment Photographs Model : 90411 (Internal) FCC ID: V9Q-90410F27

FCC ID: V9Q-90410F27 Model: 90411, 90412 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: U1 2. Control buttons Consisting: LEFT, RIGHT, BW, FW, TUR, A, B 3. A RF Oscillator (27.145MHz) Consisting: Y1 4. A Filter Network Consisting: L3, C8, C7 5. A RF Modulator and Amplifier Consisting: Q2, Q1 6. A Power Supply Consisting: 4.5VDC (3 X “1.5V” AAA batteries) Antenna Gain: 0dBi Nominal rated field strength: 75.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna.

Analysis Report Report No.: 13091199HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 4.5 V DC source (3 x 1.5V AAA batteries). The EUT has two forward or backward control levers to control the left wheels and right wheel of the receiver of the RC Car. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, left or right. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 75.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 78.8dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.02276mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.02276mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

COMPANY: TOY STATE INDUSTRIAL LTD MODEL: VER: DATE:2013-09-27 DWN:CHEN CHK:XIAO DATE:2013-09-27 APP:XIAO DATE:2013-09-27 90410 TX 27.145MHZ 90410 TX 27MHZ-A/B AB ID SELECT C8 68P L2 2.2uH 1 ANT Q22SC3356 C6 120P C11 47P R31K C5 47P C7 100p R2 10R BAT AAAX3 R1 100K L3 6.8uH/Q>95 R4 10K Y1 270145MHz Q1 2SC1815GR L4 2.2uH TUR C1 0.1uF R6 10R LEFT FW RIGHT BW 1 NC 2 R 3 A0 4 GND 5 BW 6 TUR 7 FW 8 A1 16 NC 15 L 14 NC 13 OSCI 12 OSCO 11 PC 10 VDD 9 SO/SC U1 TT10S X1 455E C02 20P C01 20P C3 103 C10 103 C4 103 1 2 3 4 C13 4.7uF C2 104 C12 104 C9 NC TX-DATA PC VDD PC TX-DATA VDD VDD

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13091199HKG-001 i FCC ID: V9Q-90410F27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Toy State International Ltd. BRAND NAME: N/A, MODEL: 90411 90412 FCC ID: V9Q-90410F27 Grantee: Toy State International Ltd. Grantee Address: Unit 905, 9/F., West Wing, Tsim Sha Tsui Centre, 66 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Hewitt Lit / Jason Ng Tel: 0755-36806243 Fax: 0755-28700487 e-mail: [email protected]; [email protected] Manufacturer: ShenZhen Nanling Toys Products Co., Ltd. Manufacturer Address: 132 Busha Road, Nanling Village, Buji Town, 518114 Shenzhen, China. Brand Name: N/A Model: 90411 Additional Model: 90412 Asst. No.: 90410 Type of EUT: Transmitter Description of EUT: TurboChargers R/C - Yur So Fast™ (90411); TurboChargers R/C - 24 Ours™ (90412) Serial Number: N/A FCC ID: V9Q-90410F27 Date of Sample Submitted: September 30, 2013 Date of Test: October 07, 2013 Report No.: 13091199HKG-001 Report Date: October 17, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13091199HKG-001 ii FCC ID: V9Q-90410F27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Toy State International Ltd. BRAND NAME: N/A, MODEL: 90411 90412 FCC ID: V9Q-90410F27 TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13091199HKG-001 iii FCC ID: V9Q-90410F27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 6 5.0 Product Labelling................................................................................................ 6 6.0 Technical Specifications ..................................................................................... 6 7.0 Instruction Manual ...................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13091199HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 90411 FCC ID: V9Q-90410F27 INTERTEK TESTING SERVICE Report No: 13091199HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 90411 FCC ID: V9Q-90410F27
