V9Q-90430F27High Jump RC -2 Asst

4 For questions, e-mail our Consumer Service Dept. at [email protected] Or Call 1-877-473-8015 www.toystate.com NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Contains 1 x 3.7V LiPo battery pack. Requires 3 x 1.5 V A A (LR6) alkaline batteries (not included). Batteries or battery packs must be recycled or disposed of properly. When this product has reached the end of its useful life it should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment Regulations require it to be separately collected so that it can be treated using the best available recovery and recycling techniques. This will minimize the impact on the environment and human health from soil and water contamination by any hazardous substances, decrease the resources required to make new products and avoid using up landfill space. Please do your part by keeping this product out of the municipal waste stream! The “wheelie bin” symbol means that it should be collected as “waste electrical and electronic equipment”. You can return an old product to your retailer when you buy a similar new one. For other options, please contact your local council. FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE “Modifications not authorized by the manufacturer may void users authority to operate the device.” This toy and all accessories need to be periodically examined for potential hazards and any potentially hazardous parts be repaired or replaced. MANUFACTURER’S NOTE ATTENTION PARENTS CLEANING AND MAINTAINING ENG www.toystate.com CONTROLLERVEHICLE Batteries Not IncludedIncluded (Non-Removable) 8+ #90430 OWNER’S MANUAL Brush areas where dirt and dust get trapped. Wipe body off with a soft rag or tact cloth.Do not clean vehicle with chemicals or water. 3 x AAA/LR03 RECHARGABLE LiPo MADE IN SHENZHEN, CHINA TOY STATE INTERNATIONAL LIMITED 66 MODY ROAD, KOWLOON, HONG KONG IN THE INTEREST OF BETTER QUALITY AND VALUE, WE ARE CONSTANTLY IMPROVING AND UPDATING OUR PRODUCTS. CONSEQUENTLY, PICTURES IN THIS INSTRUCTION SHEET MAY SOMETIMES DIFFER FROM THE MODEL ENCLOSED. WARNING: Not suitable for children under 36 months due to small parts. Choking hazard. HOT WHEELS and associated trademarks and trade dress are owned by, and used under license from Mattel. ©2014 Mattel. All Rights Reserved. RADIO CONTROL JUMP & FLIP STUNTS! Important! Carefully read the Owners Manual before play! After play, always turn vehicle off. Remove batteries from controller when not in use or when storing. Leakage may occur and cause damage if left for a long period of time. Full function R/C with spins! Jumps and does flips! ENG TROUBLESHOOTING AND CARE FOR R/C VEHICLE 3 Radio waves control the R/C vehicle. Care for your vehicle and it will provide hours of fun! Avoid water, heat, sand and high impact crashes! TREAT YOUR R/C VEHICLE WELL Store in safe place.No direct sunlight.No rain or water.No sand or dust. No Collisions.R/C vehicle may get stuck on carpet or grass. Avoid running 2 vehicles with the same radio control frequencies. LIMITED RADIO CONTROL RANGE While R/C vehicle may be visible at a distance, full operational control may be lost. Hold controller high in the air and direct vehicle back. INTERFERENCE Other radio signals may cause loss of control. Remove vehicle from an area of interference. ENG 2 1 OPERATING R/C VEHICLE What’s included Remove the R/C vehicle, controller and charger from the package. Insert batteries into the controller and use the charger to fully charge the internal battery in the vehicle to begin play (see “Battery Installation” section for further details). ENGENG ONOFF ONOFF PLAYDEMOOFF PLAYCHARGEOFF PlayCharge OFF PlayCharge OFF ONOFF ONOFF PLAYDEMOOFF PLAYCHARGEOFF PlayCharge OFF PlayCharge OFF Turn switch located on back of R/C vehicle to the PLAY position (as shown). Important Battery Information • Dispose of batteries properly. • Do not dispose of batteries in fire. • Use only batteries of the type recommended. • Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. CAUTION • Do not mix old and new batteries. • Remove batteries from R/C controller if vehicle will not be used for a long period of time. • Do not attempt to remove the LiPo battery from the vehicle. Internal LiPo Battery Removal Instructions: At the end of this product’s life span, the internal battery must be removed by an adult and recycled. Do not puncture, cut, tear, compress, bend or deform the battery in any way. Ensure the vehicle is turned …

Text truncated - open the document above for the full version.

COMPANY: DATED: APP.BY: 1 1 REV: DRAWN BY: DATED: DATED: CHECK BY: MODEL: DRAWING NO: SHEET: OF TOY STATE INDUSTRIAL LTD 90430 TX 27M BLOCK DIAGRAM 1.0 1 1 CHEN 2014/3/18 APPLICANT:-TOY STATE INDUSTRIAL LTDMODEL NO:-90430 BLOCK DIAGRAM OF VERSION:- TX 27.145MHz XIAO 2014/3/18 XIAO 2014/3/18 PAGE NO:- 1 OF 1 MODEL NO:- 90430 Filter L3/C8 TX ANTENNA 27.145MC RF POWER OUTPUT & Modulator Q1 Fundanmental FrequencyOscillator Q2/Y1 27.145MHz Signal 1 Signal 2 3X1.5VDC Battery. Temperature Control Resistor R6 VCC VCC VCC FORWARD/BACKWARD Control LEFT/RIGHT VCC CHAIN JUMP PW0340 RESISTOR OSC U1 R5

TOY STATE INTERNATIONAL LIMITED Unit 905, 9/F, West Wing, Tsim Sha Tsui Centre,66 Mody Road, TST East, Kowloon, H.K. Phone: (852) 2757-8281Fax: (852) 2318-1884E-mail: [email protected] Letter of Agency 〝I, an officer ofToy State International Ltd.do hereby authorize lntertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice.〞 l further certify that no party(as defined in§ §§ § 1.2002(b)of 1.2002(b)of1.2002(b)of 1.2002(b)of CFR CFRCFR CFR 47.2004)to 47.2004)to47.2004)to 47.2004)to this thisthis this application, application,application, application, including includingincluding including myself, myself,myself, myself, is isis is subject subjectsubject subject to toto to a aa a denial denialdenial denial of ofof of federal federalfederal federal benefits, benefits,benefits, benefits, that thatthat that includes includesincludes includes FCC FCCFCC FCC benefits, benefits,benefits, benefits, pursuant pursuantpursuant pursuant to toto to Section SectionSection Section 5301 53015301 5301 of ofof of the thethe the Anti-Drug Anti-DrugAnti-Drug Anti-Drug Abuse AbuseAbuse Abuse Act ActAct Act of ofof of 1988,21 1988,211988,21 1988,21 U.S.C.,862. U.S.C.,862.U.S.C.,862. U.S.C.,862. Dated this1st dayAprof 2014 By Signature Jason Ng Printed Name Quality Assurance Manager Title Remark: The person who signs this authorization letter mustbe the grantee contact of record in the Grantee Code data base. Nov 2011

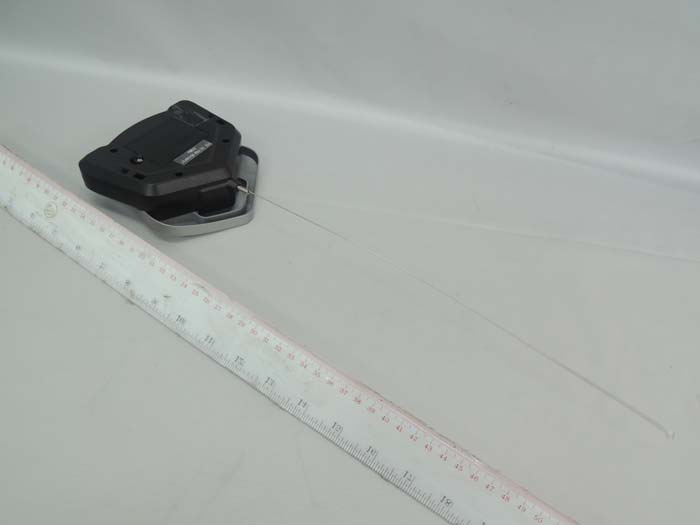

INTERTEK TESTING SERVICE Report No.: 14030927HKG-001 Equipment Photographs Model : 90431 (External) FCC ID: V9Q-90430F27

Label Size: 22mm x 10mm Label Size: 34mm x 12mm

INTERTEK TESTING SERVICE Report No.: 14030927HKG-001 Equipment Photographs Model : 90431 (Internal) FCC ID: V9Q-90430F27 INTERTEK TESTING SERVICE Report No.: 14030927HKG-001 Equipment Photographs Model : 90431 (Internal) FCC ID: V9Q-90430F27 INTERTEK TESTING SERVICE Report No.: 14030927HKG-001 Equipment Photographs Model : 90431 (Internal) FCC ID: V9Q-90430F27

FCC ID: V9Q-90430F27 Model: 90431, 90432 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left, right and jump. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: U1 2. Control buttons Consisting: S1, S2, S3, S4, S5, S6 3. A RF Oscillator (27.145MHz) Consisting: Y1, Q2 4. A Filter Network Consisting: L3, C8, 5. A RF Modulator and Amplifier Consisting: Q1 6. A Power Supply Consisting: 4.5VDC (3 X “1.5V” AAA batteries) Antenna Gain: 0dBi Nominal rated field strength: 76.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna.

Analysis Report Report No.: 14030927HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 4.5 V DC source (3 x 1.5V AAA batteries). The EUT has a pair of control keys to control the left wheels and right wheel of the receiver of the RC Car to move forward, backward, left and right. The EUT has another pair of keys to control the receiver of the RC Car to jump. After switching ON the EUT and the receiver of the RC Car, activating the control keys on the EUT can control the receiver moving forward, backward, left, right or jump. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 76.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 79.5dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0267mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0267mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

COMPANY: MODEL: VER: DATE: DWN. CHK. DATE: APP. DATE: TOY STATE INDUSTRIAL LTD 深圳南岭玩具制品有限公司 表号 :28-F-004 版本 :A/0 原 理 图 JUMP HIGH CAR TX 27MHz SCH 1.0 Remark:1.ID1 RA:open 2.ID2 RA:0R 陈宇 2014-3-18 肖建国肖建国 2014-3-18 2014-3-18 Q2 2SC1815GR Q12SC3356 R1 100K C1147P R3 1K C10103 C547P R2 2.2R C4103 C6200P R4 10K C7 100P C8180P C9NC C3 103 L1 2.2uH L2 2.2uH L3 6.8uH Y1 27.145MHz C12104 C2103 C1 100uF C13 104 R5 300K S1 FW S2 BW S3 LEFT S4 RIGHT S5 K5 B1 4V5 R6 2.2R S6 K6 16 P00 15 P01 14 P02 13 P03 12 P10 11 P11 10 P12 9 P13 8 P20 7 P21 6 P22 5 P23 21 P30 22 P31 23 P32 24 P33 25 P40 26 P41 27 P42 28 P43 18 RESET 20 OSC 1 PWM+ 3 PWM- 2 VDD-SPK+ 19 VDD 17 VSS 4 VSS-SPK- U1 PW0340 R7 330R LED1 RA C14104 CRTL 38KHZ SIGNAL SIGNAL CRTL VCC

r:Í'jr: ':¿ Valued Quality. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for spec¡f¡c laboratory activit¡es as listed in the HOKLAS directory of accredited laboratories. The results shown ¡n this report were determined by this laboratory in accordance with its terms of accreditat¡on. TEST REPORT Report No. : I 4030927H KG-001 Toy State lnternational Ltd. Application For Certification (Original Grant) (FCC ID: V9Q-90430F271 Transmitter Approved by: Prepared and Checked by: Tse Ying, Cathy Senior Lead Engineer Date:April 17, 2014 The test report only allows to be rev¡sed w¡thin the retent¡on pêriod unless furthêr standatd or the requirgment was not¡cad. This Eport is for the exclus¡ve use of lntertek's Client and ¡s prov¡ded pursuant to the agreement bstwêên lntertek and ¡ts Cl¡ent. lntêrtsks rêsponsibility and liab¡l¡ty are limitèd to the terms and ænd¡t¡ons of the agreemênt. lntertek assumes no l¡ability to any party, other than to the Client ¡n acærdanæ with the agrêement, for any loss, expense or damage occasioned by tho use of this report. Only the Client is authorized to perm¡t copying or distr¡bution of th¡s report and then only ¡n ¡ts ent¡rety. Any use of the lntertek name or one of ¡ts marks for the sale or advert¡sement of the têsted mater¡al, product or seruiæ must f¡rst be aPProved ¡n w¡t¡ng by lntertek. The obseruat¡ons and test results ¡n th¡s report are relêvant only to the sample tested. This report by itself doès not imply that the mater¡al, product, or serv¡ce ¡s or has èver bæn under an lntertek ært¡fìætion prcgram. lntertek Testing Services Hong Kong Ltd. ZF., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Webs¡te: www.hk.intertek-etlsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14030927HKG-001 i FCC ID: V9Q-90430F27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Toy State International Ltd. Grantee Address: Unit 905, 9/F., West Wing, Tsim Sha Tsui Centre, 66 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Jason Ng Tel: 0755-3680 6243 Fax: 0755-2870 0487 e-mail: N/A Manufacturer: ShenZhen Nanling Toys Products Co., Ltd. Manufacturer Address: 132 Busha Road, Nanling Village, Buji Town, 518114 Shenzhen, China. Brand Name: N/A Asst. No.: 90430 Model: 90431 Additional Model: 90432 Type of EUT: Transmitter Description of EUT: High Jump RC - 2 Asst Serial Number: N/A FCC ID: V9Q-90430F27 Date of Sample Submitted: March 21, 2014 Date of Test: March 21, 2014 to April 10, 2014 Report No.: 14030927HKG-001 Report Date: April 17, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14030927HKG-001 ii FCC ID: V9Q-90430F27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14030927HKG-001 iii FCC ID: V9Q-90430F27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration .....…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14030927HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 90431 FCC ID: V9Q-90430F27 INTERTEK TESTING SERVICE Report No: 14030927HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 90431 FCC ID: V9Q-90430F27
