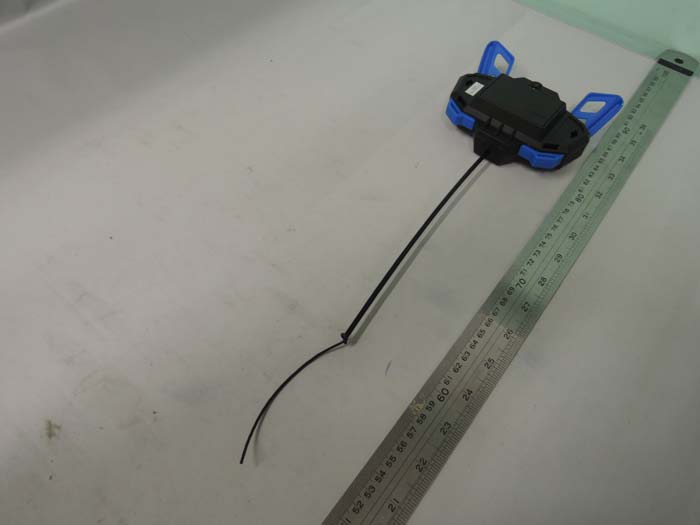

INTERTEK TESTING SERVICE Report No.: 15030916HKG-001 Equipment Photographs Model : 94141 (External) FCC ID: V9Q-94140T49

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1).This device may not cause harmful interference,and 2).This device must accept any interference received, including interference that may cause undesired operation. 49MHz FCC ID:V9Q-94140T49

INTERTEK TESTING SERVICE Report No.: 15030916HKG-001 Equipment Photographs Model : 94141 (Internal) FCC ID: V9Q-94140T49 INTERTEK TESTING SERVICE Report No.: 15030916HKG-001 Equipment Photographs Model : 94141 (Internal) FCC ID: V9Q-94140T49 INTERTEK TESTING SERVICE Report No.: 15030916HKG-001 Equipment Photographs Model : 94141 (Internal) FCC ID: V9Q-94140T49 INTERTEK TESTING SERVICE Report No.: 15030916HKG-001 Equipment Photographs Model : 94141 (Internal) FCC ID: V9Q-94140T49

FCC ID: V9Q-94140T49 Model: 94141 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.86 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. Control buttons Consisting: K1, K2, K3 and K4 2. An Encoding circuit Consisting: IC1 (TX-2) 3. A RF Oscillator (49.86MHz) Consisting: X1, Q1 4. A Filter Network Consisting: L3,L4,C3,C7 and C8 5. A RF Modulator and Amplifier Consisting: Q2 6. A Power Supply Consisting: 4.5VDC (3 x 1.5V AAA size batteries) Antenna Gain: 0dBi Nominal rated field strength: 74.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external, integral antenna.

Analysis Report Report No.: 15030916HKG-001 The Equipment Under Test (EUT) is a transmitter of a remote control car operating at 49.860 MHz as dictated by a crystal. The EUT is powered by a 4.5VDC source (3 x 1.5V AAA size batteries). The EUT has two sticks for controlling the car to move forward, backward, left and right. After switching ON the EUT and the receiver of the remote car, the car will be activated by press either one of the button. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 74.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 77.5dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.01687mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.01687mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

DATE: DWN. CHK. DATE: APP. DATE: COMPANY: TOY STATE INDUSTRIAL LTD MODEL: VER: DATE: DWN. CHK. DATE: APP. DATE: ANT. SIZE "AAA" 1.5V X 3 94140 - TX-49M 1.0 94140-TX SCHEMATIC FOR MODEL NO.94140-49.860MHz 49.860MHz Chen XiaoXiao 2015-4-24 2015-4-24 2015-4-24 Q1 SOT23 9014C Q2 SOT23 9014C R3 0603 100R C2 0603100p C3 0603 330p C50603100p C70603100p R2 0603 27K L2 0805 1uH L3 EC36 0.56uH L4 EC36 2u2 K1 0381C FW R1 0603 100K C1 060310P L1 0805 1uH X1 49S-SMD 49.860M TP3 TP4 TP1 TP2 TP9 TP6 TP5 TP7 TP8 T7 1 234 56 7 8 9 1112 1314 10 IC1 SOP14TX-2 K2 0381C BW K3 0381C R K4 0381C L C120603 103 R6 0603 5K6 R5 0603 180K C110603 104 C9 0603104 C8060324p R4 0603 470R C6103 C4NC C13NC R7 0603 2R2 C100603 4.7uF
