ZINUS (Xiamen) Co.,Ltd Phone: 86-592-6662920 Zinus Industrial Bldg. Fax: 86-592-6296624 Huanzhu Road, Jimei, Xiamen, Fujian, China 361022 Explanation for FCC’s RT TO: Federal Communication Commission Please kindly be notified that we, ZINUS(Xiamen) Co., Ltd herein explain the cease transmission time mentioned in the original operational description to the FCC ID: VB61101-01 for the following reason: 1. Spelling error: the designed ceasing time for the transmission should be 1.0-1.5s but not 10-15s. Based the reason above, we decided to reverse the operational description as “After the switch triggered, the transmission will maintain no more than 5s and then be turned off immediately”. Please kindly accept our explanation. Thank you. Sincerely, March 17, 2011 (Signature) Company: ZINUS(Xiamen) Co.,Ltd Tel: 86-592-6662920 Fax:86-592-6296624 Email: [email protected]

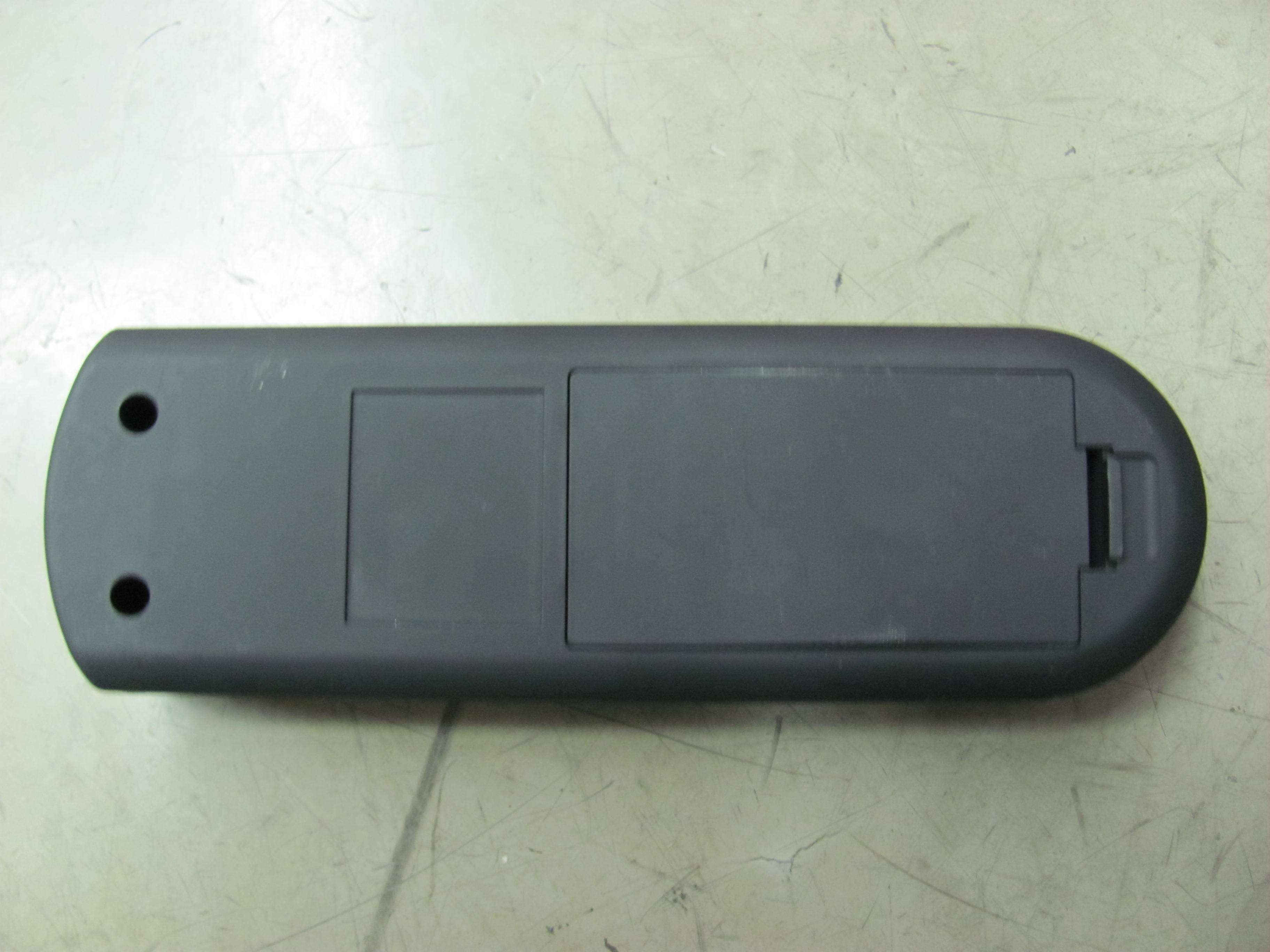

FCC ID: VB61101-01 Page 1 of 2 External Picture FCC ID: VB61101-01 Page 2 of 2

POWERED BY MASSAGE MODEL: VBP INPOUT:DC 4.5V FCC ID: VB61101-01

FCC ID: VB61101-01 Page 1 of 3 Internal Picture FCC ID: VB61101-01 Page 2 of 3 FCC ID: VB61101-01 Page 3 of 3

FCC ID: VB61101-01 Page 1 of 19 EMC TEST REPORT No. SH11010524-001 Applicant : ZINUS(Xiamen) Co., Ltd ZINUS Bldg., No.461-469 Huanzhu Road, Jimei District, Xiamen, China Manufacturer : ZINUS(Xiamen) Co., Ltd ZINUS Bldg., No.461-469 Huanzhu Road, Jimei District, Xiamen, China Equipment : MASSAGE MATTRESS (remote controller part) Type/Model : VBP SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2009): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Date of issue: Feb 23, 2011 Prepared by: Reviewed by: Wakeyou Wang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: VB61101-01 Page 2 of 19 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: VB61101-01 Page 3 of 19 Content SUMMARY ..........................................................................................................................................................1 DESCRIPTION OF TEST FACILITY..........................................................................................................................2 1. GENERAL INFORMATION.............................................................................................................................4 1.1 Applicant Information ......................................................................................................4 1.2 Identification of the EUT .................................................................................................4 1.3 Technical specification.....................................................................................................5 1.4 Mode of operation during the test / Test peripherals used ..............................................5 2. TEST SPECIFICATION...................................................................................................................................6 2.1 Instrument list...................................................................................................................6 2.2 Test Standard....................................................................................................................6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION....................................8 3.1 Test limit...........................................................................................................................8 3.2 Test Configuration ...........................................................................................................9 3.3 Test procedure and test setup ...........................................................................................9 3.4 Test protocol...................................................................................................................10 4. DEACTIVATING TIME.................................................................................................................................11 4.1 Test limit.........................................................................................................................11 4.2 Test Configuration .........................................................................................................12 4.3 Test procedure and test setup .........................................................................................12 4.4 Test protocol...................................................................................................................12 5. POWER LINE CONDUCTED EMISSION.........................................................................................................13 5.1 Limit ...............................................................................................................................13 5.2 Test configuration ..........................................................................................................13 5.3 Test procedure and test set up ........................................................................................14 5.4 Test protocol...................................................................................................................15 6. EMISSION BANDWIDTH..............................................................................................................................16 6.1 Test limit.........................................................................................................................16 6.2 Test Configuration .........................................................................................................16 6.3 Test procedure and test setup .........................................................................................16 6.4 Test protocol...................................................................................................................17 7. OCCUPIED BANDWIDTH.............................................................................................................................18 7.1 Test limit.........................................................................................................................18 7.2 Test Configuration .........................................................................................................18 7.3 Test procedure and test setup .........................................................................................18 7.4 Test protocol...................................................................................................................19 FCC ID: VB61101-01 Page 4 of 19 1. General Information 1.1 Applicant Information Applicant: ZINUS(Xiamen) C…

Text truncated - open the document above for the full version.

FCC ID: VB61101-01 Page 1 of 14 Test Data FCC ID: VB61101-01 Page 2 of 14 1. Fundamental & Spurious Emission & Restrict band radiated emission Horizontal 30-1000MHz 20 30 40 50 60 70 80 90 Level [dB礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x MES bed_TX02_H3_red MES bed_TX02_H3_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VB61101-01 Page 3 of 14 Restrict band 0 10 20 30 40 50 60 70 80 Level [dB礦/m] 399.9M402M404M406M408M410M Frequency [Hz] MES bed_TX02_HR3_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VB61101-01 Page 4 of 14 1000-5000MHz 0 10 20 30 40 50 60 70 80 Level [dB礦/m] 1G2G3G4G5G Frequency [Hz] x x x x x x x xx x x xx x x x MES bed_TX02_HH3_red MES bed_TX02_HH3_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VB61101-01 Page 5 of 14 Vertical 30-1000MHz 20 30 40 50 60 70 80 Level [dB礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x MES bed_TX02_V3_red MES bed_TX02_V3_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VB61101-01 Page 6 of 14 Restrict band 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 399.9M402M404M406M408M410M Frequency [Hz] MES bed_TX02_VR3_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VB61101-01 Page 7 of 14 1000-5000MHz 0 10 20 30 40 50 60 70 80 Level [dB礦/m] 1G2G3G4G5G Frequency [Hz] x x x x x x x x x x x x x x x x x MES bed_TX02_VV3_red MES bed_TX02_VV3_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VB61101-01 Page 8 of 14 2. Deactivating time FCC ID: VB61101-01 Page 9 of 14 3. Emission bandwidth FCC ID: VB61101-01 Page 10 of 14 4. Occupied bandwidth FCC ID: VB61101-01 Page 11 of 14 5. Duty Cycle FCC ID: VB61101-01 Page 12 of 14 FCC ID: VB61101-01 Page 13 of 14 FCC ID: VB61101-01 Page 14 of 14 All the Duty cycle of keys was assessed, and the worst test data were listed here: The worst Duty cycle = (2.04*13 + 22*1.04)/100 = 49.40%

FCC ID: VB61101-01 Page 1 of 4 Test Setup FCC ID: VB61101-01 Page 2 of 4 1. Radiated Emission 30MHz-1000MHz, X axis FCC ID: VB61101-01 Page 3 of 4 30MHz-1000MHz, Y axis FCC ID: VB61101-01 Page 4 of 4 Higher than 1GHz, Z axis
