VB61101-02MASSAGE MATTRESS

© Vivon Life 2011 THE MASSAGE MATTRESS™ OWNER’S MANUAL By Vivon Life ™ www.vivon.com © Vivon Life 2011Multiple Patents Pending All Rights Reserved. Vivon™, Vivon Prestige™, Vivon Riser™, The Massage Mattress™ are a trademark of Vivon Life. Brookstone® is a trademark of Brookstone is a trademark of Brookstone Company, Inc. BioSense™ is a trademark of Brookstone Purchasing, Inc. THE MASSAGE MATTRESS™ When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER – To reduce the risk of electric shock: 1) Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons: 1) An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts. 2) Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons. 3) Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled persons. 4) Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer. 5) Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair. 6) Do not carry this appliance by supply cord or use cord as a handle. 7) Keep the cord away from heated surfaces. 8) Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like. 9) Never drop or insert any object into any opening. 10) Do not use outdoors. 11) Do not operate where aerosol (spray) products are being used or where oxygen is being administered. 12) To disconnect, turn all controls to the off position, then remove plug from outlet. 2 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS 3 Thank you for bringing our Vivon Prestige™ Powered by Brookstone® Massage mattress into your home. We hope you’ll enjoy the advanced technology and comfort that this product provides for many nights to come. This Owner’s Manual will help you get the most out of your new product. Please review the entire document before using and retain this in a safe place for future reference, if needed. We highly recommend you register your new product on our website: www.vivon.com. Doing so will allow us to keep you informed about product news and will make customer service easier. Thanks, again for allowing Vivon to be such an important part of your life. CAUTION: Befor e starting, please make sure your new mattress is set up pr operly according to this Owner’s Manual. The electrical cord that operates the massage system comes in two separate parts: a) the cord that plugs in to the electrical outlet and b) the cord that plugs into each of the Massage Control Units. Connect these two electrical cords together befor e plugging into a grounded outlet. Then, insert the batteries provided with your product into the back of the Remote Control. Battery power is working properly when the buttons light up when being pressed. If the buttons do not light up, please insert fresh batteries. 4 Contents 1. Important Precautions 03 2. Unpacking & Setting Up 05 3. Handheld Remote Control 12 4. Troubleshooting 16 5. Frequently Asked Questions 18 6. Warranty 19 7. Notes 21 ....................................... ...................................... ................................... ................................................. .............................. ......................................................... .............................................................. 6 Importa nt Precautions 5 Importa nt Precautions READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT Your Vivon Prestige mattress is a sophisticated, technologically advanced product. This product will give you many years of service when maintained properly and used within the specific parameters for which it was designed. Please follow these tips to ensure long life of your product and to maintain your warranty. Weight Limitations: • The total body weight limitation for a single half of the mattress is 350 pounds, when body weight is distributed across the entire surface of the mattress. • Do not apply total body weight of more than 200 pounds in one particular part of the mattress, such as standing or jumping on the mattress as this may cause damage to any of the massage modules deep within the mattress and may nullify your warranty. Prevention of Electrical Shorts and Potential Electrical Shock: • FOR OPTIMUM PRESTIGE MATTRESS OPERATION, USE A GROUNDED, ELECTRICAL SURGE PROTECTION DEVICE (NOT INCLUDED). FAILURE TO USE A SURGE PROTECTION DEVICE COULD COMPROMISE SAFETY OR CAUSE PRODUCT MALFUNCTION. • Do not use this product outdoors. • Do not use this product if the mattress becomes wet; un-plug and air-dry the mattress before re-using the electrical functions. • Use this product only with a fully grounded AC socket. • Never use this product if the electrical cord has been frayed, chewed or otherwise compromised. • When you first use this product, make sure that all electrical connections are tight and secure. Repeat inspection of these connections periodically. We suggest such inspection be carried out every three months or after each time the mattress is moved. Safe Handheld Remote Control Usage: • The Remote Control should not be used by children without adult supervision. Please refer to the proper use of the Hand Control in the Owner’s Manual. • Do not use the wireless remote control near flammable liquids or explosives. Specification: • Transformer Voltage: Input: 120V, 60Hz Output: 24VDC Massager Voltage: 24VDC Automatic Shut-Off of Massage Feature: • …

Text truncated - open the document above for the full version.

1 VB61101-02

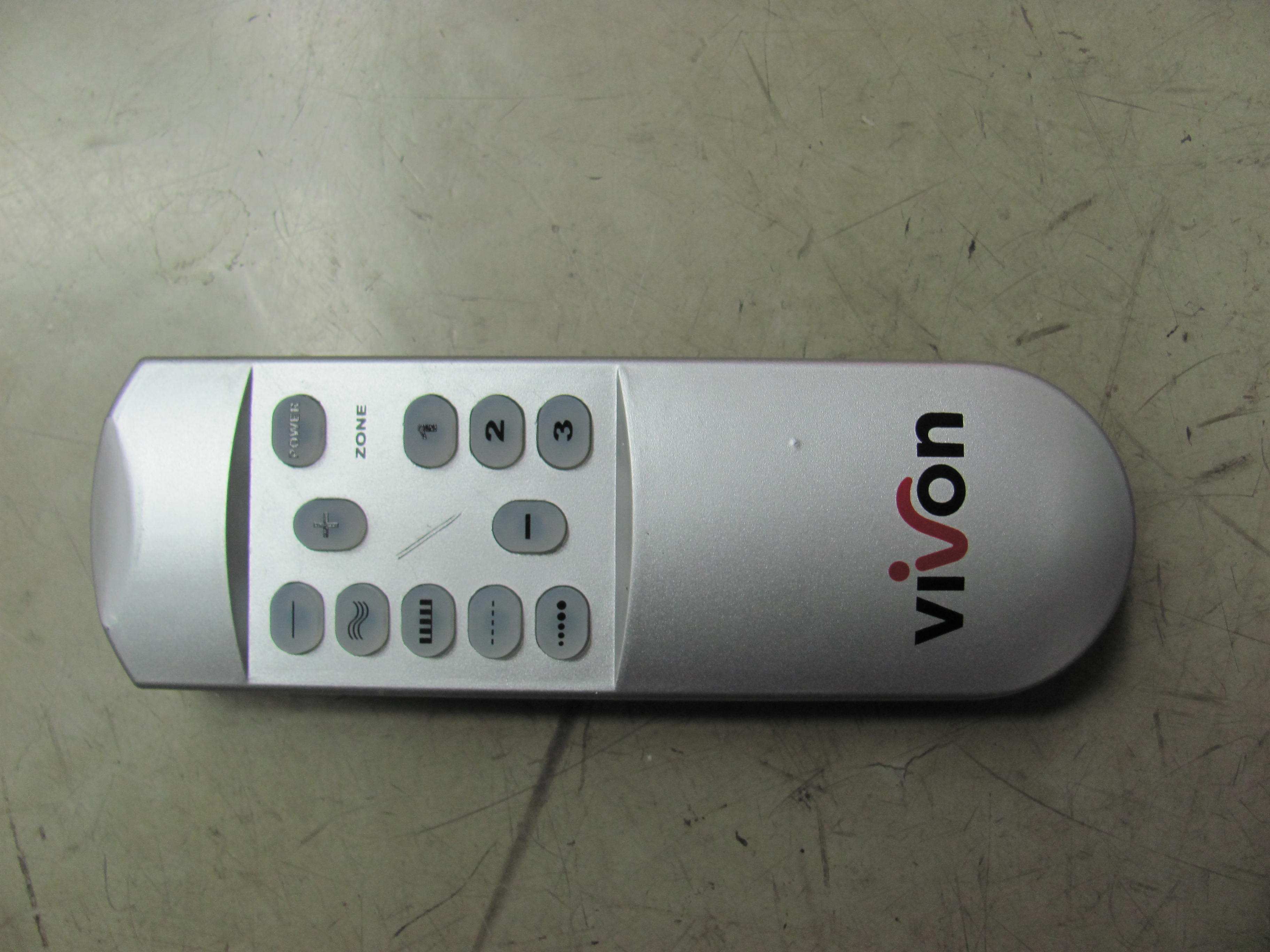

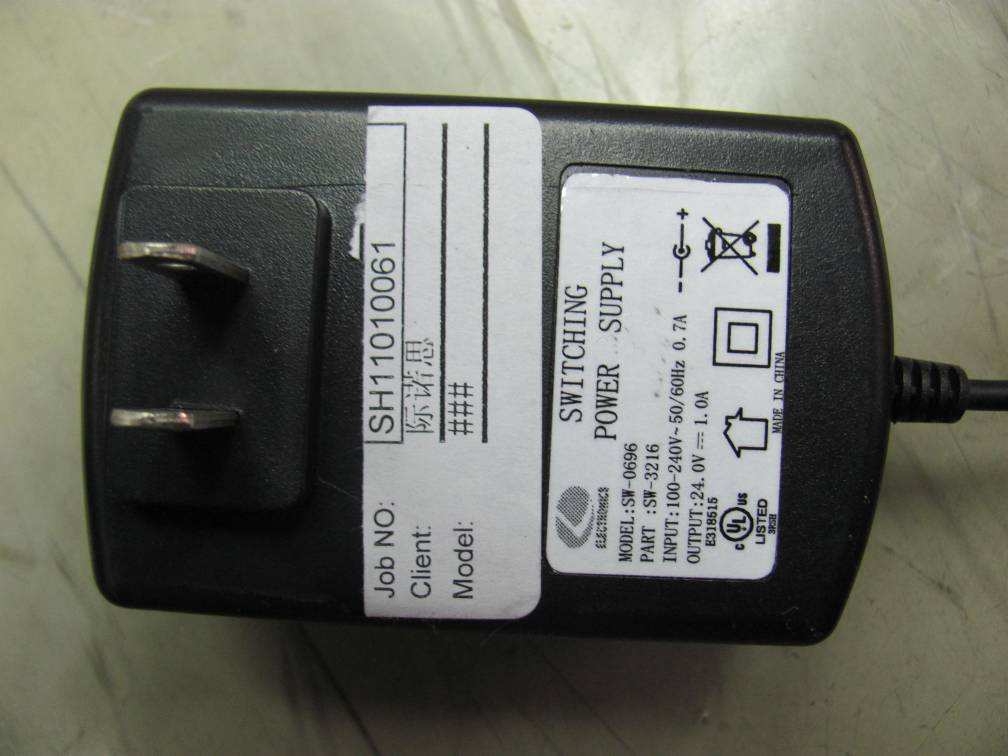

FCC ID: VB61101-02 Page 1 of 4 External Picture FCC ID: VB61101-02 Page 2 of 4 FCC ID: VB61101-02 Page 3 of 4 FCC ID: VB61101-02 Page 4 of 4

POWERED BY MASSAGE MODEL: VBP INPOUT:DC 24V FCC ID: VB61101-02

FCC ID: VB61101-02 Page 1 of 3 Internal Picture FCC ID: VB61101-02 Page 2 of 3 FCC ID: VB61101-02 Page 3 of 3

FCC ID: VB61101-02 Page 1 of 11 EMC TEST REPORT No. SH11010524-002 Applicant : ZINUS(Xiamen) Co., Ltd ZINUS Bldg., No.461-469 Huanzhu Road, Jimei District, Xiamen, China Manufacturer : ZINUS(Xiamen) Co., Ltd ZINUS Bldg., No.461-469 Huanzhu Road, Jimei District, Xiamen, China Equipment : MASSAGE MATTRESS Type/Model : VBP SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2009): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Date of issue: Feb 23, 2011 Prepared by: Reviewed by: Wakeyou Wang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: VB61101-02 Page 2 of 11 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: VB61101-02 Page 3 of 11 Content SUMMARY ..........................................................................................................................................................1 DESCRIPTION OF TEST FACILITY..........................................................................................................................2 1. GENERAL INFORMATION.............................................................................................................................4 1.1 Applicant Information ......................................................................................................4 1.2 Identification of the EUT .................................................................................................4 1.3 Technical specification.....................................................................................................4 1.4 Mode of operation during the test / Test peripherals used ..............................................5 2. TEST SPECIFICATION...................................................................................................................................5 2.1 Instrument list...................................................................................................................5 2.2 Test Standard....................................................................................................................5 2.3 Test Summary ..................................................................................................................6 3. RADIATED EMISSION....................................................................................................................................7 3.1 Test limit...........................................................................................................................7 3.2 Test Configuration ...........................................................................................................7 3.3 Test procedure and test setup ...........................................................................................8 3.4 Test protocol.....................................................................................................................8 4. POWER LINE CONDUCTED EMISSION...........................................................................................................9 4.1 Limit .................................................................................................................................9 4.2 Test configuration ............................................................................................................9 4.3 Test procedure and test set up ........................................................................................10 4.4 Test protocol...................................................................................................................11 FCC ID: VB61101-02 Page 4 of 11 1. General Information 1.1 Applicant Information Applicant: ZINUS(Xiamen) Co., Ltd ZINUS Bldg., No.461-469 Huanzhu Road, Jimei District, Xiamen, China Name of contact: Que Haihui Tel: 86-592-6662948 Fax: 86-592-6296624 Manufacturer: ZINUS(Xiamen) Co., Ltd ZINUS Bldg., No.461-469 Huanzhu Road, Jimei District, Xiamen, China Sample received date : Jan 18, 2011 Sample Identification No : *0110118-15-001* Date of test : Jan 18, 2011 ~ Feb 20, 2011 1.2 Identification of the EUT Equipment: MASSAGE MATTRESS Type/model: VBP FCC ID: VB61101-02 IC: NA 1.3 Technical specification Rating: DC 24V by AC / DC adapter: Input AC 100-240V, 50/60Hz, 0.7A Output DC 24V, 1A Description of EUT: There is one model only. The EUT is the receiver part of a MASSAGE MATTRESS system. It can receive the control signal from the corresponding transmitter to be controlled the working conditions. The motors of the EUT, as incidental radiators, were turned off during test. FCC ID: VB61101-02 Page 5 of 11 1.4 Mode of operation during the test / Test peripherals used Within this test report, EUT was tested with modulation and tested under its rating voltage and frequency. The EUT was set up and tested as typically used. The Signal generator “SMR20” together with a transmitting antenna was employed to radiate 433.92MHz CW signal in close proximity to the EUT. 2. Test Specification 2.1 Instrument list Equipment Type Manu. Internal no. Cal. Date Due date Test Receiver ESIB 26 R&S EC 3045 2010-4-10 2011-4-9 Semi-anechoic chamber - Albatross project EC 3048 2010-11-1 2011-10-31 A.M.N. ESH2-Z5 R&S EC 3119 2011-1-11 2012-1-10 Test Receiver ESCS 30 R&S EC 2107 2010-4-10 2011-4-9 Bilog Antenna CBL 6112D TESEQ EC 4206 2010-6-2 2011-6-1 Horn antenna HF 906 R&S EC 3049 2010-4-10 2011-4-9 Pre-amplifier Pre-amp 18 R&S EC 3222 2010-9-18 2011-9-17 High Pass Filter WHKX 1.0/15G- 10SS Wainwright EC4297-1 2011-2-8 2012-2-7 High Pass Filter WHKX 2.8/18G- 12SS Wainwright EC4297-2 …

Text truncated - open the document above for the full version.

FCC ID: VB61101-02 Page 1 of 7 Test Data FCC ID: VB61101-02 Page 2 of 7 1. Radiated emission Horizontal, PK 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x xx x x x MES bed_0217_H1_red MES bed_0217_H1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VB61101-02 Page 3 of 7 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 1G2G3G4G5G Frequency [Hz] xx x x x x x x x x x x x x x MES bed_RX02_HH3_red MES bed_RX02_HH3_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VB61101-02 Page 4 of 7 Vertical, PK 0 10 20 30 40 50 60 70 80 Level [dB礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x x x x MES bed_0217_V1_red MES bed_0217_V1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VB61101-02 Page 5 of 7 0 10 20 30 40 50 60 70 80 Level [dB礦/m] 1G2G3G4G5G Frequency [Hz] x x x x x x xx x x x x x xx x x MES bed_RX02_VV3_red MES bed_RX02_VV3_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VB61101-02 Page 6 of 7 2. Conducted Emission FCC ID: VB61101-02 Page 7 of 7 3. Superregenerative receiver frequency Unit dB
V A P20 Ref Lvl 72 dB
V Ref Lvl 72 dB
V RF Att 0 dB Center 433.92 MHzSpan 20 MHz2 MHz/ RBW 100 kHz VBW 300 kHz SWT 8.5 ms I2D 1MA1VIEW1MA -20 -10 0 10 20 30 40 50 60 -28 72 1 Marker 1 [T1] 31.35 dB
V 433.92000000 MHz 1 [T1] 31.35 dB
V 433.92000000 MHz

FCC ID: VB61101-02 Page 1 of 4 Test Setup FCC ID: VB61101-02 Page 2 of 4 Radiated emission, 30MHz-1000MHz FCC ID: VB61101-02 Page 3 of 4 Radiated emission, 1GHz-5GHz FCC ID: VB61101-02 Page 4 of 4 Conducted Emission
