VBA-2600ULRFRemote control transmitter

#15141 (26UL/RF+EMW201TK) Operation Manual WIRELESS REMOTE DUAL OUTLET Before using your remote control on/off set, please read the following instructions carefully A. Perfect for landscape, holiday and security lighting. • For both outdoor and indoor use • operational range: 150’ (45m) • One 12V, A23 battery included (transmitter). • Dual grounded outlets – can control two devices • Easy to install – just plug it in B. EASY INSTALLATION: 1. One receiver supplied with one transmitter. 2. Plug the receiver into a 3-prong outdoor outlet, then plug the lights or device to be switched into the receiver. Make sure that there is power to the outlet that the receiver is plugged into. Let the receiver hang downward so moisture does not accumulate in the outlet. NOTE: The Canadian Electric Code (and most local codes) require that outdoor outlets be protected by a Ground Fault Circuit Interrupter (GFCI). 3. The device must be mounted in a vertical position with the receptacle facing downwards and positioned with a minimum vertical length equal to twice the unit. 4. Red indicator light is lit when the outdoor receiver is “ON”. Not for permanent installation. Do not install or use this product for more than a 90-day period per year. C. OPERATION: 1. Press “ON” on remote to turn receiver ON. 2. Press “OFF” on remote to turn receiver OFF. ATTENTION: INSTRUCTIONS FOR PROPER USE • Store indoors when not in use • Do not immerse into water Notice: Functional Range may be adversely affected by one or more of the following factors: • orientation of the transmitter or receiver; • weather, radio frequency interference; • low transmitter battery and obstructions between the transmitter and receiver. Any misuse, changes or modification to this unit voids the warranty. D. SPECIFICATIONS 125VAC 60Hz 15A Resistive 125VAC 60Hz 1250W Tungsten Frequency: 433.92MHz Complies with Part 15 of FCC Rules WARNING: Risk of electric shock! • Keep children away. • Do not use in wet locations. • Fully insert plug. • When used outdoors, plug into GFCI protected outlet. CAUTION: Risk of fire! • Do not exceed electrical ratings. E. BATTERY REPLACEMENT: 1. Replace with type A23, 12V battery. 2. Ensure that the battery’s polarity (-/+) is correctly placed according to spring contact. F. BATTERY DISPOSAL: Dispose of old battery properly: Batteries must never be thrown into regular household waste as this seriously damages our environment. Dispose of batteries in a proper way by only throwing them into designated battery recycling waste bins or ask your local authority how to handle exhausted batteries properly. G. Radio Frequency Interference Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that might cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

Adress： ：： ：Renjiu Village, Wuxiang Tow n Yinzhou, Ningbo 315111, P. R. China Tel: 86-574-88330888 Fax: 86-574-88330999 88331999 Email: [email protected] Http://www.everflourish.com.cn AUTHORIZATION LETTER FCC ID: VBA-2600ULRF Data: April 14, 2010 To whom it may concern: We, the undersigned, hereby authorize Intertek Shanghai to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Intertek Shanghai within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. Thank you. Sincerely, Lisa Luo / Certification engineer Everflourish Electrical Co., Ltd Tel: +8657488328270 Fax: +8657488330999 Email: [email protected]

CONFIDENTIALITY REQUEST FCC ID: VBA-2600ULRF Pursuant to Sections 0.457 and 0.459 of the Federal Communications Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1) Schematic diagram 2) Block diagram 3) Operational description The above material contains trade secrets or technical data which Everflourish Electrical Co., Ltd. deems to be proprietary. Therefore this information would customarily be guarded from competitors and cannot be accessible to the general public. Thank you Sincerely, Lisa Luo / Certification Engineer Everflourish Electrical Co., Ltd Tel: +8657488328270 Fax: +8657488330999 Email: [email protected]

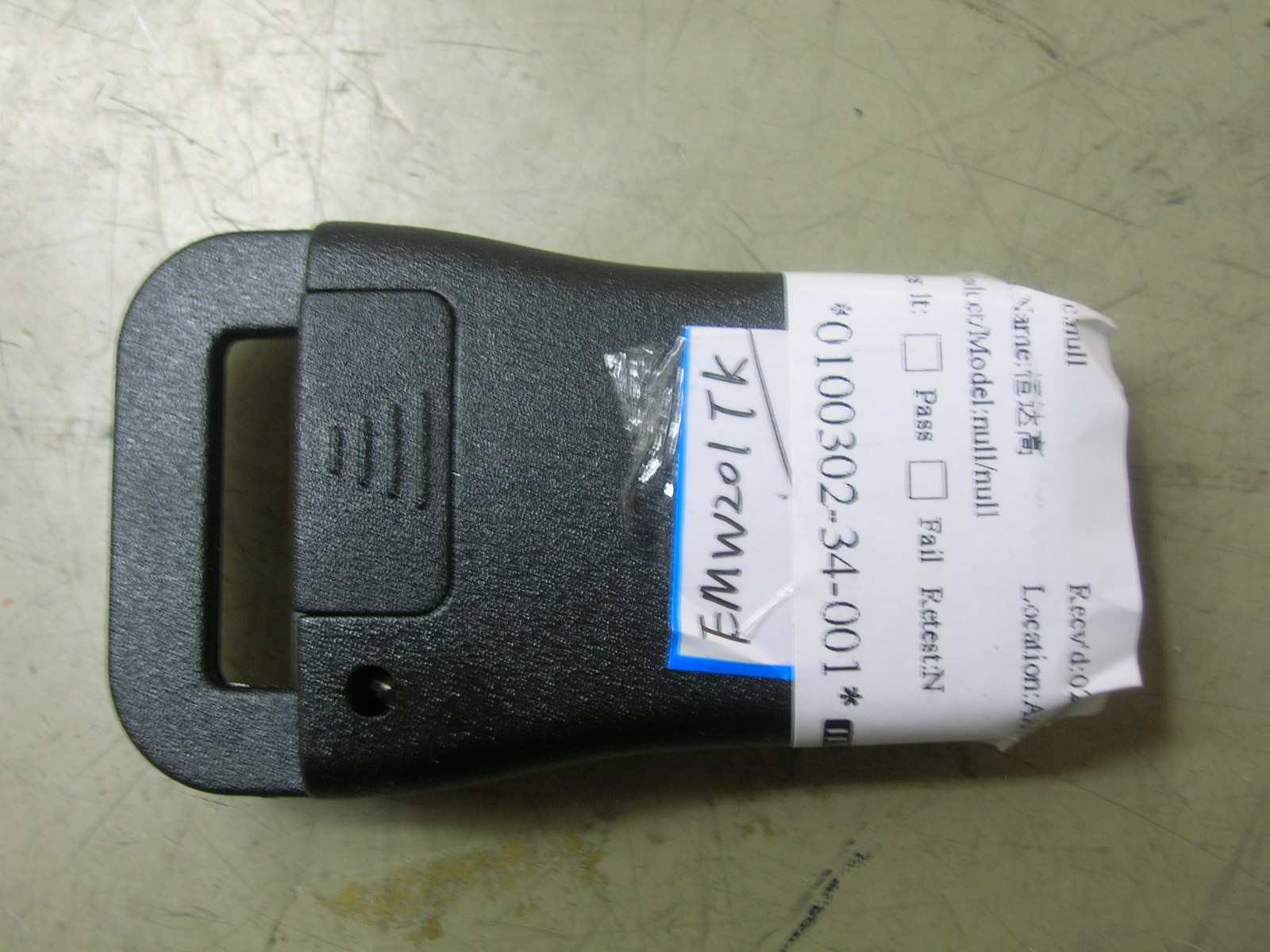

FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 1 of 2 External Picture FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 2 of 2

FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 1 of 2 FCC ID & IC LABLE FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 2 of 2 EUT size: 90mm * 54mm

FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 1 of 2 Internal Picture FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 2 of 2

FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 1 of 19 EMC TEST REPORT No. SH10030825-001 Applicant : Everflourish Electrical Co.,Ltd. Renjiu Village, Wuxiang Town, Yinzhou, Ningbo 315111, China Manufacturer : Everflourish Electrical Co.,Ltd. Renjiu Village, Wuxiang Town, Yinzhou, Ningbo 315111, China Equipment : Remote control transmitter Type/Model : EMW201TK SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2009): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 7 (June 2007): Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 2 (June 2007): General Requirements and Information for the Certification of Radiocommunication Equipment Date of issue: April 22, 2010 Prepared by: Reviewed by: Wakeyou Wang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 2 of 19 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 3 of 19 Content SUMMARY ..........................................................................................................................................................1 DESCRIPTION OF TEST FACILITY..........................................................................................................................2 1. GENERAL INFORMATION.............................................................................................................................4 1.1 Applicant Information ......................................................................................................4 1.2 Identification of the EUT .................................................................................................4 1.3 Technical specification.....................................................................................................5 1.4 Mode of operation during the test / Test peripherals used ..............................................5 2. TEST SPECIFICATION...................................................................................................................................6 2.1 Instrument list...................................................................................................................6 2.2 Test Standard....................................................................................................................6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION....................................8 3.1 Test limit...........................................................................................................................8 3.2 Test Configuration ...........................................................................................................9 3.3 Test procedure and test setup ...........................................................................................9 3.4 Test protocol...................................................................................................................10 4. DEACTIVATING TIME.................................................................................................................................11 4.1 Test limit.........................................................................................................................11 4.2 Test Configuration .........................................................................................................12 4.3 Test procedure and test setup .........................................................................................12 4.4 Test protocol...................................................................................................................12 5. POWER LINE CONDUCTED EMISSION.........................................................................................................13 5.1 Limit ...............................................................................................................................13 5.2 Test configuration ..........................................................................................................13 5.3 Test procedure and test set up ........................................................................................14 5.4 Test protocol...................................................................................................................15 6. EMISSION BANDWIDTH..............................................................................................................................16 6.1 Test limit.........................................................................................................................16 6.2 Test Configuration .........................................................................................................16 6.3 Test procedure and test setup .........................................................................................16 6.4 Test protocol...................................................................................................................17 7. OCCUPIED BANDWIDTH.............................................................................................................................18 7.1 Test limit.........................................................................................................................18 7.2 Test Configuration .........................................................................................................18 7.3 Test procedure and test setup ..............................…

Text truncated - open the document above for the full version.

FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 1 of 12 Test Data FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 2 of 12 1. Fundamental & Spurious Emission & Restrict band radiated emission Horizontal, PK 0 10 20 30 40 50 60 70 80 90 Level [dB礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x MES GE_0309_H_T_red MES GE_0309_H_T_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 3 of 12 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 399M402M404M406M408M410M Frequency [Hz] x x x x x x x x x x x MES HDG_0205_H2R_red MES HDG_0205_H2R_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 4 of 12 Vertical, PK 10 20 30 40 50 60 70 80 90 Level [dB礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x MES GE_0309_V_T_red MES GE_0309_V_T_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 5 of 12 0 10 20 30 40 50 60 70 80 Level [dB礦/m] 399M402M404M406M408M410M Frequency [Hz] x x xx x x x x x x x MES HDG_0205_V2R_red MES HDG_0205_V2R_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 6 of 12 2. Deactivating time Ref Lvl 92 dB
V Ref Lvl 92 dB
V RBW 100 kHz VBW 300 kHz RF Att 0 dB A IN1 1AP Unit dB
V P0 SWT 500 ms Center 433.92 MHz50 ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -1.02 dB 220.040080 ms 1 [T1] 42.54 dB
V 115.430862 ms 1 [T1] -1.02 dB 220.040080 ms Date: 5.FEB.2010 21:06:47 FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 7 of 12 3. Emission Bandwidth Unit dB
V A P0 SWT 15 ms RBW 10 kHz VBW 30 kHz IN1 1MA Center 433.915491 MHzSpan 500 kHz50 kHz/ Ref Lvl 92 dB
V Ref Lvl 92 dB
V RF Att 0 dB 1VIEW1MA 0 10 20 30 40 50 60 70 80 -8 92 1 2 2 Delta 2 [T1] -0.07 dB 61.12224449 kHz 2 [T1] 53.67 dB
V 433.88292585 MHz 2 [T1] -0.07 dB 61.12224449 kHz 1 [T1] 73.77 dB
V 433.91549098 MHz D1 53.77 dB
V Date: 5.FEB.2010 20:54:21 FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 8 of 12 4. Occupied Bandwidth Unit dB
V A SWT 15 ms RBW 10 kHz VBW 30 kHz Center 433.915491 MHzSpan 500 kHz50 kHz/ Ref Lvl 92 dB
V Ref Lvl 92 dB
V RF Att 0 dB 1VIEW 0 10 20 30 40 50 60 70 80 -8 92 1 433.86689378 MHz 1 [T1] 73.77 dB
V OPB 83.16633267 kHz T1 [T1] 47.20 dB
V T2 [T1] 50.33 dB
V 433.95006011 MHz 433.91549098 MHz Marker 1 [T1] 73.77 dB
V 433.91549098 MHz I2D 1MA1MA T1 T2 FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 9 of 12 5. Duty Cycle Pulse Train of “On” key Ref Lvl 92 dB
V Ref Lvl 92 dB
V RBW 100 kHz VBW 300 kHz RF Att 0 dB A IN1 1AP Unit dB
V P0 SWT 100 ms Center 433.92 MHz10 ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 11 Delta 1 [T1] 0.00 dB 53.317836 ms 1 [T1] 72.19 dB
V 10.610020 ms 1 [T1] 0.00 dB 53.317836 ms Date: 5.FEB.2010 20:58:43 FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 10 of 12 Pulse Train of “Off” key Ref Lvl 92 dB
V Ref Lvl 92 dB
V RBW 100 kHz VBW 300 kHz RF Att 0 dB A IN1 1AP Unit dB
VSWT 100 ms Center 433.92 MHz10 ms/ P0 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 1.12 dB 58.316633 ms 1 [T1] 70.00 dB
V 7.414830 ms 1 [T1] 1.12 dB 58.316633 ms Date: 5.FEB.2010 21:12:36 FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 11 of 12 Ref Lvl 92 dB
V Ref Lvl 92 dB
V RBW 100 kHz VBW 300 kHz RF Att 0 dB A IN1 1AP Unit dB
VSWT 10 ms Center 433.92 MHz1 ms/ P0 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -11.01 dB 1.353908 ms 1 [T1] 55.78 dB
V 4.217234 ms 1 [T1] -11.01 dB 1.353908 ms Date: 5.FEB.2010 21:00:32 FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 12 of 12 Ref Lvl 92 dB
V Ref Lvl 92 dB
V RBW 100 kHz VBW 300 kHz RF Att 0 dB A IN1 1AP Unit dB
VSWT 10 ms Center 433.92 MHz1 ms/ P0 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 2 2 Delta 2 [T1] -4.23 dB 440.881764
s 2 [T1] 52.60 dB
V 6.052104 ms 2 [T1] -4.23 dB 440.881764
s Date: 5.FEB.2010 21:01:13 The Duty cycle of “on” key = (11 * 1.35 + 11 * 0.44) / 53.32 = 0.37 The Duty cycle of “on” key = (11 * 1.35 + 14 * 0.44) / 58.32 = 0.36 As a result, the duty cycle of 0.37 is taken into calculation.

FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 1 of 7 Test Setup FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 2 of 7 30MHz-1000MHz X axis FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 3 of 7 Y axis FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 4 of 7 Z axis FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 5 of 7 1GHz-6GHz X axis FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 6 of 7 Y axis FCC ID: VBA-2600ULRF IC: 7098A-2600ULRF Page 7 of 7 Z axis
