VBA-EF301TKRemote Control Transmitter

1 Instruction Manual for Remote Control Receiver+ Remote Control Transmitter Ref: 30UL/RF+EMW301TK Function 1. The remote control socket (30UL/RF) turns on and off the connected lighting or appliance by a wireless transmitter (EMW301TK) using radio frequency up to 30 meters away. 2. It is ideal for controlling lighting for the purposes of home automation and energy saving. 30UL/RF EMW301TK Operation 1. Connect the remote control socket to the mains power supply. 2. Press the corresponding “ON”, “OFF” buttons on the transmitter to switch on and off the connected appliance by remote control. 3. The indicator on the receiver blink once for every reception of power on/off. 2 Specifications 30UL/RF 1. Power Rating : 125V~, 50Hz, 1875W; 1250W(Tungsten) 2. Frequency: 433.92MHz 3. Distance: 30 meters EMW301TK 1. Battery : CR2032 1×3VDC 2. Frequency : 433.92MHz 3. Distance : 30meters max. 4. Working temperature:-20 - 55°C Manufacturer Logo: Factory:Everflourish Electrical Co., Ltd. Address: Renjiu Village, Wuxiang Town, Yinzhou Ningbo 315111 P.R. China Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Prudence ： Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference 3 to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Warning: Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Avertissement : Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante

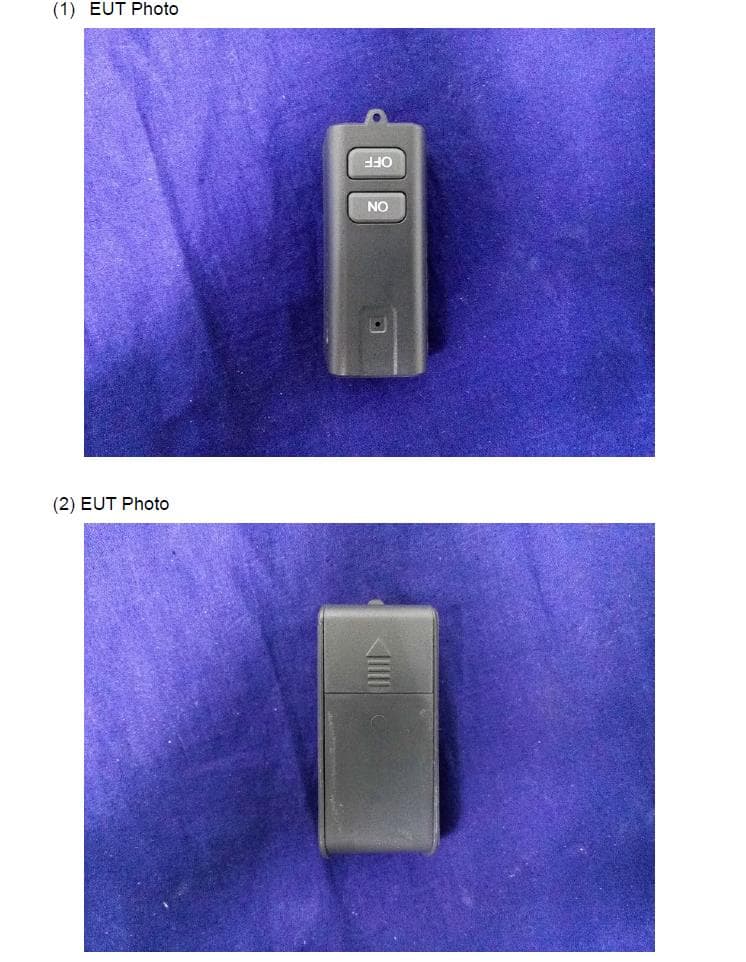

EMW301TK EUT Photograph

EMW301TK Label Sample and Location

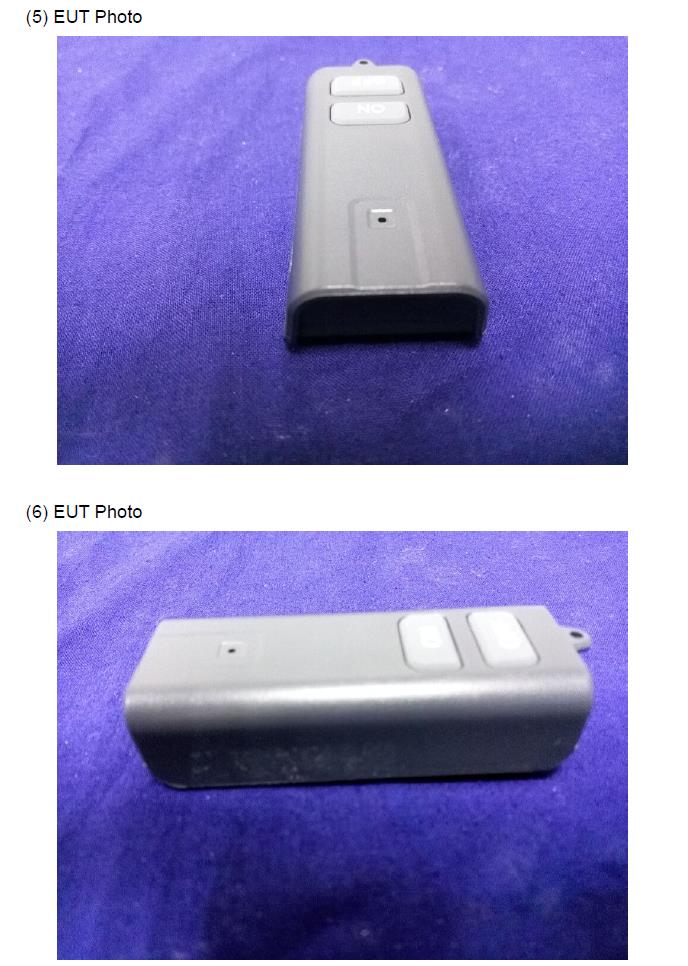

EMW301TK EUT Photograph

Test Report FCC Part15 Subpart C& RSS 210 Product Name : Remote control transmitter Model No. : EMW301TK FCC ID : VBA-EF301TK IC : 7098A-EF301TK Applicant : EverFlourish Electrical Co., Ltd Address : Renjiu Village, Wuxiang Town, Yinzhou, Ningbo 315111 P.R.China Date of Receipt : Sept. 23, 2015 Test Date : Sept. 23, 2015~ Oct. 20, 2015 Issued Date : Oct. 26, 2015 Report No. : 1590638R-RF-US-P06V02 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1590638R-RF-US-P06V02 Page: 3 of 29 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park, Suzhou,215006,Jiangsu, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC,TAF USA :FCC Japan :VCCI China :CNAS Report No.: 1590638R-RF-US-P06V02 Page: 4 of 29 TABLE OF CONTENTS Description Page 1. General Information ................................................................................................................... 7 1.1. EUT Description ......................................................................................................................... 7 1.2. Mode of Operation ..................................................................................................................... 9 1.3. Tested System Details .............................................................................................................. 10 1.4. Configuration of Tested System ............................................................................................... 11 1.5. EUT Exercise Software ............................................................................................................ 12 2. Technical Test ........................................................................................................................... 13 2.1. Summary of Test Result ........................................................................................................... 13 2.2. Test Environment ..................................................................................................................... 14 3. Conducted Emission ................................................................................................................ 15 3.1. Test Equipment ........................................................................................................................ 15 3.2. Test Setup ................................................................................................................................ 15 3.3. Limit .......................................................................................................................................... 16 3.4. Test Procedure ......................................................................................................................... 16 3.5. Uncertainty ............................................................................................................................... 16 3.6. Test Result ............................................................................................................................... 17 4. Radiated Emission ................................................................................................................... 18 4.1. Test Equipment ........................................................................................................................ 18 4.2. Test Setup ................................................................................................................................ 19 4.3. Limit .......................................................................................................................................... 20 4.4. Test Procedure ......................................................................................................................... 21 4.5. Uncertainty ............................................................................................................................... 21 4.6. Test Result ............................................................................................................................... 22 5. 20dB Bandwidth ....................................................................................................................... 24 5.1. Test Equipment ........................................................................................................................ 24 5.2. Test Setup ............................................…

Text truncated - open the document above for the full version.

EMW301TK Test Setup Photograph
