VBA-EF202T1Remote control transmitter

Instruction Manual for RF Remote Socket and Transmitter Ref: EMW202T1 + MW202US-RF Function 1. The remote control socket turns on and off the connected lighting or appliance by a wireless transmitter using radio frequency up to 25 meters away. 2. It is ideal for lighting control, for the purposes of home automation and energy saving. 3. The receiver has the indicator light for power supply status. Operation 1. No command setting required. 2. Connect the remote control socket to the mains power supply. 3. Turn off the appliance before connecting to the remote control. 4. Remove the plastic tab at the battery holder on the transmitter to allow battery contact. 5. Press the corresponding “ON”, “OFF” button on the transmitter to switch on and off the connected appliance by remote control 6. The indicator on the receiver blink once for every reception of power on/off 7. When the indicator light on the transmitter goes dim, it means the battery is in low power. Open the battery holder (as per below figure) and replace it with equivalent battery in correct polarity Caution 1. Always switch off your appliance before connection. 2. For INDOOR USE ONLY 3. Appliances to be connected to the remote control socket MUST NOT exceed the voltage and frequency ratings as in “Specifications”. Specifications EMW202US-RF 1. Power Rating : 120VAC, 60Hz, 2. Resistive load: 1000W max. 3. Frequency: : 433.92 MHz 4. Distance: : up to 80 feet in open area EMW202T1 1. Battery : CR2032 3VDC (included) 2. Frequency : 433.92 MHz 3. Distance : up to 80 feet in open area Holder: Everflourish Electrical Co., Ltd. Renjiu Village, Wuxiang Town, Yinzhou, Ningbo, 315111 P.R. China Caution: This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Prudence˖ Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, in cluding myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Eq uipment: Remote control transmitter Type/Model: EMW202T1 FCC ID: VBA-EF202T1 Dated this 19 day of Nov,2013 _______________________ Signature Lisa Luo _____________ Name Certification engineer ______________________ Title Everflourish Electrical Co.,Ltd. ____________________________Company 86 574 88330888 _______________ _______________________ Telephone

1(1) Attention: Application Examiner Re: Request for confidentiality Applicant: Everflourish Electrical Co.,Ltd. FCC ID: VBA-EF202T1 To whom it may concern, Request is hereby submitted by Everflourish Electrical Co.,Ltd.to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Detailed Block diagrams Detailed Operational/Functional Description Tune up procedure Parts list Internal photos NOTE : Requires additional justification such as: (1) Circuit board covered with epoxy. Show photo with and without epoxy. (2) Device is not sold to end user. (3) Non-consumrer device inaccessible to general public, such as a device mounted on top of a large tower or in a fenced or locked location that is only serviceable by the licensee or designated technicians. NOTE : Scanning receiving internal photos are always held permanently confidential. User Manual NOTE : Only with added justification, such as professional installation and the manual is very technical and is not provided to the consumer since the consumer cannot service the device. Rationale for request for confidentiality: Everflourish Electrical Co.,Ltd. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely, Signature Certification engineer Title Everflourish Electrical Co.,Ltd. Company

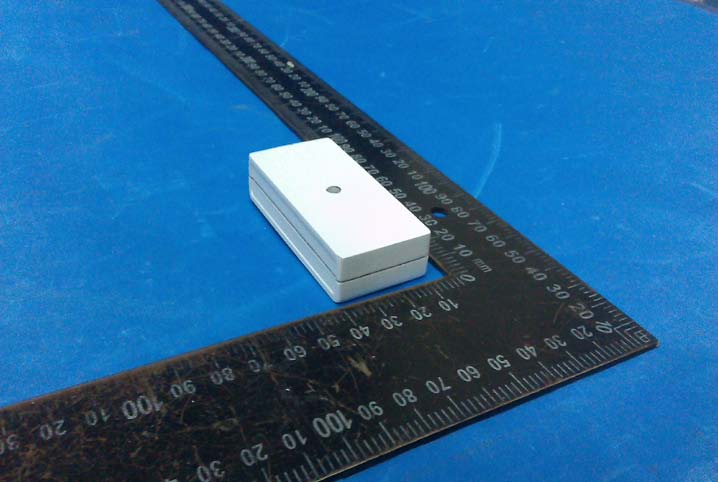

FCC ID:VBA- EF202T1 IC:7098A- EF202T1 Page 1 of 1 External Picture

2.5cm 2.8cm

FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 1 of 1 Internal Picture

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a transmitter for Remote Key Finder operating at 433.92MHz. The EUT is powered by DC 3 battery. The EUT has two control Key, press the corresponding control key on the EUT in order to locate the desired receiver. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 1.2dBi The nominal conducted output power specified: -14dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -14.95dBm (+/- 3dB) Modulation Type: ASK According to the KDB 447498: The worst-case peak radiated emission for the EUT is 80.50dBμV/m at 3m in the frequency 433.92MHz The EIRP = [(FS*D) ^2 / 30] mW= -14.73dBm The ERP=EIRP-2.15=-16.88dBm which is within the production variation. The maximun conducted output power specified is -11dBm = 0.08mW The source- based time-averaging conducted output power = 0.08 * Duty Cycle mW= 0.02 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.43392) mW = 22.77 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duration of one cycle = 47.7ms Effective period of the cycle = 0.2*16+0.96*9=11.84ms DC = 11.84 / 47.7ms = 0.25 or 25% FCC ID: VBA-EF202T1

FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 2 of 20 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 3 of 20 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 Applicant Information ..................................................................................................... 4 1.2 Identification of the EUT ................................................................................................ 4 1.3 Technical specification ................................................................................................... 5 1.4 Mode of operation during the test / Test peripherals used .............................................. 5 2. TEST SPECIFICATION .................................................................................................................................. 6 2.1 Instrument list ................................................................................................................. 6 2.2 Test Standard .................................................................................................................. 6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION ................................... 8 3.1 Test limit ......................................................................................................................... 8 3.2 Test Configuration .......................................................................................................... 9 3.3 Test procedure and test setup .......................................................................................... 9 3.4 Test protocol ................................................................................................................. 10 4. DEACTIVATING TIME ................................................................................................................................ 12 4.1 Test limit ....................................................................................................................... 12 4.2 Test Configuration ........................................................................................................ 13 4.3 Test procedure and test setup ........................................................................................ 13 4.4 Test protocol ................................................................................................................. 13 5. POWER LINE CONDUCTED EMISSION ........................................................................................................ 14 5.1 Limit .............................................................................................................................. 14 5.2 Test configuration ......................................................................................................... 14 5.3 Test procedure and test set up ....................................................................................... 15 5.4 Test protocol ................................................................................................................. 16 6. EMISSION BANDWIDTH ............................................................................................................................. 17 6.1 Test limit ....................................................................................................................... 17 6.2 Test Configuration ........................................................................................................ 17 6.3 Test procedure and test setup ........................................................................................ 17 6.4 Test protocol ................................................................................................................. 18 7. OCCUPIED BANDWIDTH ............................................................................................................................ 19 7.1 Test limit ....................................................................................................................... 19 7.2 Test Configuration ........................................................................................................ 19 7.3 Test procedure and test setup ........................................................................................ 19 7.4 Test protocol ................................................................................................................. 20 FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 4 of 20 1. General Information 1.1 Applicant Information Applicant: Everflourish Electrical Co.,Ltd. Renjiu Village, Wuxiang Town, Yinzhou, Ningbo 315111, China Name of contact: Lisa Luo Tel: 86 574 88330888*8294 Fax: 86 574 88330999 Manufacturer: Everflourish Electrical Co.,Ltd. Renjiu Village, Wuxiang Town, Yinzhou, Ningbo 315111, China Sample received date : Nov 19, 2013 Sample Identification No : *0131119-46-003* Da te of test : Nov 19, 2013 ~ Dec 9, 2013 1.2 Identification of the EUT E quipment: Remote control transmitter Type/model: EMW202T1 FCC ID: VBA- EF202T1 IC: 7098A- EF202T1 FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 5 of 20 1.3 Technical specification Operation Frequency Band: 433.92MHz Modulation: ASK Antenna Designation: Integral antenna, non-user removable. G ain of A…

Text truncated - open the document above for the full version.

FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 1 of 13 Test Data FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 2 of 13 1. Fundamental & Spurious Emission & Restrict band radiated emission Horizontal 30-1000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M50M70M100M 200M300M500M 700M 1G Frequency [Hz] x x x x x x x x x x x MES JX1112H_red MES JX1112H_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 3 of 13 Restrict band 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 399.9M402M 404M 406M 408M410M Frequency [Hz] MES ak0529_lH_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 4 of 13 Horizontal 1000-5000 MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G2G3G4G5G6G Frequency [Hz] x x x x x x MES JX1112 HH2_red MES JX1112 HH2_pre LIM FCC 15.231 Field Strength QP FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 5 of 13 Vertical 30-1000MHz 0 20 40 60 80 100 Level [dBμV/m] 30M50M70M100M200M300M500M 700M 1G Frequency [Hz] x x x x x x x x x x x MES JX1112_red MES JX1112_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 6 of 13 Restrict band 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 399.9M402M 404M406M 408M 410M Frequency [Hz] LIM FCC 15 F 3 QP Field Strength QP MES ak0529_VL_pre FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 7 of 13 Vertical 1000-5000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G2G3G4G5G6G Frequency [Hz] x x x x x MES JX1112 VV2_red MES JX1112 VV2_pre LIM FCC 15.231 Field Strength QP FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 8 of 13 2. Deactivating time FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 9 of 13 3. Emission bandwidth FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 10 of 13 4. Occupied bandwidth FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 11 of 13 5. Duty Cycle FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 12 of 13 FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 13 of 13 All the keys were assessed and the test data with maximum duty cycle was listed above. The worst Duty cycle= (9*0.96+ 16*0.20) / 47.70 = 0.25

FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 1 of 3 Test Setup FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 2 of 3 1. Radiated Emission FCC ID: VBA-EF202T1 IC: 7098A-EF202T1 Page 3 of 3
