VBA-EF202TDRemote control transmitter

Instruction Manual for RF Remote Socket and Transmitter Ref: EMW202TD + MW202R Function 1. The remote control socket turns on and off the connected lighting or appliance by a wireless transmitter using radio frequency up to 25 meters away. 2. The transmitter is with countdown selection 30Minǃ60Minǃ2Hrsǃ4Hrs. And ON, OFF button to turn on and turn off the power. 3. It is ideal for controlling lighting for the purposes of home automation and energy saving. 4. Each transmitter controls 1 receiver. Operation 1. No command setting required. 2. Connect the remote control socket to the mains power supply. 3. Remove the plastic tab at the battery holder to allow battery contact. 4. Press the corresponding button on the transmitter to switch on and off the connected appliance at your desired time. Button Function ON Press to turn on the power. OFF Press to turn off the power. 30Min Press to activate the power on for 30mins 60Min Press to activate the power on for 60mins 2Hrs Press to activate the power on for 2hrs 4Hrs Press to activate the power on for 4hrs 5. The indicator on the receiver blinks once for every reception of power on/off 6. When the indicator goes dim, it means the battery is in low power. Open the battery holder and replace it with equivalent battery in correct polarity as per figure below. Caution 1. For safety reason, always switch off your appliance before connection and avoid setting up on rainy days. 2. Appliances to be connected to the remote control socket MUST NOT exceed the voltage and frequency ratings as in “Specifications”. Specifications EMW202R 1. Power Rating : 230V~, 50Hz, 1000W 2. Frequency: : 433.92 MHz 3. Distance: : 25 meters EMW202TD 1. Battery : CR2032 3VDC (included) 2. Frequency : 433.92 MHz 3. Distance : 25 meters max. Caution: This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Prudence˖฀ Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. The End

Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862A. Equipment: Remote control transmitter Type/Model: EMW202TD FCC ID: VBA-EF202TD Dated this 07 day of May,2014 _______________________ Signature Lisa Luo _________ Name Certification engineer ______________________ Title Everflourish Electrical Co.,Ltd. ____________________________Company 86 574 88330888 ______________________________________ Telephone

1(1) Attention: Application Examiner Re: Request for confidentiality Applicant: Everflourish Electrical Co.,Ltd. FCC ID: VBA-EF202TD To whom it may concern, Request is hereby submitted by Everflourish Electrical Co.,Ltd.to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Detailed Block diagrams Detailed Operational/Functional Description Tune up procedure Parts list Internal photos NOTE : Requires additional justification such as: (1) Circuit board covered with epoxy. Show photo with and without epoxy. (2) Device is not sold to end user. (3) Non-consumrer device inaccessible to general public, such as a device mounted on top of a large tower or in a fenced or locked location that is only serviceable by the licensee or designated technicians. NOTE : Scanning receiving internal photos are always held permanently confidential. User Manual NOTE : Only with added justification, such as professional installation and the manual is very technical and is not provided to the consumer since the consumer cannot service the device. Rationale for request for confidentiality: Everflourish Electrical Co.,Ltd. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely, Signature Certification engineer Title Everflourish Electrical Co.,Ltd. Company

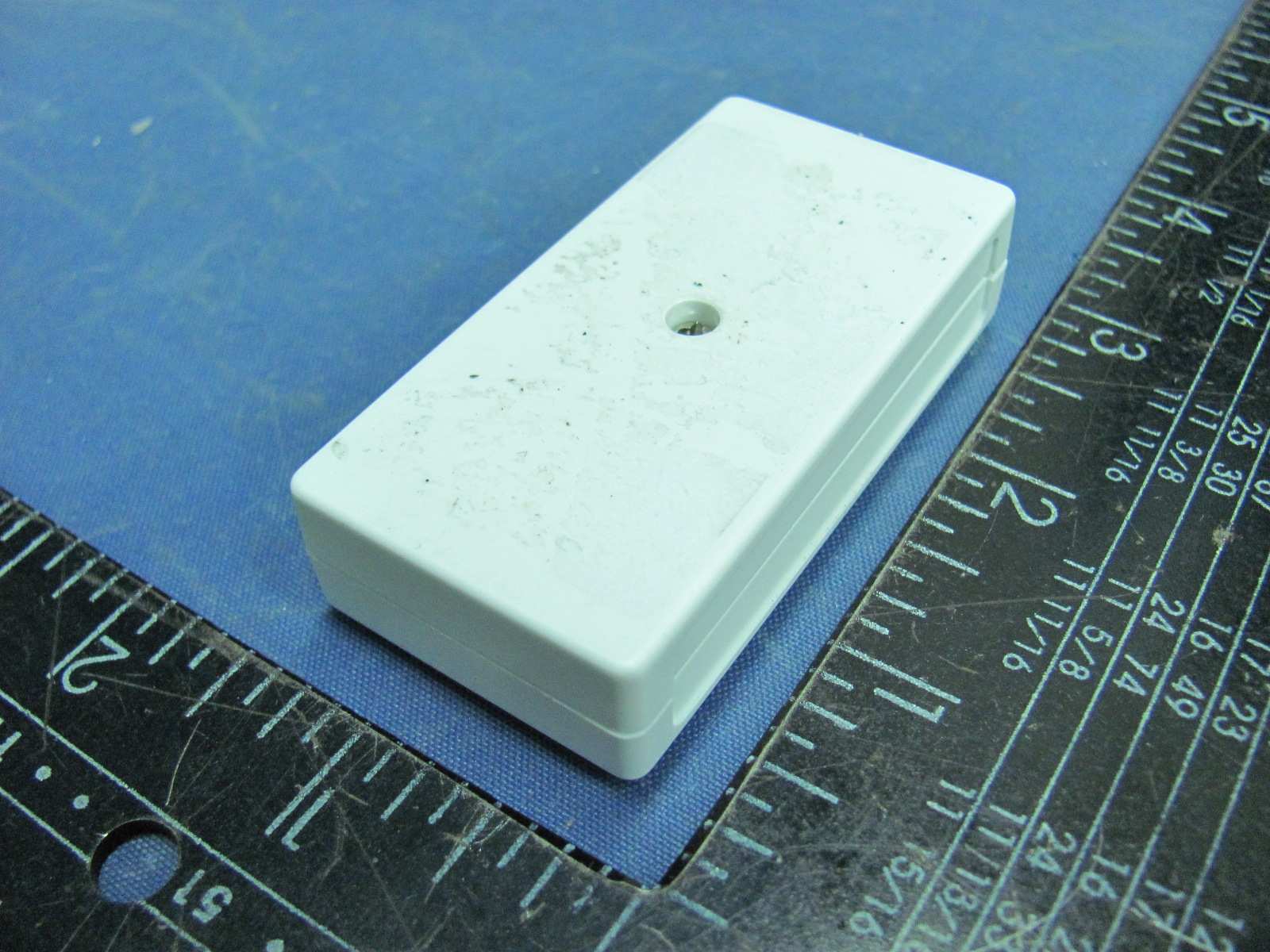

FCC ID:VBA- EF202TD IC:7098A- EF202TD Page 1 of 1 External Picture

2.6cm 2.5cm

FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 1 of 1 Internal Picture

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a transmitter for Remote Key Finder operating at 433.92MHz. The EUT is powered by DC 3V battery. The EUT has six control Keys, press the corresponding control key on the EUT in order to locate the desired receiver. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 1.2dBi The nominal conducted output power specified: -11dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -11.95dBm (+/- 3dB) Modulation Type: ASK According to the KDB 447498: The worst-case peak radiated emission for the EUT is 83.50dBμV/m at 3m in the frequency 433.92MHz The EIRP = [(FS*D) ^2 / 30] mW= -11.73dBm The ERP=EIRP-2.15=-13.88dBm which is within the production variation. The maximun conducted output power specified is -8dBm = 0.158mW The source- based time-averaging conducted output power = 0.158 * Duty Cycle mW= 0.03mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.43392) mW = 22.77 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duration of one cycle = 65.20ms Effective period of the cycle = 24*0.08+ 17*0.7=13.82ms DC = 13.82 / 65.20ms = 0.21 or 21% FCC ID: VBA-EF202TD

FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 1 of 19 EMC TEST REPORT No. 140200395SHA-001 Applicant : Everflourish Electrical Co.,Ltd. Renjiu Village, Wuxiang Town, Yinzhou, Ningbo 315111, China Manufacturer : Everflourish Electrical Co.,Ltd. Renjiu Village, Wuxiang Town, Yinzhou, Ningbo 315111, China Equipment : Remote control transmitter Type/Model : EMW202TD SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2013): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 8 (December 2010): Low-power Licence-exempt Radio communication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 (December 2010): General Requirements and Information for the Certification of Radio communication Equipment Date of issue: May 07, 2014 Prepared by: Reviewed by: Jesse Xu (Project Engineer) Daniel Zhao (Reviewer) FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 2 of 19 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 3 of 19 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 Applicant Information ..................................................................................................... 4 1.2 Identification of the EUT ................................................................................................ 4 1.3 Technical specification ................................................................................................... 5 1.4 Mode of operation during the test / Test peripherals used .............................................. 5 2. TEST SPECIFICATION .................................................................................................................................. 6 2.1 Instrument list ................................................................................................................. 6 2.2 Test Standard .................................................................................................................. 6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION ................................... 7 3.1 Test limit ......................................................................................................................... 7 3.2 Test Configuration .......................................................................................................... 8 3.3 Test procedure and test setup .......................................................................................... 8 3.4 Test protocol ................................................................................................................... 9 4. DEACTIVATING TIME ................................................................................................................................ 11 4.1 Test limit ....................................................................................................................... 11 4.2 Test Configuration ........................................................................................................ 12 4.3 Test procedure and test setup ........................................................................................ 12 4.4 Test protocol ................................................................................................................. 12 5. POWER LINE CONDUCTED EMISSION ........................................................................................................ 13 5.1 Limit .............................................................................................................................. 13 5.2 Test configuration ......................................................................................................... 13 5.3 Test procedure and test set up ....................................................................................... 14 5.4 Test protocol ................................................................................................................. 15 6. EMISSION BANDWIDTH ............................................................................................................................. 16 6.1 Test limit ....................................................................................................................... 16 6.2 Test Configuration ........................................................................................................ 16 6.3 Test procedure and test setup ........................................................................................ 16 6.4 Test protocol ................................................................................................................. 17 7. OCCUPIED BANDWIDTH ............................................................................................................................ 18 7.1 Test limit ....................................................................................................................... 18 7.2 Test Configuration ........................................................................................................ 18 7.3 Test procedure and test setup ...................…

Text truncated - open the document above for the full version.

FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 1 of 14 Test Data FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 2 of 14 1. Fundamental & Spurious Emission & Restrict band radiated emission Horizontal 30-1000MHz 10 20 30 40 50 60 70 80 90 Level [dBμV/m] 30M50M70M100M 200M300M500M 700M 1G Frequency [Hz] MES JX0429H2_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 3 of 14 Restrict band 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 399.9M402M 404M 406M 408M410M Frequency [Hz] MES ak0529_lH_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 4 of 14 Horizontal 1000-5000 MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G2G3G4G5G Frequency [Hz] + + + + + + + + + + x x x x x x x x x MES JX0429H1_red + MES JX0429H1_red2 MES JX0429H1_pre MES JX0429H1_pre2 LIM FCC 15 F 3 PK Field Strength QP LIM FCC 15 F 3 AV Field Strength QP FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 5 of 14 Vertical 30-1000MHz 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M50M70M100M 200M300M500M 700M 1G Frequency [Hz] MES JX0429V2_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 6 of 14 Restrict band 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 399.9M402M 404M406M 408M 410M Frequency [Hz] LIM FCC 15 F 3 QP Field Strength QP MES ak0529_VL_pre FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 7 of 14 Vertical 1000-5000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G2G3G4G5G Frequency [Hz] + + + + + + + + + + x x x x x x x x x MES JX0429V1_red + MES JX0429V1_red2 MES JX0429V1_pre MES JX0429V1_pre2 LIM FCC 15 F 3 PK Field Strength QP LIM FCC 15 F 3 AV Field Strength QP FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 8 of 14 2. Deactivating time FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 9 of 14 3. Emission bandwidth FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 10 of 14 4. Occupied bandwidth FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 11 of 14 5. Duty Cycle FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 12 of 14 FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 13 of 14 FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 14 of 14 All the keys were assessed and the test data with maximum duty cycle was listed above. The worst Duty cycle= (24*0.08+ 17*0.7) / 65.2 = 0.21

FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 1 of 3 Test Setup FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 2 of 3 1. Radiated Emission FCC ID: VBA-EF202TD IC: 7098A-EF202TD Page 3 of 3
