VBA2300ULRFRemote Control

23UL-RF+EMW200TK (E), P1/3 Instruction Manual for RF Remote Socket and Transmitter Ref: 23UL/RF + EMW200TK Function 1. The remote control socket (23UL/RF) turns on and off the connected lighting or appliance by a wireless transmitter (EMW200TK) using radio frequency up to 25 meters away. 2. It is ideal for controlling lighting for the purposes of home automation and energy saving. 23UL/RF EMW200TK Operation 1. Connect the remote control socket to the mains power supply. 2. Press the corresponding “ON”, “OFF” buttons on the transmitter to switch on and off the connected appliance by remote control. 3. The indicator on the receiver blink once for every reception of power on/off Warning: 1. For safety reason, always switch off your appliance before connection. 2. Appliances to be connected to the remote control socket MUST NOT exceed the voltage and frequency ratings as in “Specifications”. 3. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 4. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does Indicator 23UL-RF+EMW200TK (E), P2/3 cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: □ Reorient or relocate the receiving antenna. □ Increase the separation between the equipment and receiver. □ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected □ Consult the dealer or an experienced radio/TV technician for help. Specifications 23UL/PC 1. Power Rating : 125V~, 50Hz, 1000W; 600W(Tungsten) 2. Frequency: : 315 MHz 3. Distance: : 25 meters EMW200TK 1. Battery : 23A 3L R50 12V 2. Frequency : 315MHz 3. Distance : 25 meters max. 23UL-RF+EMW200TK (E), P3/3

315MHz transmitter module. (XT) Keypad Encoding (IC1) Power Amplify.( Q1) Impress harmonic.( XT, L2) DC12V Power supply. Ref: EMW200TK 1. Operation Flow chart Antenna Instruction Output transmit

FCC ID: VBA2300ULRF Page 1 of 2 External Picture FCC ID: VBA2300ULRF Page 2 of 2

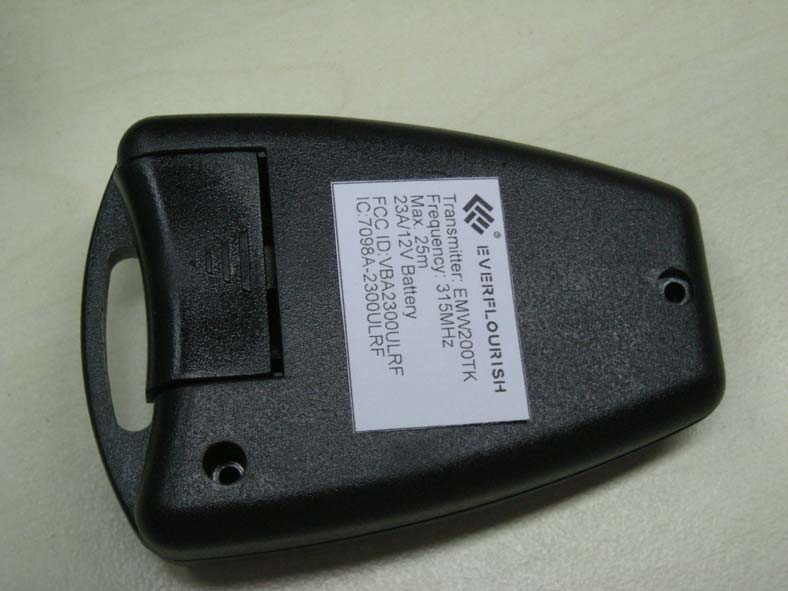

FCC ID: VBA2300ULRF Page 1 of 2 ID Label FCC ID: VBA2300ULRF Page 2 of 2

FCC ID: VBA2300ULRF Page 1 of 2 Internal Picture FCC ID: VBA2300ULRF Page 2 of 2

Operation theory This Transmitter is with 1 ON/OFF channel to control appliance’s on/off. Transmitter: By pressing any of the button key on the Transmitter, the internal transmission system will scan the button’s circuit status by the IC , first confirm which button was pressed, then, transmit correspondence signals to the appointed location. The CPU’s Transmission instruction is through the output port, send the message to the digital port, adjust to the transmission mode into the high frequency mode, 315MHz, and forms the wireless radio wave frequency, and send out the frequency through PCB. Releasing the button, the transmitter will stop emission immediately. The following figure shows an ON/OFF operates.



                  !"# $$ !"#    %
 %




Test report no. JSH007030489-001 Page 1 of 14 EMC TEST REPORT FCC PART 15 & Industry Canada RSS-210 No. JSH007030489-001 Applicant :Everflourish Electrical Co., Ltd. Renjiu Village Wuxiang town, Yinzhou Ningbo, ZheJiang, 315111, P.R. China Manufacturer : Everflourish Electrical Co., Ltd. Renjiu Village Wuxiang town, Yinzhou Ningbo, ZheJiang, 315111, P.R. China Equipment :Transmitter Type/Model :EMW200TK Summary The test report is to certify that the tested equipment properly complies with the requirements of: FCC Rules and Regulations: 47CFR Part 15: Radio Frequency Devices: 2006 ANSIC63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210: Low-power Licence-except Radiocommunication Devices (All Frequency Bands): Category I Equipment Description The appliances were tested by Intertek Testing Services Limited Shanghai and found compliance with relevant requirements described in FCC Part 15: Radio Frequency Devices. Test results are contained in this test report and Intertek Testing Services Limited Shanghai is assumed full responsibility for the accuracy and completeness of these measurements. The test report shall not be reproduced in part without written approval of Intertek Testing Services Limited Shanghai. Date of issue: May 16, 2007 Prepared by: Approved by: Daniel Zhao( Project engineer) Jonny Jing (Reviewer) Test report no. JSH007030489-001 Page 2 of 14 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 Test report no. JSH007030489-001 Page 3 of 14 Content SUMMARY............................................................................................................................................ 1 DESCRIPTION................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY................................................................................ 2 CONTENT............................................................................................................................................. 3 1.APPLICANT INFORMATION......................................................................................................................... 4 2.INFORMATION OF EQUIPMENT UNDER TEST (EUT) ................................................................................. 4 2.1 Identification of the EUT ............................................................................................................ 4 2.2 Technical specification ................................................................................................................ 4 2.3 Mode of operation during the test / Test peripherals used................................................. 5 2.4 Related Grant and test Standard................................................................................................ 5 2.5 Instrument list................................................................................................................................. 5 3. TEST SUMMARY......................................................................................................................................... 7 4. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT)........................................................ 8 4.1 Limits................................................................................................................................................ 8 4.2 Test Procedure:...............................................................................................................................8 4.3 Test SET-UP (Block Diagram of Configuration)................................................................ 8 4.4 Test Result: ...................................................................................................................................... 8 5. RADIATED EMISSION TEST........................................................................................................................ 9 5.1 Limits................................................................................................................................................ 9 5.2 Test Procedure:...............................................................................................................................9 5.3 Test SET-UP (Block Diagram of Configuration) .............................................................. 10 5.4 Test result...................................................................................................................................... 11 6. EMISSION BANDWIDTH............................................................................................................................ 13 6.1 Limits .............................................................................................................................................. 13 6.2 Test Procedure .............................................................................................................................. 13 6.3 Test Configuration....................................................................................................................... 13 6.4 Test Results ................................................................................................................................... 13 7. DUTY CYCLE MEASUREMENT................................................................................................................. 14 7.1 Measurement Procedure ............................................................................................................ 14 7.2 Test SET-UP (Block Diagram of Configurat…

Text truncated - open the document above for the full version.

FCC ID: VBA2300ULRF Page 1 of 11 Test Data FCC ID: VBA2300ULRF Page 2 of 11 1. Radiation emission Antenna Polarization: Horizontal; EUT: X orientation 0 10 20 30 40 50 60 70 80 90 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] MES Z0509-1H_pre 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 1G1.5G2G2.5G3G3.3G Frequency [Hz] MES Z0509-4H_pre FCC ID: VBA2300ULRF Page 3 of 11 Antenna Polarization: Vertical; EUT: X orientation 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] MES Z0509-1V_pre 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 1G1.5G2G2.5G3G3.3G Frequency [Hz] MES Z0509-4V_pre FCC ID: VBA2300ULRF Page 4 of 11 Antenna Polarization: Horizontal; EUT: Y orientation 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] MES Z0509-2H_pre 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 1G1.5G2G2.5G3G3.3G Frequency [Hz] MES Z0509-5H_pre FCC ID: VBA2300ULRF Page 5 of 11 Antenna Polarization: Vertical; EUT: Y orientation 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] MES Z0509-2V_pre 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 1G1.5G2G2.5G3G3.3G Frequency [Hz] MES Z0509-5V_pre FCC ID: VBA2300ULRF Page 6 of 11 Antenna Polarization: Horizontal; EUT: Z orientation 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] MES Z0509-3H_pre 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 1G1.5G2G2.5G3G3.3G Frequency [Hz] MES Z0509-6H_pre FCC ID: VBA2300ULRF Page 7 of 11 Antenna Polarization: Vertical; EUT: Z orientation 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] MES Z0509-3V_pre 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 1G1.5G2G2.5G3G3.3G Frequency [Hz] MES Z0509-6V_pre FCC ID: VBA2300ULRF Page 8 of 11 2. Emission bandwidth FCC ID: VBA2300ULRF Page 9 of 11 FCC ID: VBA2300ULRF Page 10 of 11 3. Duty cycle measurement FCC ID: VBA2300ULRF Page 11 of 11

FCC ID: VBA2300ULRF Page 1 of 7 Test Setup FCC ID: VBA2300ULRF Page 2 of 7 1. Radiation emission EUT Axis: X FCC ID: VBA2300ULRF Page 3 of 7 EUT Axis: X FCC ID: VBA2300ULRF Page 4 of 7 EUT Axis: Y FCC ID: VBA2300ULRF Page 5 of 7 EUT Axis: Y FCC ID: VBA2300ULRF Page 6 of 7 EUT Axis: Z FCC ID: VBA2300ULRF Page 7 of 7 EUT Axis: Z
