tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 email: [email protected] Compliance Certification Services 13 December 2010 47173 Benicia Street Fremont, CA 94538 Attention: Application Examiner Re: Request for confidentiality under 0.457 and 0.459 of FCC Rules Applicant: Intelleflex Inc. Equipment: 902-928 MHz RFID Reader Frequency Hopping Spread Spectrum Transceiver FCC ID: VBLFMR-6000 IC: 7151A-FMR6000 Model No.: FMR-6000 To whom it may concern, On behalf of my client Intelleflex Corporation, this request is being submitted to maintain confidentiality for the following items: Schematic Block diagram Theory of operation Disclosure of these documents to outside parties would give competitors an unfair competitive advantage and could result in considerable financial harm to Intelleflex. If you have questions or need further information please contact the undersigned. Sincerely, T.N. Cokenias Agent for Intelleflex Corporation

EXTERNAL PHOTOGRAPHS Intelleflex Corporation FCC ID: VBLFMR-6000 IC: 7151A-FMR6000

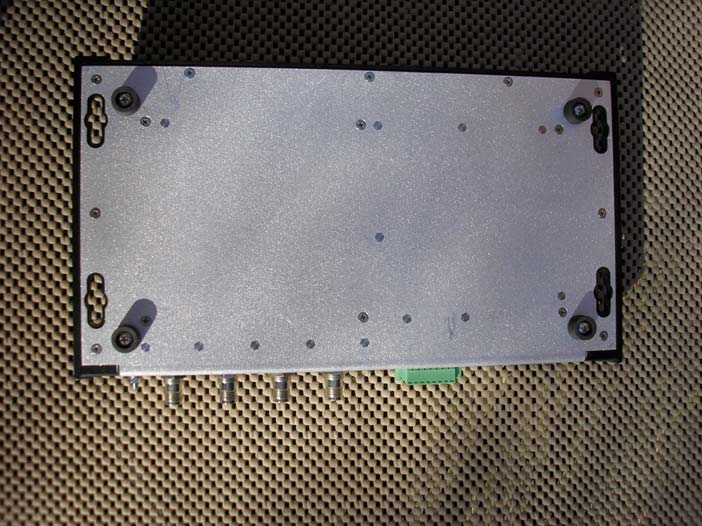

INTERNAL PHOTOGRAPHS Intelleflex Corporation FCC ID: VBLFMR-6000 IC: 7151A-FMR6000

Intelleflex Corporation Report No. 10PRO027Rev1 FCC ID: VBLFMR-6000 IC: 7151A-FMR6000 Model: FMR-6000 Page 26 of 44 MAXIMUM PERMISSIBLE EXPOSURE Test requirement: 1.1307 LIMITS §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Intelleflex Corporation Report No. 10PRO027Rev1 FCC ID: VBLFMR-6000 IC: 7151A-FMR6000 Model: FMR-6000 Page 27 of 44 CALCULATIONS Given E =
(30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations and rearranging the terms to express the distance as a function of the remaining variables yields: d =
((30 * P * G) / (3770 * S)) Changing to units of Power to mW and Distance to cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) yields d = 100 *
((30 * (P / 1000) * G) / (3770 * S)) d = 0.282 *
(P * G / S) where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW/cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) yields d = 0.282 * 10 ^ ((P + G) / 20) /
S Equation (1) where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Equation (1) and the measured peak power is used to calculate the MPE distance. Intelleflex Corporation Report No. 10PRO027Rev1 FCC ID: VBLFMR-6000 IC: 7151A-FMR6000 Model: FMR-6000 Page 28 of 44 LIMITS From §1.1310 Table 1 (B), S = 0.6 mW/cm^2 RESULTS For worst case output power = 28.14 dBm (C3 Low channel) into an antenna with a maximum gain of 7.86 dBiL to produce the maximum allowed 36 dBi EIRP: Max RF Power TX Antenna MPE distance S, mW/cm@ P, dBm G, dBi cm at 20 cm 28.14 7.86 23 0.79 NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less.

MTI WIRELESS EDGE LTD. MT – 262006/TRH/A/K REV-A SCALE: NONE DOC NO. RD41880600C SHEET 1 OF 1 SPECIFICATION FOR MT – 262006/TRH/A/K RHCP SUBSCRIBER ANTENNA 902-928 MHz, 9 dBic THIS DOCUMENT AND THE INFORMATION CONTAINED IN IT ARE PROPRIETARY AND CONFIDENTIAL TO MTI. NO PERSON IS ALLOWED TO COPY REPRINT REPRODUCE OR PUBLISH ANY PART OF THIS DOCUMENT NOR DISCLOSE ITS CONTENTS TO OTHERS NOR MAKE ANY USE OF IT NOR ALLOW OR ASSIST OTHERS TO MAKE ANY USE OF IT, UNLESS BY THE PRIOR WRITTEN EXPRESS AUTHORIZATION OF MTI AND THEN ONLY TO THE EXTENT AUTHORIZED. (C) COPYRIGHT – MTI WIRELESS EDGE LTD. MTI WIRELESS EDGE LTD. SPECIFICATION FOR MT – 262006/TRH/A/K RHCP SUBSCRIBER ANTENNA DOC NO. RD41880600C 902-928 MHz,9 dBic SCALE: NONE CLASSIFICATION: NONE REV-A SHEET 2 OF 2 REVISION RECORD DATE APVD DESCRIPTION ECO REV 15.5.06 YAEL H. RELAESED CV57 A 56 55 54 53 52 51 50 49 48 47 46 45 44 43 SHEET REV 42 41 40 39 38 37 36 35 34 33 32 31 30 29 SHEET REV 28 27 26 25 24 23 22 21 20 19 18 17 16 15 SHEET REV 14 13 12 11 10 9 8 7 6 5 4 3 2 1 SHEET A A A A REV PRODUCT STATUS: PRODUCTION PREPRODUCTION IN DEVELOPMENT PROPOSAL CONTRACT NO DATE SIGN NAME ACTION 14.5.06 YAKOV YAKOV SALERNO. PREP DOV FEINER CHKD CHKD CHKD 15.5.06 A.H ASAF HVIV DSGN 15.5.06 A.D ALEX DRAGILEV PROJ MFG 15.5.06 MOTI MOTI MOTOVICH QA 15.5.06 D.S DAVID SHANI MARK. MTI WIRELESS EDGE LTD. SPECIFICATION FOR MT – 262006/TRH/A/K RHCP SUBSCRIBER ANTENNA DOC NO. RD41880600C 902-928 MHz,9 dBic SCALE: NONE CLASSIFICATION: NONE REV-A SHEET 3 OF 3 MTI WIRELESS EDGE LTD. SPECIFICATION FOR MT – 262006/TRH/A/K RHCP SUBSCRIBER ANTENNA DOC NO. RD41880600C 902-928 MHz,9 dBic SCALE: NONE CLASSIFICATION: NONE REV-A SHEET 4 OF 4 SPECIFICATION FLAT PANEL SUBSCRIBER ANTENNA MTI PART NUMBER MT – 262006/TRH/A/K REGULATORY COMPLIANCE RoHS , CE 0682 1. ELECTRICAL FREQUENCY RANGE 902 - 928 MHz GAIN 9 dBic (min) VSWR 1.3:1 (max) 1.4:1 (max) @ 10% of the range AZIMUTH 3 dB BEAMWIDTH 63° (typ) ELEVATION 3 dB BEAMWIDTH 63° (typ) POLARIZATION RHCP SIDELOBES LEVEL @ 90° -16 dB (max) AXIAL RATIO AT BORESIGHT 4 dB (max) F/B RATIO -18 dB (max) -20 dB (typ) INPUT IMPEDANCE 50 (Ohm) INPUT POWER 6 W (max) LIGHTNING PROTECTION DC Grounded 2. MECHANICAL DIMENSIONS (LxWxD) 305x305x25 mm ORIENTATION Rectangular WEIGHT 1.2 kg (max) CONNECTOR Reverse Polarity TNC Female RADOME Plastic UV Resistant per ETSI 300 BASE PLATE Aluminum with chemical conversion coating OUTLIN DRAWING RD41880300C 3. MOUNTING KIT MOUNTING KIT SEE RD41191800C MTI WIRELESS EDGE LTD. SPECIFICATION FOR MT – 262006/TRH/A/K RHCP SUBSCRIBER ANTENNA DOC NO. RD41880600C 902-928 MHz,9 dBic SCALE: NONE CLASSIFICATION: NONE REV-A SHEET 5 OF 5 4. ENVIRONMENTAL TEST STANDARD DURATION TEMPERTURE NOTES LOW TEMPERATURE IEC 68-2-1 72 h -55°C - HIGH TEMPERATURE IEC 68-2-2 72 h +71°C - TEMP. CYCLING IEC 68-2-14 1 h -45°C +70°C 3 Cycles THERMAL SHOCK NONO-OPERATING -30°C to +70°C Ramp 30°C/min HUMIDITY ETSI EN300-2-4 T4.1E 144 h - 95% WATER TIGHTNESS IEC 529 - - IP67 DUST RESISTANCE IP67 SOLAR RADIATION ASTM G53 1000 h - - OZONE RESISTANCE ETSI 300 FLAMMABILITY UL 94 - - Class HB SALT SPRAY IEC 68-2-11 Ka 500 h - - ICE AND SNOW - - - 25mm Radial WIND SPEED SURVIVAL OPERATION - - - - - - 220 Km/h 160 Km/h WIND LOAD (SURVIVAL): FRONT THRUST SIDE THRUST - - - - - - 26.8 kg 2.2 kg QUASI RANDOM VIBRATION 20g rms for 4 hours VEHICLE VIBRATION OPERATING 1g rms, 10- 500 Hz, in 3 axis 6 hours total, 2 hr in each axis. Accelerated wear – an additional 50hrs in worst case axis. MECHANICAL SHOCK OPERATING 10g, 11 msec, half sine pulse

MTI WIRELESS EDGE LTD. MT – 262013/NRH REV-C SCALE: NONE DOC NO. RD41790500C SHEET 1 OF 4 SPECIFICATION FOR MT – 262013/NRH READER ANTENNA 902-928 MHz, 6 dBil (max) THIS DOCUMENT AND THE INFORMATION CONTAINED IN IT ARE PROPRIETARY AND CONFIDENTIAL TO MTI. NO PERSON IS ALLOWED TO COPY REPRINT REPRODUCE OR PUBLISH ANY PART OF THIS DOCUMENT NOR DISCLOSE ITS CONTENTS TO OTHERS NOR MAKE ANY USE OF IT NOR ALLOW OR ASSIST OTHERS TO MAKE ANY USE OF IT, UNLESS BY THE PRIOR WRITTEN EXPRESS AUTHORIZATION OF MTI AND THEN ONLY TO THE EXTENT AUTHORIZED. (C) COPYRIGHT – MTI WIRELESS EDGE LTD. MTI WIRELESS EDGE LTD. SPECIFICATION FOR MT – 262013/NRH READER ANTENNA DOC NO. RD41790500C 902-928 MHz, 7.5 dBic SCALE: NONE CLASSIFICATION: NONE REV-C SHEET 2 OF 4 REVISION RECORD DATE APVD DESCRIPTION ECO REV 14.2.06 YAEL H. RELAESED CV07 A 12.7.06 YAEL H. UPDATE SPEC 1447 B 20.7.06 YAEL H. UPDATE SPEC 1458 C 56 55 54 53 52 51 50 49 48 47 46 45 44 43 SHEET REV 42 41 40 39 38 37 36 35 34 33 32 31 30 29 SHEET REV 28 27 26 25 24 23 22 21 20 19 18 17 16 15 SHEET REV 14 13 12 11 10 9 8 7 6 5 4 3 2 1 SHEET C C C C REV PRODUCT STATUS: PRODUCTION PREPRODUCTION IN DEVELOPMENT PROPOSAL CONTRACT NO DATE SIGN NAME ACTION 18.1.06 Y.H YAEL HRASH PREP 20.3.06 D.F DOV FEINER CHKD CHKD CHKD 18.1.06 S.Z SERGEY ZEMLYAKOV DSGN 19.1.06 A.D ALEX DRAGILEV PROJ MFG 25.1..06 MOTI MOTI MOTOVICH QA 15.2.06 D.S DAVID SHANI MARK. MTI WIRELESS EDGE LTD. SPECIFICATION FOR MT – 262013/NRH READER ANTENNA DOC NO. RD41790500C 902-928 MHz, 7.5 dBic SCALE: NONE CLASSIFICATION: NONE REV-C SHEET 3 OF 4 MTI WIRELESS EDGE LTD. SPECIFICATION FOR MT – 262013/NRH READER ANTENNA DOC NO. RD41790500C 902-928 MHz, 7.5 dBic SCALE: NONE CLASSIFICATION: NONE REV-C SHEET 4 OF 4 SPECIFICATION FLAT PANEL READER ANTENNA MTI PART NUMBER MT – 262013/NRH REGULATORY COMPLIANCE RoHS , CE 0682 1. ELECTRICAL FREQUENCY RANGE 902-928 MHz GAIN 6 dBil (Max) VSWR 1.3:1 (max) AZIMUTH 3 dB BEAMWIDTH 70° ±3° ELEVATION 3 dB BEAMWIDTH 71° ±1° POLARIZATION RHCP SIDELOBES LEVEL AND FRONT TO BACK -19 dB (max) AXIAL RATIO AT BORESIGHT 1 dB (typ) 1.3 dB (max) INPUT IMPEDANCE 50 (Ohm) INPUT POWER 6 W (max) LIGHTNING PROTECTION DC Grounded 2. MECHANICAL DIMENSIONS (LxWxD) 190x190x30 mm (max) ORIENTATION Rectangular WEIGHT 0.8 kg (max) CONNECTOR N - type Female RADOME Plastic UV Resistant per ETSI 300 BASE PLATE Aluminum with chemical conversion coating OUTLINE DRAWING RD41790600C 3. MOUNTING KIT SEE RD41191800C MTI WIRELESS EDGE LTD. SPECIFICATION FOR MT – 262013/NRH READER ANTENNA DOC NO. RD41790500C 902-928 MHz, 7.5 dBic SCALE: NONE CLASSIFICATION: NONE REV-C SHEET 5 OF 4 4. ENVIRONMENTAL TEST STANDARD DURATION TEMPERTURE NOTES LOW TEMPERATURE IEC 68-2-1 72 h -55°C - HIGH TEMPERATURE IEC 68-2-2 72 h +71°C - TEMP. CYCLING IEC 68-2-14 1 h -45°C +70°C 3 Cycles THERMAL SHOCK NONO-OPERATING -30°C to +70°C Ramp 30°C/min HUMIDITY ETSI EN300-2-4 T4.1E 144 h - 95% WATER TIGHTNESS IEC 529 - - IP54 DUST RESISTANCE IP54 SOLAR RADIATION ASTM G53 1000 h - - OZONE RESISTANCE ETSI 300 FLAMMABILITY UL 94 - - Class HB QUASI RANDOM VIBRATION 20g rms for 4 hours VEHICLE VIBRATION OPERATING 1g rms, 10-500 Hz, in 3 axis 6 hours total, 2 hr in each axis. Accelerated wear – an additional 50hrs in worst case axis. MECHANICAL SHOCK OPERATING 10g, 11 msec, half sine pulse * IP 67 AVAILABLE UPON REQUEST

Intelleflex Corporation Report No. 10PRO027Rev1 FCC ID: VBLFMR-6000 IC: 7151A-FMR6000 Model: FMR-6000 Page 1 of 44 EMISSIONS TEST REPORT FOR A LOW POWER TRANSMITTER I. GENERAL INFORMATION Requirement: FCC Test Requirements: FCC Part 15 Applicant: Intelleflex Corp 2465 Augustine Drive, Suite 102 Santa Clara, CA 95054 FCC ID: VBLFMR-6000 IC: 7151A-FMR6000 Model No.: FMR-6000 II. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) The Intelleflex FMR-6000 is a 902-928 MHz FHSS RFID reader. The module supports two standard RFID modulation protocols, C1C2 and C3. III. TEST DATES AND TEST LOCATION Testing was performed 19 and 29 November 2010 and 1 December 2010. All testing was performed at Bay Area Compliance Laboratory 1490 Anvilwood Road Sunnyvale, CA 94089 T.N. Cokenias 16 December 2010 EMC Consultant/Agent for Intelleflex Corporation Intelleflex Corporation Report No. 10PRO027Rev1 FCC ID: VBLFMR-6000 IC: 7151A-FMR6000 Model: FMR-6000 Page 2 of 44 15.203 Antenna connector requirement The EUT uses an external antenna with a unique antenna connector. Antenna description Mfr. Model No. Gain Panel antenna MTi MT-262006/TRH/A/K 9dBic * Panel antenna MTi MT-262013/NRH 6dBiL • Max gain is 7.86 dBiL TEST PROCEDURES All tests were performed in accordance with the applicable procedures called out in the following documents, unless otherwise noted: FCC 47CFR15 RSS-210 Issue 7: Low power license exempt radio frequency devices (July 2007) RSS-212: Test Facilities and Test Methods for Radio Equipment ANSI C63.4 – 2003, American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. For each modulation type, tests were performed at three frequencies: Channel 0 (LOW) – 902.75 MHz Channel 26 (MID) - 915.75 MHz Channel 49 (HIGH) – 927.25 MHz Intelleflex Corporation Report No. 10PRO027Rev1 FCC ID: VBLFMR-6000 IC: 7151A-FMR6000 Model: FMR-6000 Page 3 of 44 Test Equipment Test Set-up Diagram Serial cable Support Equipment Equipment Mfr Model Serial No. POE adapter (EUT) SL Power and AULT PW180KB4800F01 (0.35A and 0.4A) n/a Laptop PC HP Pavillion 0045-648-759-531 PC AC/DC adapter HP DC359A CT59C70AMFSY592 Router Motorola 2247-62-10NAFP 142243293120 Manufacturer Description Model Serial Number Calibration Date Rohde & Schwarz EMI Test Receiver ESCI 1166.5950K03 100337 3/24/10 Agilent Spectrum Analyzer E4440A US45303156 8/9/10 Sunol Science Corp System Controller SC99V 122303-1 N/R Sunol Science Corp Combination Antenna JB3 A0020106-3 6/16/10 Hewlett Packard Pre amplifier 8447D 2944A06639 6/18/10 A. H. Systems Horn Antenna SAS-200/571 261 9/23/10 Mini-Circuits Pre Amplifier ZVA-183-S 570400946 2010-05-10 Solar Electronics LISN 9252-50-R-24-N 511213 6/28/10 EUT laptop POE Supply 120VAC Panel Antenna Router P/S CAT5 Intelleflex Corporation Report No. 10PRO027Rev1 FCC ID: VBLFMR-6000 IC: 7151A-FMR6000 Model: FMR-6000 Page 4 of 44 IV. TEST RESULTS Radiated Test Set-up, 30 MHz-9.3 GHz Test requirement: 15.205, 15.207, 15.247 Bilog or Horn antenna 1-4m 3m EUT preamplifier Fig. 1 Test Procedures Radiated emissions generated by the transmitter portion of the EUT were measured. 1. The EUT was placed on a wooden table resting on a turntable on the test site. The search antenna was placed 3m from the EUT. The EUT antenna was mounted in the with the EUT TX antenna pointed directly to the search antenna. 2. The turntable was slowly rotated to locate the direction of maximum emission at each emission falling in the restricted bands of 15.205. 3. Emissions were investigated to the 10 th harmonic of the fundamental. 4. Once maximum direction was determined, the search antenna was raised and lowered in both vertical and horizontal polarizations. The maximum readings so obtained are recorded in the data listed below. Test Results: Worst-case results are presented. Refer to data sheets below. Restricted band emissions meet 54 dBuV/m. Other undesired emissions from the transmitter meet the -20 dBc requirement in 15.247(d). Intelleflex Corporation Report No. 10PRO027Rev1 FCC ID: VBLFMR-6000 IC: 7151A-FMR6000 Model: FMR-6000 Page 5 of 44 15.205 Restricted Frequency Bands MHz MHz MHz GHz 0.090 - 0.110 0.495 - 0.505 (1) 2.1735 - 2.1905 4.125 - 4.128 4.17725 - 4.17775 4.20725 - 4.20775 6.215 - 6.218 6.26775 - 6.26825 6.31175 - 6.31225 8.291 - 8.294 8.362 - 8.366 8.37625 - 8.38675 8.41425 - 8.41475 12.29 - 12.293 12.51975 - 12.52025 12.57675 - 12.57725 13.36 - 13.41 16.42 - 16.423 16.69475 - 16.69525 16.80425 - 16.80475 25.5 - 25.67 37.5 - 38.25 73 - 74.6 74.8 - 75.2 108 - 121.94 123 - 138 149.9 - 150.05 156.52475 - 156.52525 156.7 - 156.9 162.0125 - 167.17 167.72 - 173.2 240 - 285 322 - 335.4 399.9 - 410 608 - 614 960 - 1240 1300 - 1427 1435 - 1626.5 1645.5 - 1646.5 1660 - 1710 1718.8 - 1722.2 2200 - 2300 2310 - 2390 2483.5 - 2500 2655 - 2900 3260 - 3267 3332 - 3339 3345.8 - 3358 3600 - 4400 4.5 - 5.15 5.35 - 5.46 7.25 - 7.75 8.025 - 8.5 9.0 - 9.2 9.3 - 9.5 10.6 - 12.7 13.25 - 13.4 14.47 - 14.5 15.35 - 16.2 17.7 - 21.4 22.01 - 23.12 23.6 - 24.0 31.2 - 31.8 36.43 - 36.5 15.209 General Field Strength Limits Frequency Field Strength Measurement Distance (MHz) (microvolts/meter) (meters) _______________________________________________________________ 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30.0 30 30 30 - 88 100 ** 3 88 - 216 150 ** 3 216 - 960 200 ** 3 Above 960 500 3 _______________________________________________________________ Intelleflex Corporation Report No. 10PRO027Rev1 FCC ID: VBLFMR-6000 IC: 7151A-FMR6000 Model: FMR-6000 Page 6 of 44 Restricted Bands, Industry Canada RSS-210 Intelleflex Corporation Report No. 10PRO027Rev1 FCC ID: VBLFMR-6000 IC: 7151A-FMR6000 Model: FMR-6000 Page 7 of 44 General emissions limits, RSS-210 Intelleflex Corporation Report No. 10PRO027Rev1 FCC ID: VBLFMR-6000 IC: 7151A-FMR6000 Model: FMR-6000 Page 8 of 44 Radiated Emissions Above 1 GHz: C1C2 Operation T1011192 CiG2 Freq. Read POLCa…
