VBLMMR6500RFID Reader Module

Intelleflex User Manual MMR6500 RFID Reader Module Integration Manual Authors: DK Version 0.0 June 28, 2010 Table of Contents 1. INTRODUCTION ..............................................................................................................3 1.1. REFERENCE DOCUMENTS................................................................................................3 2. LABELING REQUIREMENTS........................................................................................3 2.1. H OST DEVICE LABELING.................................................................................................3 2.2. M ODULE LABELING........................................................................................................3 3. ANTENNA REQUIREMENTS.........................................................................................4 3.1. C ONFIGURATION / ASSEMBLY INSPECTION................ERROR! BOOKMARK NOT DEFINED. 4. FCC AND GOVERNMENT GUIDELINES.....................................................................4 4.1. FCC G UIDELINES FOR DEVICES CONTAINING A TRANSMITTER........................................5 1. Introduction The MMR6500 RFID Reader Module is an FCC Part 15.247 compliant embedded device that enables host devices to read from and write to EPC Global C1G2 passive tags, and ISO 18000-6 revision 1, Type C, Manchester mode, Class 3 battery assisted passive tags. The Module operates in the UHF 902-928 MHz ISM band. The MMR6500 reader is designed in a PCMCIA/PC card mechanical format for integration into handheld and mobile RFID readers. The reader uses standard PC card connectors, but the electrical interface is a non-standard, proprietary serial interface that cannot be used in standard PC card slots in laptops or general computing devices. 1.1. Reference Documents EPC Global Class 1 Gen 2 Protocol v1.2.0 ISO/IEC 18000 Radio Frequency Identification for Item Management Part 6: Parameters for air interface communications at 860 to 960 MHz 2. Labeling Requirements 2.1. Host Device Labeling If the module is placed inside a host product and the label on the module is not visible, a label with the following information shall be placed on the exterior surface of the host product Contains FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Model No. MMR6500 2.2. Module Labeling The MMR6500 module has one label which contains Intelleflex company name, model and serial number, and the FCC/IC ID. 3. Antenna Requirements The host device shall connect one or two antennas to the MMR6500 MMCX antenna connectors. The antennas shall be one of the approved antenna types in the MMR6500 RF certification. 4. FCC and Government Guidelines Intelleflex MMR6500 Reader Module FCC ID: VBLMMR6500 IC ID: The MMR6500 module is REQUIRED to be professionally installed by a properly trained technician. Improper installation could void the user’s authority to operate the equipment. The device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. The device may not cause harmful interference. 2. The device must accept any interference received, including interference that may cause undesired operation. NOTE: For FCC compliance, the following text MUST be included in module host devices’ manuals and user’s guides. The antenna of this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The device should be installed so that people will not come within 22 cm (9 in.) of the antenna. This equipment has been tested and found to comply with Part 15 of the FCC Rules. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver disconnected. • Consult the dealer or an experienced Radio/TV technician for help. 4.1. FCC Guidelines for Devices Containing a Transmitter Module The following is an extract from Section 15.212(a)1(vi)A of the FCC Rules: (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. 4.2. Safety Information Observe the following safety guidelines. 1. Use only in module slots designed to support RFID readers. 2. Ensure proper heat sinking from the module. 3. Provide appropriate power, ground, and power controls to the module. 4. Not for use in potentially explosive or heat sensitive environments.

Applicant/Grantee Intelleflex Corporation FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The module has a metal shield over the radio elements YES 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Buffered data inputs are in place YES 3 The modular transmitter must have its own power supply regulation. The module has its own power supply regulation YES 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The module has an external antenna. The product is subject to the professional installation provision of 15.203 YES 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to The module was tested stand alone, connected to control pc via serial cable YES insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The RF module label is submitted as a separate exhibit. YES 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these The module is installed only in products manufactured by the grantee and under the grantee’s control, in keeping with the requirements for a limited modular approval. The grantee has internal manufacturing processes and documentation for control of final products using this module. YES instructions must be included in the application for equipment authorization. 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The module complies MPE limits as stated in the product manual when operating at maximum allowed power YES A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 email: [email protected] Compliance Certification Services 3 July 2010 47173 Benicia Street Fremont, CA 94538 Attention: Application Examiner Re: Request for confidentiality under 0.457 and 0.459 of FCC Rules Class 2 Permissive Change Application Applicant: Intelleflex Inc. Equipment: 902-928 MHz RFID Reader Frequency Hopping Spread Spectrum Transceiver Module FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Model No.: MMR6500 To whom it may concern, On behalf of my client Intelleflex Corporation, this request is being submitted to maintain confidentiality for the following items: Schematic Block diagram Theory of operation Disclosure of these documents to outside parties would give competitors an unfair competitive advantage and could result in considerable financial harm to Intelleflex. If you have questions or need further information please contact the undersigned. Sincerely, T.N. Cokenias Agent for Intelleflex Corporation

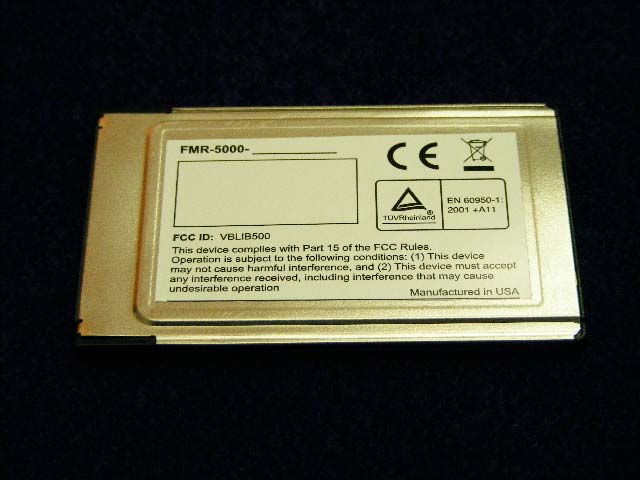

External Photographs Applicant: Intelleflex Corporation FCC ID: VBLMMR6500 IC: 7151A-MMR6500

� Made in USA Warranty Void if Opened 81-00003-001 39mm (1.54”) X 63mm (2.48”) w/ 0.38mm (0.015”) tolerance 2mm (0.080”) corner radius All materials are to be RoHS compliant per EU RoHS Directive 2002/95/EC LABEL, MMR-6500 81-00003-001 06/15/10 06/15/10 Intelleflex.com MMR-6500 FCC ID: VBLMMR6500 IC: 7151A-MMR6500 DC Input: 5V 1.5A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Extended Capability RFID

Label Location Applicant: Intelleflex Corporation FCC ID: VBLMMR6500 IC: 7151A-MMR6500

Internal Photographs Applicant: Intelleflex Corporation FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Top Bottom

Sheet1 I N T E L L E F L E X C O R P F C C I D : V B L M M R 6 5 0 0 9 0 2 - 9 2 8 M H z F H S S R a d i o C a l c u l a t e m W / c m 2 h e r e . E n t e r f r e q u e n c y i n M H z : R F I D R E A D E R R F H a z a r d D i s t a n c e C a l c u l a t i o n Calculation of Limits from 1.1310 Table 1 Controlled Uncontrolled Ave 6 min Ave 30 min m W / c m 2 f r o m T a b l e 1 : 0 . 6 0 F(MHz) A A c t u a l F , M H z Occ, mW/c2 Gen, mW/cm2 0.3-3 0.5 100.0 100.0 Max RF Power TX Antenna MPE distance S, mW/cm@ Comment 3.0 - 30.0 5 180.0 36.0 P, dBm G, dBi cm at 20 cm 3 3 0 . 0 - 3 0 0 5 5 1 . 0 0 . 2 300-1500 902 3.0 0.60 29.36 6.00 21.3 0.68 1500-100000 5555 5.0 1.0 E n t e r P ( m W ) Equivalent dBm E E n t e r d B m Equivalent Watts B a s i s o f C a l c u l a t i o n s : 8 9 5 . 4 2 9 . 5 2 2 9 . 5 2 895.4 E^2/3770 = S, mW/cm2E, V/m = (Pwatts*Ggain*30)^.5/d, metersd = ((Pwatts*G*30)/3770*S))^0.5 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) S@20cm = 20 log (MPE dist/20cm) N O T E : F o r m o b i l e o r fi x e d l o c a t i o n t r a n s m i t t e r s , m i n i m u m s e p a r a t i o n d i s t a n c e i s f o r F C C c o m p l i a n c e i s 2 0 c m , e e v e n i f c a l c u l a t i o n s i n d i c a t e M P E d i s t a n c e i s l e s s Page 1

Intelleflex Corporation Report No. 10PRO016 FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Model: MMR6500 Page 1 of 47 EMISSIONS TEST REPORT FOR A LOW POWER TRANSMITTER I. GENERAL INFORMATION Requirement: FCC Test Requirements: FCC Part 15 Applicant: Intelleflex Corp 2465 Augustine Drive, Suite 102 Santa Clara, CA 95054 FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Model No.: MMR6500 II. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) The Intelleflex MMR6500 is a 902-928 MHz FHSS RFID reader. The module supports two standard RFID modulation protocols, C1C2 and C3. III. TEST DATES AND TEST LOCATION Testing was performed various times between 6 – 19 May and 2 July 2010. All Testing was performed at Compliance Certification Services 47173 Benicia Street Fremont, CA 94538 T.N. Cokenias 3 July 2010 EMC Consultant/Agent for Intelleflex Corporation Intelleflex Corporation Report No. 10PRO016 FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Model: MMR6500 Page 2 of 47 15.203 Antenna connector requirement The EUT uses an external antenna with a unique antenna connector. Antenna description Mfr. Model No. Gain yagi Intelelflex n/a 6 dBi TEST PROCEDURES All tests were performed in accordance with the applicable procedures called out in the following documents, unless otherwise noted: FCC 47CFR15 RSS-210 Issue 7: Low power license exempt radio frequency devices (July 2007) RSS-212: Test Facilities and Test Methods for Radio Equipment ANSI C63.4 – 2003, American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. For each modulation type, tests were performed at three frequencies: Channel 0 (LOW) – 902.75 MHz Channel 26 (MID) - 915.75 MHz Channel 49 (HIGH) – 927.25 MHz Intelleflex Corporation Report No. 10PRO016 FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Model: MMR6500 Page 3 of 47 Test Equipment Test Set-up Diagram Serial cable Support Equipment Equipment Mfr Model Asset No. EUT AC/DC adapter V-Infinity 3A- 2 11 D N 0 6 ETS060330UTC-P5P-SZ Laptop PC IBM T2648 T2648-BU2 S/N 78- WXDRA PC AC/DC adapter CBK (IBM) 02K6746 11S02K67 46Z20083974 REV: 07 EUT on carrier board laptop AC/DC Supply 120VAC DescriptionManufacturerModelAsset NumberCal Due Spectrum Analyzer, 26.5 GHzAgilent / HPE4440AC0117908/24/10 Antenna, Bilog, 2 GHzSunol SciencesJB1C0101107/14/10 Preamplifier, 1300 MHzAgilent / HP8447DC0088507/06/10 Antenna, Horn, 18 GHzEMCO3115C0094507/29/10 Preamplifier, 26.5 GHzAgilent / HP8449BC0105208/04/10 Highpass Filter, 1.5 GHzMicro-TronicsHPM13193N/AC.N.R. Spectrum Analyzer, 26.5 GHzAgilent / HPE4440AC0117608/24/10 Antenna, Bilog, 2 GHzSunol SciencesJB1C0117107/14/10 Preamplifier, 1300 MHzAgilent / HP8447DC005587/6/2010 EMI Test Receiver, 30 MHzR & SESHS 20N0239605/06/11 LISN, 30 MHzFCCLISN-50/250-25-2N0262511/06/10 LISN, 10 kHz ~ 30 MHzSolar8012-50-R-24-BNCN0248111/05/10 DC Power Sup[plyHPE3601AN02844C.N.R TES T EQUIPMENT LIS T yagi Antenna Fan to cool EUT Intelleflex Corporation Report No. 10PRO016 FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Model: MMR6500 Page 4 of 47 IV. TEST RESULTS Radiated Test Set-up, 30 MHz-9.3 GHz Test requirement: 15.205, 15.207, 15.247 Bilog or Horn antenna 1-4m 3m EUT preamplifier Fig. 1 Test Procedures Radiated emissions generated by the transmitter portion of the EUT were measured. 1. The EUT was placed on a wooden table resting on a turntable on the test site. The search antenna was placed 3m from the EUT. The EUT antenna was mounted in the with the EUT TX antenna pointed directly to the search antenna. 2. The turntable was slowly rotated to locate the direction of maximum emission at each emission falling in the restricted bands of 15.205. 3. Emissions were investigated to the 10 th harmonic of the fundamental. 4. Once maximum direction was determined, the search antenna was raised and lowered in both vertical and horizontal polarizations. The maximum readings so obtained are recorded in the data listed below. Test Results: Worst-case results are presented. Pre-scan data showed X orientation in setup photographs as worst case configuration for emissions. Refer to data sheets below. Restricted band emissions meet 54 dBuV/m. Other undesired emissions from the transmitter meet the -20 dBc requirement in 15.247(d). Intelleflex Corporation Report No. 10PRO016 FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Model: MMR6500 Page 5 of 47 15.205 Restricted Frequency Bands MHz MHz MHz GHz 0.090 - 0.110 0.495 - 0.505 (1) 2.1735 - 2.1905 4.125 - 4.128 4.17725 - 4.17775 4.20725 - 4.20775 6.215 - 6.218 6.26775 - 6.26825 6.31175 - 6.31225 8.291 - 8.294 8.362 - 8.366 8.37625 - 8.38675 8.41425 - 8.41475 12.29 - 12.293 12.51975 - 12.52025 12.57675 - 12.57725 13.36 - 13.41 16.42 - 16.423 16.69475 - 16.69525 16.80425 - 16.80475 25.5 - 25.67 37.5 - 38.25 73 - 74.6 74.8 - 75.2 108 - 121.94 123 - 138 149.9 - 150.05 156.52475 - 156.52525 156.7 - 156.9 162.0125 - 167.17 167.72 - 173.2 240 - 285 322 - 335.4 399.9 - 410 608 - 614 960 - 1240 1300 - 1427 1435 - 1626.5 1645.5 - 1646.5 1660 - 1710 1718.8 - 1722.2 2200 - 2300 2310 - 2390 2483.5 - 2500 2655 - 2900 3260 - 3267 3332 - 3339 3345.8 - 3358 3600 - 4400 4.5 - 5.15 5.35 - 5.46 7.25 - 7.75 8.025 - 8.5 9.0 - 9.2 9.3 - 9.5 10.6 - 12.7 13.25 - 13.4 14.47 - 14.5 15.35 - 16.2 17.7 - 21.4 22.01 - 23.12 23.6 - 24.0 31.2 - 31.8 36.43 - 36.5 15.209 General Field Strength Limits Frequency Field Strength Measurement Distance (MHz) (microvolts/meter) (meters) _______________________________________________________________ 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30.0 30 30 30 - 88 100 ** 3 88 - 216 150 ** 3 216 - 960 200 ** 3 Above 960 500 3 _______________________________________________________________ Intelleflex Corporation Report No. 10PRO016 FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Model: MMR6500 Page 6 of 47 Radiated Emissions Above 1 GHz: C1C2 Operation High Frequency Measurement Compliance Certification Services, Fremont 5m Chamber Company: Intelliflex Project #: 10U13208 Date: 0…

Text truncated - open the document above for the full version.

Intelleflex Corporation Report No. 10PRO016 FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Model: MMR6500 Page 40 of 43 SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Intelleflex Corporation Report No. 10PRO016 FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Model: MMR6500 Page 41 of 43 RADIATED RF MEASUREMENT SETUP NOTE: EUT placed in worst-case orientation for emissions (X-orientation) Intelleflex Corporation Report No. 10PRO016 FCC ID: VBLMMR6500 IC: 7151A-MMR6500 Model: MMR6500 Page 42 of 43 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
