VBNAEQU-01AirScale MAA 64T64R 192AE n78 200W AEQU

Nokia Solutions and Networks
AirScale MAA 64T64R 192AE n78 200W AEQU - FCC ID VBNAEQU-01 - Nokia Solutions and Networks
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Feb 03, 2022
Application Purpose
Original Equipment
Date of Application
Feb 03, 2022
Equipment Note
AirScale MAA 64T64R 192AE n78 200W AEQU
Frequency Range
3450.00000000 - 3550.00000000
Company
Nokia Solutions and Networks
Country
United States

Documents & Files

Select a file to view

Cover Letter(s)

↗
↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Applicant: Nokia Solutions and Networks -1 - FCC ID: VBNAEQU-01 Agent Authorization Letter Date: January 24, 2022 We, Nokia Solutions and Networks, declare that Raymond Johnson, Walter Majkowski, Steven Gordon and Qin Yu of Nokia Global Products Compliance Laboratory (GPCL) are authorized agents to sign applications pertinent to FCC and Industry Canada applications. These employees of Nokia Global Product Compliance Laboratory are authorized to make representations to the FCC, Industry Canada and their respective Telecommunications Certified Body (TCB) agents on our behalf. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC and Industry Canada's regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by the TCB, still resides with Nokia Solutions and Networks. I hereby certify on behalf of Nokia Solutions and Networks ("Applicant") that neither Applicant nor any party to the application (officers, directors, and 5% shareholders) is subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 198821 U.S.C. 853a. Sincerely, _______________________________ Steve Mitchell Nokia Solutions and Networks 3201 Olympus Blvd Dallas, Texas 75019 USA 1-972-374-3000 [email protected]

Cover Letter(s)

Federal Communications Commission Authorization and Evaluation Division Date: January 12, 2022 Confidentiality Request for: FCC ID: VBNAEQU-01 To Whom It May Concern, Pursuant to FCC 47 CRF 0.457(d) and 0.459, Section 10, Nokia Solutions and Networks requests that a part of the subject FCC and/or IC application listed below be held permanently confidential and permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. • Exhibit 5 Operating Description • Exhibit 6 Block Diagram • Exhibit 7 Complete Circuit Diagrams • Exhibit 8 Instruction Book • Exhibit 9 Internal Photographs • Exhibit 14 Parts List Confidentiality of the User Manual is maintained by requiring that any party that is supplied a user manual must first sign a non-disclosure agreement. Currently only cellular system operators have access to these manuals. Internal photos are kept confidential by virtue of the fact that the end product is a non- consumer product, certified and housed in a sealed enclosure, and is only accessible by trained /approved maintenance personnel. Further, the Applicant has spent substantial effort in developing this product, some aspects of which are deemed to be trade secret and proprietary. Having the subject information easily available to our competitors in this market would negate the advantage we have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Sincerely, ______________________________ Steve Mitchell Nokia Solutions and Networks 3201 Olympus Blvd Dallas, Texas 75019 USA 1-972-936-7500 [email protected]

Cover Letter(s)

Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Timco Engineering Inc. Nokia Global Product Compliance Laboratory FCC Authorized Telecommunication Certification Body 600-700 Mountain Avenue Room 5A-107 849 N.W. State Road 45, P.O. Box 370 Murray Hill, NJ 07974, USA Newberry, Florida 32669 January 24, 2022 Subject: Application for Original Equipment Certification under FCC ID: VBNAEQU-01 for Nokia AirScale MAA 64T64R 192AE n78 200W AEQU Dear Examiner: The Nokia AirScale MAA 64T64R 192AE n78 200W AEQU (hereinafter referred to as “AEQU”) is the subject of this application for a new FCC Product Certification under FCC ID: VBNAEQU-01. The AEQU is a 5G-NR (New Radio) and LTE-TDD (Long Term Evolution-Time Division Duplex) transceiver and operates in n78 – 5G NR Frequency Band – 3500 MHz TDD. This AEQU supports 20MHz, 30 MHz and 40 MHz single 5G-NR carriers. The AEQU is equipped with an integrated antenna with a maximum total gain of 24.5 dBi ±1 dB . Nokia Bell Labs, part of the Nokia family of companies, hereby requests this certification for 5G-NR operation. The key data are summarized below. FCC ID: VBNAEQU-01 FCC Rules: Part 27 Frequency Range: E-UTRAN Band n78, 3450-3550 MHz Conducted Output Power: Up to 34.95 dBm (3.125 W) per port EIRP Power: Up to 53.01 dBm (200.0 W) Total Frequency Tolerance: ± 0.05 ppm Emissions Designators 18M2G7W, 28M0G7W and 37M8G7W 5G-NR with QPSK, 16QAM, 64QAM and 256QAM Carriers: Single Carriers: 1x20, 1x30, 1x40 MHz Enclosed in this application package are FCC 731 Form, letters of Request for Permanent Confidentiality, agent authorization letter, the required measurement data and other required exhibits specific to this request for authorization of the subject product. The measurement exhibits attached to this application demonstrate full compliance with FCC Part 27 following the procedural requirements specified in FCC Part 2 Subpart J – Equipment Authorization Procedures. The supporting exhibits are assembled and presented in accordance with the Table of Contents attached below. Should there be any questions or procedural issues please feel free to contact me by email and/or phone. Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Sincerely, Raymond J. Johnson Technical Manager Global Product Compliance Laboratory Phone: 908-679-6220 email: [email protected] Filing Engineer Steve Gordon email: [email protected] Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 TABLE OF CONTENTS Cover Letter Confidentiality Request Letter Agent Authorization Letter Required Exhibits: Exhibit Number FCC Rule Number Description 1 Section 2.1033(a) FCC Form 731 2 Section 2.911(d) Qualifications and Certifications 3 Section 2.1033(c)(1,2, 4-7) Manufacturers, FCC Identifier, Emission, Range of RF Power & Frequency 4 Section 2.1033(c)(11), Drawing of the Identification Label 2.925(a)(1) 5 Section 2.1033(c)(8,9) Active Circuit Devices Drive Levels, Tune-Up procedure (Confidential) 6 Section 2.1033(c)(10,13) Block Diagram, Operational Description, Circuitry for determining frequency (Confidential) 7 Section 2.1033(c)(10) Complete Circuit Diagrams (Confidential) 8 Section 2.1033(c)(3) Installation Manual (Confidential) 8a Section 2.1033(c)(3) Manual - NDA (Non-Disclosure Agreement) 9 Section 2.1033(c)(12) Internal Photographs of the Equipment (Confidential) 10 Section 2.1033(c)(12) External Photographs of the Equipment 11 Section 2.1033(c)(10, 13) Description of Modulation System 12 Section 2.1033(c)(21) Photographs of the Test Setups 13 Sections 1.1307 & 1.1310 RF Exposure Assessment (MPE Report) 14 Section 2.1033(c)(10) Parts List (Confidential) 15 Section 2.1033(14), 2.911(e) Test Report

Cover Letter(s)

APPLICANT: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Public Page 1 of 1 Exhibit 11 SECTION 2.1033(c) (13) DETAILED DESCRIPTION OF THE MODULATION SYSTEM SECTION 2.1033(c) (10, 13) For equipment employing digital modulation techniques, a detailed description of the modulation system to be use, including response characteristics of any filters provided, and a description of the modulating wavetrain, shall be submitted for the maximum rated conditions under which the equipment will be operated. Response The Nokia (AirScale MAA 64T64R 192AE n78 200W AEQU) supports NR radio access technology, including multiple- input multiple-output (MIMO). System operates with two separate branches based on polarities. Each Made chip has 8 SxC layers as input and with 4 Made chips, there is 32 TRX for one polarity. Similar setup for the other polarity is used. Master beamer will distribute the 8 virtual layers to all four Made chips by 1x25G ethernet (BIP in Made1). Other 8 layers are then distributed the other 4 Made chips. Altogether, the system can handle 16 SxC streams. 8 Made are used as DFE to support 64 TRX and 100MHz OBW/TRX. DUC/DDC/CFR/DPD are all integrated MADE. L1- low function such as FFT/IFFT is also integrated in MADE, to provide less data transmission rate. MADE based mMIMO only has one 25G ethernet link between Master beamer and Made. HW only reserve another CPRI link between Master beamer and Made, to support legacy LTE mMIMO application. TI RFIC is used as RFIC component, to provide analog TRX path for signal chain. Each RFIC can support 4 TRX and 2 Feedback, with dedicated FB function to calibration LO leakage and IQ imbalance. There is no extra gain block at the path of the Uplink and Downlink. An integrated PA (power amplifier) is used to provide final output of TX path, The PAR for 5G one carrier should be 7.8%. For 200M IBW, possible to be 8.3%. PA efficiency should be more than 35% at room temperature. Air cavity filter is used to implement the tight requirement of spurious emission for NR band n78(3450~3550MHz). 192 AE antenna is used right after filter, using direct connector with filter. A tooling kit can be used to replace the antenna to perform the conductive test.

Cover Letter(s)

Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 EXHIBIT 2 Section 2.911 (d) CERTlFICATION OF TECHNICAL TEST DATA To Whom it may Concern: This is to certify that the Nokia AirScale MAA 64T64R 192AE n78 200W AEQU with FCCID: VBNEAQU-01, manufactured by Nokia is compliant with 5G-N R a n d LTE-TDD (Long Term Evolution-Time Division Duplex) transceiver and operates in and operates in n78 – 5G NR Frequency Band – 3500 MHz TDD. R.J. Johnson Technical Manager FCC Compliance Test Group Section 2.911 (e) QUALIFICATION OF ENGINEERS Steve Gordon is a Member of Technical Staff at Nokia. He received a BSET degree in 2001 from The New Jersey Institute of Technology, Newark College of Engineering. He has more than 19 years of experience in th e E MC regulatory industry. He has developed test plans and conducted RF tests including the required FCC tests for radio equipment certification. Steve is the Lead engineer for the FCC filing of the subject product at Nokia. Section 2.911(d) CERTIFICATION OF TECHNICAL TEST DATA I hereby certify that the technical test data are the results of tests supervised by me. Steve Gordon Member of Technical Staff Public Page 1 of 1

Cover Letter(s)

Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Public Page 1 of 2 Exhibit 3 FCC REQUIRED INFORMATION The following information is presented in the content and format requested by FCC: Section 2.1033 (c)(1): The full name and mailing address of the manufacturer of the device and the applicant for certification Phone: 972-936-7500 email: [email protected] Section 2.1033(c)(2): IC Identifier: VBNAEQU-01 Section 2.1033(c)(4): Type or types of emission: The Nokia AirScale MAA 64T64R 192AE n78 200W AEQU is capable of amplifying transmission involving the following types of emissions: BW (MHz) Emissions Designation 20 18M2G7W 30 28M0G7W 40 37M8G7W Manufacturer: NOKIA SOLUTIONS AND NETWORKS OY KARAKAARI 7, FI-02610 ESPOO FINLAND Applicant: Nokia Solutions and Networks 3201 Olympus Blvd Dallas, TX, 75019 Attention: Steve Mitchell Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Public Page 2 of 2 Section 2.1033(c)(5): Frequency range, Transmit / Receive: Blocks Transmit Range (MHz) Receive Range (MHz) Bandwidth (MHz) n78 3450 - 3550 3450 - 3550 100 Exhibit 3 FCC REQUIRED INFORMATION continued Section 2.1033(c)(6): Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power. Response: The Nokia AirScale MAA 64T64R 192AE n78 200W AEQU is capable operating from 22 dBm to 35 dBm/port in 0.5 dB steps. Section 2.1033(c)(7): Maximum power rating as defined in the applicable part (s) of the rules. Response: The maximum average power output of the Nokia AirScale MAA 64T64R 192AE n78 200W AEQU at the Antenna connection is summarized in the following table: Max Power per Port Total Max Power Modulation 64*3.125W mode 3.125W NR

External Photos

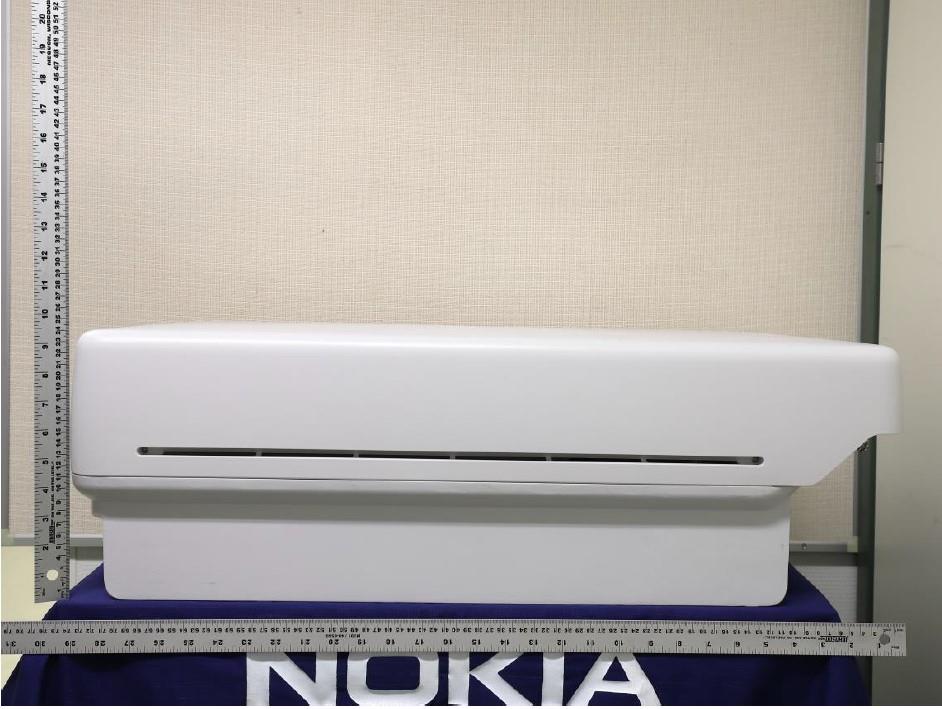

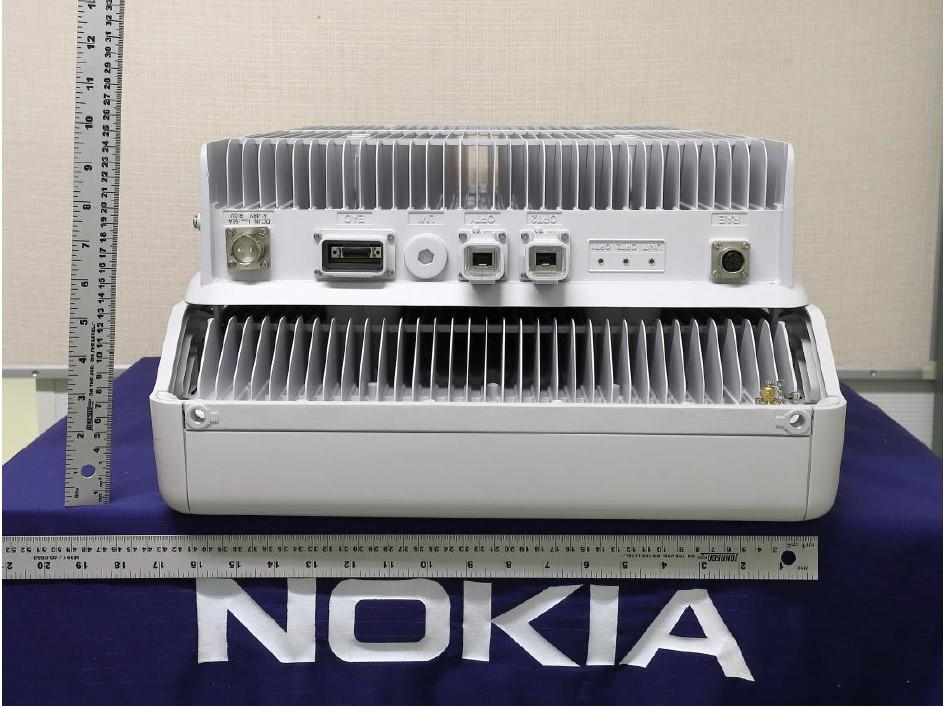

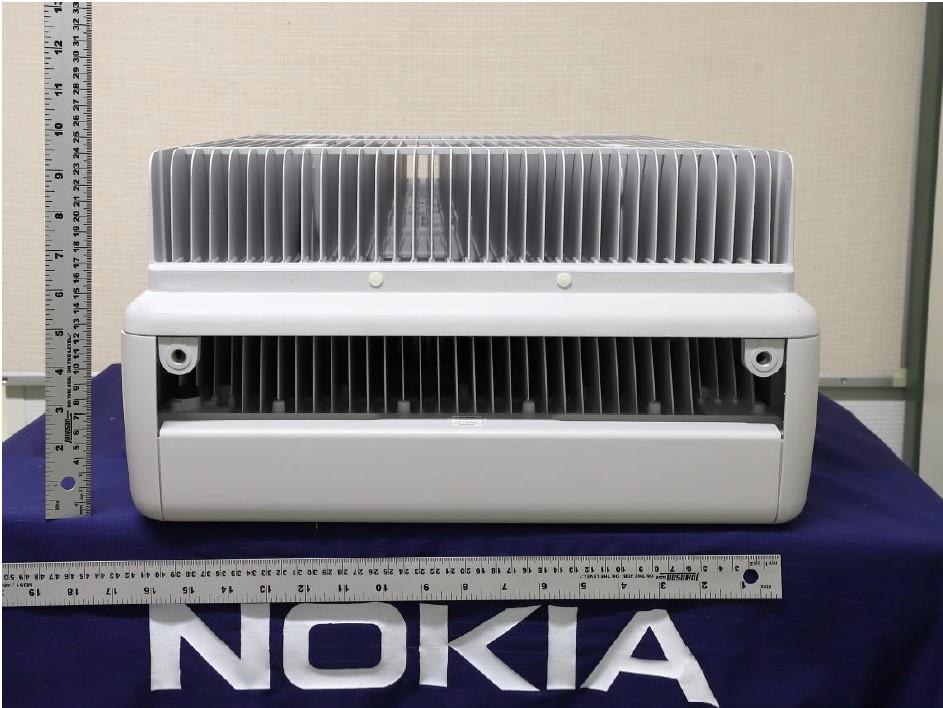

Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Public Page 1 of 4 EXHIBIT 10 EXTERNAL PHOTOGRAPHS SECTION 2.1033 (c) (12) External Photographs of the Equipment Photographs (8"x10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in the instruction manuals supplied with the product certification request, additional photographs are necessary only to complete the required showing. Response: The external photographs of the Nokia AirScale MAA 64T64R 192AE n78 200W AEQU are included in this original filing under FCC ID: VBNAEQU-01. Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Public Page 2 of 4 Nokia AirScale MAA 64T64R 192AE n78 200W AEQU, FCC ID: VBNAEQU-01 External Photographs Front View REAR VIEW Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Public Page 3 of 4 Left Side Right Side Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Public Page 4 of 4 Top View Bottom View

ID Label/Location Info

Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Public Page 1 of 2 EXHIBIT 4: IC ID LABEL SAMPLE AND LOCATION INFORMATION SECTION 2.1033(c) (11) also SECTION 2.925 (a) (1) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. Response: The drawing of the equipment identification label of the Nokia AirScale MAA 64T64R 192AE n78 200W AEQU, FCC: VBNAEQU-01 is attached. A drawing showing label location and drawings of the equipment identification label is attached. FCC Label Drawing for Nokia AirScale MAA 64T64R 192AE n78 200W AEQU, FCC ID: VBNAEQU-01 Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Public Page 2 of 2 FCC Label Location for Nokia AirScale MAA 64T64R 192AE n78 200W AEQU, FCC ID: VBNAEQU-01

RF Exposure Info

Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Public Page 1 of 4 EXHIBIT 13 RF EXPOSURE ASSESSMENT Section 1.1307 (b) Environmental Assessment Requirement for Equipment Authorization Commission actions granting construction permits, licenses to transmit or renewals thereof, equipment authorizations or modifications in existing facilities, require the preparation of an Environmental Assessment (EA) if the particular facility, operation or transmitter would cause human exposure to levels of radiofrequency radiation in excess of the limits in §§ 1.1310 and 2.1093 of this chapter. Section 1.1310 Radio Frequency Radiation Exposure Limits The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Section 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of § 2.1093 of this chapter. Further information on evaluating compliance with these limits can be found in the FCC’s OST/OET Bulletin Number 65, ‘‘Evaluating Compliance with FCC-Specified Guidelines for Human Exposure to Radiofrequency Radiation.’’ Response The AirScale MAA 64T64R 192AE n78 200W AEQU is typically installed on poles or walls in fixed locations. Therefore, the AEQU is neither a portable nor a mobile wireless device. The AEQU provides a massive MIMO adaptive antenna (MAA) solution for Band n78. The AEQU has an antenna panel with 192AE (antenna elements) to perform digital beamforming with up to 16 spatial MIMO streams. The maximum antenna gain is 24.5 dBi for 64 ports. For 53.01dBm output power at 75% duty cycle with 2dB uncertainty and 24.5dBi, the maximum EIRP = 53.01dBm +2dB – 1.25dB + 24.5dBi = 78.26 dBm. Table 13.1 Product Specifications on 5G-NR RRH Band n78 Product Technologies Transmitting Frequency (MHz) Max Total Output Conducted Power (dBm rms) Max Total Output EIRP Power (dBm rms) AEQU 5G-NR Band n78 3450 – 3550 53.01 78.26 The information on Nokia supplied antennas is provided in Table 13.2. Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Public Page 2 of 4 The limits specified in FCC Section 1.1310 Table 1(B) for occupational/controlled exposure and general population/uncontrolled exposure, which are tabulated below in Table 13.2, shall be met. All of the transmitters installed in the AEQU operate in the frequency range of 3.45 GHz – 3.55 GHz. The maximum power density thus needs to be less than 1.0 mW/cm 2 for general population/uncontrolled environment and 5.0 mW/cm 2 for occupational/controlled environment. Per FCC’s OST/OET Bulletin Number 65, the appropriate EIRP (equivalent or effective isotropically radiated power) limits can be calculated based on the relationship between power density and EIRP, i.e., 2 4R EIRP S   , (1) where S is the power density in mW/cm 2 , R is the distance to the center of radiation of the antenna in cm and EIRP is in mW. Table 13.2 AEQU Antenna Antenna Model Antenna Gain (dBi) Integrated Beam Forming 192 AE & 3450 - 3550-MHz 24.5 dBi for 64 ports Table 13.3 Limits for Occupational/Controlled Exposure and General Population/Uncontrolled Exposure (FCC Section 1.1310 Table 1(B)) Frequency Range (MHz) Electric Field Strength (E) (V/m) Magentic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Average Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 300 - 1500 F/300 6 1500 – 100,000 5.0 6 (B) Limits for General Population/Uncontrolled Exposure 300 - 1500 F/1500 30 1500 – 100,000 1.0 30 Note: f = frequency om MHz; *Plane-wave equavalent power density. Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Public Page 3 of 4 When all transmitters operate simultaneously, the EIRP and thus power density from all transmitters gives the worst-case scenario. Table 13.4 (a) Minimum RF Safety Distances for Uncontrolled Exposure Module Freq Band (GHz) Maxi Total P out (64x64) (dBm) Antenna Gain (dBi) Maximum Total EIRP (dBm) Maximum Total EIRP (mW) Limit of Power Density S (mW/cm 2 ) RF Safety Distance (cm) AEQP 3.450 53.01 24.5 78.26 66988460.94 1.0 2309.432 Table 13.4 (b) Power Density at the Proposed Minimum RF Safety Distance Module Freq Band (GHz) Maxi Total P out (64x64) (dBm) Antenna Gain (dBi) Maximum Total EIRP (dBm) Maximum Total EIRP (mW) Limit of Power Density S (mW/cm 2 ) RF Safety Distance (cm) AEQP 3.450 53.01 24.5 78.26 66988460.94 0.9999 2309.5 Table 13.5 (a) Minimum RF Safety Distances for Controlled Exposure Module Freq Band (GHz) Maxi Total P out (64x64) (dBm) Antenna Gain (dBi) Maximum Total EIRP (dBm) Maximum Total EIRP (mW) Limit of Power Density S (mW/cm 2 ) RF Safety Distance (cm) AEQP 3.450 53.01 24.5 78.26 66988460.94 5.0 1032.81 Table 13.5 (b) Power Density at the Proposed Minimum RF Safety Distance Module Freq Band (GHz) Maxi Total P out (64x64) (dBm) Antenna Gain (dBi) Maximum Total EIRP (dBm) Maximum Total EIRP (mW) Limit of Power Density S (mW/cm 2 ) RF Safety Distance (cm) AEQP 3.450 53.01 24.5 78.26 66988460.94 4.999 1032.9 Applicant: Nokia Solutions and Networks FCC ID: VBNAEQU-01 Public Page 4 of 4 Results The results are summarized below in Tables 13.6. Table 13.6 Minimum RF Safety Distances for AEQU Exposure RF Safety Distance (cm) Total Power Density S (mW/cm 2 ) Limit of Power Density S (mW/cm 2 ) Occupational/Controlled 1032.9 4.999 5 General Population/Uncontrolled 2309.5 0.9999 1 Therefore, the RF safety distance for the Nokia AirScale MAA 64T64R 192AE n78 200W AEQU shall be larger than 1032.9 cm (10.33 m) for occupational/controlled exposure and larger than 2309.5 cm (23.1 m) for general population/uncontrolled exposure.

Test Report

PUBLIC Global Product Compliance Laboratory 600-700 Mountain Avenue Room 5B-108 Murray Hill, New Jersey 07974-0636 USA TESTING NVLAP LAB CODE: 100275-0 Title 47 Code of Federal Regulations Test Report Regulation: FCC Part 2 and 27 Client: NOKIA SOLUTIONS AND NETWORKS Product Evaluated: AirScale MAA 64T64R 192AE n78 200W AEQU Report Number: TR-2021-0155-FCC2-27 Date Issued: January 31, 2022 This report shall not be reproduced, in whole or in part without the approval of Nokia Global Product Compliance Laboratory. This report must not be used by the recipient to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2021-0155-FCC2-27 Product: AirScale MAA 64T64R 192AE n78 200W AEQU PUBLIC Page 2 of 58 Table of Contents 1. SYSTEM INFORMATION AND REQUIREMENTS............................................................................................. 4 1.1 INTRODUCTION ................................................................................................................................................. 5 1.2 PURPOSE AND SCOPE ........................................................................................................................................ 5 1.3 EUT DETAILS ................................................................................................................................................... 6 1.4 TEST REQUIREMENTS ......................................................................................................................................... 8 1.5 TEST STANDARDS & MEASUREMENT PROCEDURES ................................................................................................ 8 1.6 EXECUTIVE SUMMARY ...................................................................................................................................... 10 1.7 TEST CONFIGURATION FOR ALL ANTENNA PORT MEASUREMENTS. ......................................................................... 10 2. FCC SECTION 2.1046 - RF POWER OUTPUT .............................................................................................. 11 2.1 RF POWER OUTPUT ......................................................................................................................................... 11 2.2 CHANNEL RF POWER – PLOTS .......................................................................................................................... 15 2.3 PEAK-TO-AVERAGE POWER RATIO (PAPR) – PLOTS ............................................................................................ 18 3. FCC SECTION 2.1047 - MODULATION CHARACTERISTICS ....................................................................... 21 3.1 MODULATION CHARACTERISTICS ....................................................................................................................... 21 4. FCC SECTION 2.1049 – OCCUPIED BANDWIDTH/EDGE OF BAND EMISSIONS ......................................... 22 4.1 OCCUPIED BANDWIDTH .................................................................................................................................... 22 4.2 OCCUPIED BANDWIDTH – PLOTS ....................................................................................................................... 23 4.3 EDGE OF BAND EMISSIONS ................................................................................................................................ 26 5. FCC SECTION 2.1051 - SPURIOUS EMISSIONS AT TRANSMIT ANTENNA PORT ....................................... 29 5.1 MEASUREMENT OF SPURIOUS EMISSIONS AT TRANSMIT ANTENNA PORT ................................................................. 29 6. FCC SECTION 2.1053 - FIELD STRENGTH OF SPURIOUS RADIATION ...................................................... 44 6.1 SECTION 2.1053 FIELD STRENGTH OF SPURIOUS EMISSIONS .............................................................................. 44 6.2 FIELD STRENGTH OF SPURIOUS EMISSIONS - LIMITS ............................................................................................ 44 7. FCC SECTION 2.1055 - MEASUREMENT OF FREQUENCY STABILITY ........................................................ 45 8. NVLAP CERTIFICATE OF ACCREDITATION ................................................................................................. 58 PUBLIC Revisions Date Revision Section Change 01/31/2022 0 Initial Release 02/08/2022 1 1.3.1 Page 6 - Removed Technical datasheet 02/08/2022 1 1.3.2 Page 8 – Removed EUT Dimensions Nokia Global Product Compliance Laboratories is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP®) for specific services, listed on the Scope of Accreditation, for: Electromagnetic Compatibility and Telecommunications. This laboratory is accredited in accordance with the recognized International Standard ISO/IEC 17025:2017. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to joint ISO-ILAC-IAF Communiqué dated January 2009). NVLAP LAB CODE: 100275-0. Nokia Global Product Compliance Laboratory represents to the client that the laboratory’s accreditation or any of its calibration or test reports in no way constitutes or implies product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Prepared By: Approved By: Signed: 01/31/2022 Signed: 01/31/2022 Mark Nguyen Compliance Engineer NVLAP Signatory [email protected] Raymond Johnson Technical Manager NVLAP Signatory [email protected] Reviewed By: Signed: 01/31/2022 Steve Gordon EMC Engineer NVLAP Signatory [email protected] Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2021-0155-FCC2-27 Product: AirScale MAA 64T64R 192AE n78 2…

Text truncated - open the document above for the full version.

Test Report

Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2021-0155-FCC2-27 Product: AirScale MAA 64T64R 192AE n78 200W AEQU PUBLIC Page 34 of 58 5.1.1.4 30 MHz BW, TM3.1, 64QAM, 3465 MHz, TX42 9k-150kHz 150k-30MHz 30M-1GHz 1G-3.35GHz 3.5G-3.56GHz 3.65G-9GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2021-0155-FCC2-27 Product: AirScale MAA 64T64R 192AE n78 200W AEQU PUBLIC Page 35 of 58 9G-36GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2021-0155-FCC2-27 Product: AirScale MAA 64T64R 192AE n78 200W AEQU PUBLIC Page 36 of 58 5.1.1.5 30 MHz BW, TM3.2, QPSK/16QAM, 3500 MHz, 3500 MHz, TX42 9k-150kHz 150k-30MHz 30M-1GHz 1G-3.35GHz 3.65G-9GHz 9G-36GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2021-0155-FCC2-27 Product: AirScale MAA 64T64R 192AE n78 200W AEQU PUBLIC Page 37 of 58 5.1.1.6 30 MHz BW, TM3.1a, 256QAM, 3535 MHz, TX43 9k-150kHz 150k-30MHz 30M-1GHz 1G-3.35GHz 3.44G-3.5GHz 3.65G-9GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2021-0155-FCC2-27 Product: AirScale MAA 64T64R 192AE n78 200W AEQU PUBLIC Page 38 of 58 9G-36GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2021-0155-FCC2-27 Product: AirScale MAA 64T64R 192AE n78 200W AEQU PUBLIC Page 39 of 58 5.1.1.7 40 MHz BW, TM3.1, 64QAM, 3470 MHz, TX31 9k-150kHz 150k-30MHz 30M-1GHz 1G-3.35GHz 3.65G-9GHz 9G-36GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2021-0155-FCC2-27 Product: AirScale MAA 64T64R 192AE n78 200W AEQU PUBLIC Page 40 of 58 5.1.1.8 40 MHz BW, TM3.2, QPSK/16QAM, 3500 MHz, TX6 9k-150kHz 150k-30MHz 30M-1GHz 1G-3.35GHz 3.65G-9GHz 9G-36GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2021-0155-FCC2-27 Product: AirScale MAA 64T64R 192AE n78 200W AEQU PUBLIC Page 41 of 58 5.1.1.9 40 MHz BW, TM3.1a, 256QAM, 3530 MHz, TX1 9k-150kHz 150k-30MHz 30M-1GHz 1G-3.35GHz 3.65G-9GHz 9G-36GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2021-0155-FCC2-27 Product: AirScale MAA 64T64R 192AE n78 200W AEQU PUBLIC Page 42 of 58 Photographs AEQU Unit Radio Testing Setup Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2021-0155-FCC2-27 Product: AirScale MAA 64T64R 192AE n78 200W AEQU PUBLIC Page 43 of 58 Test Equipment Asset ID Manufacturer Type Description Model Serial Calibration Date Calibration Due E831 Agilent Technologies MXA Signal Analyzer 20Hz-26.5GHz N9020A MY48011791 2020-06-16 2022-06-16 E896 Agilent Technologies Network Analyzer 10 MHz - 40 GHz N5230C MY49000897 2021-03-03 2023-03-03 E1338 KeySight Technologies MXA Signal Analyzer N9020B MY57430927 2021-01-07 2023-01-07 E1579 KeySight Technologies MXA Signal Analyzer 10 Hz - 50 GHz N9021B MY60080199 2021-11-30 2023-11-30 E1212 RLC Electronics Inc Filter, High Pass 10 - 30 GHz, 2W, 5dB F-19414 1444002 CNR-V CNR-V E1156 Weinschel Attenuator 10dB 0.05GHz- 26GHz 25W 74-10-12 1069 CNR-V CNR-V CF Notch Filter 03380/3620- 5000MHz 2018260005 NA NA Mini Circuit 8 port RF Switch C/B11311100013 S E480101350 NA NA Mini Circuit 64 port RF Switch S E210301724 11702280003 NA NA Microcoax Utiflex RF Cable UFB142A-) 0720_2G0200 A MFR 64639 227883-001 NA NA Microcoax Utiflex RF Cable UFB142A-) 0720_2G0200 A MFR 64639 227883-002 NA NA CNR-V: Calibration Not Required, Must Be Verified Tests Dates: 1/13/2022 – 1/28/2022. Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2021-0155-FCC2-27 Product: AirScale MAA 64T64R 192AE n78 200W AEQU PUBLIC Page 44 of 58 6. FCC Section 2.1053 - Field strength of spurious radiation 6.1 Section 2.1053 Field Strength of Spurious Emissions Field strength measurements of radiated spurious emissions were made in an FCC registered 3m Semi- Anechoic Ch…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Steve Mitchell
[email protected]972-936-7500Fax: 972-936-7273

Test Firm

Nokia, Global Product Compliance LabHernan Noguchi
[email protected]908-582-7160Fax: 908-582-0485

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
3273.45 GHz - 3.55 GHz200 W37M8G7W0.05 ppm
Confidentiality
Long Term
Grant Notes
Power shown is conducted output power. This device must be professionally installed. This transmitter must be installed and operated so as to provide a separation distance of at least 23 meters from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. This device supports single carrier operation of 20, 30 and 40 MHz bandwidth modes for TDD Band n78. Certification of 3GPP 5G NR band n78 operations is limited to the 3.45 GHz segment under Part 27.5(o). This device supports cross polarization and multi-beams MIMO operation modes. The AEQU is equipped with an integrated antenna with a typical total gain of 24.5dBi ±1 dB.
