VBNAHDB-01AHDB AirScale 2T4R B8 Sub-Band 160W (AHDB)

Applicant: Nokia Solutions and Networks -1 - FCC ID: VBNAHDB-01 Agent Authorization Letter Date: February 08, 2021 We, Nokia Solutions and Networks, declare that Raymond Johnson, Walter Majkowski, Steven Gordon and Qin Yu of Nokia Global Products Compliance Laboratory (GPCL) are authorized agents to sign applications pertinent to FCC and Industry Canada applications. These employees of Nokia Global Product Compliance Laboratory are authorized to make representations to the FCC, Industry Canada and their respective Telecommunications Certified Body (TCB) agents on our behalf. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC and Industry Canada's regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by the TCB, still resides with Nokia Solutions and Networks. I hereby certify on behalf of Nokia Solutions and Networks ("Applicant") that neither Applicant nor any party to the application (officers, directors, and 5% shareholders) is subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 198821 U.S.C. 853a. Sincerely, _______________________________ Steve Mitchell Nokia Solutions and Networks 3201 Olympus Blvd Dallas, Texas 75019 USA 1-972-374-3000 [email protected]

Federal Communications Commission Authorization and Evaluation Division Date: February 3, 2021 Confidentiality Request for: FCC ID: VBNAHDB-01 To Whom It May Concern, Pursuant to FCC 47 CRF 0.457(d) and 0.459, Section 10, Nokia Solutions and Networks requests that a part of the subject FCC and/or IC application listed below be held permanently confidential and permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. • Exhibit 5 Operating Description • Exhibit 6 Block Diagram • Exhibit 7 Complete Circuit Diagrams • Exhibit 8 Instruction Book • Exhibit 9 Internal Photographs • Exhibit 14 Parts List Confidentiality of the User Manual is maintained by requiring that any party that is supplied a user manual must first sign a non-disclosure agreement. Currently only cellular system operators have access to these manuals. Internal photos are kept confidential by virtue of the fact that the end product is a non- consumer product, certified and housed in a sealed enclosure, and is only accessible by trained /approved maintenance personnel. Further, the Applicant has spent substantial effort in developing this product, some aspects of which are deemed to be trade secret and proprietary. Having the subject information easily available to our competitors in this market would negate the advantage we have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Sincerely, ______________________________ Steve Mitchell Nokia Solutions and Networks 3201 Olympus Blvd Dallas, Texas 75019 USA 1-972-936-7500 [email protected]

Public Page 1 of 3 Timco Engineering Inc. FCC Authorized Telecommunications Certification Body (TCB) Nokia Global Product Compliance Laboratory 600-700 Mountain Avenue, Room 5B-111 February 07, 2021 Timco Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Subject: Application for New Equipment Certification Approval for Nokia: AHDB AirScale 2T4R B8 Sub-Band 160W under Certification Number FCCID: VBNAHDB-01 Dear Examiner: The Nokia AHDB AirScale 2T4R B8 Sub-Band 160W is a 2 port radio head that transmits 40 Watts per port over the B8 spectrum (936.5 - 939.5 MHz). This product supports up to 2x1.4 MHz and 1x3.0 MHz LTE carriers, plus up to 3x.2 MHz NBIoT carriers utilizing QPSK, 16 QAM, 64QAM and 256QAM modulation formats. The 2 individual transmit ports are identical in design, rated power and performance. This authorization request is for the AHDB AirScale 2T4R B8 Sub-Band 160W (AHDB) utilizing the bandwidths (BW), modulations and emission designators cited over the B8 spectrum 936.5 - 939.5 MHz, subject to PART 27— MISCELLANEOUS WIRELESS COMMUNICATIONS SERVICES. The measurement exhibits attached to this application demonstrate full compliance with FCC Part 27, Subpart P, following the procedural requirements specified in FCC Part 2, Subpart J – Equipment Authorization Procedures. The data, summarized below, is in the form presently used by the Commission’s Radio Equipment List. Equipment Identification: VBNAHDB-01 Rules Part Number: Part 27 Subpart P, Frequency Range: Transmit 936.5 - 939.5 MHz Output Power: 80 Watts Maximum Conducted per Unit (2T4R), 40 W per Antenna Port Frequency Tolerance: ± 0.05 ppm Emission Designator: 1M09F9W, 2M70F9W, and 200kF9W Attached are the FCC Form 731 (Application for Equipment Authorization – Radio Frequency Devices), the required measurement data and exhibits specific to this request for the AHDB AirScale 2T4R B8 Sub-Band 160W (AHDB). The technical or non-technical contact at Nokia will comply with any request for additional information should the need arise. The attached exhibits with the applicable FCC Rule section are assembled and presented in accordance with the Table of Contents attachment. Should there be any questions or procedural issues please feel free to contact me by email and/or phone. Public Page 2 of 3 Sincerely, Raymond J. Johnson Technical Manager Primary Administrative Contact Global Product Compliance Laboratory Building 5B-111 600 Mountain Avenue Murray Hill, NJ 07974 Phone: 908-679-6220 email: [email protected] Filing Engineer Steve Gordon Global Product Compliance Laboratory Building 5A-107 600 Mountain Avenue Murray Hill, NJ 07974 Phone 908-679-5014 email: [email protected] Att. Table of Contents for the AHDB AirScale 2T4R B8 Sub-Band 160W (AHDB) Product Certification Report Public Page 3 of 3 TABLE OF CONTENTS Cover Letter Confidentiality Request Letter Agent Authorization Letter Required Exhibits: Exhibit Number FCC Rule Number Description 1 Section 2.1033(a) FCC Form 731 2 Section 2.911(e) Qualifications and Certifications 3 Section 2.1033(c)(1,2, 4-7) Manufacturers, FCC Identifier, Emission, Range of RF Power & Frequency 4 Section 2.1033(c)(11) Drawing of the Identification Label 5 Section 2.1033(c)(8,9) Active Circuit Devices Drive Levels, Tune-Up procedure (Confidential) 6 Section 2.1033(c)(10,13) Block Diagram, Operational Description, Circuitry for determining frequency (Confidential) 7 Section 2.1033(c)(10) Complete Circuit Diagrams (Confidential) 8 Section 2.1033(c)(3) Installation Manual (Confidential) 8a Section 2.1033(c)(3) Manual - NDA (Non-Disclosure Agreement) 9 Section 2.1033(c)(12) Internal Photographs of the Equipment (Confidential) 10 Section 2.1033(c)(12) External Photographs of the Equipment 11 Section 2.1033(c)(21) Photographs of the Test Setups 12 Section 2.1033(c)(14) FCC Test Report 13 Section 2.1033(f) RF Exposure Test Report 14 Section 2.1033(c)(10) Parts List (Confidential)

APPLICANT: Nokia Solutions and Networks FCC ID: VBNAHDB-01 Public Page 1 of 1 EXHIBIT 2 Section 2.911 (d) CERTlFICATION OF TECHNICAL TEST DATA To Whom it may Concern: This is to certify that the VBNAHDB-01- AHDB AirScale 2T4R B8 Sub-Band 160W (AHDB), manufactured by Nokia is compliant with the requirements of the Code of Federal Regulations (CFR) Title 47 Part 27 MISCELLANEOUS WIRELESS COMMUNICATIONS SERVICES, Subpart C— for use in the spectrum 936.5 - 939.5 MHz. Raymond J. Johnson Technical Manager FCC Compliance Test Group Section 2.911 (e) QUALIFICATION OF ENGINEERS Steve Gordon is a Member of Technical Staff at Nokia. He received a BSET degree in 2001 from The New Jersey Institute of Technology, Newark College of Engineering. He has more than 19 years of experience in th e E MC regulatory industry. He has developed test plans and conducted RF tests including the required FCC tests for radio equipment certification. Steve is the Lead engineer for the FCC filing of the subject product at Nokia. Section 2.911(d) CERTIFICATION OF TECHNICAL TEST DATA I hereby certify that the technical test data are the results of tests supervised by me. Steve Gordon Member of Technical Staff

Applicant: Nokia Solutions and Networks FCC ID: VBNAHDB-01 Public Page 1 of 2 Exhibit 3 FCC REQUIRED INFORMATION The following information is presented in the content and format requested by FCC: Section 2.1033 (c)(1): The full name and mailing address of the manufacturer of the device and the applicant for certification Manufacturer: Ambit Microsystems (Shanghai) LTD No.1925, Nanle Road Songjiang Industrial Zone China Applicant: Nokia Solutions and Networks Steve Mitchell 3201 Olympus Blvd Dallas, TX 75019 Section 2.1033(c)(2): FCC Identifier: VBNAHDB-01 Section 2.1033(c)(4): Type or types of emission: The Nokia AHDB AirScale 2T4R B8 Sub-Band 160W is capable of amplifying transmission involving the following types of emissions: BW (MHz) Emissions Designation 0.2 200kF9W 1.4 1M09F9W 3.0 2M70F9W Applicant: Nokia Solutions and Networks FCC ID: VBNAHDB-01 Public Page 2 of 2 Section 2.1033(c)(5): Frequency range, Transmit / Receive: Blocks Transmit Range (MHz) Receive Range (MHz) Bandwidth (MHz) B8 936.5 – 939.5 897.5-900.5 3.0 Exhibit 3 FCC REQUIRED INFORMATION Section 2.1033(c)(6): Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power. Response: The AHDB AirScale 2T4R B8 Sub-Band 160W is capable operating from 39 dBm to 46 dBm/port in 0.5 dB steps. . Section 2.1033(c)(7): Maximum power rating as defined in the applicable part (s) of the rules. Response: The maximum average power output of the AHDB AirScale 2T4R B8 Sub-Band 160W at the Antenna connection is summarized in the following table: Operation Mode Max Power per Port Total Max Power Modulation 2T4R (2x40W) 40 W 80 W LTE

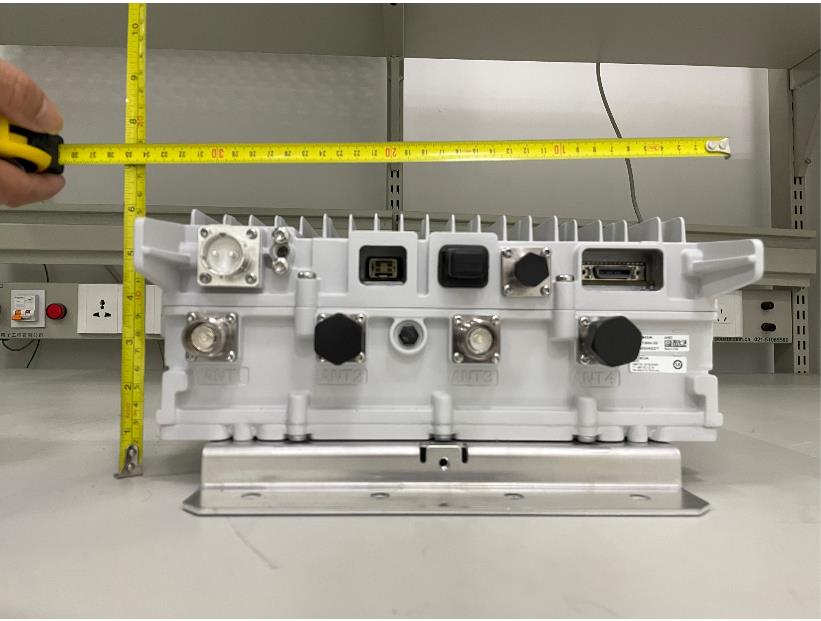

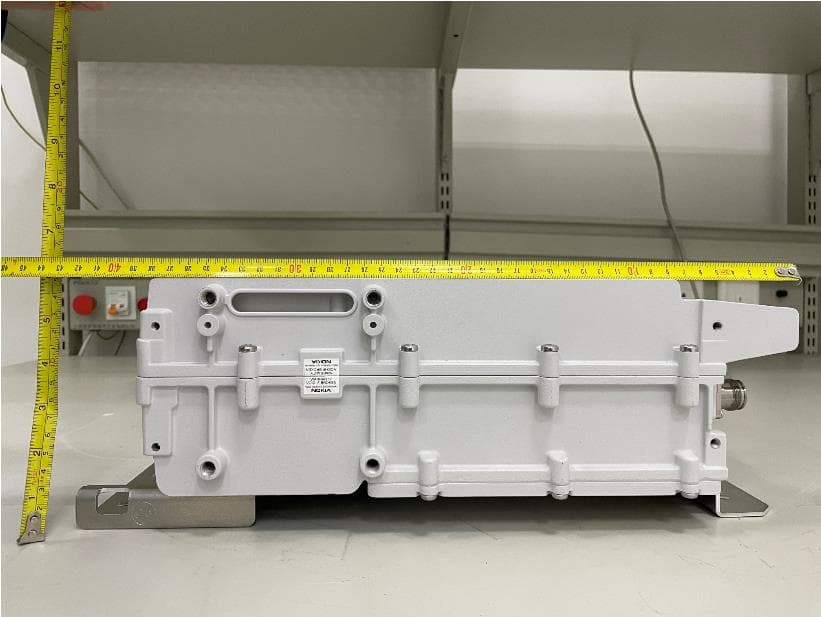

Applicant: Nokia Solutions and Networks FCCID: VBNAHDB-01 Public Page 1 of 6 EXHIBIT 10 EXHIBIT 10: EXTERNAL PHOTOGRAPHS SECTION 2.1033 (c) (12) Photographs (8"xlO") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in the instruction manuals supplied with the product certification request, additional photographs are necessary only to complete the required showing. Response: The external photographs of the Nokia AHDB AirScale 2T4R B8 Sub-Band 160W (AHDB), FCCID: VBNAHDB-01 are below. Applicant: Nokia Solutions and Networks FCCID: VBNAHDB-01 Public Page 2 of 6 Nokia AHDB AirScale 2T4R B8 Sub-Band 160W (AHDB), FCCID: VBNAHDB-01 Applicant: Nokia Solutions and Networks FCCID: VBNAHDB-01 Public Page 3 of 6 Applicant: Nokia Solutions and Networks FCCID: VBNAHDB-01 Public Page 4 of 6 Applicant: Nokia Solutions and Networks FCCID: VBNAHDB-01 Public Page 5 of 6 Applicant: Nokia Solutions and Networks FCCID: VBNAHDB-01 Public Page 6 of 6

Applicant: Nokia Solutions and Networks FCC ID: VBNAHDB-01 Public Page 1 of 3 EXHIBIT 4: FCC ID LABEL SAMPLE AND LOCATION INFORMATION SECTION 2.1033(c) (11) also SECTION 2.925 (a) (1) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. Response: The drawing of the equipment identification label of the Nokia AHDB AirScale 2T4R B8 Sub-Band 160W, FCC ID: VBNAHDB-01 is attached. A drawing showing label location and drawings of the equipment identification label is attached. Applicant: Nokia Solutions and Networks FCC ID: VBNAHDB-01 Public Page 2 of 3 FCC Label Drawing for AHDB AirScale 2T4R B8 Sub-Band 160W, FCC ID: VBNAHDB-01 Applicant: Nokia Solutions and Networks FCC ID: VBNAHDB-01 Public Page 3 of 3 FCC Label Location for AHDB AirScale 2T4R B8 Sub-Band 160W, FCC ID: VBNAHDB-01 FCC Label for AHDB

Applicant: Nokia Solutions and Networks FCC ID: VBNAHDB-01 Public Page 1 of 5 EXHIBIT 13 RF EXPOSURE ASSESSMENT Section 1.1307 (b) Environmental Assessment Requirement for Equipment Authorization Commission actions granting construction permits, licenses to transmit or renewals thereof, equipment authorizations or modifications in existing facilities, require the preparation of an Environmental Assessment (EA) if the particular facility, operation or transmitter would cause human exposure to levels of radiofrequency radiation in excess of the limits in §§ 1.1310 and 2.1093 of this chapter. Section 1.1310 Radio Frequency Radiation Exposure Limits The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Section 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of § 2.1093 of this chapter. Further information on evaluating compliance with these limits can be found in the FCC’s OST/OET Bulletin Number 65, ‘‘Evaluating Compliance with FCC-Specified Guidelines for Human Exposure to Radiofrequency Radiation.’’ Response The Nokia AHDB AirScale 2T4R B8 Sub-Band 160W is typically installed on poles or walls in fixed locations. Therefore, the AHDB is neither a portable nor a mobile wireless device. The Nokia AHDB is a 2 port radio head that transmits 40 Watts per port over the B8 spectrum (936.5 – 939.5 MHz). This product supports up to 2x1.4 MHz, and 1x3 MHz LTE carriers, and 3x.2 MHz NBIoT carriers utilizing QPSK, 16 QAM, 64QAM and 256QAM modulation formats. The 2 individual transmit ports are identical in design, rated power and performance. The RF exposure assessment for the overall AHDB will be evaluated separately to ensure the compliance. Table 13.1 Product Specifications on AHDB LTE RRH Band 8 (URBAN) Product Technologies Transmitting Frequency (MHz) Max Total Output Conducted Power (dBm rms) Max Total Output EIRP Power (dBm rms) AHDB LTE-FDD .2/1.4/3 MHz, Q16/64/256QAM Band 8 936.5 – 939.5 49.0 62.94 Applicant: Nokia Solutions and Networks FCC ID: VBNAHDB-01 Public Page 2 of 5 Table 13.2 Product Specifications on AHDB LTE RRH Band 8 (RURAL) Product Technologies Transmitting Frequency (MHz) Max Total Output Conducted Power (dBm rms) Max Total Output EIRP Power (dBm rms AHDB LTE-FDD .2/1.4/3 MHz, Q16/64/256QAM Band 8 936.5 – 939.5 49.0 69.93 The information on Nokia supplied antennas is provided in Table 13.2 The limits specified in FCC Section 1.1310 Table 1(B) for occupational/controlled exposure and general population/uncontrolled exposure, which are tabulated below in Table 13.3, shall be met. All of the transmitters installed in AHDB operate in the frequency range of 936.5 – 939.5 MHz. The maximum power density thus needs to be less than 0.62 mW/cm 2 for general population/uncontrolled environment and 3.11 mW/cm 2 for occupational/controlled environment. Per FCC’s OST/OET Bulletin Number 65, the appropriate EIRP (equivalent or effective isotropically radiated power) limits can be calculated based on the relationship between power density and EIRP, i.e., 2 4R EIRP S   , (1) where S is the power density in mW/cm 2 , R is the distance to the center of radiation of the antenna in cm and EIRP is in mW. Table 13.3 AHDB Antenna Antenna Deployment Area Model Antenna Gain (dBi) Directional URBAN AHDB 13.94 Table 13.4 AHDB Antenna Antenna Deployment Area Model Antenna Gain (dBi) Directional RURAL AHDB 20.93 Applicant: Nokia Solutions and Networks FCC ID: VBNAHDB-01 Public Page 3 of 5 Table 13.5 Limits for Occupational/Controlled Exposure and General Population/Uncontrolled Exposure (FCC Section 1.1310 Table 1(B)) Frequency Range (MHz) Electric Field Strength (E) (V/m) Magentic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Average Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 300 - 1500 F/300 6 1500 – 100,000 5.0 6 (B) Limits for General Population/Uncontrolled Exposure 300 - 1500 F/1500 30 1500 – 100,000 1.0 30 Note: f = frequency om MHz; *Plane-wave equavalent power density. When all transmitters operate simultaneously, the EIRP and thus power density from all transmitters gives the worst-case scenario. Table 13.6 (a) Minimum RF Safety Distances for controlled Exposure (URBAN) Module Freq Band (GHz) Maxi Total P out (2x4) (dBm) Antenna Gain (dBi) Maximum Total EIRP (dBm) Maximum Total EIRP (mW) Limit of Power Density S (mW/cm 2 ) RF Safety Distance (cm) AHDB 936.5 49.0 13.94 62.94 1967886.29 3.11 224.34 Table 13.6 (b) Power Density at the Proposed Minimum RF Safety Distance (URBAN) Module Freq Band (GHz) Maxi Total P out (2x4) (dBm) Maxi Antenna Gain (dBi) Maximum Total EIRP (dBm) Maximum Total EIRP (mW) RF Safety Distance (cm) Limit of Power Density S (mW/cm 2 ) AHDB 936.5 49.0 13.94 62.94 1967886.29 225 3.09 Applicant: Nokia Solutions and Networks FCC ID: VBNAHDB-01 Public Page 4 of 5 Table 13.7 (a) Minimum RF Safety Distances for UnControlled Exposure (URBAN) Module Freq Band (GHz) Maxi Total P out (2x4) (dBm) Antenna Gain Maximum Total EIRP (dBm) Maximum Total EIRP (mW) Limit of Power Density S (mW/cm 2 ) RF Safety Distance (cm) AHDB 936.5 49.0 13.94 62.94 1967886.29 0.62 502.61 Table 13.7 (b) Power Density at the Proposed Minimum RF Safety Distance (URBAN) Module Freq Band (GHz) Maxi Total P out (64x64) (dBm) Antenna Gain (dBi) Maximum Total EIRP (dBm) Maximum Total EIRP (mW) RF Safety Distance (cm) Limit of Power Density S (mW/cm 2 ) AHDB 936.5 49.0 13.94 62.94 1967886.29 503.0 0.619 Table 13.8 (a) Minimum RF Safety Distances for controlled Exposure (RURAL) Module Freq Band (GHz) Maxi Total P out (2x4) (dBm) Antenna Gain (dBi) Maximum Total EIRP (dBm) Maximum Total EIRP (mW) Limit of Power Density S (mW/cm 2 ) RF Safety Distance (cm) AHDB 936.5 49.0 20.93 69.93 9840111.06 3.11 501.66 Table 13.8 (b) Power Density at the Proposed Minimum RF Safety Distance (RURAL) Module Freq Band (GHz) Maxi Total P out …

Text truncated - open the document above for the full version.

PUBLIC Global Product Compliance Laboratory 600-700 Mountain Avenue Room 5B-108 Murray Hill, New Jersey 07974-0636 USA TESTING NVLAP LAB CODE: 100275-0 Title 47 Code of Federal Regulations Test Report Regulation: FCC Part 2 and 27 Client: NOKIA SOLUTIONS AND NETWORKS Product Evaluated: AHDB AirScale 2T4R B8 Sub-Band 160W Report Number: TR-2020-0173-FCC2-27 Date Issued: February 11, 2021 This report shall not be reproduced, in whole or in part without the approval of Nokia Global Product Compliance Laboratory. This report must not be used by the recipient to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 2 of 59 Table of Contents 1. SYSTEM INFORMATION AND REQUIREMENTS............................................................................................. 4 1.1 INTRODUCTION ................................................................................................................................................. 5 1.2 PURPOSE AND SCOPE ........................................................................................................................................ 5 1.3 EUT DETAILS ................................................................................................................................................... 6 1.4 TEST REQUIREMENTS ......................................................................................................................................... 9 1.5 TEST STANDARDS & MEASUREMENT PROCEDURES ................................................................................................ 9 1.6 EXECUTIVE SUMMARY ...................................................................................................................................... 11 1.7 TEST CONFIGURATION FOR ALL ANTENNA PORT MEASUREMENTS. ......................................................................... 11 2. FCC SECTION 2.1046 - RF POWER OUTPUT .............................................................................................. 12 2.1 RF POWER OUTPUT ......................................................................................................................................... 12 2.2 CHANNEL RF POWER – PLOTS .......................................................................................................................... 15 2.3 PEAK-TO-AVERAGE POWER RATIO (PAPR) – PLOTS ............................................................................................ 18 3. FCC SECTION 2.1047 - MODULATION CHARACTERISTICS ....................................................................... 23 3.1 MODULATION CHARACTERISTICS ....................................................................................................................... 23 4. FCC SECTION 2.1049 – OCCUPIED BANDWIDTH/EDGE OF BAND EMISSIONS ......................................... 25 4.1 OCCUPIED BANDWIDTH .................................................................................................................................... 25 4.2 OCCUPIED BANDWIDTH – PLOTS ....................................................................................................................... 27 4.3 EDGE OF BAND EMISSIONS ................................................................................................................................ 30 5. FCC SECTION 2.1051 - SPURIOUS EMISSIONS AT TRANSMIT ANTENNA PORT ....................................... 35 5.1 MEASUREMENT OF SPURIOUS EMISSIONS AT TRANSMIT ANTENNA PORT ................................................................. 35 6. FCC SECTION 2.1053 - FIELD STRENGTH OF SPURIOUS RADIATION ...................................................... 44 6.1 SECTION 2.1053 FIELD STRENGTH OF SPURIOUS EMISSIONS .............................................................................. 44 6.2 FIELD STRENGTH OF SPURIOUS EMISSIONS - LIMITS ............................................................................................ 44 7. FCC SECTION 2.1055 - MEASUREMENT OF FREQUENCY STABILITY ........................................................ 45 8. NVLAP CERTIFICATE OF ACCREDITATION ................................................................................................. 59 Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB Airscale B8 RRH 2T4R 160W PUBLIC Page 3 of 59 Revisions Date Revision Section Change 02/11/2021 0 Initial Release Nokia Global Product Compliance Laboratories is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP®) for specific services, listed on the Scope of Accreditation, for: Electromagnetic Compatibility and Telecommunications. This laboratory is accredited in accordance with the recognized International Standard ISO/IEC 17025:2017. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to joint ISO-ILAC-IAF Communiqué dated January 2009). NVLAP LAB CODE: 100275-0. Nokia Global Product Compliance Laboratory represents to the client that the laboratory’s accreditation or any of its calibration or test reports in no way constitutes or implies product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Prepared By: Approved By: Signed: 02/11/2021 Signed: 02/11/2021 Mark Nguyen Compliance Engineer NVLAP Signatory [email protected] Raymond Johnson Technical Manager NVLAP Signatory [email protected] Reviewed By: Signed: 02/11/2021 Steve Gordon EMC Engineer NVLAP Signatory [email protected] Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-…

Text truncated - open the document above for the full version.

Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 31 of 59 TM 3.1 / 64QAM / 938.0MHz / 3MBW / TX1 TM 3.1 / 64QAM / 938.0MHz / 3MBW / TX3 4.3.1.2 1-Carrier with NB-IoT Plots (40W) TM 1.1 / QPSK / 938.0MHz / 0.2+1.4MBW / TX1 TM 1.1 / QPSK / 938.0MHz / 0.2+1.4MBW / TX3 TM 1.1 / QPSK / 938.0MHz / 1.4+0.2MBW / TX1 TM 1.1 / QPSK / 938.0MHz / 1.4+0.2MBW / TX3 Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 32 of 59 4.3.1.3 2-Carrier Plots (40W) TM 3.2 / QPSK-16QAM / 938.0MHz / 1.4+1.4MBW / TX1 TM 3.2 / QPSK-16QAM / 938.0MHz / 1.4+1.4MBW / TX3 4.3.1.4 3-Carrier Plots (40W) TM 1.1 / QPSK / 938.0MHz / 1.4+0.2+0.2MBW / TX1 TM 1.1 / QPSK / 938.0MHz / 1.4+0.2+0.2MBW / TX3 Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 33 of 59 4.3.1.5 4-Carrier Plots (40W) TM 1.1 / QPSK / 938.0MHz / 0.2+0.2+0.2+1.4MBW / TX1 TM 1.1 / QPSK / 938.0MHz / 0.2+0.2+0.2+1.4MBW / TX3 4.3.1.6 NB-IoT Only Plots (40W) TM 1.1 / QPSK / 938.0MHz / 0.2MBW / TX1 TM 1.1 / QPSK / 938.0MHz / 0.2MBW / TX3 TM 1.1 / QPSK / 938.0MHz / 0.2MBW / TX1 TM 1.1 / QPSK / 938.0MHz / 0.2MBW / TX3 Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 34 of 59 TM 1.1 / QPSK / 938.0MHz / 0.2+0.2MBW / TX1 (2-Carrier) TM 1.1 / QPSK / 938.0MHz / 0.2+0.2MBW / TX3 (2-Carrier) TM 1.1 / QPSK / 938.0MHz / 0.2+0.2+0.2MBW / TX1 TM 1.1 / QPSK / 938.0MHz / 0.2+0.2+0.2MBW / TX3 (3-Carrier) (3-Carrier) Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 35 of 59 5. FCC Section 2.1051 - Spurious Emissions at Transmit Antenna Port 5.1 Measurement of Spurious Emissions at Transmit Antenna Port Spurious Emissions at the transmit-antenna terminals were investigated over the frequency range of 10 MHz to beyond the 10th harmonic of the specific transmit band. Carrier Bandwidth is exempt. For this band of operation, the measurements were performed up to 10 GHz. Measurements were made using a Keysight MXA Signal Analyzer. The RF output from the transmitter was reduced (to an amplitude usable by the receivers) using calibrated attenuators. The RF power level was continuously monitored via a coupled RF Power Meter. The required emission limitation is specified as appropriate in 27.53. The measured spurious emission levels were plotted for the frequency range as specified in 2.1057. There were no reportable emissions. Data below documents performance up to 27 GHz. 5.1.1 Spurious Emissions at Tx Port - Plots 5.1.1.1 1-Carrier with NB-IoT Plots (40W) 1.4 + 0.2 MHz BW Test Model 1.1 Modulation QPSK Channel Frequency 938.0MHz TX1 9KHz – 150kHz 150kHz – 30MHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 36 of 59 30MHz – 930MHz 949MHz – 9.5GHz 1.4 + 0.2 MHz BW Test Model 1.1 Modulation QPSK Channel Frequency 937.2MHz TX1 9KHz – 150kHz 150kHz – 30MHz 30MHz – 930MHz 949MHz – 9.5GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 37 of 59 5.1.1.2 3-Carrier Plots (40W) (3-Carrier) 1.4 + 0.2 + 0.2 MHz BW Test Model 1.1 Modulation QPSK Channel Frequency 937.2MHz TX1 9KHz – 150kHz 150kHz – 30MHz 30MHz – 930MHz 949MHz – 9.5GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 38 of 59 5.1.1.3 4-Carrier Plots (40W) (4-Carrier) 0.2 + 0.2 + 0.2 + 1.4 MHz BW Test Model 1.1 Modulation QPSK Channel Frequency 938.0MHz TX1 9KHz – 150kHz 150kHz – 30MHz 30MHz – 930MHz 949MHz – 1.8GHz 1.8GHz – 9.5GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 39 of 59 5.1.1.4 NB-IoT Only Plots (40W) (1-Carrier) 0.2 MHz BW Test Model 1.1 Modulation QPSK Channel Frequency 936.7MHz TX1 9KHz – 150kHz 150kHz – 30MHz 30MHz – 930MHz 949MHz – 9.5GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 40 of 59 (1-Carrier) 0.2 MHz BW Test Model 1.1 Modulation QPSK Channel Frequency 939.3MHz TX1 9KHz – 150kHz 150kHz – 30MHz 30MHz – 930MHz 949MHz – 9.5GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 41 of 59 (2-Carrier) 0.2 + 0.2 MHz BW Test Model 1.1 Modulation QPSK Channel Frequency 939.0MHz TX1 9KHz – 150kHz 150kHz – 30MHz 30MHz – 930MHz 949MHz – 9.5GHz Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 42 of 59 Photographs AHDB Unit Radio Testing Setup Title 47 Code of Federal Regulations Test Report Global Product Compliance Laboratory Report No.: TR-2020-0173-FCC2-27 Product: AHDB AirScale 2T4R B8 Sub-Band 160W PUBLIC Page 4…

Text truncated - open the document above for the full version.
