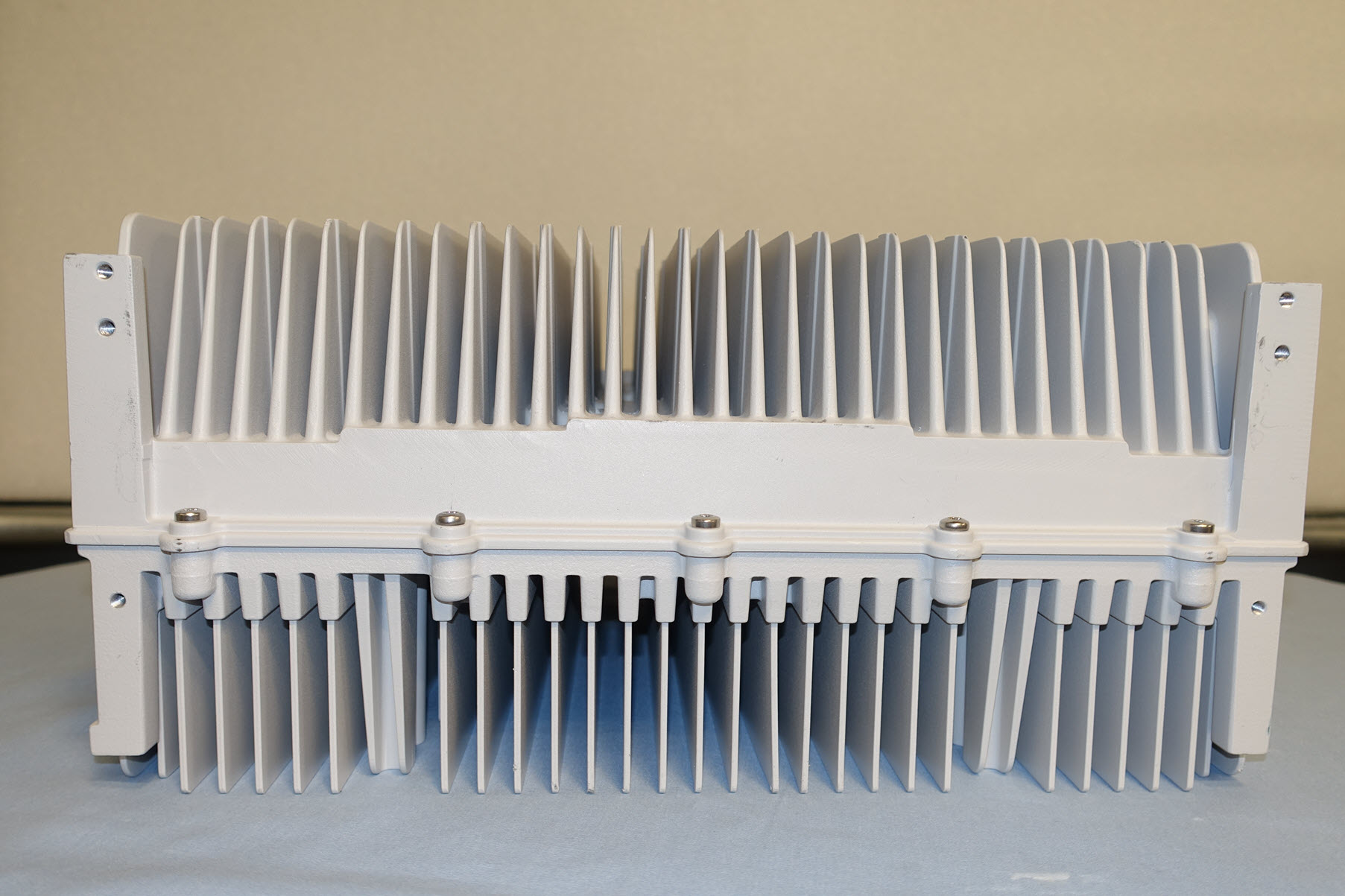

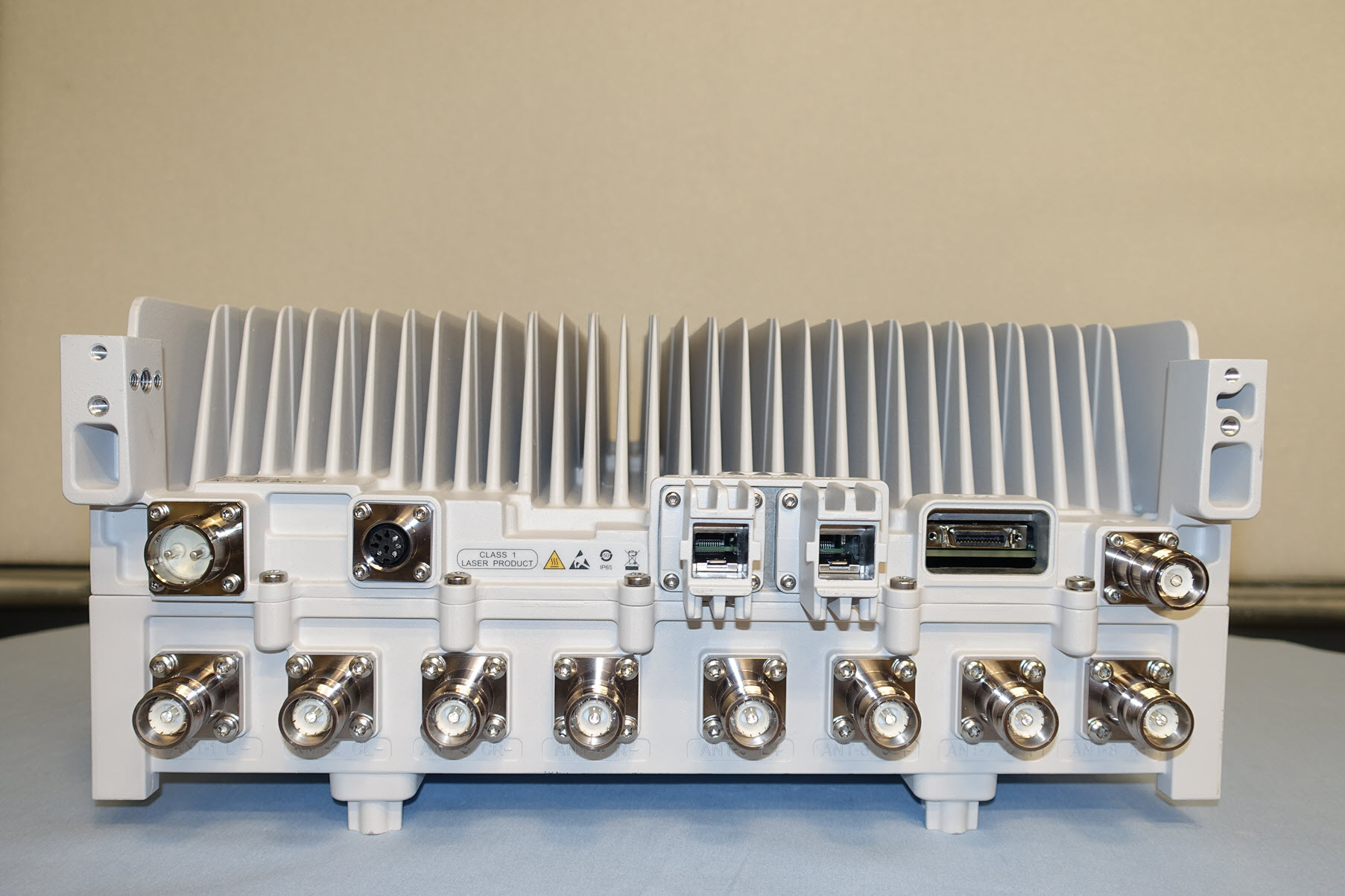

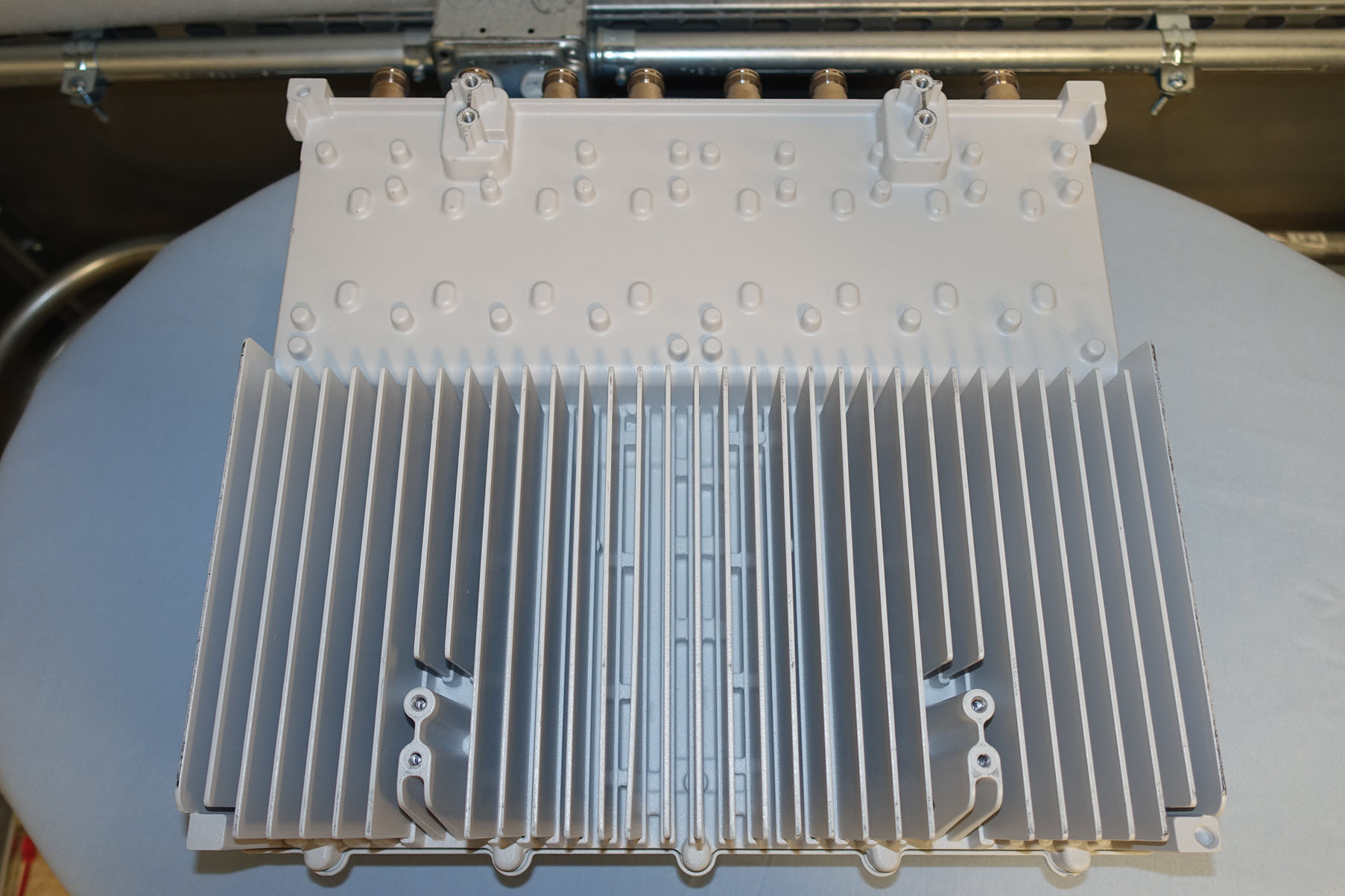

VBNAZQW-01Remote Radio Head

Nokia Solutions and Networks Tel: (972) 936-7500 3201 Olympus Blvd Fax: (972) 936-7273 Dallas, Texas 75019 July 12, 2021 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 RE: Confidentiality Request FCC ID: VBNAZQW-01 Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: • Operation Description (Theory of Operation) • Block Diagram • Schematics/Parts List • Tuning/Calibration Procedure • Internal Photos • User Manual These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Sincerely, Steve Mitchell Compliance Engineer

Nokia Solutions and Networks Tel: (972) 936-7500 3201 Olympus Blvd Fax: (972) 936-7273 Dallas, Texas 75019 July 12, 2021 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I appoint Geremy Bradshaw of Nemko USA, Inc., 2648 FM 407, Suite 200, Bartonville, TX 76226, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Nokia Solutions and Networks, 3201 Olympus Blvd, TX 75019 USA. Agency agreement expiration date: 09 July 2022. Sincerely, Steve Mitchell Compliance Engineer

1 (6) Mutual NDA for R&D and purchasing 1.1 Proprietary and Confidential Nokia Solutions and Networks MUTUAL NON-DISCLOSURE AGREEMENT [Note to drafter: Please check/remove yellow highlighting before sending out.] This Mutual Non-Disclosure Agreement (“Agreement”) is entered into by and between NOKIA SOLUTIONS AND NETWORKS US LLC, a corporation validly organized and existing under the laws of Delaware, having its principal place of business at 6000 Connection Drive, Building 4, Irving, Texas, 75039 USA, (“Nokia Networks”) and [insert name of other party], a corporation validly organized and existing under the laws of [insert the country of incorporation of the other party] having its principal place of business at [insert address of the other party] , business identity code [ ] (“Company”) hereinafter referred to as “Party” or “Parties” respectively WHEREAS: (A) For the purpose of [Note to drafter: Please define the specific purpose for which the confidential information is being disclosed. Some examples are given below: Example A.: “...discussions concerning a possible business relationship in which the Company will provide [please describe the products and/or services] to NOKIA NETWORKS for NOKIA NETWORKS’s internal business purposes and/or for use in and in connection with NOKIA NETWORKS’ product/service offerings to its end customers and end users.” (hereinafter "Purpose"), (B) the Parties may, in conjunction with the Purpose and for their mutual benefit, disclose to each other information which the Parties regard as confidential and the Parties are willing to undertake to restrict the use and further disclosure of such information. NOW THEREFORE IT IS HEREBY AGREED: 1. “Information” shall mean any technical and/or commercial information relating to the disclosing Party’s or any of its Affiliates’ businesses, facilities, products, services, techniques and processes in whatever form, including but not limited to oral disclosure, electronic communication, demonstration, device, apparatus, model, sample of any kind, computer program, optical or magnetic medium, document, specification, circuit diagram, or drawing (including but not limited to information of a general nature or information not necessarily in the form as applied to wireless or fixed telecommunications systems) and visual observation of the aforesaid which is proprietary to the disclosing Party or to its Affiliates or to a disclosing Party’s or its Affiliates’ licensors, contractors or customers (hereinafter "Information"). 2. “Affiliate” of a Party shall mean an entity (i) which is directly or indirectly controlling such Party; (ii) which is under the same direct or indirect ownership or control as such Party; or (iii) which is directly or indirectly owned or controlled by such Party. For these purposes, an entity shall be treated as being controlled by another if that other entity has fifty percent (50 %) or more of votes in such entity, is able to direct its affairs and/or to control the composition of its board of directors or equivalent body. 3. The receiving Party shall 2 (6) Mutual NDA for R&D and purchasing 1.1 Proprietary and Confidential Nokia Solutions and Networks a. keep confidential all Information received by it from the disclosing Party with the same degree of care as is used with respect to the receiving Party's own equally important confidential information to avoid disclosure to any third party, but at least with reasonable care, and b. neither disclose Information received by it from the disclosing Party to third parties nor use it for any purpose other than the above mentioned Purpose without the prior written permission of the disclosing Party. 4. The Company recognizes that NOKIA NETWORKS is part of an organization of multiple legal entities in several jurisdictions and that it may be necessary for NOKIA NETWORKS to provide Information to its Affiliates. For this purpose, Company agrees (both as the disclosing Party and as the receiving Party hereunder) that a. NOKIA NETWORKS may disclose Information to its Affiliates but only to the extent that such Affiliate has a need to know for the purpose of carrying out the Purpose; and b. disclosure by or to an Affiliate of NOKIA NETWORKS shall be deemed to be a disclosure by or to NOKIA NETWORKS, as applicable; and c. NOKIA NETWORKS shall be responsible for the observance and proper performance by all of its Affiliates of the terms and conditions of this Agreement; and d. NOKIA NETWORKS may disclose Information to its subcontractors but only to the extent that such subcontractor has a need to know for the purpose of carrying out the Purpose and provided that such subcontractor accepts confidentiality obligations similar to those contained in this Agreement. 5. Subject to the foregoing each Party shall restrict access to Information received from another Party to only those of its employees to whom such access is necessary for carrying out the Purpose and advise such employees of the obligations assumed herein. 6. The foregoing obligations shall not apply to any Information which a. is in the public domain at the time of disclosure or later becomes part of the public domain through no fault of the receiving Party; or b. was known to the receiving Party prior to disclosure by the disclosing Party as proven by the written records of the receiving Party; or c. is disclosed to the receiving Party by a third party who, to the receiving Party’s knowledge, did not obtain such Information, directly or indirectly, from the disclosing Party; or d. was independently developed (i.e. by personnel having either no access to the Information or only under the exceptions as set out above) by the receiving Party as proven by the written records of the receiving Party. For the purpose of the foregoing exceptions, disclosures which are specific, e.g. as to engineering and design practices and techniques, products, software, services, operating parameters, etc. shall not be deemed…

Text truncated - open the document above for the full version.

Nokia Solutions and Networks Tel: (972) 936-7500 3201 Olympus Blvd Fax: (972) 936-7273 Dallas, Texas 75019 July 12 th , 2021 To whom it may concern: This is a request to hold the internal photos and user manual for FCC ID: VBNAZQW-01 under long term confidentiality. The transmitter is a Base Station where access is controlled and only available to trained personnel. Please note that the internal photos are being asked to be confidential under the FCC guidelines that this is a non-consumer device (Base Station) and is inaccessible to the general public due to the location of the device and it is only serviceable by the licensee or his designated technicians. The user manual is being requested to be confidential under the FCC guidelines that the manual is very technical and is not provided to the general public. The user manual contains proprietary information required for trained installers to commission the base station. The user manual will be used by the licensee or his designated technicians only. Nokia Solutions and Networks has spent substantial effort in developing this product as a leader in the industry. Having the subject information easily available to competitiors would negate the advantage we have achieved by developing this product. Not protecting the details of design will result in financial hardship. Sincerely, Steve Mitchell __________________________________________ ________________________ (Signature/Title) (Printed name)

AZQW Label Format & Location Label Material: White Polyester Model: AZQWFCC ID: VBNAZQW - 01

1 / 19 LPITPN2I4Q5L-1109616211-1792 PUBLIC © Nokia 2021 RF exposure compliance assessment Nokia Solutions and Networks AirScale Base Transceiver Station Remote Radio Head, model AZQW Commscope NNH4S4-65B-R7 Author Kamil Bechta Owner Christophe Grangeat Organization MN RAN Arch Approver Jaimeen Kamdar Document Type Final test report Document ID LPITPN2I4Q5L-1109616211-1792 Document location https://nokia.sharepoint.com/:f:/r/sites/EMFProductManagement/Shared%20Documents/General/Products- RF-exposure-assessment/AZQW?csf=1&web=1&e=FZOgo3 Change History Version Status Date Author Owner Reviewed by Reviewed date Approver Approval date Description of changes 1.0 Final 27-04-2021 K. Bechta C. Grangeat C. Grangeat 27-04-2021 J. Kamdar 27-04-2021 This material, including documentation and any related computer programs, is protected by copyright controlled by Nokia. All rights are reserved. Copying, including reproducing, storing, adapting or translating, any or all of this material requires the prior written consent of Nokia. This material also contains confidential information, which may not be disclosed to others without the prior written consent of Nokia. 2 / 19 LPITPN2I4Q5L-1109616211-1792 PUBLIC © Nokia 2021 Contents 1 General content .................................................................................................................... 5 2 References ............................................................................................................................. 5 Applicable RF exposure standards and regulations ........................................................ 5 Product and assessment method ...................................................................................... 6 3 RF exposure limits ................................................................................................................ 6 4 Description of the equipment under test (EUT) .............................................................. 7 5 RF exposure assessment method...................................................................................... 10 6 RF exposure computation results ...................................................................................... 11 Regions of application: EU/ICNIRP, Australia/NZ and US/related .................................. 11 Regions of application: Canada .......................................................................................... 14 7 Conclusion and installation recommendations ................................................................ 16 List of Tables Table 1 – Applicable RF exposure levels in n77 band expressed in power density ............................ 6 Table 2 – AZQW and NNH4S4-65B-R7 general technical characteristics ............................................ 7 Table 3 – Reference system used in this report (from NGMN white paper [16]) ......................................... 8 Table 4 – Models of antenna patterns for RF exposure assessment ................................................... 9 Table 5 – Antenna gain characteristics for various beam steering directions used during EMF evaluation ...................................................................................................................................................................... 10 Table 6 – Validation of the antenna model at 3700 MHz ........................................................................... 11 Table 7 – AZQW with NNH4S4-65B-R7 RF exposure compliance distances based on the time- averaged maximum transmitted power of 339 W (corresponding to 320 W rated max transmitted power) for EU/ICNIRP, Australia/NZ and US/related ....................................................... 17 Table 8 – AZQW with NNH4S4-65B-R7 RF exposure compliance distances based on the time- averaged maximum transmitted power of 339 W (corresponding to 320 W rated max transmitted power) for Canada ............................................................................................................... 17 Table 9 – AZQW with NNH4S4-65B-R7 RF exposure compliance distances based on the time- averaged actual maximum transmitted power of 85 W (corresponding to 320 W rated max transmitted power) for EU/ICNIRP, Australia/NZ and US/related ....................................................... 18 3 / 19 LPITPN2I4Q5L-1109616211-1792 PUBLIC © Nokia 2021 Table 10 – AZQW with NNH4S4-65B-R7 RF exposure compliance distances based on the time- averaged actual maximum transmitted power 85 W (corresponding to 320 W rated max transmitted power) for Canada ............................................................................................................... 18 List of Figures Figure 1 – Shape of the compliance boundary used for the RF exposure compliance assessment (from [4]). .................................................................................................................................................... 10 Figure 2 – Top view of the power density for the time-averaged maximum transmitted power of 339 W and the beam oriented in azimuth = 0° & elevation = 0° (EU/ICNIRP, Australia/NZ and US/related) .................................................................................................................................................. 11 Figure 3 – Top view of the power density for the time-averaged actual maximum transmitted power of 85 W and the beam oriented in azimuth = 0° & elevation = 0° (EU/ICNIRP, Australia/NZ and US/related) .......................................................................................................................................... 12 Figure 4 – Side view of the power density for the time-averaged maximum transmitted power of 339 W and the beam oriented in azimuth = 0° & elevation = +10° (EU/ICNIRP, Australia/NZ and US/related) .........................................................................................................................................…

Text truncated - open the document above for the full version.

This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. This Report shall not be reproduced, except in full without written approval of the laboratory. EAR-Controlled Data - This document contains technical data whose export and reexport/retransfer is subject to control by the U.S. Department of Commerce under the Export Administration Act and the Export Administration Regulations. The Department of Commerce’s prior written approval may be required for the export or re- export/retransfer of such technical data to any foreign person, foreign entity or foreign organization whether in the United States or abroad. Radio Test Report Application for Grant of Equipment Authorization FCC Part 27 (3700MHz – 3980MHz) FCC ID: VBNAZQW-01 Nokia Solutions and Networks Airscale Base Transceiver Station Report Radio Head Model: AZQW Report: NOKI0028.1, Issue Date: July 22, 2021 NVLAP LAB CODE: 201049-0 CERTIFICATE OF TEST 2018-09-14 Product compliance is the responsibility of the client; therefore, the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. This report reflects only those tests from the referenced standards shown in the certificate of test. It does not include inspection or verification of labels, identification, marking or user information. As indicated in the Statement of Work sent with the quotation, Element’s standard process is to always use the latest published version of the test methods even when earlier versions are cited in the test specification. Issuance of a purchase order was de facto acceptance of this approach. Otherwise, the client would have advised Element in writing of the specific version of the test methods they wanted applied to the subject testing. Last Date of Test: June 25, 2021 Nokia Solutions and Networks EUT: Airscale Base Transceiver Station Remote Radio Head Model AZQW Radio Equipment Testing Standards Specification Method Code of Federal Regulations (CFR) Title 47 Part 2 CFR Title 47 Park 27:2021 ANSI C63.26:2015 Results Test Description Applied Results Comments Duty Cycle No N/A Not required. Occupied Bandwidth Yes Pass Frequency Stability Yes Pass Average Power Yes Pass Peak to Average Power (PAPR)CCDF Yes Pass Band Edge Compliance Yes Pass Spurious Conducted Emissions Yes Pass Spurious Radiated Emissions Yes Pass Power Spectral Density Yes Pass Deviations From Test Standards None Approved By: Adam Bruno, Operations Manager Report No. NOKI0028.12/275 REVISION HISTORY 2018.07.17 Revision Number Description Date (yyyy-mm-dd) Page Number 00 None Report No. NOKI0028.13/275 ACCREDITATIONS AND AUTHORIZATIONS 2021.02.26 United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC 17065 as a product certifier. This allows Element to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada ISED - Recognized by Innovation, Science and Economic Development Canada as a Certification Body (CB) and as a CAB for the acceptance of test data. European Union European Commission – Recognized as an EU Notified Body validated for the EMCD and RED Directives. United Kingdom BEIS – Recognized by the UK as an Approved Body under the UK Radio Equipment and UK EMC Regulations. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea MSIT / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Israel MOC – Recognized by MOC as a CAB for the acceptance of test data. Hong Kong OFCA – Recognized by OFCA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. SCOPE For details on the Scopes of our Accreditations, please visit: https://www.nwemc.com/emc-testing-accreditations Report No. NOKI0028.14/275 FACILITIES 2020.12.15 California Labs OC01-17 41 Tesla Irvine, CA 92618 (949) 861-8918 Minnesota Labs MN01-11 9349 W Broadway Ave. Brooklyn Park, MN 55445 (612)-638-5136 Oregon Labs EV01-12 6775 NE Evergreen Pkwy #400 Hillsboro, OR 97124 (503) 844-4066 Texas Labs TX01-09 3801 E Plano Pkwy Plano, TX 75074 (469) 304-5255 Washington Labs NC01-05 19201 120 th Ave NE Bothell, WA 98011 (425)984-6600 NVLAP NVLAP Lab Code: 200676-0 NVLAP Lab Code: 200881-0 NVLAP Lab Code: 200630-0 NVLAP Lab Code:201049-0 NVLAP Lab Code: 200629-0 Innovation, Science and Economic Development Canada 2834B-1, 2834B-3 2834E-1, 2834E-3 2834D-1 2834G-1 2834F-1 BSMI SL2-IN-E-1154R SL2-IN-E-1152R SL2-IN-E-1017 SL2-IN-E-1158R SL2-IN-E-1153R VCCI A-0029 A-0109 A-0108 A-0201 A-0110 Recognized Phase I CAB for ISED, ACMA, BSMI, IDA, KCC/RRA, MIC, MOC, NCC, OFCA US0158 US0175 US0017 US0191 US0157 Report No. NOKI0028.15/275 MEASUREMENT UNCERTAINTY TMU.2015.07.10 Measurement Uncertainty When a measurement is made, the result will be different from the true or theoretically correct value. The difference is the result of tolerances in the measurement system that cannot be completely eliminated. To the extent that technology allows us, it has been our aim to minimize this error. Measurement uncertainty is a statistical expression of measurement error qualified by a probability distribution. A measurement uncertainty estimation has been perf…

Text truncated - open the document above for the full version.

EMC TEST EQUIPMENT ID AMM AFL TIW TEST DESCRIPTION Generator - SignalAgilentN5173B2020-07-172023-07-17 XMit 2020.12.30.0 Analyzer - Spectrum AnalyzerAgilentN9010A2021-03-11 DescriptionManufacturerModelLast Cal. 2022-03-11 2021-09-21 Cal. Due AVERAGE POWER Testing was performed using the mode(s) of operation and configuration(s) noted within the report. The individuals and/or the organization requesting the test provided the modes, configurations and settings used to complete the evaluation. The actual test parameters are specified in the test data, this includes items such as investigated frequency range (scanned) and test levels. The testing methods and performance specifications, as well as the test site used for the evaluation are indicated in the test data. Block - DCFairview MicrowaveSD33792020-09-21 The measurement was made using a direct connection between the RF output of the EUT and a spectrum analyzer. The fundamental emission output power (maximum average conducted output power) was measured using the channels and modes as called out on the following data sheets. The transmit power was set to maximum. The method in ANSI C63.26-2015 paragraph 5.2.4.4 was used to make these measurements. The RF conducted emission testing was performed on one port. The AZQW antenna ports are essentially electrically identical (the RF power variation between antenna ports is small as shown in the “Output Power - All Ports” report section) and antenna port 8 was selected to perform the testing under this effort as allowed by ANSI C63.26-2015 paragraphs 5.2.5.3, 5.7.2i, and 6.4. The total average transmit power of all antenna ports was determined per ANSI C63.26-2015 paragraph 6.4.3.1. Per section 27.50(d)(2)(ii) the Equivalent Isotropically Radiated Power (EIRP) of the transceiver cannot exceed 1640 W/MHz. EIRP as defined by the FCC is the total power output from the cell site antenna. Report No. NOKI0028.154/275 XMit 2020.12.30.0 TbtTx 2021.03.19.1XMit 2020.12.30.0 EUT:Airscale Base Transceiver Station Remote Radio Head Model AZQWWork Order:NOKI0028 Serial Number:YK211100168Date: Customer:Nokia Solutions and NetworksTemperature:21 °C Attendees:John Rattanavong, David LeHumidity:52.9% RH Project:NoneBarometric Pres.:1019 mbar Tested by:Brandon HobbsPower:54VDCJob Site:TX05 TEST SPECIFICATIONSTest Method COMMENTS DEVIATIONS FROM TEST STANDARD Signature Initial ValueDuty Cycle Single PortTwo Port (2x2 MIMO)Four Port (4x4 MIMO)Eight Port (8x8 MIMO) dBm/Carrier BWdBm/Carrier BWdBm/Carrier BWdBm/Carrier BWdBm/Carrier BW Band n77, 3700 MHz - 3980 MHz, 5G NR Port 8 20 MHz BW 256-QAM Modulation Low Ch.3710.01 MHz41.303041.3044.3047.3050.30 Mid Ch. 3840 MHz41.492041.4944.4947.4950.49 High Ch. 3969.99 MHz41.465041.4744.4747.4750.47 40 MHz BW 256-QAM Modulation Low Ch. 3720 Mhz44.557044.5647.5650.5653.56 Mid Ch. 3840 MHz44.739044.7447.7450.7453.74 High Ch. 3960 MHz44.59044.5947.5950.5953.59 60 MHz BW 256-QAM Modulation Low Ch. 3730.02 MHz45.867045.8748.8751.8754.87 Mid Ch. 3840 MHz45.804045.8048.8051.8054.80 High Ch. 3949.98 MHz45.949045.9548.9551.9554.95 80 MHz BW 256-QAM Modulation Low Ch. 3740.01 MHz45.649045.6548.6551.6554.65 Mid Ch. 3840 MHz45.87045.8748.8751.8754.87 High Ch. 3939.99 MHz45.742045.7448.7451.7454.74 100 MHz BW QPSK Modulation Mid Ch. 3840 MHz45.991045.9948.9951.9954.99 16-QAM Modulation Mid Ch. 3840 MHz46.012046.0149.0152.0155.01 64-QAM Modulation Mid Ch. 3840 MHz45.973045.9748.9751.9754.97 256-QAM Modulation Low Ch. 3750 MHz45.592045.5948.5951.5954.59 Mid Ch. 3840 MHz45.954045.9548.9551.9554.95 High Ch. 3930 MHz46.026046.0349.0352.0355.03 AVERAGE POWER 18-Jun-21 Configuration #2 FCC 27:2021 ANSI C63.26:2015 None All measurement path losses were accounted for in the reference level offest including any attenuators, filters and DC blocks. The output power was measured for a single carrier over the carrier channel bandwidth on port 8. The total output power for multiport (2x2 MIMO, 4x4 MIMO & 8X8 MIMO) operation was determined based upon ANSI 63.26 clauses 6.4.3.1 and 6.4.3.2.4 (10 log Nout). The total output power for two port operation is single port power + 3dB [i.e. 10log(2)]. The total output power for four port operation is single port power + 6dB [i.e. 10log(4)]. The total output power for eight port operation is single port power + 9dB [i.e. 10log(8)]. External 1 gating was set using a trig delay = 86.2us and a gate length = 3.714ms. The carrier power was set to maximum for all testing. Report No. NOKI0028.155/275 XMit 2020.12.30.0 TbtTx 2021.03.19.1XMit 2020.12.30.0 Initial ValueDuty Cycle Single PortTwo Port (2x2 MIMO)Four Port (4x4 MIMO)Eight Port (8x8 MIMO) dBm/Carrier BWdBm/Carrier BWdBm/Carrier BWdBm/Carrier BWdBm/Carrier BW 41.303041.30344.30347.30350.303 Initial ValueDuty Cycle Single PortTwo Port (2x2 MIMO)Four Port (4x4 MIMO)Eight Port (8x8 MIMO) dBm/Carrier BWdBm/Carrier BWdBm/Carrier BWdBm/Carrier BWdBm/Carrier BW 41.492041.49244.49247.49250.492 AVERAGE POWER Band n77, 3700 MHz - 3980 MHz, 5G NR, Port 8, 20 MHz BW, 256-QAM Modulation, Low Ch.3710.01 MHz Band n77, 3700 MHz - 3980 MHz, 5G NR, Port 8, 20 MHz BW, 256-QAM Modulation, Mid Ch. 3840 MHz Report No. NOKI0028.156/275 XMit 2020.12.30.0 TbtTx 2021.03.19.1XMit 2020.12.30.0 Initial ValueDuty Cycle Single PortTwo Port (2x2 MIMO)Four Port (4x4 MIMO)Eight Port (8x8 MIMO) dBm/Carrier BWdBm/Carrier BWdBm/Carrier BWdBm/Carrier BWdBm/Carrier BW 41.465041.46544.46547.46550.465 Initial ValueDuty Cycle Single PortTwo Port (2x2 MIMO)Four Port (4x4 MIMO)Eight Port (8x8 MIMO) dBm/Carrier BWdBm/Carrier BWdBm/Carrier BWdBm/Carrier BWdBm/Carrier BW 44.557044.55747.55750.55753.557 AVERAGE POWER Band n77, 3700 MHz - 3980 MHz, 5G NR, Port 8, 20 MHz BW, 256-QAM Modulation, High Ch. 3969.99 MHz Band n77, 3700 MHz - 3980 MHz, 5G NR, Port 8, 40 MHz BW, 256-QAM Modulation, Low Ch. 3720 Mhz Report No. NOKI0028.157/275 XMit 2020.12.30.0 TbtTx 2021.03.19.1XMit 2020.12.30.0 Initial ValueDuty Cycle Single PortTwo Port (2x2 MIMO)Four Port (4x4 MIMO)…

Text truncated - open the document above for the full version.

EMC TEST EQUIPMENT ID TIW AMM AFL TEST DESCRIPTION Analyzer - Spectrum AnalyzerAgilentN9010A2021-03-112022-03-11 XMit 2020.12.30.0 Block - DCFairview MicrowaveSD33792020-09-21 DescriptionManufacturerModelLast Cal. 2021-09-21 2023-07-17 Cal. Due BAND EDGE COMPLIANCE Testing was performed using the mode(s) of operation and configuration(s) noted within the report. The individuals and/or the organization requesting the test provided the modes, configurations and settings used to complete the evaluation. The actual test parameters are specified in the test data, this includes items such as investigated frequency range (scanned) and test levels. The testing methods and performance specifications, as well as the test site used for the evaluation are indicated in the test data. Generator - SignalAgilentN5173B2020-07-17 The measurement was made using a direct connection between the RF output of the EUT and a spectrum analyzer. The spurious RF conducted emissions at the edges of the authorized bands were measured with the EUT set to low and high transmit frequencies in the available band. The channels closest to the band edges were selected. The EUT was transmitting at the data rate(s) listed in the datasheet. The carrier transmit power levels were set to maximum for each channel bandwidth. The spectrum was scanned below the lower band edge and above the higher band edge. Per section 27.53(l)(1), For base station operations in the 3700-3980 MHz band, the conducted power of any emission outside the licensee's authorized bandwidth shall not exceed −13 dBm/MHz. Compliance with this paragraph (l)(1) is based on the use of measurement instrumentation employing a resolution bandwidth of 1 megahertz or greater. However, in the 1 megahertz bands immediately outside and adjacent to the licensee's frequency block, a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed. The limit is adjusted to -22 dBm [-13 dBm -10 log (8)] per FCC KDB 662911D01 v02r01 and ANSI C63.26-2015 se…

Text truncated - open the document above for the full version.
