VBNFHFB-01Flexi Multiradio BTS

Nokia Solutions and Networks Tel: (972) 374-3000 6000 Connection Drive Fax: (972) 374-3252 Irving, Texas 75039 January 14, 2015 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 RE: Confidentiality Request FCC ID: VBNFHFB-01 Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: • Operation Description (Theory of Operation) • Block Diagram • Schematics/Parts List • Tuning/Calibration Procedure • Internal Photos • User Manual These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Sincerely, Steve Mitchell Compliance Engineer Nokia Solutions and Networks Tel: (972) 374-3000 6000 Connection Drive Fax: (972) 374-3252 Irving, Texas 75039 January 28 th , 2015 To whom it may concern: This is a request to hold the internal photos and user manual for FCC ID: VBNFHFB-01 under long term confidentiality. The transmitter is a Base Station where access is controlled and only available to trained personnel. Please note that the internal photos are being asked to be confidential under the FCC guidelines that this is a non-consumer device (Base Station) and is inaccessible to the general public due to the location of the device and it is only serviceable by the licensee or his designated technicians. The user manual is being requested to be confidential under the FCC guidelines that the manual is very technical and is not provided to the general public. The user manual contains proprietary information required for trained installers to commission the base station. The user manual will be used by the licensee or his designated technicians only. Nokia Solutions and Networks have spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to “competition” would negate the advantage they have achieved by developing this product. Not protecting the details of design will result in financial hardship. Sincerely, __________________________________________ ________________________ (Signature/Title) (Printed name)

Nokia Solutions and Networks Tel: (972) 374-3000 6000 Connection Drive Fax: (972) 374-3252 Irving, Texas 75039 January 14, 2015 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I appoint Debbie Wilson of Nemko USA, Inc. 2652 FM 407, Suite 215A Bartonville, TX 76226, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Nokia Solutions and Networks, 6000 Connection Drive, Irving, TX 75039 USA. Agency agreement expiration date: 14 January 2016 Sincerely, Steve Mitchell Compliance Engineer

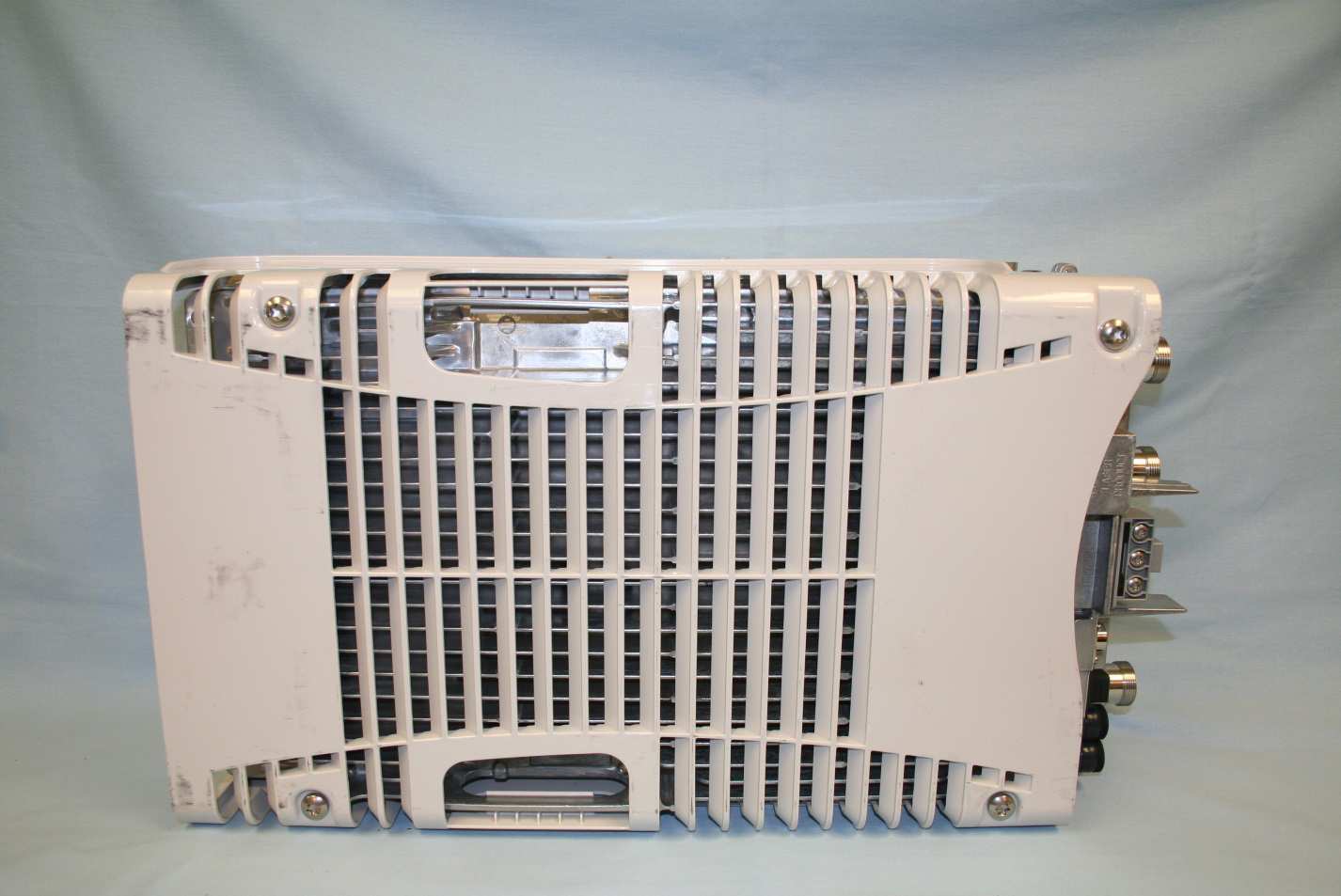

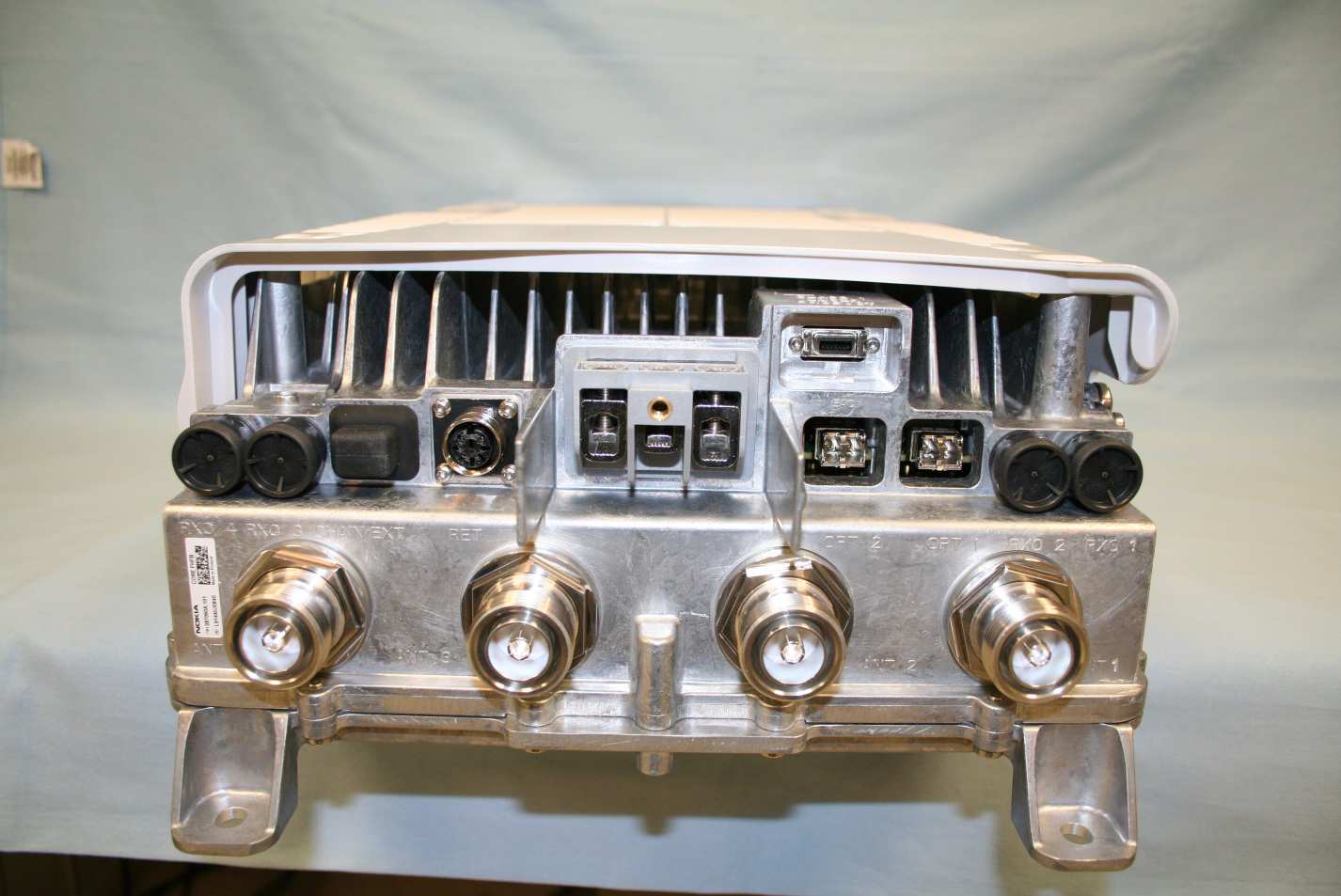

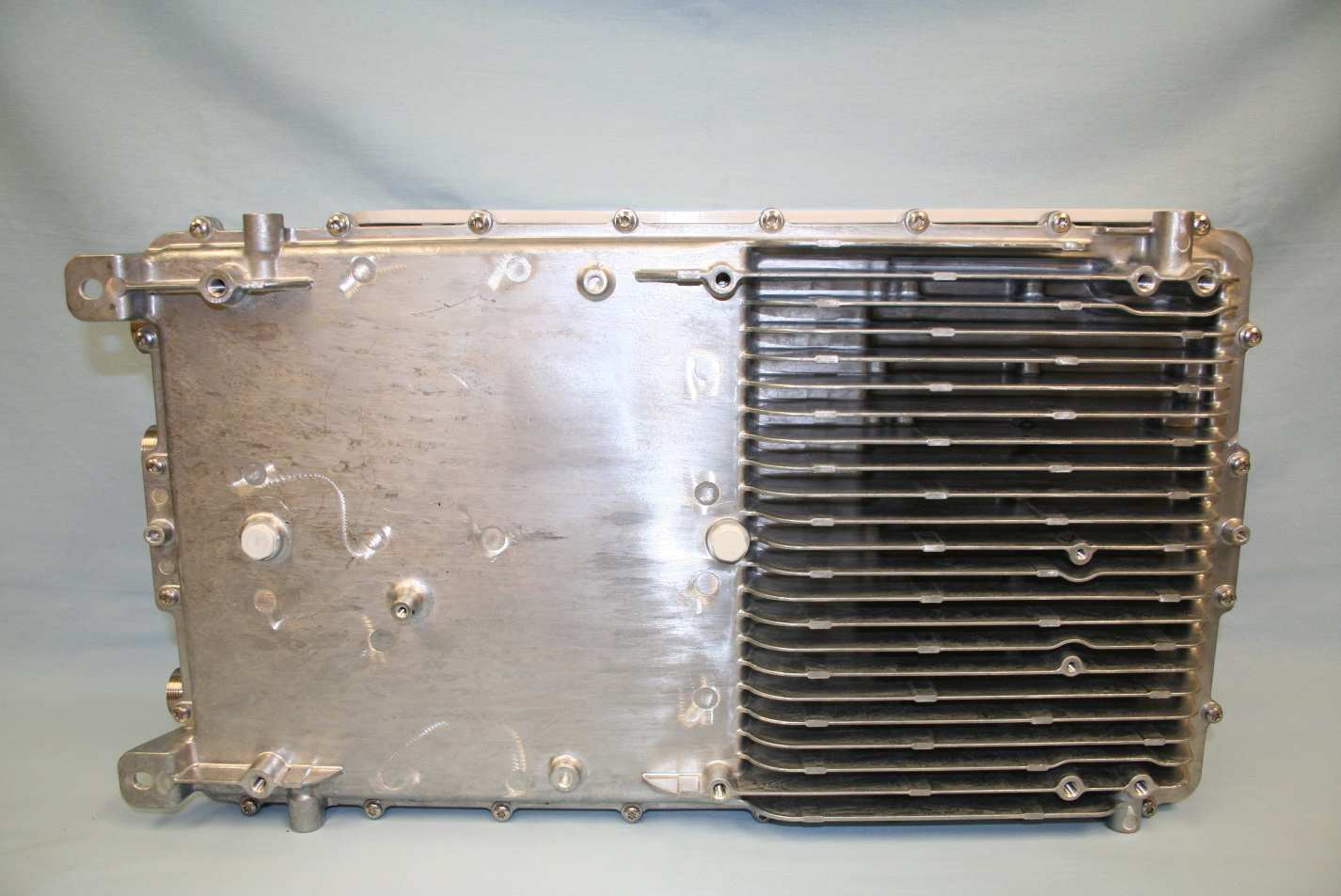

1-FHFB_Front 2-FHFB_Front_Solar Shield Removed 3-FHFB_Back 4-FHFB_Top 5-FHFB_Bottom

FHFB Label Format & Location The label is made of vinyl material and is attached with permanent adhesive.

Document 75925040 Report 06 Issue 1 September 2014 Report On RF Exposure Compliance Boundary Assessment of the Nokia Solutions and Networks Flexi Base Station Products (698-960 MHz and 1710-2690MHz) TÜV SÜD Product Service, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuv-sud.co.uk Document 75925040 Report 06 Issue 1 Page 1 of 15 REPORT ON RF Exposure Compliance Boundary Assessment of the Nokia Solutions and Networks Flexi Base Station Products (698-960 MHz and 1710-2690MHz) Document 75925040 Report 06 Issue 1 September 2014 PREPARED FOR Nokia Solutions and Networks Oy Kaapelitie 4 Oulu Finland PREPARED BY Maggie Whiting Project Manager APPROVED BY Simon Bennet Authorised Signatory DATED 29 September 2014 Document 75925040 Report 06 Issue 1 Page 2 of 15 CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 3 1.1 Introduction ................................................................................................................................... 4 1.2 Brief Summary of Results ............................................................................................................. 5 1.3 Product Information ...................................................................................................................... 6 1.4 Summary ...................................................................................................................................... 6 2 TEST DETAILS ............................................................................................................................ 7 2.1 Rationale for Assessment of the RF Exposure Compliance Boundary ........................................ 8 2.2 Defined Limits ............................................................................................................................... 9 2.3 Establishing Wavelength and 1/4 Wavelength ........................................................................... 11 2.4 Far Field Calculations ................................................................................................................. 12 3 DISCLAIMERS AND COPYRIGHT ........................................................................................... 14 3.1 Disclaimers and Copyright .......................................................................................................... 15 Document 75925040 Report 06 Issue 1 Page 3 of 15 SECTION 1 REPORT SUMMARY RF Exposure Compliance Boundary Assessment of the Nokia Solutions and Networks Flexi Base Station Products (698-960 MHz and 1710-2690MHz) Document 75925040 Report 06 Issue 1 Page 4 of 15 1.1 INTRODUCTION The information contained in this report is intended to show verification of the RF Exposure Compliance Boundary Assessment of the Nokia Solutions and Networks Flexi Base Station Products (698-960 MHz and 1710-2690MHz) to the requirements of the applied test specifications. Objective To perform RF Exposure Compliance Boundary Assessment to determine the Equipment Under Test's (EUT’s) compliance of the applied rules. Applicant Nokia Solutions and Networks Manufacturer Nokia Solutions and Networks Oy Manufacturing Description Flexi Base Station Products Model Number(s) Nokia Flexi Base Station Products (698-960 MHz and 1710-2690 MHz) In this document Flexi Base Station Product is a common name for Flexi Lite BTS, Flexi WCDMA Base Station, Flexi Multiradio Base Station, Flexi Multiradio 10 Base Station, Flexi Compact BTS and Flexi Zone BTS, Flexi Multiradio BTS GSM/EDGE and Flexi EDGE BTS Power Variants 2, 5, 10, 20, 30, 40, 50, 60, 70, 80 and 90W Test Specification/Issue/Date EN 62311:2008 FCC KDB 447498D01 RSS-102 Issue 4 March 2010 Radiocommunications (Electromagnetic Radiation – Human Exposure) Standard: 2003 Related Document(s) Council Recommendation 1999/519/EC:1999 FCC CFR 47 Part 1: 2013 FCC CFR 47 Part 2: 2013 Health Canada's Safety Code 6 ARPANSA ICNIRP 1998 National Council on Radiation Protection and Measurements (NRPC) - Report No. 86(1986) 50383:2010 IEEE Std C95.1-2005 Australian Standard 2772.2 – 1988 Document 75925040 Report 06 Issue 1 Page 5 of 15 1.2 BRIEF SUMMARY OF RESULTS 1.2.1 Compliance Boundaries (cm) for General Public Levels Power (W) Frequency Range (MHz) 698-960 1710-2690 Distance (cm) 2 150 100 5 230 150 10 320 210 20 450 290 30 550 350 40 640 410 50 710 460 60 780 500 70 840 540 80 900 580 90 950 610 1.2.2 Compliance Boundaries (cm) for Occupational Levels Power (W) Frequency Range (MHz) 698-960 1710-2690 Distance (cm) 2 70 50 5 110 70 10 150 100 20 210 140 30 260 160 40 290 190 50 330 210 60 360 230 70 390 250 80 410 270 90 440 280 The distances are valid for antenna gain 16.4 dBi and RF power as indicated. For other antenna gains and/or RF-power, the compliance boundaries should be recalculated using the formulas in section 2.3 of this report. Document 75925040 Report 06 Issue 1 Page 6 of 15 1.3 PRODUCT INFORMATION 1.3.1 Attestation The wireless device described within this report has been shown to be capable of compliance with the basic restrictions related to human exposure to electromagnetic fields for both General public and Occupational. The calculations shown in this report were made in accordance the procedures specified in the applied test specification(s). 1.3.2 Technical Description The Equipment under test was a Nokia Solutions and Networks Flexi Base Station Products (698-960 MHz and 1710-2690MHz). A full technical description can be found in the manufacturer’s documentation. All reported calculations were carried out on the relevant information supplied for the Nokia Flexi Base Station Products (698-960 MHz and 1710-2690MHz) to demonstrate compliance with the applied test specification(s) the sample assessed was found to comply with the requirements of the applied rules. 1.4 SUMMARY The RF …

Text truncated - open the document above for the full version.

NTS Test Report No. PR033297 Rev. 1 Page 1 Radio Test Report Application for Grant of Equipment Authorization FCC Part 24 & IC RSS-133 1930MHz – 1995MHz FCC ID: VBNFHFB-01 IC: 661W-FHFB Product Name: Flexi Multiradio BTS Model(s): FHFB APPLICANT: Nokia Solutions and Networks 6000 Connection Drive Irving, TX 75039 TEST SITE(S): National Technical Systems - Plano 1701 E Plano Pkwy #150 Plano, TX 75074 REPORT DATE: Feb 10, 2015 FINAL TEST DATES: Nov 17 – Dec 8, 2014 TOTAL NUMBER OF PAGES: 165 Prepared By: Approved By: ______________________________ _______________________ Yunus E. Faziloglu Kimberly Zavala Wireless Manager Quality Assurance Manager Reviewed By: ______________________________ John Ngo General Manager This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 2 REVISION HISTORY Rev# Date Comments Modified By 0 Jan 8, 2015 1 st release Yunus Faziloglu 1 Feb 10, 2015 To address TCB comments Yunus Faziloglu NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 3 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2
TABLE OF CONTENTS ............................................................................................................................................ 3
SCOPE .......................................................................................................................................................................... 4
OBJECTIVE ................................................................................................................................................................ 5
STATEMENT OF COMPLIANCE ........................................................................................................................... 5
DEVIATIONS FROM THE STANDARDS .............................................................................................................. 5
TEST RESULTS .......................................................................................................................................................... 6
FCC PART 24 & IC RSS-133 (BASE STATIONS OPERATING IN 1930MHZ-1995MHZ BAND) .................................... 6
EXTREME CONDITIONS ...................................................................................................................................... 8
MEASUREMENT UNCERTAINTIES .................................................................................................................... 8
EQUIPMENT UNDER TEST (EUT) DETAILS ...................................................................................................... 9
GENERAL ................................................................................................................................................................ 9
ENCLOSURE ......................................................................................................................................................... 11
AUXILLARY EQUIPMENT ................................................................................................................................. 11
SUPPORT EQUIPMENT ....................................................................................................................................... 11
EUT INTERFACE PORTS ..................................................................................................................................... 11
EUT OPERATION ................................................................................................................................................. 12
EUT FIRMWARE/SOFTWARE ............................................................................................................................ 12
MODIFICATIONS ................................................................................................................................................. 12
TESTING ................................................................................................................................................................... 13
GENERAL INFORMATION ................................................................................................................................. 13
MEASUREMENT PROCEDURES ......................................................................................................................... 14
TEST EQUIPMENT ................................................................................................................................................. 16
APPENDIX A TEST DATA ..................................................................................................................................... 17
RF OUTPUT POWER ................................................................................................................................................. 18
EMISSION BANDWIDTHS (26DB AND 99%) .............................................................................................................. 73
ANTENNA PORT CONDUCTED BANDEDGE .…

Text truncated - open the document above for the full version.

NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 106 LTE – 5M – 64QAM – High LTE – 5M – 64QAM – High(-1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 107 LTE – 10M – QPSK – Low LTE – 10M – QPSK – Low(+1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 108 LTE – 10M – QPSK – High LTE – 10M – QPSK – High(-1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 109 LTE – 10M – 16QAM – Low LTE – 10M – 16QAM – Low(+1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 110 LTE – 10M – 16QAM – High LTE – 10M – 16QAM – High(-1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 111 LTE – 10M – 64QAM – Low LTE – 10M – 64QAM – Low(+1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 112 LTE – 10M – 64QAM – High LTE – 10M – 64QAM – High(-1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 113 LTE – 15M – QPSK – Low LTE – 15M – QPSK – Low(+1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 114 LTE – 15M – QPSK – High LTE – 15M – QPSK – High(-1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 115 LTE – 15M – 16QAM – Low LTE – 15M – 16QAM – Low(+1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 116 LTE – 15M – 16QAM – High LTE – 15M – 16QAM – High(-1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 117 LTE – 15M – 64QAM – Low LTE – 15M – 64QAM – Low(+1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 118 LTE – 15M – 64QAM – High LTE – 15M – 64QAM – High(-1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 119 LTE – 20M – QPSK – Low LTE – 20M – QPSK – Low(+1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 120 LTE – 20M – QPSK – High LTE – 20M – QPSK – High(-1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 121 LTE – 20M – 16QAM – Low LTE – 20M – 16QAM – Low(+1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 122 LTE – 20M – 16QAM – High LTE – 20M – 16QAM – High(-1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 123 LTE – 20M – 64QAM – Low LTE – 20M – 64QAM – Low(+1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 124 LTE – 20M – 64QAM – High LTE – 20M – 64QAM – High(-1) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 125 WCDMA – 5M – QPSK – Low WCDMA – 5M – QPSK – High NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 126 WCDMA – 5M – 16QAM – Low WCDMA – 5M – 16QAM – High NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 127 WCDMA – 5M – 64QAM – Low WCDMA – 5M – 64QAM – High NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 128 WCDMA – 5M Dual – QPSK – Low WCDMA – 5M Dual – QPSK – High NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 129 WCDMA – 5M Dual – 16QAM – Low WCDMA – 5M Dual – 16QAM – High NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 130 WCDMA – 5M Dual – 64QAM – Low WCDMA – 5M Dual – 64QAM – High NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 131 Transmitter Antenna Port Conducted Spurious Emissions Tests performed at Port 4 on center channel for all modulations and bandwidth modes. Due to 4x4 MIMO operation, limit is -19.03dBm (-13dBm – 10*log(4)) per FCC KDB 662911D01 v02r01. TILE6 measurement software was used during testing. A high-pass filter was used above 2.5GHz to block the fundamental and reduce the instrumentation noise floor. Except for the fundamental, all the readings were at noise floor. Measurements taken with the following settings: Frequency Range RBW VBW Number of data points Divided into Detector Sweep Time Max hold over 9kHz-150kHz 1kHz 3kHz 8000 1 segment Peak Auto 50 sweeps 150kHz-1.5MHz 100kHz 300kHz 8000 1 segment Peak Auto 50 sweeps 1.5MHz-20GHz 1MHz 3MHz 8000 10 segments Peak Auto 50 sweeps Corresponding plots are included on the following pages. NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 132 LTE – QPSK – 1.4M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 133 LTE – 16QAM – 1.4M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 134 LTE – 64QAM – 1.4M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 135 LTE – QPSK – 3M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 136 LTE – 16QAM – 3M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 137 LTE – 64QAM – 3M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 138 LTE – QPSK – 5M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 139 LTE – 16QAM – 5M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 140 LTE – 64QAM – 5M

NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 141 LTE – QPSK – 10M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 142 LTE – 16QAM – 10M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 143 LTE – 64QAM – 10M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 144 LTE – QPSK – 15M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 145 LTE – 16QAM – 15M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 146 LTE – 64QAM – 15M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 147 LTE – QPSK – 20M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 148 LTE – 16QAM – 20M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 149 LTE – 64QAM – 20M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 150 WCDMA – QPSK – 5M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 151 WCDMA – 16QAM – 5M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 152 WCDMA – 64QAM – 5M NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 153 Transmitter Radiated Spurious Emissions Antenna port conducted spurious emissions results for all modulations and channel bandwidth modes produced similar results around instrumentation noise floor. Prescans have been performed in the 30MHz – 20GHz frequency range when the unit was transmitting on its center channel at 1962.5MHz in 5MHz – 16QAM mode for LTE and 5MHz – QPSK mode for WCDMA. Final maximized peak radiated emissions were measured in these modes. During testing all 4 antenna ports of the base station were terminated with 50ohm termination blocks. Unit was transmitting on its antenna ports 3 and 4 at full power during all testing. In the 30M-1GHz range emissions recorded were from the unintentional circuitry of the EUT. Harmonics of the fundamental, except for the 2 nd harmonic, were below the instrumentation noise floor. All other spurious emissions were below the instrumentation noise floor as well. Frequency (MHz) Polarity (H/V) Raw Reading at 3m (dBuV) Amplifier Gain (dB) Antenna Factor (dB/m) Cable Loss (dB) Corrected Field Strength at 3m (dBuV/m) Limit at 3m (dBuV/m) Margin (dB) 921.6V49.5-39.824.552.8437.0976.2-39.11 921.6H47.2-39.824.552.8434.7976.2-41.41 2457.6V65.1-48.228.62.147.676.2-28.6 2457.6H63.5-48.228.62.14676.2-30.2 3925H62-4732.72.950.676.2-25.6 3925V58.4-4732.72.94776.2-29.2 Detector: Peak, RBW=1MHz, VBW=3MHz, Max-hold Corrected Field Strength = Raw Reading + Amplifier Gain + Antenna Factor + Cable Loss Negative margin indicates a passing result. LTE - 5M - 16QAM Frequency (MHz) Polarity (H/V) Raw Reading at 3m (dBuV) Amplifier Gain (dB) Antenna Factor (dB/m) Cable Loss (dB) Corrected Field Strength at 3m (dBuV/m) Limit at 3m (dBuV/m) Margin (dB) 921.6H48.9-39.824.552.8436.4976.2-39.71 921.6V50-39.824.552.8437.5976.2-38.61 2457.6V63.2-48.228.62.145.776.2-30.5 2457.6H58.7-48.228.62.1 41.276.2-35 3925H56.9-4732.72.945.576.2-30.7 3925V57.8-4732.72.946.476.2-29.8 Detector: Peak, RBW=1MHz, VBW=3MHz, Max-hold Negative margin indicates a passing result. WCDMA - 5M - QPSK Corrected Field Strength = Raw Reading + Amplifier Gain + Antenna Factor + Cable Loss NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 154 Highest noise floor of the measurement instrumentation was more than 20dB below the 82.2dBuV/m at 3m limit (equivalent to –13dBm EIRP). Since all maximized readings were more than 20dB below the 82.2dBuV/m at 3m limit (equivalent to -13dBm EIRP), substitution measurements were not performed. It should be noted that on the data tables above a more conservative limit corresponding to -19dBm has been applied. TILE software was used for all prescans and plots included on the following pages. The limit shown on the plots is 20dB below the 82.2dBuV/m at 3m limit (equivalent to –13dBm EIRP). NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 155 30MHz – 1GHz Peak Prescan at 3m – H (LTE - 5M - 16QAM) 30MHz – 1GHz Peak Prescan at 3m – V (LTE - 5M - 16QAM) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 156 1GHz – 18GHz Peak Prescan at 3m – H (LTE - 5M - 16QAM) 1GHz – 18GHz Peak Prescan at 3m – V (LTE - 5M - 16QAM) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 157 18GHz – 20GHz Peak Prescan at 3m – H (LTE - 5M - 16QAM) 18GHz – 20GHz Peak Prescan at 3m – V (LTE - 5M - 16QAM) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 158 30MHz – 1GHz Peak Prescan at 3m – H (WCDMA - 5M - QPSK) 30MHz – 1GHz Peak Prescan at 3m – V (WCDMA - 5M - QPSK) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 159 1GHz – 18GHz Peak Prescan at 3m – H (WCDMA - 5M - QPSK) 1GHz – 18GHz Peak Prescan at 3m – V (WCDMA - 5M - QPSK) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 160 18GHz – 20GHz Peak Prescan at 3m – H (WCDMA - 5M - QPSK) 18GHz – 20GHz Peak Prescan at 3m – V (WCDMA - 5M - QPSK) NTS Plano - EMC Department NTS Test Report No. PR033297 Rev. 1 Report Date: Feb 10, 2015 Page 161 Frequency Stability In order to demonstrate carrier frequency stability at extreme temperatures and voltages, bandedge compliance was verified at Port 4 on lowest and highest channels in WCDMA 5MHz 64QAM mode. This mode was selected since it had the highest readings at 1930MHz and 1995MHz block edges during previous bandedge tests. Nominal operatin…

Text truncated - open the document above for the full version.

Radiated Emissions Front Radiated Emissions Rear Radiated Emissions 30MHz-1GHz Radiated Emissions 1GHz-18GHz Radiated Emissions 18GHz-20GHz Antenna Port Tests Frequency Stability
