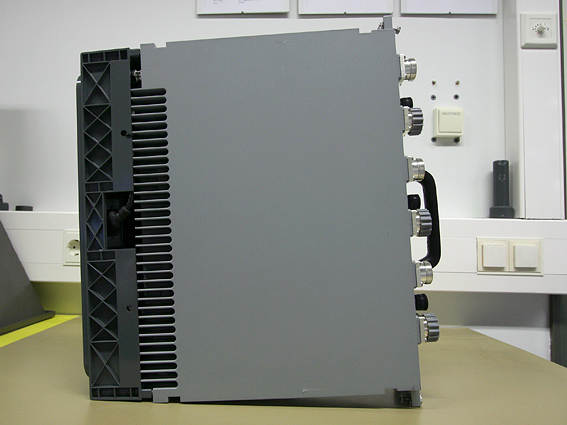

VBNFRBB-01Flexi Multiradio BTS RF Module 760MHz

FRBB:

FRBB: IC Label for RFBB Model number location -085358A for FRBB

24DN0951839 Issue 02 Flexi Multiradio BTS LTE Installation Site Require- ments Id:0900d8058068b63d Confidential 3.8 Safety distance requirements (compliance boundaries) This section describes compliance with reference levels (based on basic restrictions) for general public and occupational exposure to radio frequency electromagnetic fields. Ensuring public safety This equipment generates radio frequency energy, which has a thermal effect when absorbed by the human body. For this reason compliance boundaries specific to this equipment have been established. The thermal effects of radio frequency energy can exceed safety levels when a person is inside the established compliance boundaries. Observe the compliance boundary, and make sure the general public has no access to areas inside the established boundaries. The information shown in the Warnings and cautions provided section below is taken from the relevant section of Nokia Siemens Networks product documentation containing warnings and cautions specific to the equipment. Installing base stations to ensure installer safety Installation engineers need to be aware of the potential risk of the thermal effects of radio frequency energy and how to protect themselves against undue risk. The informa- tion shown in the Warnings and cautions provided section is taken from the relevant section of Nokia Siemens Networks product documentation containing warnings and cautions specific to the equipment. Warnings and cautions provided Reference safety distances When working close to transmitter antennas, the proper safety distances must be observed. The minimum safe distance from an antenna is measured in metres. When assessing the applicable boundaries, the European standards EN 50383, EN 50384, EN 50385 and Council Recommendation 1999/519/EC for occupational and general public electromagnetic exposure limits - see Annex A - have been applied. The statements shown below are taken from the Nokia Siemens Networks product doc- umentation containing warning and cautions specific to the equipment. Assessment applying Specific Absorption Rate (SAR) measurements European standards EN 50383, EN 50384 and EN 50385 do not include specifications for whole body SAR measurements. Whole body SAR measurements are not required for transmitters that have maximum output power levels too low to result in exposure levels that can reach the whole body SAR compliance limits under any conditions. ! The antenna generates electromagnetic fields at radio frequencies. Do not cross the compliance boundary. ! This equipment generates electromagnetic fields. If performing installation or mainte- nance procedures on the antenna systems, make sure that all the transmitters in the area are switched off. DN0951839 Issue 02 25 Flexi Multiradio BTS LTE Installation Site Require- ments Id:0900d8058068b63d Confidential Whole body SAR exclusion power levels have been based on the worst case assump- tions. For details, see the table below. Localised SAR measurements can only be used when: 1. The separation between the phantom and the outer surface of the energy generating element is 40 cm (15.6 in.) or less. 2. The surface area of the energy generating element is less than 60 cm (23.6 in.) by 30 cm (11.8 in.). 3. The frequency is in the range of 800 to 3000 MHz. For the reasons above, SAR measurements are not applicable to Flexi Multiradio Base Station. Assessment of compliance boundary The compliance boundary is defined as the area around the antenna shown in the fol- lowing Area around the antenna figure. The antenna is located at the origo. Distances from the antenna are shown. The top and side views are shown in the following Antenna side and top view figure, in Picture 1 and Picture 2. Figure 3Area around the antenna Exposure categoryMaximum output power (rms) General publicMax power [W] = general public whole body SAR limit [W/kg] * 12.5 kg: 4-year-old child body mass = 1 W OccupationalMax power [W] = occupational whole body SAR limit [W/kg] * 42 kg: 16-year-old worker body mass = 16.8 W Table 18Whole body SAR exclusion power levels 0 0 0 Dside back Ddown Drear Dfront front front Dside Dside Dup DN03400968 Origo 26DN0951839 Issue 02 Flexi Multiradio BTS LTE Installation Site Require- ments Id:0900d8058068b63d Confidential Figure 4Antenna side and top view The compliance boundaries for Flexi Multiradio Base Station are given in the tables below for worst case power levels at the antenna input. Worst case power level config- urations for general public (GP) and occupational (O) exposure limits are included in the tables below. DN03400995 1 2 Dside back Drear back Dside Dfront triangle Dside front Dside front Drear Dup Ddown Dfront triangle Dfront DfrontDfront triangle DrearDside back Dside front DupDdown Freq. (MHz) Power at antenna input GPGPGPGPGPGPGP 9004072.40.30.420.950.95 1700404.41.2 0.1 0.21.50.60.6 17002 * 607.72.40.10.73.00.81.8 1800404.41.20.1 0.21.50.50.5 2100404.71.50.1 0.41.50.60.6 2100605.72.00.1 0.51.851.61.0 21002 * 607.83.00.10.82.82.11.4 Table 19Dimensions of compliance boundary in meters (General Public) DfrontDfront triangle DrearDside back Dside front DupDdown Freq. (MHz) Power at antenna input OO OO OOO Table 20Dimensions of compliance boundary in meters (occupational) DN0951839 Issue 02 27 Flexi Multiradio BTS LTE Installation Site Require- ments Id:0900d8058068b63d Confidential The component specifications for 900 MHz and 1800 MHz also apply to 850 MHz and 1900 MHz products, respectively, and can be used to demonstrate compliance with FCC guidelines for human exposure to radio frequency electromagnetic fields contained in the FCC document OET Bulletin 65 (August 1997). Typical configuration The antenna is connected through a connector and cable(s) to the base station as shown in the following figure. Figure 5Antenna connection to the BTS 900402.9510.050.20.60.850.85 1700401.91.10.10.20.450.480.48 17002 * 602.60.80.10.20.70.70.75 1800402.11.10.10.20.650.450.45 21…

Text truncated - open the document above for the full version.

This document was signed electronically. The Center for Quality Engineering of SGS Germany GmbH is accredited by DATech for COMPONENTS TESTING ENVIRONMENTAL ENGINEERING ELECTROMAGNETIC COMPATIBILITY PRODUCT SAFETY TELECOM CONFORMANCE TESTS SGS Germany GmbH, SGS CQE, Hofmannstr. 50, D-81379 München, Phone +49 89-787475-130, Fax +49 89-787475-122, Internet www.sgs-cqe.de The test report shall not be reproduced except in full without the written approval of the testing laboratory Center for Quality Engineering Test Report No.: E01P0001 FCC ID: VBNFRBB-01 Order No.: E01P Pages: 182 Munich, Mar 08, 2011 Client: Nokia Siemens Networks Oy Equipment Under Test: Flexi Multiradio BTS RF module 760MHz Radio Access Technology: E-UTRA Manufacturer: Nokia Siemens Networks Oy Task: Conformance test according to the test specifications mentioned below Test Specification(s): FCC 47 CFR Part 2, 27 and 90 Result: The EUT complies with the requirements of the specifications. The results relate only to the items tested as described in this test report. approved by: Date Signature Neuhäusler Lab Manager Technical Services Mar 08, 2011 Bauer Lab Manager EMC Mar 08, 2011 Test Report No.: E01P0001 Date: Mar 08, 2011 Flexi Multiradio BTS RF module 760MHz page 2 / 182 The test report shall not be reproduced except in full without the written approval of the testing laboratory CONTENTS 1 Summary ..................................................................................................................................4 2 References ...............................................................................................................................5 2.1 Specifications ......................................................................................................................5 2.2 Glossary of Terms...............................................................................................................5 3 General Information ................................................................................................................6 3.1 Identification of Client..........................................................................................................6 3.2 Test Laboratory ...................................................................................................................6 3.3 Time Schedule ....................................................................................................................6 3.4 Participants .........................................................................................................................6 4 Equipment Under Test ............................................................................................................7 4.1 Description of EUT ..............................................................................................................7 4.2 Configuration of EUT...........................................................................................................7 4.3 Operating Conditions ..........................................................................................................8 4.4 Compliance Criteria.............................................................................................................8 5 General Description of Tests..................................................................................................9 5.1 Tested Carrier Frequencies ................................................................................................9 5.2 Modulation Characteristics..................................................................................................9 5.3 Test Configuration.............................................................................................................10 5.4 Calibration of the Test Equipment.....................................................................................10 6 Test Results ...........................................................................................................................11 6.1 Test No. 1: RF power output (§ 2.1046, § 27.50, § 90.205, § 90.542)..............................11 6.1.1 Purpose ......................................................................................................................11 6.1.2 Limits ..........................................................................................................................11 6.1.3 EUT Operating Condition ...........................................................................................11 6.1.4 Test Configuration ......................................................................................................11 6.1.5 Test Procedure and Results .......................................................................................11 6.2 Test No. 2: Modulation Characteristics (§ 2.1047, § 2.201)..............................................14 6.3 Test No. 3: Occupied Bandwidth (§ 2.1049) .....................................................................15 6.3.1 Purpose ......................................................................................................................15 6.3.2 Limits ..........................................................................................................................15 6.3.3 EUT Operating Condition ...........................................................................................15 6.3.4 Test Configuration ......................................................................................................15 6.3.5 Test Procedure and Results .......................................................................................15 6.4 Test No. 4: Spurious Emissions at Antenna Terminals (§ 2.1051, § 2.1057, § 27.53) .....17 Test Report No.: E01P0001 Date: Mar 08, 2011 Flexi Multiradio BTS RF module 760MHz page 3 / 182 The test report shall not be reproduced except in full without the written approval of the testin…

Text truncated - open the document above for the full version.
