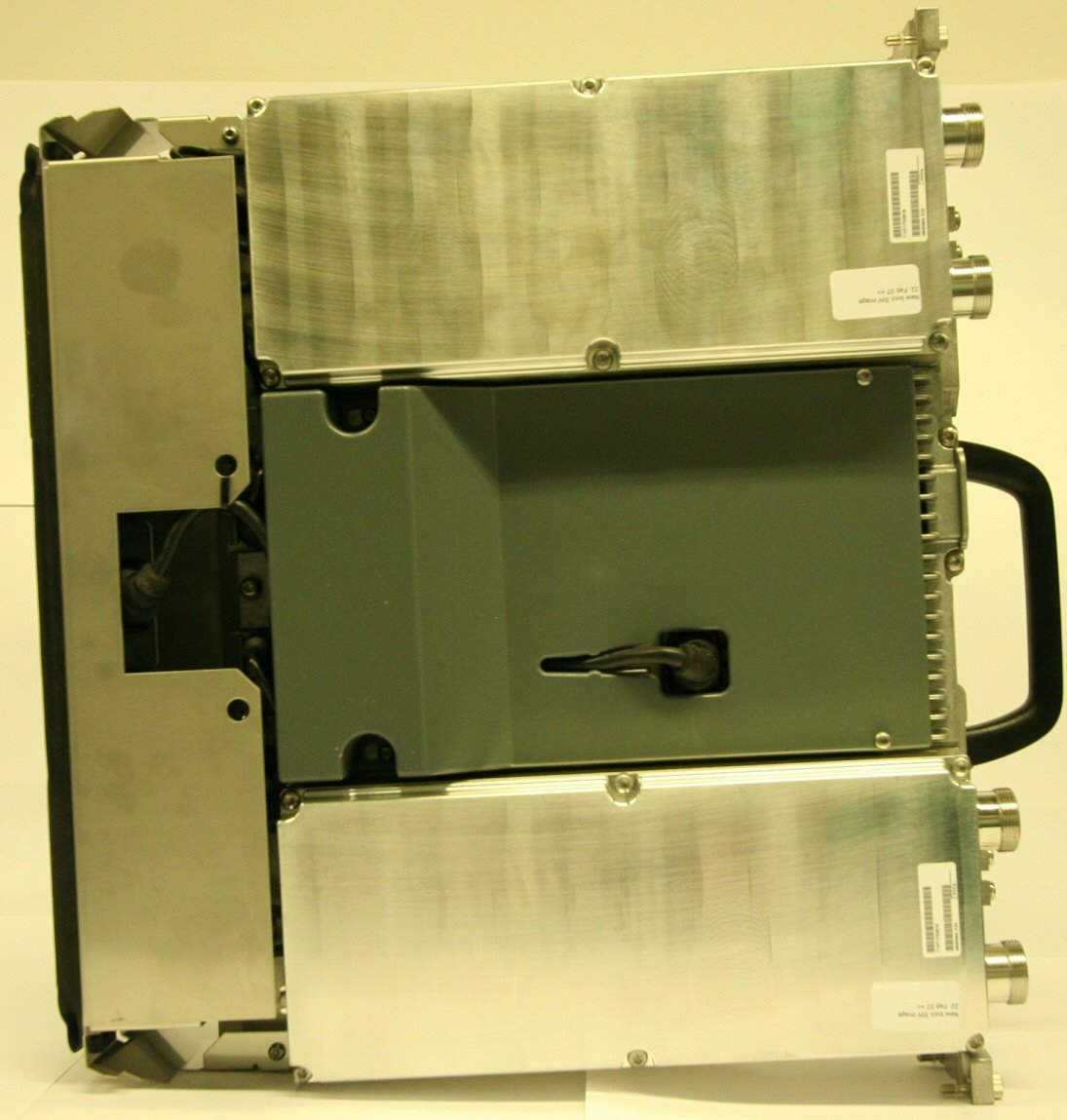

VBNFRFA-01WCDMA Base Station Transceiver Module

1 (3) FRFA: 2 (3) 3 (3)

1 (1) FCC ID Label for FRFA (FCC ID: VBNFRFA-01) FCC ID Label location

Nemko Oy • P.O.Box 19, FI-02601 Espoo, Finland Street address: Perkkaantie 11, FI-02600 Espoo Telephone +358 (0)424 5454 1 • Telefax +358 (0)9 5489 6371 TEST REPORT Date: ESPOO 23.05.2007 Page: 1 (40) Appendices − −− − Date of handing in: 11.05.2007 Number: 86416b Measured by: No. 1 / 1 Timo Hietala, Test Engineer Reviewed by: Timo Leismala, Test Manager SORT OF EQUIPMENT: WCDMA Base Station RF module MARKETING NAME: Nokia Flexi BTS RF module 1900MHz TYPE: FRFA MANUFACTURER: Nokia Siemens Networks Oy FCC ID: VBNFRFA-01 CLIENT: Nokia Siemens Networks Oy ADDRESS: P.O.Box 319, FI-90651 OULU, FINLAND TELEPHONE: +358 7180 08000 TEST LABORATORY: Nokia Siemens Networks/Oulu FCC REG. NO. 411251 REFERENCE: FCC Part 24, SUBPART E SUMMARY: In regard to the performed tests the equipment under test fulfils the requirements defined in the test specifications, see page 4 for details The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. Version f1.00 FCC ID: VBNFRFA-01 Type: FRFA FCC PART 24, SUBPART E Test report No.: 86416b Page 2 (40) Date 23.05.2007 Contents 1. EUT and Accessory Information .........................................................................................................3 1.1 EUT description ........................................................................................................................3 1.2 EUT and accessories................................................................................................................3 Summary of Test Data .............................................................................................................................4 2. General Equipment Specification........................................................................................................5 3. RF Power Output ................................................................................................................................7 4. 99% Occupied Bandwidth .................................................................................................................12 5. Spurious Emissions at Antenna Terminals .......................................................................................15 6. Field Strength of Spurious ................................................................................................................29 7. Frequency stability ............................................................................................................................33 8. List of test equipment ........................................................................................................................35 9. Photographs of Test Setup ...............................................................................................................36 10. ANNEX A, TEST DETAILS ...............................................................................................................37 11. ANNEX B, TEST DIAGRAMS...........................................................................................................39 FCC ID: VBNFRFA-01 Type: FRFA FCC PART 24, SUBPART E Test report No.: 86416b Page 3 (40) Date 23.05.2007 1. EUT and Accessory Information 1.1 EUT description The EUT is a WCDMA Base station RF module 1900 MHz with 2 power amplifiers. 1.2 EUT and accessories Manufacturer: Nokia Siemens Networks Oy Model: FRFA, s/n: L00000000014 Other Units: System module, FSMB Transmission module, FTIA General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko Oy authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Oy accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. FCC ID: VBNFRFA-01 Type: FRFA FCC PART 24, SUBPART E Test report No.: 86416b Page 4 (40) Date 23.05.2007 Summary of Test Data NAME OF TEST SECTION IN CFR 47 SPEC. RESULT RF Power Output 24.232(a), 2.1046 1640 W EIRP Complies 99% Occupied Bandwidth 2.1049 (i) Unspecified Complies Spurious Emissions at Antenna Terminals 24.238, 2.1051 - 13 dBm Complies Field Strength of Spurious Emissions 24.238, 2.1053 - 13 dBm EIRP Complies Frequency stability 24.235, 2.1055 ± 0.05 ppm 1) Complies Note 1) Limit is the manufacturer’s specification Measurement uncertainty is expressed to a confidence level of 95%. FCC ID: VBNFRFA-01 Type: FRFA FCC PART 24, SUBPART E Test report No.: 86416b Page 5 (40) Date 23.05.2007 2. General Equipment Specification Supply Voltage Input: Frequency Bands: TX: Frequency Bands: RX: Type of Modulation and Designator: Maximum No. of Carriers: Output Impedance: RF Output: Band Selection: 48 Vdc Block A : 1930 – 1945 MHz Block B : 1950 – 1965 MHz Block C : 1975 – 1990 MHz Block D : 1945 – 1950 MHz Block E : 1965 – 1970 MHz Block F : 1970 – 1975 MHz Block A : 1850 – 1865 MHz Block B : 1870– 1885 MHz Block C : 1895 – 1910 MHz Block D : 165 – 1870 MHz Block E : 1885 – 1890 MHz Block F : 1890 – 1895 MHz W-CDMA GSM NADC (4M00F9W) (200KG7W) 40K0DXW) 2 50 ohms. Per channel: 40 W or 2x20W. Software Duplexer Fullband FCC ID: VBNFRFA-01 Type: FRFA FCC PART 24, SUBPART E Test report No.: 86416b Page 6 (40) Date 23.05.2007 System Description The BTS performs the radio function of the Base Stati…
