VBNFRIG-01Base Station Transceiver Module

17.10.2012 PHOENIX TESTLAB GmbH Konigswinkel 10 32825 Blomberg. Germany Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Keijo Katisko and Jaakko Sirvio from Nokia Siemens Networks Kaapelitie 4, 90620 Oulu, Finland to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by PHOENIX TESTLAB GmbH, still resides with Jaakko Sirvio from Nokia Siemens Networks/Kaapelitie 4, 90620 Oulu, Finland. Dated 17th Dayof October 20 12 this Agency agreement expiration date: 17.10.2013 // /:~.d By: ~~_S_t_ev_e_M_itc--::h:::-e-:::-II_-:::--___ Signature Printed Title: Compliance Engineer On behaffof: Nokia Siemens Networks 6000 Connection Drive Irving, Texas 75039 USA FRN: 0016412652 Telephone: 1-972-374-3000

October 17, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21045 RE: Confidentiality Request FCC 10: VBNFRIG-01 Please be advised that under the provision of 47 CFR 0.459, the following exhibits are to be held confidential on behalf of Nokia Siemens Networks. Nokia Siemens Networks is also requesting these exhibits to become permanently confidential. This non­ consumer device is inaccessible to the general public and situated in a secured and locked environment. The equipment is only serviceable by the licensee or his designated technicians, or at the factory. • Operation Description (Theory of Operation) • Block Diagram • Schematics/Parts List • Internal Photos • User Manual • Tuning/Calibration Procedure The bulleted list exhibits are to be held confidential. Confidentiality of the User Manual is maintained by requiring that any party who is supplied the User Manual must sign a non-disclosure agreement. Internal photos are kept confidential by virtue of the fact the cabinet in which the certified equipment is housed is secured with a lock and the cabinet itself is in a secured area only accessible by approved maintenance personnel. The application contains technical information that Nokia Siemens Networks deems to be trade secrets and proprietary. If made public, the information can be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, .~~ Steve Mitchell Compliance Engineer Nokia Siemens Networks Tel: (972) 374-3000 6000 Connection Drive Fax: (972) 374-3252 lIVing. Texas 75039

Restricted Access of Equipment and Documentation Notice Proprietary and Confidential Nokia Siemens Networks RESTRICTED ACCESS OF EQUIPMENT AND DOCUMENTATION NOTICE This Restricted Access of Equipment and Documentation Notice is to inform [insert name of FCC licensee] that access to equipment and related documentation supplied by Nokia Siemens Networks is to be restricted to only authorized users by means to ensure the security of the equipment and confidentiality of related documentation at all times, and only designated professionals shall be allowed to maintain or service the equipment. This notice includes, but is not limited to, internal photographs and user manuals to be held confidential and out of the public domain. Nokia Siemens Networks FCC Licensee By: By: Name: Name: Title: Title: Date: Date: Place: Place:

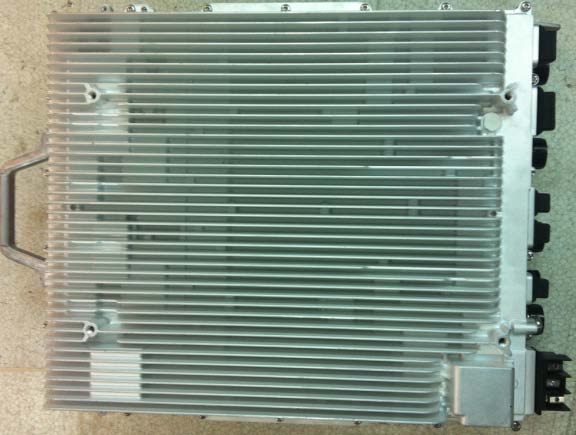

FRIG w/o solar cover: FRIG with solar cover:

FRIG: IC/FCC label for FRIG

Flexi Multiradio BTS LTE Installation Site Require- ments 24 Id:0900d8058068b63d Confidential DN0951839 Issue 02 3.8 Safety distance requirements (compliance boundaries) This section describes compliance with reference levels (based on basic restrictions) for general public and occupational exposure to radio frequency electromagnetic fields. Ensuring public safety This equipment generates radio frequency energy, which has a thermal effect when absorbed by the human body. For this reason compliance boundaries specific to this equipment have been established. The thermal effects of radio frequency energy can exceed safety levels when a person is inside the established compliance boundaries. Observe the compliance boundary, and make sure the general public has no access to areas inside the established boundaries. The information shown in the Warnings and cautions provided section below is taken from the relevant section of Nokia Siemens Networks product documentation containing warnings and cautions specific to the equipment. Installing base stations to ensure installer safety Installation engineers need to be aware of the potential risk of the thermal effects of radio frequency energy and how to protect themselves against undue risk. The informa- tion shown in the Warnings and cautions provided section is taken from the relevant section of Nokia Siemens Networks product documentation containing warnings and cautions specific to the equipment. Warnings and cautions provided Reference safety distances When working close to transmitter antennas, the proper safety distances must be observed. The minimum safe distance from an antenna is measured in metres. ! The antenna generates electromagnetic fields at radio frequencies. Do not cross the compliance boundary. ! This equipment generates electromagnetic fields. If performing installation or mainte- nance procedures on the antenna systems, make sure that all the transmitters in the area are switched off. When assessing the applicable boundaries, the European standards EN 50383, EN 50384, EN 50385 and Council Recommendation 1999/519/EC for occupational and general public electromagnetic exposure limits - see Annex A - have been applied. The statements shown below are taken from the Nokia Siemens Networks product doc- umentation containing warning and cautions specific to the equipment. Assessment applying Specific Absorption Rate (SAR) measurements European standards EN 50383, EN 50384 and EN 50385 do not include specifications for whole body SAR measurements. Whole body SAR measurements are not required for transmitters that have maximum output power levels too low to result in exposure levels that can reach the whole body SAR compliance limits under any conditions. Flexi Multiradio BTS LTE Installation Site Require- ments DN0951839 Issue 02 Id:0900d8058068b63d Confidential 25 Whole body SAR exclusion power levels have been based on the worst case assump- tions. For details, see the table below. Exposure category Maximum output power (rms) General public Max power [W] = general public whole body SAR limit [W/kg] * 12.5 kg: 4-year-old child body mass = 1 W Occupational Max power [W] = occupational whole body SAR limit [W/kg] * 42 kg: 16-year-old worker body mass = 16.8 W Table 18 Whole body SAR exclusion power levels Localised SAR measurements can only be used when: 1. The separation between the phantom and the outer surface of the energy generating element is 40 cm (15.6 in.) or less. 2. The surface area of the energy generating element is less than 60 cm (23.6 in.) by 30 cm (11.8 in.). 3. The frequency is in the range of 800 to 3000 MHz. For the reasons above, SAR measurements are not applicable to Flexi Multiradio Base Station. Assessment of compliance boundary The compliance boundary is defined as the area around the antenna shown in the fol- lowing Area around the antenna figure. The antenna is located at the origo. Distances from the antenna are shown. The top and side views are shown in the following Antenna side and top view figure, in Picture 1 and Picture 2. Dside back Dup Origo 0 Dside front Ddown Drear 0 Dside Dfront front 0 DN03400968 Figure 3 Area around the antenna Flexi Multiradio BTS LTE Installation Site Require- ments 26 Id:0900d8058068b63d Confidential DN0951839 Issue 02 1 2 Dside back Drear Dside back Dfront triangle Dside front Dside front Dup Drear Ddown Dfront triangle Dfront Figure 4 Antenna side and top view DN03400995 The compliance boundaries for Flexi Multiradio Base Station are given in the tables below for worst case power levels at the antenna input. Worst case power level config- urations for general public (GP) and occupational (O) exposure limits are included in the tables below. Dfront Dfront triangle Drear Dside back Dside front Dup Ddown Freq. (MHz) Power at antenna input GP GP GP GP GP GP GP 1700 40 4.4 1.2 0.1 0.2 1.5 0.6 0.6 1700 2 * 60 7.7 2.4 0.1 0.7 3.0 0.8 1.8 2100 40 4.7 1.5 0.1 0.4 1.5 0.6 0.6 2100 60 5.7 2.0 0.1 0.5 1.85 1.6 1.0 2100 2 * 60 7.8 3.0 0.1 0.8 2.8 2.1 1.4 Table 19 Dimensions of compliance boundary in meters (General Public) Dfront Dfront triangle Drear Dside back Dside front Dup Ddown Freq. (MHz) Power at antenna input O O O O O O O Table 20 Dimensions of compliance boundary in meters (occupational) Flexi Multiradio BTS LTE Installation Site Require- ments DN0951839 Issue 02 Id:0900d8058068b63d Confidential 27 Dfront Dfront triangle Drear Dside back Dside front Dup Ddown 1700 40 1.9 1.1 0.1 0.2 0.45 0.48 0.48 1700 2 * 60 2.6 0.8 0.1 0.2 0.7 0.7 0.75 2100 40 1.95 0.7 0.1 0.25 0.5 0.6 0.6 2100 60 1.1 0.4 0.1 0.1 0.3 1.0 1.0 2100 2 * 60 1.8 0.6 0.1 0.2 0.55 0.9 0.7 Table 20 Dimensions of compliance boundary in meters (occupational) (Cont.) Typical configuration The antenna is connected through a connector and cable(s) to the base station as shown in the following figure. Antenna Antenna connector Cable To the base station DN03401004 Figure 5 Antenna connection to the BTS Flexi Multiradio B…

Text truncated - open the document above for the full version.

This document was signed electronically. SGS Germany GmbH, Hofmannstr. 50, D-81379 Munich is accredited by DAkkS for COMPONENTS TESTING ENVIRONMENTAL ENGINEERING ELECTROMAGNETIC COMPATIBILITY PRODUCT SAFETY TELECOM CONFORMANCE TESTS Phone +49 89-787475-100, Fax +49 89-787475-114, Internet www.sgs-cqe.de The test report shall not be reproduced except in full without the written approval of the testing laboratory SGS Germany GmbH Test Report No.: F1Y10001 FCC ID: VBNFRIG-01 Order No.: F1Y1 Pages: 197 Munich, Nov 21, 2012 Client: Nokia Siemens Networks Oy Equipment Under Test: Flexi Multiradio 10 BTS RF module 1.7/2.1GHz Radio Access Technology: E-UTRA Manufacturer: Nokia Siemens Networks Oy Task: Conformance test according to the test specifications mentioned below Test Specification(s): FCC 47 CFR Part 2 and 27 Result: The EUT complies with the requirements of the specification. The results relate only to the items tested as described in this test report. approved by: Date Signature Bauer Lab Manager EMC Nov 21, 2012 Sperling Qualification Engineer Nov 21, 2012 Test Report No.: F1Y10001 Date: Nov 21, 2012 Flexi Multiradio 10 BTS RF module 1.7/2.1GHz page 2 / 197 The test report shall not be reproduced except in full without the written approval of the testing laboratory CONTENTS 1 Summary .................................................................................................................................. 4 2 References ............................................................................................................................... 5 2.1 Specifications ...................................................................................................................... 5 2.2 Glossary of Terms ............................................................................................................... 5 3 General Information ................................................................................................................ 6 3.1 Identification of Client .......................................................................................................... 6 3.2 Test Laboratory ................................................................................................................... 6 3.3 Time Schedule .................................................................................................................... 6 3.4 Participants ......................................................................................................................... 6 4 Equipment Under Test ............................................................................................................ 7 4.1 Description of EUT .............................................................................................................. 7 4.2 Configuration of EUT ........................................................................................................... 7 4.3 Operating Conditions .......................................................................................................... 8 4.4 Compliance Criteria ............................................................................................................. 8 5 General Description of Tests .................................................................................................. 9 5.1 Tested Carrier Frequencies ................................................................................................ 9 5.2 Modulation Characteristics .................................................................................................. 9 5.3 Test Configuration ............................................................................................................. 10 5.4 Calibration of the Test Equipment ..................................................................................... 10 6 Test Results ........................................................................................................................... 11 6.1 Test No. 1: RF Power Output (§ 2.1046, § 27.50) ............................................................ 11 6.1.1 Purpose ...................................................................................................................... 11 6.1.2 Limits .......................................................................................................................... 11 6.1.3 EUT Operating Condition ........................................................................................... 11 6.1.4 Test Configuration ...................................................................................................... 11 6.1.5 Test Procedure and Results ....................................................................................... 11 6.2 Test No. 2: Modulation Characteristics (§ 2.1047, § 2.201) .............................................. 16 6.3 Test No. 3: Occupied Bandwidth (§ 2.1049) ..................................................................... 17 6.3.1 Purpose ...................................................................................................................... 17 6.3.2 Limits .......................................................................................................................... 17 6.3.3 EUT Operating Condition ........................................................................................... 17 6.3.4 Test Configuration ...................................................................................................... 17 6.3.5 Test Procedure and Results ....................................................................................... 17 6.4 Test No. 4: Spurious Emissions at Antenna Terminals (§ 2.1051, § 2.1057, § 27.53) ..... 21 Test Report No.: F1Y10001 Date: Nov 21, 2012 Flexi Multiradio 10 BTS RF module 1.7/2.1GHz page 3 / 197 The test report shall not be reproduced except in full without the written approval of the testing laboratory 6.4.1 Pu…

Text truncated - open the document above for the full version.

1/2 Test Setup Photos Test Report: F1Y10001 Conducted Tests: 2/2 Radiated Tests:
