VBNFRJA-01Base Station Transceiver Module

Restricted Access of Equipment and Documentation Notice Proprietary and Confidential Nokia Siemens Networks RESTRICTED ACCESS OF EQUIPMENT AND DOCUMENTATION NOTICE This Restricted Access of Equipment and Documentation Notice is to inform [insert name of FCC licensee] that access to equipment and related documentation supplied by Nokia Siemens Networks is to be restricted to only authorized users by means to ensure the security of the equipment and confidentiality of related documentation at all times, and only designated professionals shall be allowed to maintain or service the equipment. This notice includes, but is not limited to, internal photographs and user manuals to be held confidential and out of the public domain. Nokia Siemens Networks By: Name: Title: Date: Place:

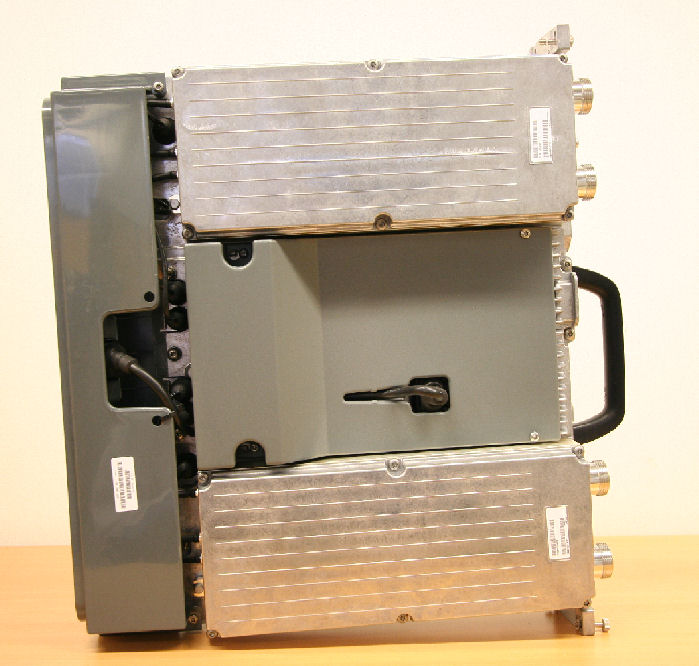

1 (3) FRJA: 2 (3) 3 (3)

1 (1) FRJA: FCC ID Lab el for FRJA (FCC ID: VBNFRJA-01)

This document was signed electronically. The Center for Quality Engineering of SGS Germany GmbH is accredited by DATech for COMPONENTS TESTING ENVIRONMENTAL ENGINEERING ELECTROMAGNETIC COMPATIBILITY PRODUCT SAFETY TELECOM CONFORMANCE TESTS SGS Germany GmbH, SGS CQE, Hofmannstr. 50, D-81379 München, Phone +49 89-787475-130, Fax +49 89-787475-122, Internet www.sgs-cqe.de The test report shall not be reproduced except in full without the written approval of the testing laboratory Center for Quality Engineering Evaluation No.: D0QJ0001 Order No.: D0QJ Pages: 13 Munich, Jun 19, 2010 Client: Nokia Siemens Networks Oy Equipment Under Test: Flexi WCDMA Base Station with antenna types:  HBX-6516DS-VTM  CS7278001 Manufacturer: Nokia Siemens Networks Oy Task: Identification of compliance with the requirements FCC 47 CFR § 1.1310 on base of  Test Specification(s):  OET Bulletin 65  Draft IEC 62232 Ed.1.0 Result: The EUT meets the above cited requirements The results relate only to the items tested as described in this test report. edited by: Date Signature Rieb Qualification Engineer Jun 19, 2010 approved by: Date Signature Bauer Manager EMC Jun 19, 2010 Evaluation No.: D0QJ0001 Date: Jun 19, 2010 WCDMA Base Station page 2 / 13 The test report shall not be reproduced except in full without the written approval of the testing laboratory CONTENTS 1 Summary ..................................................................................................................................3 2 References ...............................................................................................................................4 2.1 Specifications ......................................................................................................................4 2.2 Glossary of Terms...............................................................................................................4 3 General Information ................................................................................................................5 3.1 Identification of Client..........................................................................................................5 3.2 Test Laboratory ...................................................................................................................5 3.3 Participants .........................................................................................................................5 4 Equipment Under Test ............................................................................................................6 4.1 TYPICAL CONFIGURATION ..............................................................................................6 4.2 WHEN USING DIFFERENT CONFIGURATIONS ..............................................................7 5 Evaluation of the EUT .............................................................................................................8 5.1 Definition of compliance boundary ......................................................................................8 5.2 Assessment of compliance boundary .................................................................................8 ANNEX A: Exposure limits .......................................................................................................11 ANNEX B: Far-Field Calculation Method.................................................................................11 Annex C: Safety for Public and Workers ................................................................................12 Evaluation No.: D0QJ0001 Date: Jun 19, 2010 WCDMA Base Station page 3 / 13 The test report shall not be reproduced except in full without the written approval of the testing laboratory 1 Summary This evaluation is based on numerical calculations to demonstrate the compliance of “Flexi WCDMA BTS” with the maximum permissible exposure limits for general population and occupation to radio frequency electromagnetic fields with respect to FCC 47 CFR §1.1310 [1] (see Annex A). The compliance is shown via the concept of compliance boundary of the antenna as described in section 4.2. The detailed results are shown in Table 4 of section 4. The “Flexi WCDMA BTS” is compliant with the exposure limits of FCC 47 CFR §1.1310 for general population and occupation to radio frequency electromagnetic fields at every point outside the compliance boundary. Provisions have to be taken to guarantee that no public access is possible to regions within the compliance boundaries for general population. For workers adequate warnings and information have to be provided for entering the exclusion area (see Annex C). The results of this evaluation report refer exclusively to the item described in section 4 of this report Evaluation No.: D0QJ0001 Date: Jun 19, 2010 WCDMA Base Station page 4 / 13 The test report shall not be reproduced except in full without the written approval of the testing laboratory 2 References 2.1 Specifications [1] FCC 47 CFR §1.1310 Radiofrequency radiation exposure limits [2] OET Bulletin 65, Edition 97-01 Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields . [3] Draft IEC 62232 Ed.1.0 (IEC 106/165/CD); Determination of RF fields and SAR in the vicinity of radio communication base stations for the purpose of evaluating human exposure 2.2 Glossary of Terms EUT: Equipment under Test GP: General Population Oc: Occupation MPE: Maximum permissible exposure limits Evaluation No.: D0QJ0001 Date: Jun 19, 2010 WCDMA Base Station page 5 / 13 The test report shall not be reproduced except in full without the written approval of the testing laboratory 3 General Information 3.1 Identification of Client Nokia Siemens Networks Oy Karaportti 3 FI-02610 Espoo Finland 3.2 Test Laboratory Center for Quality Engineering SGS Germany GmbH Hofmannstraße 50 81379 München 3.3 Participants Name Function Phone E-Mail Anton Rieb Editor, EMF- Evaluation +49 89 …

Text truncated - open the document above for the full version.

Nemko Oy  P.O.Box 19, FI-02601 Espoo, Finland Street address: Perkkaantie 11, FI-02600 Espoo Telephone +358 (0)424 5454 1  Telefax +358 (0)9 5489 6371 TEST REPORT Date: ESPOO 01.06.2010 Page: 1 (54) Appendices  Date of handing in: 28.04.2008 Number: 106205A No. 1 / 1 Measured by: Timo Hietala, Test Engineer Reviewed by: Timo Leismala, Test Manager SORT OF EQUIPMENT: WCDMA Base Station RF module MARKETING NAME: Nokia Flexi BTS RF module 2000MHz TYPE: FRJA MANUFACTURER: Nokia Siemens Networks Oy FCC ID: - CLIENT: Nokia Siemens Networks Oy ADDRESS: P.O.Box 319, FI-90651 OULU, FINLAND TELEPHONE: +358 7180 08000 TEST LABORATORY: NSN/Oulu FCC REG. NO. 411251 REFERENCE: FCC Part 25.252 SUMMARY: In regard to the performed tests the equipment under test fulfils the requirements defined in the test specifications, see page 4 for details The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. Version f1.00 FCC ID: - Type: FRJA FCC PART 25.252 Test report No.: 106205A Page 2 (54) Date 01.06.2010 Contents 1. EUT and Accessory Information ......................................................................................................... 3 1.1 EUT description ........................................................................................................................ 3 1.2 EUT and accessories ................................................................................................................ 3 Summary of Test Data ............................................................................................................................. 4 2. General Equipment Specification ........................................................................................................ 5 3. RF Power Output ................................................................................................................................ 7 4. 99% Occupied Bandwidth ................................................................................................................. 10 5. Spurious Emissions at Antenna Terminals ....................................................................................... 13 6. Field Strength of Spurious ................................................................................................................ 39 7. Frequency stability ............................................................................................................................ 47 8. List of test equipment ........................................................................................................................ 49 9. Photographs of Test Setup ............................................................................................................... 50 10. ANNEX A, TEST DETAILS ............................................................................................................... 51 11. ANNEX B, TEST DIAGRAMS ........................................................................................................... 53 FCC ID: - Type: FRJA FCC PART 25.252 Test report No.: 106205A Page 3 (54) Date 01.06.2010 1. EUT and Accessory Information 1.1 EUT description The EUT is a WCDMA Base station RF module 2000 MHz with 2 power amplifiers. 1.2 EUT and accessories Manufacturer: Nokia Siemens Networks Oy Model: FRJA, s/n: L9081400690 Other Units: System module, FSMB External Filter, FEJA Transmission module, FTEB General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 25 clause 252 New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko Oy authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Oy accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. FCC ID: - Type: FRJA FCC PART 25.252 Test report No.: 106205A Page 4 (54) Date 01.06.2010 Summary of Test Data NAME OF TEST SECTION IN CFR 47 SPEC. RESULT RF Power Output 25.252/DA 10-60 32.0 dBW EIRP Complies RF Power Output 25.252 32.1 dBW/4 MHz EIRP Complies 99% Occupied Bandwidth 2.1049 (i) Unspecified Complies Spurious Emissions at Antenna Terminals 25.252 2.1051 -87.6 dBm/4kHz -13 dBm Complies Field Strength of Spurious Emissions 25.252 2.1053 -70.6 dBm/4kHz EIRP -13 dBm EIRP Complies Frequency stability 25.252, 2.1055 ± 0.05 ppm 1) Complies Note 1) Limit is the manufacturer’s specification Measurement uncertainty is expressed to a confidence level of 95%. FCC ID: - Type: FRJA FCC PART 25.252 Test report No.: 106205A Page 5 (54) Date 01.06.2010 2. General Equipment Specification Supply Voltage Input: Frequency Bands: TX: Frequency Bands: RX: Type of Modulation and Designator: Maximum No. of Carriers: Output Impedance: RF Output: Band Selection: 48 Vdc 2180 – 2200 MHz Lowest tunable freq. 2185.000 MHz Middle freq. 2190.000 MHz Highest tunable freq. 2195.000 MHz 2000 – 2020 MHz W-CDMA GSM NADC (4M00F9W) (200KG7W) 40K0DXW) 1 50 ohms. Per channel: 20 W. Software Duplexer Fullband FCC ID: - Type: FRJA FCC PART 25.252 Test report No.: 106205A Page 6 (54) Date 01.06.2010 System Description The BTS performs the radio function of the Base Station System (BSS). Setup for testing single carrier: The transmitter was set up according to 3GPP TS 25.141 Test Model 1 and 5 for all tests. Test model 1: 64 DPCHs at 30 ksps (SF=128) dis…

Text truncated - open the document above for the full version.

List of test equipment: Nr. Equipment Name of equipment Serial number Calibration 1 Signal analyzer Rohde & Schwarz:FSQ26 100364 10/2007 2 Network analyzer Hewlett- Packard:HP8753E US38431868 09/2007 3 Network analyzer Hewlett- Packard:HP8720ES US39172107 09/2007 4 Calibration kit Hewlett- Packard:HP85032B 2919A04843 09/2007 5 Enviromental chamber Weiss technick 59226012320010 05/2007 6 Frequency standard Datum 8040 0023006282 02/2008 7 Interface Unit Orbis TX SSU 2200A SSU-0622-1211 8 DC power Sörensen 9950C0085 9 Temperature/humiditymeter VAISALA HMI 31 P3730008 10/2007 12 High Pass filter MCN-58282/02 1182501 13 Attenuator MCE/Weinschel 86-20-11 401 14 Attenuator Narda FSCM 99899 08275 15 Semianechoic chamber Siemens Matsushita 9m × 5m × 6m (room 0039) Product No S&M B83317-C6019- T232 12/2007 16 EMI Test Receiver R&S ESIB 26 100335 07/2007 17 Horn Antenna Emco 3115 00075697 06/2007 18 Bilog Antenna Chase CBL6112B 2694 06/2007 19 Horn Antenna Emco 3115 0102A06346 03/2008 23 Signal Generator R&S SMR 20 1715 07/2007 24 Amplifier Miteq AFSX4 791117 25 Antenna Mast Deisel HD240 2401323194 26 Mast Controller Deisel HD100 1001331 30 Amplifier HP 83017A 3123A00444 31 Log. Per. antenna R&S HL025 356749/012 04/2007
