VBNFYRF-01Base Station Transceiver Module

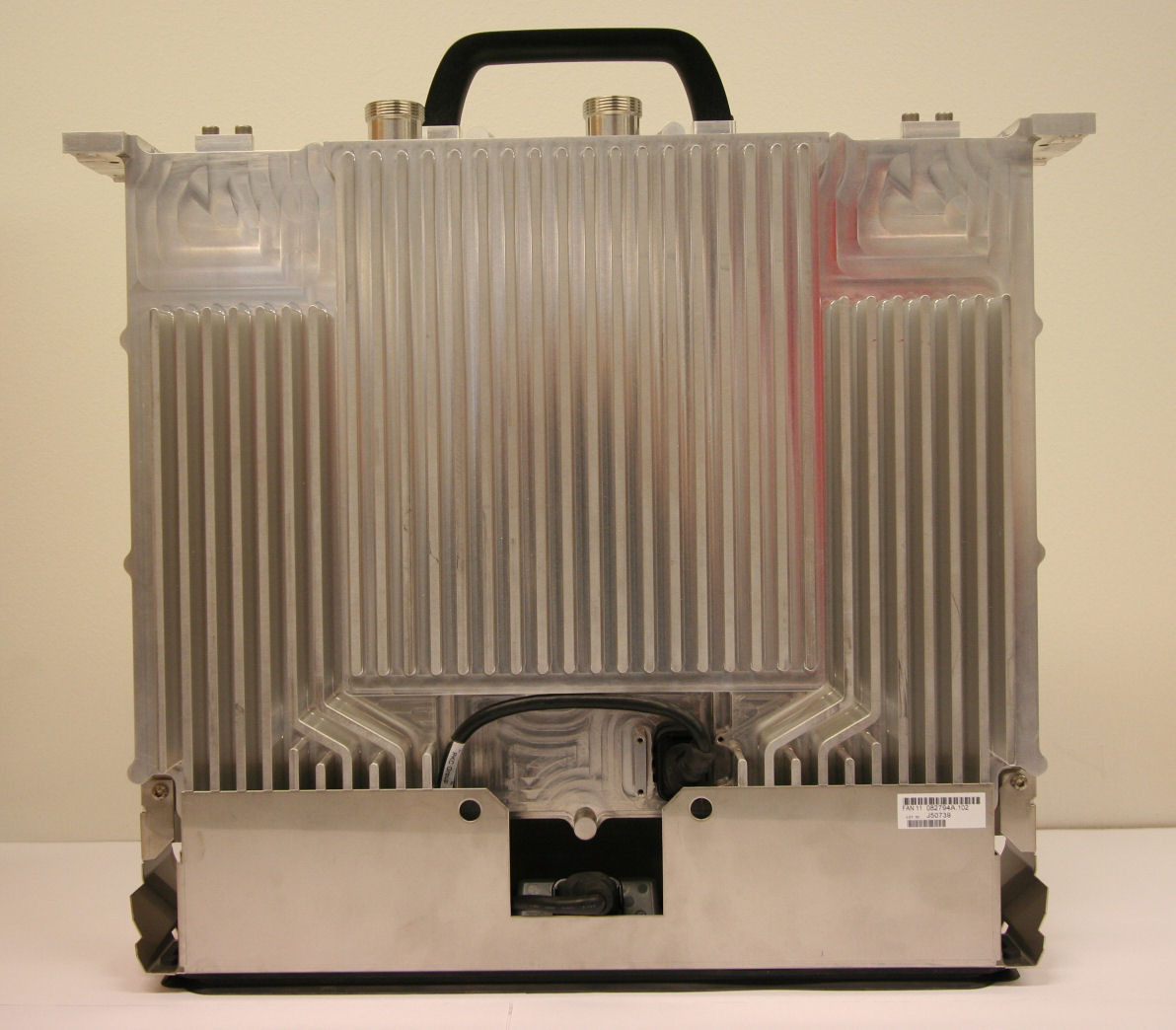

1 (3) FYRF- Flexi Wimax RF-module Base Station 2.5 GHz 2 (3) FYRF- Flexi Wimax RF-module Base Station 2.5 GHz 3 (3) FYRF- Flexi Wimax RF-module Base Station 2.5 GHz

1 (1) FCC ID Label for FYRF (FCC ID: VBNFYRF-01) FCC ID Label location

Nemko Oy • P.O.Box 19, FI-02601 Espoo, Finland Street address: Perkkaantie 11, FI-02600 Espoo Telephone +358 (0)424 5454 1 • Telefax +358 (0)9 5489 6371 T EST REPORT Date: ESPOO 29.02.2008 Page: 1 (39) Appendices − Date of handing in: 27.02.2008 Number: 102639 Measured by: No. 1 / 1 Timo Hietala, Test Engineer Reviewed by: Timo Leismala, Test Manager SORT OF EQUIPMENT: WiMAX Base Station RF module MARKETING NAME: Nokia Siemens Networks Flexi WiMAX BTS RF module 2.5GHz TYPE: FYRF MANUFACTURER: Nokia Siemens Networks Oy FCC ID: VBNFYRF-01 CLIENT: Nokia Siemens Networks Oy ADDRESS: P.O.Box 319, FI-90651 OULU, FINLAND TELEPHONE: +358 7180 08000 TEST LABORATORY: NSN Oulu FCC REG. NO. 411251 REFERENCE: FCC Part 27, SUBPART M SUMMARY: In regard to the performed tests the equipment under test fulfils the requirements defined in the test specifications, see page 4 for details The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. Version f1.00 FCC ID: VBNFYRF-01 Type: FYRF FCC PART 27, SUBPART M Test report No.: 102639 Page 2 (39) Date 29.02.2008 Contents 1. EUT and Accessory Information .........................................................................................................3 1.1 EUT description ........................................................................................................................3 1.2 EUT and accessories................................................................................................................3 Summary of Test Data .............................................................................................................................4 2. General Equipment Specification .......................................................................................................5 3. RF Power Output ................................................................................................................................7 4. 99% Occupied Bandwidth.................................................................................................................15 5. Spurious Emissions at Antenna Terminals .......................................................................................17 6. Field Strength of Spurious ................................................................................................................26 7. Frequency stability ............................................................................................................................31 8. List of test equipment ........................................................................................................................33 9. Photographs of Test Setup ...............................................................................................................34 10. ANNEX A, TEST DETAILS ...............................................................................................................35 11. ANNEX B, TEST DIAGRAMS...........................................................................................................38 FCC ID: VBNFYRF-01 Type: FYRF FCC PART 27, SUBPART M Test report No.: 102639 Page 3 (39) Date 29.02.2008 1. EUT and Accessory Information 1.1 EUT description The EUT is a WiMAX Base station RF module 2.5 GHz with 2 power amplifier. 1.2 EUT and accessories Manufacturer: Nokia Siemens Networks Oy Model: FYRF, s/n: K7080800004 Other Units: System module, FYSB, s/n: L9080100305 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 27, Subpart M. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko Oy authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Oy accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. FCC ID: VBNFYRF-01 Type: FYRF FCC PART 27, SUBPART M Test report No.: 102639 Page 4 (39) Date 29.02.2008 Summary of Test Data NAME OF TEST SECTION IN CFR 47 SPEC. RESULT RF Power Output 27.50 (h), 2.1046 33 dBW+ 10log(X/Y) dBW Complies 99% Occupied Bandwidth 2.1049, (i) Unspecified Complies Spurious Emissions at Antenna Terminals 27.53(l)(2)(6), 2.1051 - 13 dBm Complies Field Strength of Spurious Emissions 27.53(l)(2), 2.1053 - 13 dBm E.I.R.P Complies Frequency stability 27.54, 2.1055 ± 0.05 ppm 1) Complies Note 1) Limit is the manufacturer’s specification Measurement uncertainty is expressed to a confidence level of 95%. FCC ID: VBNFYRF-01 Type: FYRF FCC PART 27, SUBPART M Test report No.: 102639 Page 5 (39) Date 29.02.2008 2. General Equipment Specification Supply Voltage Input: Frequency Bands: TX: Frequency Bands: RX: Emission Designator: Maximum No. of Carriers: Output Impedance: RF Power Output: Duty Cycle: Duplex Mode: Channel Bandwidth: Modulation: 48 Vdc 2583 – 2690 MHz Lowest tunable freq. 2588.000 MHz Middle freq. 2636.000 MHz Highest tunable freq. 2685.000 MHz 2583 – 2690 MHz WiMAX (10M0W7D) 1 50 ohms. 43 dBm (20 W) conducted 1:1 to 3:1 Time Division Duplex (TDD) 10 MHz QPSK 16QAM 64QAM FCC ID: VBNFYRF-01 Type: FYRF FCC PART 27, SUBPART M Test report No.: 102639 Page 6 (39) Date 29.02.2008 System Description Nokia Flexi WiMAX Base Station is based on WiMAX TDD (Time Division Duplex) system and is designed according to IEEE 802.16e-2005 radio access technology. This is a licensed base transceiv…

Text truncated - open the document above for the full version.
