VBNFZMBTM-01Flexi Zone Micro Bluetooth Module

Attestation Letter Date: August 29, 2014 FCC ID: VBNFZMBTM-01 IC ID: 661W- FZMBTM01 To Whom It May Concern, Nokia Solutions and Networks states the LTE transmitter is being Certified with the FCC and IC using the same output powers and antenna gain shown in the EME Assessment exhibits submitted in this filing.

W66 N220 Commerce Court, Cedarburg, Wisconsin 53012-2636 BUS 262.375.4400 FAX 262.375.4248 www.lsr.com To Whom It May Concern: LS Research has submitted a new product for full modular certification with trace design conditions under: FCC ID: VBNFZMBTM-01 IC: 661W-FZMBTM01 This letter is a clarification of the purpose and content of the application. The NSN module is based on LSR’s Bluetooth 4.0 compliant module TiWi-uB2 (FCC ID: TFB-BT1 and IC: 5969A-BT1) which contains the classic Bluetooth FHSS and Low Energy mode as a DTS device. The NSN BT Module which will be only implemented internally by NSN (not intended for sale as a module) as seen in supporting exhibits. This Bluetooth module will also be intended for use co-located with another transmitter under FCC ID: VBNFWIB-01 IC: 661W-FWIB Although the transmitters will not normally be transmitting simultaneously the possibility exists and therefore RF Exposure Exhibits have been submitted to show the conditions for which the device will be used and how the co-located transmitters are compliant. Also, as noted in the exhibit, the Bluetooth module as a stand-alone device is exempt from RF Evaluation. If there are any questions regarding the application please feel free to contact us. Sincerely, Adam Alger EMC Engineer LS Research W66N220 Commerce Ct. Cedarburg, WI 53012

WXC2400SMRPWXC2400SM 2.40”

PROPRIETARY DATA ALL RIGHTS RESERVED 1 A 2345678910111213141516 B C D E F G H J K L M 12345678910111213 A B C D E F G H J K L MASS: REF: Dimension in mm PREP CHK APP Scale(s): Sheet(s): Size:Pro/ENGINEER Volume: MDL:DRW: SI: g dm³ UNITS mm STANDARD TOLERANCES INTERPRET DIM AND TOL PER ASME Y14.5M-1994 6 SIGMA TOLERANCE UNLESS OTHERWISE SPECIFIED 1 PLACE X.X 0.3 2 PLACE X.XX 0.13 ANGLE DIM X
$ 1.0 REFERENCE (X.X) NONE TABLE 1 : PART SPECIFICATION NSN P/N CONNECTOR A. CONNECTOR B. CABLE DIM A INSERTION LOSS @2.4GHz RETURN LOSS @2.4GHz RADIALL P/N: R113.183.106 ROSENBERGER P/N: 29S211-303N5 RADIALL P/N: R300.124.270 ROSENBERGER P/N: 32RK642-103N5 W0.44dB MAX. >18dB TYP. TABLE 2 : CABLE SPECIFICATION CABLEEQUIVALENTSUPPLIERSUPPLIER P/N IMP. MAX
n MIN BEND RAD STYLE W DOUBLE SHIELDED RG316 DX RADIALLC291.217.020 50
^ 3.15 10.0 MM BRAIDED ROSENBERGERRG 316 U/D 50
^ 3.0 15.0 MM BRAIDED X1 09/05/2013INITIAL RELEASED.WARYCH REV. DATEDESCRIPTIONAPPROVED NOTES 1.0 CHARACTERISTICS: (UNLESS OTHERWISE SPECIFIED) 1.1. GENERAL: 1.1.1. PARTS MUST BE CLEAN AND FREE OF ALL FOREIGN MATTER. 1.1.2. PACKAGING FOR SHIPMENT: PARTS MUST BE PACKAGED TO PREVENT DAMAGE DURING SHIPMENT. PACKAGING DESIGN MUST BE APPROVED BY NSN BEFORE PROCEEDING WITH PRODUCTION RUN OF PARTS. 1.1.3. SAMPLE PARTS MUST BE APPROVED BY NSN BEFORE PROCEEDING WITH PRODUCTION RUN. 1.1.4. A REFERENCE DIMENSION (X.XX) IS A DIMENSION WITHOUT TOLERANCE AND IS USED FOR INFORMATION PURPOSES ONLY. 1.1.5. ALL DIMENSIONS SHOWN ACROSS A CENTERLINE SHALL BE CENTRALIZED WITHIN ONE HALF THEIR TOTAL TOLERANCE. 1.1.6. A CRITICAL DIMENSION IS DENOTED WITH A BOX-X SYMBOL X . 1.1.7. ALL WIRING, SLEEVING, AND TUBING TO BE UL RECOGNIZED COMPONENTS. 1.1.8. THE OVERALL CABLE ASSEMBLY SHALL BE MANUFACTURED TO COMPLY WITH UL TRACEABILITY REQUIREMENTS PER WIRING HARNESS (CATEGORY ZPFW2) AND/OR PROCESS WIRE CATEGORIES (ZKLU, ZKLU2, ZKLU7, AND ZKLU8 (AS APPLICABLE PER ASSEMBLY). THE CABLE ASSEMBLY MAY BE SUBJECT TO A UL END-PRODUCT FOLLOW-UP SERVICES INSPECTION. 1.2. ENVIRONMENTAL: 1.2.1. OPERATING TEMPERATURE RANGE: -40
$C TO +85
$C. 1.2.2. STORAGE TEMPERATURE RANGE: -40
$C TO +85
$C. 1.2.3. HUMIDITY RANGE: 10% TO 95% RH. 1.2.4. FLAME RESISTANCE: ALL COMPONENTS SHALL BE UL 94V-2 OR BETTER. EXEMPT FROM THIS REQUIREMENT ARE PVC, TFE, PTFE, FEP AND NEOPRENE INSULATION ON WIRING. CABLE TIES, HEAT SHRINK, AND LABELS ARE ALSO EXEMPT FROM THIS REQUIREMENT. 1.3. MECHANICAL: 1.3.1. CABLE: SEE TABLE 2. 1.3.2. CONNECTORS: 1.3.2.1. CONNECTOR A: SEE TABLE 1. 1.3.2.2. CONNECTOR B: SEE TABLE 1. THIS CONNECTOR WILL BE EXPOSED TO THE ENVIRONMENT AND MUST BE IP67 RATED WHEN MATED. THE MATERIALS AND PLATING MUST BE CAPABLE OF WITHSTANDING A 30-DAYS SALT FOG TEST PER ASTM B117-03 1.3.3. HEAT SHRINK TUBING TO BE FLAME RESISTANT, FLEXIBLE, HEAT SHRINKABLE POLYOLEFIN, PER MIL-DTL-23053/5C - CLASS 1, OR APPROVED AND QUALIFIED EQUIVALENT. TUBING MUST BE TIGHT FITTING AND IMMOVABLE AFTER SHRINKING. 1.3.4. MARKING: 1.3.4.1. NSN CODE, PART REVISION, MANUFACTURE DATE CODE (WK/YR), AND VENDOR ID MUST BE PERMANENTLY AND LEGIBLY MARKED IN AREA SHOWN. REVISION LABELED MUST REFLECT CURRENT PART REVISION AT TIME OF MANUFACTURE. CHARACTERS MUST BE 2.0MM TO 4.0MM HIGH. 1.3.5. CONNECTORS AND CABLES TO BE ASSEMBLED AND TERMINATED IN COMPLIANCE WITH CONNECTOR MANUFACTURER'S RECOMMENDATIONS. 1.3.6. ALL CRIMPED CONNECTORS SHALL MEET PULL TEST AND CRIMP HEIGHT REQUIREMENTS OF THE CONNECTOR MANUFACTURER'S SPECIFICATIONS. 1.3.7. WORKMANSHIP: THE FOLLOWING CONDITIONS WILL BE CONSIDERED WORKMANSHIP DEFICIENCIES OR DEFECTS AND ARE NOT ACCEPTABLE FOR ANY PRODUCTION SHIPMENT. 1.3.7.1. INSULATION THAT IS BURNED, DAMAGED, OR MISSING (EXCLUDING THERMALLY STRIPPED SECTIONS). 1.3.7.2. INSULATION THAT IS STRIPPED BACK IN A MANNER THAT ALLOWS THE CONDUCTOR OR SHIELD TO BE VISIBLE. 1.3.7.3. INSULATION THAT IS NOT STRIPPED BACK IN A MANNER TO AVOID BEING INCLUDED IN THE SOLDER OR CRIMP AREA. 1.3.7.4. CRIMP CONNECTORS THAT ARE LOOSE, OR EXHIBIT RELATIVE MOTION BETWEEN THE CONNECTOR AND THE CABLE. 1.3.8. ALL CABLE ASSEMBLIES ARE TO BE SUPPLIED WITH AN IP50 RATED DUST CAP INSTALLED ON CONNECTOR "B". 1.4. ELECTRICAL: * x 1.4.1. RETURN LOSS: SEE TABLE 1. * x 1.4.2. INSERTION LOSS: SEE TABLE 1. 1.4.3. TEST PROCEDURE: SAMPLE TESTING. SAMPLE TESTING FOR NOTES 1.4.1. AND 1.4.2. PER 1.4.3.1. IS REQUIRED. 1.4.3.1. THE SUPPLIER IS TO MEASURE AND NOTE THE INSERTION LOSS AND VSWR ON EVERY TENTH ASSSEMBLY AND DETERMINE THE RUNNING Cpk LEVEL. IF THE Cpk IS LESS THAN 1.5, THE SUPPLIER WILL PERFORM 100% TESTING ON THE PREVIOUS NINE UNITS. THEN THE SUPPLIER MUST RESOLVE THE CABLE PERFORMANCE ISSUE AND PROCEED AS PREVIOUSLY DESCRIBED. ALL TESTED CABLES MUST MEET THE SPECIFICATIONS IN 1.4.1. AND 1.4.2. 2.0. QUALITY ASSURANCE PROVISIONS. 2.1. IT IS THE SUPPLIER'S RESPONSIBILITY TO SUPPLY A CERTIFICATE OF COMPLIANCE (COC) CERTIFYING THAT THE MATERIALS AND FINISHES USED IN THE PART MEET THE PRINT REQUIREMENTS. THE SUPPLIER WILL FURNISH NSN WITH A COC UPON REQUEST. 2.2. CONTINUITY: SUPPLIER MUST 100% TEST CABLES FOR DC CONTINUITY. 3.0. EXCEPTIONS: NO CHANGE SHALL BE ALLOWED ON PRODUCTION MATERIAL REGARDLESS OF WHETHER SUCH CHANGE AFFECTS REQUIREMENTS SPECIFIED, WITHOUT PRIOR WRITTEN APPROVAL FROM NSN. CABLE ASSEMBLY, BT REVERSE POLARITY CONNECTOR A RT ANGLED MCX PLUG CONNECTOR B SMA JACK FLAG TYPE LABEL SEE NOTE 1.3.4.1. FOR MARKING SINGLE D FLAT NOTE RIGHT ANGLE CONNECTION ORIENTATION WITH RELATION TO THE SINGLE "D" FLAT ON SMA CONNECTOR PANEL CUTOUT DETAILS SCALE 10:1 ATTACH ALL BULKHEAD CONNECTOR MOUNTING HARDWARE TO BULKHEAD PRIOR TO SHIPMENT TO NSN. SECURE ENVIRONMENTAL SEALING O-RING INTO GASKET GROOVE IN BULKHEAD CONNECTOR USING DOW CORNING 737 NEUTRAL CURE SEALANT OR NSN APPROVED EQUIVALENT. CONNECTOR B DETAILS SCALE 6:1 DIM "A" 10.0 ()20.0 ()10.0 6.000.13 6.500.13 SEE TOLERANCE BLOCK YATHISH09/05/2013 J.WESTFALL09/05/2013 D.WARYCH09/05/2013 ARGON PDF 133-135948.X1 133-135948X1 995611X1 10708715-.310708716-.3 3:1 A1 1 / 1 133-1359489…

Text truncated - open the document above for the full version.

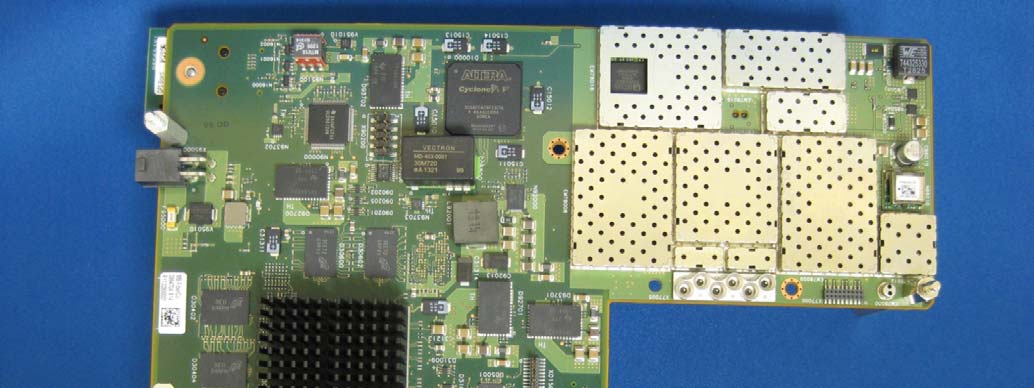

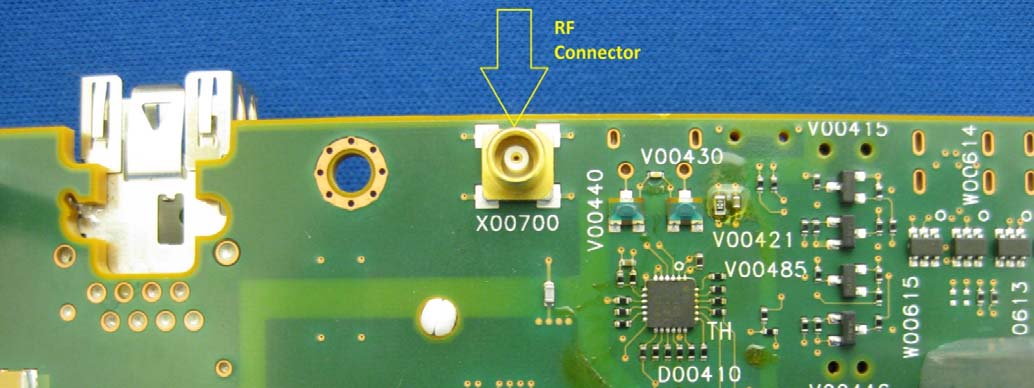

Photos Top Bottom Close Up of BT RF Port Close-up BT module Overview Side 1 (Board removed that is over BT module) Overview Side 1 (Board over BT module installed)

Bluetooth Module Label Placement Date: August 29, 2014 Nokia Solutions and Networks FCC ID: VBNFZMBTM-01 IC: 661W- FZMBTM01 Identification will be by means of a label placed on the module shield for each module as shown below. Identification label placed on FZM unit level externally as shown below.

W66 N220 Commerce Court ● Cedarburg, WI 53012 USA ● Phone: 262.375.4400 ● Fax: 262.375.4248 ● www.lsr.com Prepared For: NSN Name: FZM BLUETOOTH MODULE Report: TR 314128 RFx Model: FZM BLUETOOTH MODULE LSR: C-1951 Serial: 000FBBD630FE Page 1 of 10 i. Title Page ENGINEERING TEST REPORT # 314128 LSR Job #: C-1951 RF Exposure Compliance of: FZM BLUETOOTH MODULE Test Date(s): May 16, 17, 19, 20 and June 6, 2014 Prepared For: NSN Attn: Terry Schwenk 1501 W Shure Drive Arlington Heights, IL 60004 This Test Report is issued under the Authority of: Adam Alger, EMC Engineer Signature: Date: 7-7-14 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: NSN Name: FZM BLUETOOTH MODULE Report: TR 314128 RFx Model: FZM BLUETOOTH MODULE LSR: C-1951 Serial: 000FBBD630FE Page 2 of 10 ii. Table of Contents Table of Contents i. Title Page ................................................................................................................................... 1 ii. Table of Contents ....................................................................................................................... 2 iii. LS Research, LLC ...................................................................................................................... 3 1.0 Conformance Summary ............................................................................................................. 4 2.0 SAR Test Exclusion Threshold .................................................................................................. 4 3.0 Equipment Under Test (EUT) Information ................................................................................ 5 3.1 Product Description ................................................................................................................... 5 3.2 Additional Information .............................................................................................................. 5 4.0 RF Conducted Measurement Data ............................................................................................. 6 5.0 SAR Test Exclusion Calculation ............................................................................................... 7 6.0 Industry Canada Low Power Exemption ................................................................................... 8 7.0 MPE Calculation ........................................................................................................................ 9 Prepared For: NSN Report: TR 314128 RFx LSR: C-1951 iii. LS Research, LLC As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025: 2005 A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR FCC Registration Number: 90756 Industry Canada On file, 3 Meter Semi-Anechoic Chamber based on RSS File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility 10.2). Date of Validation: January 16 Validated by the European Commission as a U.S. Notified Body operating under the U.S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 Name: FZM BLUETOOTH MODULE Model: FZM BLUETOOTH MODULE Serial: 000FBBD630FE Page 3 of 10 LS Research, LLC in Review As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025: 2005 with Electrical (EMC) Scope of A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Anechoic Chamber based on RSS-212 – Issue 1 On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 2004/108/EC (formerly 89/336/EEC, Article Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment – Council Directive 99/5/EC, Annex V. November 20, 2002 Notified Body Identification Number: 1243 As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the trical (EMC) Scope of Accreditation Part 2.948 as a U. S. Competent Body operating under the U. S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Council Directive 2004/108/EC (formerly 89/336/EEC, Article Validated by the European Commission as a U.S. Notified Body operating under the U.S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Prepared For: NSN Name: FZM BLUETOOTH MODULE Report: TR 314128 RFx Model: FZM BLUETOOTH MODULE LSR: C-1951 Serial: 000FBBD630FE Page 4 of 10 1.0 Conformance Summary The EUT was found to MEET the 5mm minimum test separation distance threshold for SAR test exclusion per FCC §2.1091(mobile) and §2.1093(portable) using methods of FCC KDB 447498 D01 General RF Exposure Guidance v05r2 as a standalone device. 2.0 SAR Test Exclusion Threshold SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm 1-g SAR test exclusion threshold equation: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(…

Text truncated - open the document above for the full version.

This document was signed electronically. SGS Germany GmbH, Hofmannstr. 50, D-81379 Munich is accredited by DAkkS for ELECTRO-MECH. COMPONENTS TESTING ENVIRONMENTAL SIMULATION ELECTROMAGNETIC COMPATIBILITY MEDICAL DEVICE TESTING BATTERY TESTING PRODUCT SAFETY TELECOM CONFORMANCE TESTS Phone +49 89-787475-100, Fax +49 89-787475-114, Internet www.sgs-cqe.de The test report shall not be reproduced except in full without the written approval of the testing laboratory SGS Germany GmbH Test Report No.: G2VG0005 Order No.: G2VG Pages: 11 Munich, Aug 20, 2014 Client: Nokia Solutions and Networks US L.L.C. Equipment Under Test: Flexi Zone Micro small cell, Omni configuration (1), (1710 MHz – 2170 MHz) PCTEL MHO80617102NM Laird WXC2400SMRP-NS1 Manufacturer: Nokia Solutions and Networks US L.L.C Task: Assessment of compliance with the requirements for safety of general public to radio frequency electromagnetic fields on base of Test Specification(s): • FCC 47 CFR § 1.1310 • RSS-102 Issue 4 Result: The configuration meets the above cited requirements The results relate only to the items tested as described in this test report. edited by: Date Signature Werner Qualification Engineer Aug 20, 2014 approved by: Date Signature Bauer Lab Manager EMC Aug 21, 2014 Test Report No.: G2VG0005 Date: Aug 20, 2014 Flexi Zone Micro small cell, Omni configuration (1) page 2 / 11 The test report shall not be reproduced except in full without the written approval of the testing laboratory CONTENTS 1 Summary .................................................................................................................................. 3 2 References ............................................................................................................................... 4 2.1 Specifications ...................................................................................................................... 4 2.2 Glossary of Terms ............................................................................................................... 4 2.3 Bibliographical Data ............................................................................................................ 4 3 General Information ................................................................................................................ 5 3.1 Identification of Client .......................................................................................................... 5 3.2 Test Laboratory ................................................................................................................... 5 3.3 Time Schedule .................................................................................................................... 5 3.4 Participants ......................................................................................................................... 5 4 Equipment Under Assessment (EUA).................................................................................... 6 4.1 Typical Configuration .......................................................................................................... 6 5 Evaluation of the EUA ............................................................................................................. 8 5.1 Calculation .......................................................................................................................... 8 5.2 Results ................................................................................................................................ 9 6 Annexes .................................................................................................................................. 10 ANNEX A: Exposure limits ....................................................................................................... 10 7 Disclaimer .............................................................................................................................. 11 Test Report No.: G2VG0005 Date: Aug 20, 2014 Flexi Zone Micro small cell, Omni configuration (1) page 3 / 11 The test report shall not be reproduced except in full without the written approval of the testing laboratory 1 Summary This assessment is based on calculations according to OET Bulletin 65 (97-01) and C95.3 (2002) to demonstrate the compliance with the basic restrictions related to general public exposure to radio frequency electromagnetic fields with respect to FCC 47 CFR § 1.1310 and RSS-102. Flexi Zone Micro small cell, Omni configuration (1) consists of a Blue Tooth (BT) antenna (Laird WXC2400SMRP-NS1) and two LTE Omni-directional antennas (PCTEL MHO80617102NM). Details of the configuration are given in section 4. Flexi Zone Micro small cell, Omni configuration (1) is compliant with the cited standards at every point outside a distance R to the antenna. Transmitter in operation Distance R [m] EIRP [W] Power density 1 [W/m^2] Limit [W/m^2] LTE (Main + DIV) 0.72 15.85 9.87 10 BT 0.02 2 0.01 7.96 10 LTE + BT 0.72 15.86 9.74 10 The results of this assessment report refer exclusively to the item described in section 4 of this report 1 taking into account 100% reflection 2 near field to far field boarder Test Report No.: G2VG0005 Date: Aug 20, 2014 Flexi Zone Micro small cell, Omni configuration (1) page 4 / 11 The test report shall not be reproduced except in full without the written approval of the testing laboratory 2 References 2.1 Specifications [1] FCC 47 CFR §1.1310 Radiofrequency radiation exposure limits [2] OET Bulletin 65, Edition 97-0, Evaluating Compliance with FCC, Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields, Federal Communications Commission, Office of Engineering & Technology [3] RSS-102 Issue 4 March 2010, Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands), Industry Canada [4] IEEE Std C95.3TM-2002 (Revision of IEEE Std C95.3-1991) IEEE Recommended Practice for Measurements and Computations of Rad…

Text truncated - open the document above for the full version.

26.8 200.5 24.5 204.6 263.2 GPS ANTENNA CONNECTION (N-TYPE) DIVERSITY ANTENNA CONNECTION (N-TYPE) BLUETOOTH ANTENNA CONNECTOR (REVERSE POLARITY SMA) BACKHAUL B PORT (RJ45) BACKHAUL A PORT (FIBER SFP) MAINTENANCE CONNECTION ACCESS COVER AC POWER INPUT CONNECTION (SIZE 9 CIRCULAR CONNECTOR) MAIN ANTENNA CONNECTION (N-TYPE) AIR VENT GPS ANTENNA CONNECTION (N-TYPE) EYEBOLT HOLE PLUG

This document was signed electronically. SGS Germany GmbH, Hofmannstr. 50, D-81379 Munich is accredited by DAkkS for ELECTRO-MECH. COMPONENTS TESTING ENVIRONMENTAL SIMULATION ELECTROMAGNETIC COMPATIBILITY MEDICAL DEVICE TESTING BATTERY TESTING PRODUCT SAFETY TELECOM CONFORMANCE TESTS Phone +49 89-787475-100, Fax +49 89-787475-114, Internet www.sgs-cqe.de The test report shall not be reproduced except in full without the written approval of the testing laboratory SGS Germany GmbH Test Report No.: G2VG0006 Order No.: G2VG Pages: 11 Munich, Aug 20, 2014 Client: Nokia Solutions and Networks US L.L.C. Equipment Under Test: Directional configuration (1) 20131014 Argon antenna version A Laird WXC2400SMRP-NS1 Manufacturer: Nokia Solutions and Networks US L.L.C Task: Assessment of compliance with the requirements for safety of general public to radio frequency electromagnetic fields on base of Test Specification(s): • FCC 47 CFR § 1.1310 • RSS-102 Issue 4 Result: The configuration meets the above cited requirements The results relate only to the items tested as described in this test report. edited by: Date Signature Werner Qualification Engineer Aug 20, 2014 approved by: Date Signature Bauer Lab Manager EMC Aug 21, 2014 Test Report No.: G2VG0006 Date: Aug 20, 2014 Directional configuration (1) page 2 / 11 The test report shall not be reproduced except in full without the written approval of the testing laboratory CONTENTS 1 Summary .................................................................................................................................. 3 2 References ............................................................................................................................... 4 2.1 Specifications ...................................................................................................................... 4 2.2 Glossary of Terms ............................................................................................................... 4 2.3 Bibliographical Data ............................................................................................................ 4 3 General Information ................................................................................................................ 5 3.1 Identification of Client .......................................................................................................... 5 3.2 Test Laboratory ................................................................................................................... 5 3.3 Time Schedule .................................................................................................................... 5 3.4 Participants ......................................................................................................................... 5 4 Equipment Under Assessment (EUA).................................................................................... 6 4.1 Typical Configuration .......................................................................................................... 6 5 Evaluation of the EUA ............................................................................................................. 8 5.1 Calculation .......................................................................................................................... 8 5.2 Results ................................................................................................................................ 9 6 Annexes .................................................................................................................................. 10 ANNEX A: Exposure limits ....................................................................................................... 10 7 Disclaimer .............................................................................................................................. 11 Test Report No.: G2VG0006 Date: Aug 20, 2014 Directional configuration (1) page 3 / 11 The test report shall not be reproduced except in full without the written approval of the testing laboratory 1 Summary This assessment is based on calculations according to OET Bulletin 65 (97-01) and C95.3 (2002) to demonstrate the compliance with the basic restrictions related to general public exposure to radio frequency electromagnetic fields with respect to FCC 47 CFR § 1.1310 and RSS-102. Flexi Zone Micro small cell, Directional configuration (1) consists of a Blue Tooth (BT) antenna (Laird WXC2400SMRP-NS1) and a directional (LTE) antenna (20131014 Argon antenna version A, LTE). Details of the configuration are given in section 4. Flexi Zone Micro small cell, Directional configuration (1) is compliant with the cited standards at every point outside a distance R to the antenna. Transmitters in operation Distance R [m] EIRP [W] Power density 1 [W/m^2] Limit [W/m^2] LTE ( 20131014 Argon antenna version A) 1.60 78.49 9.76 10 Bluetooth ( Laird WXC2400SMRP- NS1) 0.02 2 0.01 7.96 10 LTE + Bluetooth 1.60 78.50 9.76 10 The results of this assessment report refer exclusively to the item described in section 4 of this report 1 taking into account 100% reflection 2 near field to far field boarder Test Report No.: G2VG0006 Date: Aug 20, 2014 Directional configuration (1) page 4 / 11 The test report shall not be reproduced except in full without the written approval of the testing laboratory 2 References 2.1 Specifications [1] FCC 47 CFR §1.1310 Radiofrequency radiation exposure limits [2] OET Bulletin 65, Edition 97-0, Evaluating Compliance with FCC, Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields, Federal Communications Commission, Office of Engineering & Technology [3] RSS-102 Issue 4 March 2010, Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands), Industry Canada [4] IEEE Std C95.3TM-2002 (Revision of IEEE Std C95.3-1991) IEEE Recommended Practice for Measurements and Computations of Radio Frequ…

Text truncated - open the document above for the full version.

W66 N220 Commerce Court ● Cedarburg, WI 53012 USA ● Phone: 262.375.4400 ● Fax: 262.375.4248 ● www.lsr.com Prepared For: NSN Name: FZM BLUETOOTH MODULE Report: TR314128 FCCIC Model: FZM BLUETOOTH MODULE LSR: C-1951 Serial: 000FBBD630FE Page 1 of 46 i. Title Page ENGINEERING TEST REPORT # 314128 LSR Job #: C-1951 Compliance Testing of: FZM BLUETOOTH MODULE Test Date(s): May 16, 17, 19, 20 and June 6, 2014 Prepared For: NSN Attn: Terry Schwenk 1501 W Shure Drive Arlington Heights, IL 60004 This Test Report is issued under the Authority of: Adam Alger, EMC Engineer Signature: Date: 7-7-14 Test Report Reviewed by: Mike Hintzke, EMC Engineer Signature: Date: 6-11-14 Report by: Adam Alger, EMC Engineer Signature: Date: 6-6-14 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: NSN Name: FZM BLUETOOTH MODULE Report: TR314128 FCCIC Model: FZM BLUETOOTH MODULE LSR: C-1951 Serial: 000FBBD630FE Page 2 of 46 ii. Table of Contents Table of Contents i. Title Page ................................................................................................................................... 1 ii. Table of Contents ....................................................................................................................... 2 iii. LS Research, LLC ...................................................................................................................... 3 1.0 Summary of Test Report ............................................................................................................ 4 2.0 Test Facilities ............................................................................................................................. 4 3.0 Client Information ...................................................................................................................... 5 3.1 Equipment Under Test (EUT) Information ................................................................................ 5 3.2 Product Description ................................................................................................................... 5 3.3 Modifications Incorporated In the EUT for Compliance Purposes ........................................... 5 3.4 Deviations & Exclusions from Test Specifications ................................................................... 5 3.5 Additional Information .............................................................................................................. 5 4.0 Conditions of Test ...................................................................................................................... 6 5.0 Test Equipment .......................................................................................................................... 6 6.0 Conformance Summary ............................................................................................................. 6 Appendix A – Test Equipment ............................................................................................................. 7 Appendix B – Test Data ........................................................................................................................ 8 B.1 – RF Conducted Emissions ........................................................................................................ 8 B.2 – Radiated Emissions ........................................................................................…
