VE2-1Immobilizer System

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Compliance Statement in Car Manual / FCC ID: VE2-1 Dear Sirs, Our products with the above FCC ID code are low frequency transmitters. The products will be installed in cars before they will be placed into the market. Hereby our client assures that the following caution statement as per CFR 47, Part 15, § 15.21 will be included in the owner’s manual of the cars: The title “CAUTION TO USERS” or “FCC Warning:” “NOTE:” or relevant title and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” In addition our client also assures that the following statement will be included in the manual as per CFR 47, Part 15, § 15.19 (a) (3). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Microcontroller (I1001) 8 MHz Oscillation frequency; 16 MHz Bus frequency Switches Sound interface Power Supply Clock generation PLL Antenna IMMOBILIZER125 kHzASK Modulation; 8,0 MHz Oscillation frequency Hardware Modules OPEL CIM RF receiver Module315 MHzASK Modulation; 13,580625 MHz Oscillation frequency x Voltage filtering 2 2 2 3 4 3 Interface CANHS-CAN 500 kHzSW-CAN 33,3 kHz 6 CAN Class C Single wire CAN 3 ASK = Amplitude Shift Keying Revolution Counter Single Turn Detection Microcontroller (I1002) 4 MHz Oscillation frequency Power Supply

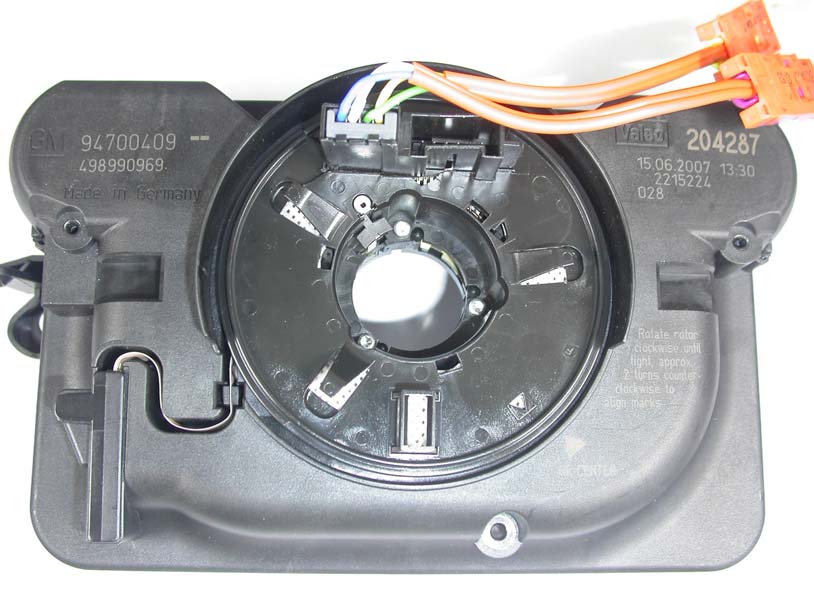

FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 5 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT External Photo Front View External Photo Side View External Photo FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 6 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Rear View Internal Photo Front View BCB with open cover

Label Location

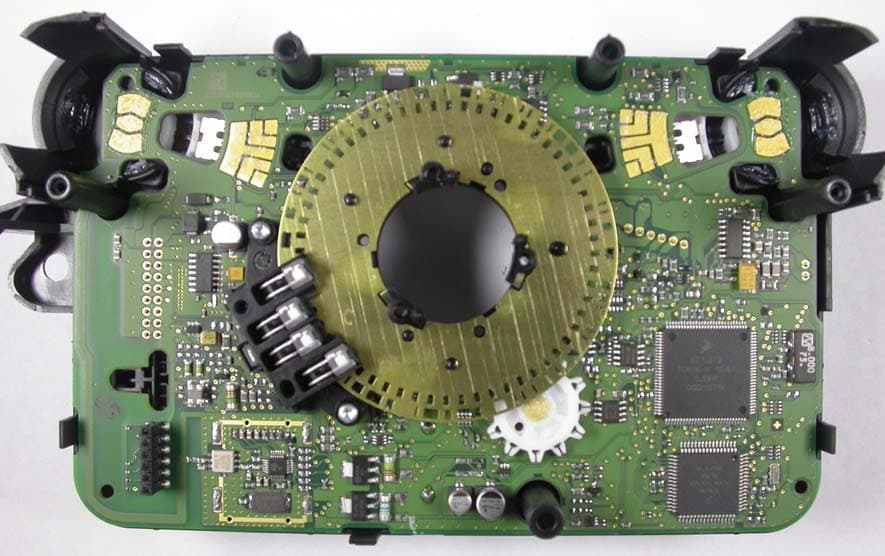

FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 6 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Rear View Internal Photo Front View BCB with open cover FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 7 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Internal Photo Front View PCB Internal Photo Front View PCB, detailed photo FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 8 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Internal Photo Front View PCB, detailed photo Internal Photo Rear View PCB

FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 1 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EMI -- T E S T R E P O R T Test Report No. : T31823-00-00KG 29. June 2007 ______________________________________________________________________________________________ Date of issue Type / Model Name : Opel CIM - Code number 204.287 Product Description : Immobilizer System Applicant : Valeo Schalter und Sensoren GmbH Address : Laiernstrasse 12 D-74321 Bietigheim-Bissingen Manufacturer : Valeo Schalter und Sensoren GmbH Address : Laiernstrasse 12 D-74321 Bietigheim-Bissingen Licence holder : Valeo Schalter und Sensoren GmbH Address : Laiernstrasse 12 D-74321 Bietigheim-Bissingen Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test DAT-P-207/05-00 laboratory. FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 2 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 PHOTO DOCUMENTATION OF THE EUT 5 3.2 POWER SUPPLY SYSTEM UTILISED 9 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 9 4 TEST ENVIRONMENT 10 4.1 ADDRESS OF THE TEST LABORATORY 10 4.2 ENVIRONMENTAL CONDITIONS 10 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 10 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 10 5 TEST CONDITIONS AND RESULTS 12 5.1 CONDUCTED EMISSIONS 12 5.2 FIELD STRENGTH OF THE FUNDAMENTAL WAVE 13 5.3 SPURIOUS EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 16 5.4 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 1 GHZ 19 5.5 EMISSION BANDWIDTH 21 6 USED TEST EQUIPMENT AND ACCESSORIES 23 FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 3 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C- Intentional Radiators (October 01, 2006) Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements Part 15, Subpart C, Section 15.207(a) AC Line conducted emissions FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 4 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 2 SUMMARY GENERAL REMARKS: The carrier frequency of the unit is 125 kHz. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 20. June 2007 Testing concluded on : 21. June 2007 Checked by: Tested by: Thomas Weise Dipl.-Ing.(FH) Laboratory Manager Gegenfurtner Klaus Dipl.-Ing.(FH) FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 5 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT External Photo Front View External Photo Side View External Photo FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 6 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Rear View Internal Photo Front View BCB with open cover FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 7 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Internal Photo Front View PCB Internal Photo Front View PCB, detailed photo FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 8 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Internal Photo Front View PCB, detailed photo Internal Photo Rear View PCB FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 9 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3.2 Power supply system utilised Power supply voltage : 12 V / DC 3.3 Short description of the Equipment under Test (EuT) The EUT is a transceiver for an immobilizer system for vehicular use. Number of tested samples: 1 Serial number: Prototype EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Continuous TX mode at 125 kHz EuT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - Model : - Model : - Model : - Model : - Model : - Model : - unscreened power cables FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 10 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 4 TEST ENVIRONMENT 4.1 Address of the test laboratory mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen Germany 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 /11.2003 „Uncertainties, statistics and limit modelling – Uncertainty in EMC measurements“ and is documented in the quality system acc. to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compli…

Text truncated - open the document above for the full version.

FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 13 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 1. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 16 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.3 Spurious emissions (Magnectic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up FCC ID: VE2-1 mikes-testingpartners gmbh File No. T31823-00-00KG, page 19 of 23 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.4 Radiated emissions (electric field) 30 MHz – 1 GHz For test instruments and accessories used see section 6 Part SER 2. 5.4.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.4.2 Photo documentation of the test set-up
