VE2-12PM1Parkman ECU

Valeo Schalter und Sensoren GmbH FCC ID: VE2-12PM1 IC: 7173A-12PM1 【Operational description/User Manual】 The Parkman ® assistant allows you to leave your car at the entrance of an outside or underground car parking and let your car find a space and park by itself, by activating the Parkman ® application from your Smart Phone. Once the Parkman ® assistant is enabled your vehicle becomes autonomous and start to search for a parking space. Once a parking slot is detected, the system takes in charge the maneuvers in order to fit in, without any further intervention from you. Once the operation is complete, you receive a notification on your Smart Phone. The Parkman ® assistant works in both ways. When you want to get back your car out of the parking, you only need to notify your request through your Smart Phone and your car rolls back automatically to you. [Instruction]: 1. Stop the car at the location you need to head to 2. Exit your car and close all doors 3. Select the Parkman ® application in your smart Phone 4. At this stage your vehicle takes over and looks for a parking slot 5. Detection of a free slot [DRAFT] / Subject to change Valeo Schalter und Sensoren GmbH FCC ID: VE2-12PM1 IC: 7173A-12PM1 6. Your vehicle manoeuvers by itself 7. End Regulatory notices US, Canada: This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this equipment not expressly approved by (manufacturer name) may void the FCC authorization to operate this equipment. This radio transmitter 7173A-12PM1 has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Description Gain [dBi] Comments Wireless External Antenna for 2.4 GHz application 2.0 Manufacturer: Pulse, P/N: W1010

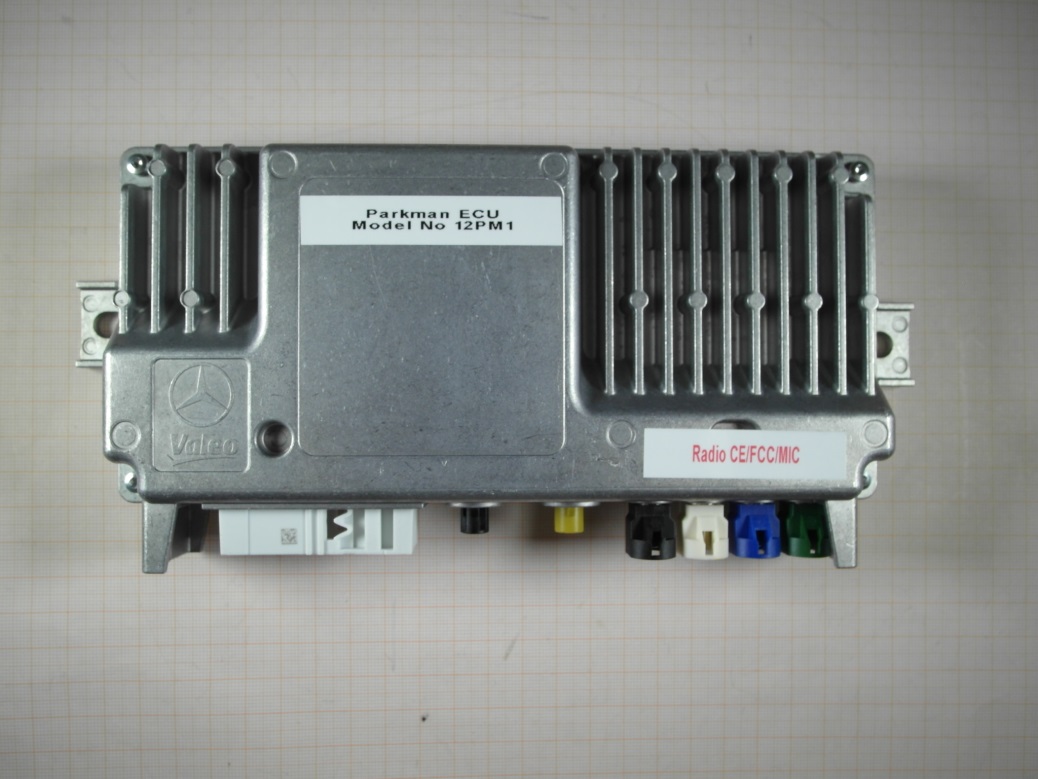

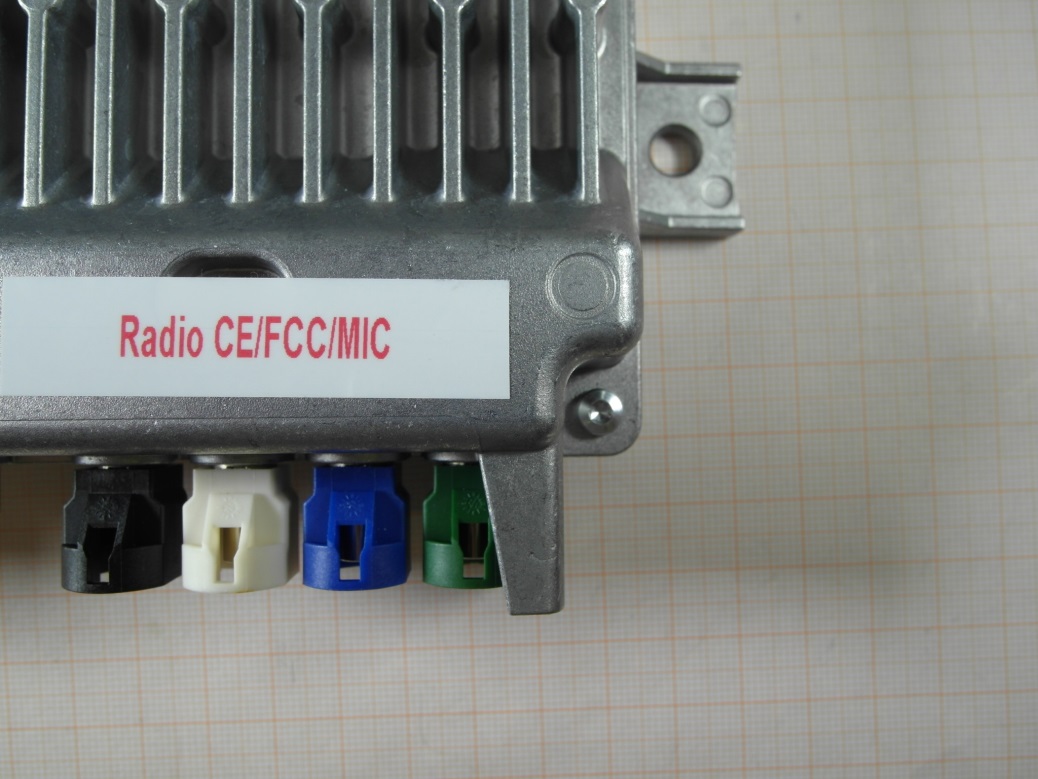

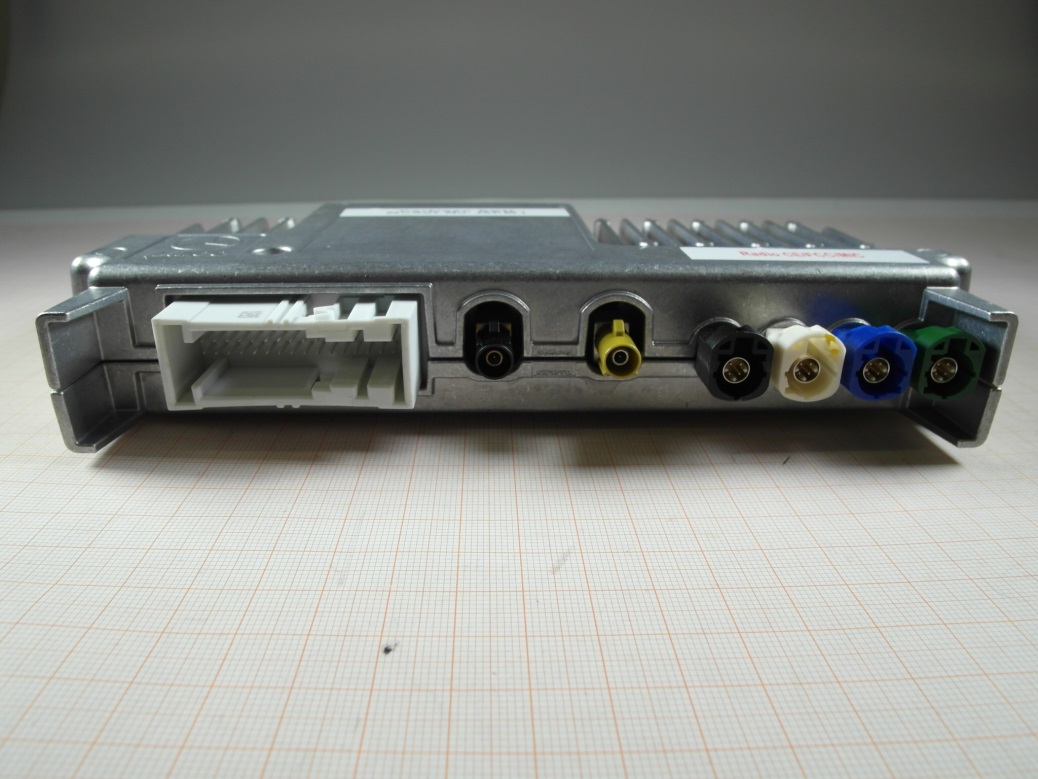

Test report no.: 1-8532/14-01-01_AnnexA Page 1 of 6 Annex A This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: David Lang Specialist Radio Communications & EMC Test report no.: 1-8532/14-01-01_AnnexA Page 2 of 6 External photos of the EUT Photo 1: Photo 2: Test report no.: 1-8532/14-01-01_AnnexA Page 3 of 6 Photo 3: Photo 4: Test report no.: 1-8532/14-01-01_AnnexA Page 4 of 6 Photo 5: Photo 6: Test report no.: 1-8532/14-01-01_AnnexA Page 5 of 6 Photo 7: Photo 8: Test report no.: 1-8532/14-01-01_AnnexA Page 6 of 6 Document history Version Applied changes Date of release Initial release 2014-11-14

Valeo Schalter und Sensoren GmbH Model name: 12PM1H FCC ID: VE2-12PM1 IC: 7173A-12PM1 LABEL LAYOUT LABEL LOCATION M/N : 12PM1H DC12V, 250mA FCC ID : VE2-12PM1 IC : 7173A-12PM1 Valeo Schalter und Sensoren GmbH Model name: 12PM1E FCC ID: VE2-12PM1 IC: 7173A-12PM1 LABEL LAYOUT LABEL LOCATION M/N : 12PM1E DC12V, 250mA FCC ID : VE2-12PM1 IC : 7173A-12PM1 LABEL

Test report no.: 1-8532/14-01-01_AnnexB Page 1 of 4 Annex B This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: David Lang Specialist Radio Communications & EMC Test report no.: 1-8532/14-01-01_AnnexB Page 2 of 4 Internal photos of the EUT Photo 1: Photo 2: Test report no.: 1-8532/14-01-01_AnnexB Page 3 of 4 Photo 3: Photo 4: Test report no.: 1-8532/14-01-01_AnnexB Page 4 of 4 Document history Version Applied changes Date of release Initial release 2014-11-12

FCC ID: VE2-12PM1 IC: 7173A-12PM1 Model: 12PM1H / 12PM1E SAR test exclusion according to KDB447498 (General RF Exposure Guidance v05) Equation from Chapter 4.3.1: Standalone SAR test exclusion considerations page 11 and ff. (1) Standalone SAR test exclusion for 100 MHz to 6 GHz at test separation distances ≤ 50mm [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ∙ [√f (GHz) ] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR  f (GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison For a distance ≤ 5mm, a power of 0.57 mW (including tune-up tolerance), and a frequency of 2.48 GHz the calculated value is 0.2, which is less than the limit of 3.0 for 1-g SAR. ______________________ David Lang CETECOM ICT Services GmbH Untertürkheimer Str.6-10 - 66117 Saarbrücken - Germany

Page 1 of 53 TEST REPORT Test report no.: 1-8532/14-01-05-C Testing laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-00 Valeo Comfort and Driving Assistance Europarc - 76 rue Auguste Perret F-94046 CRETEIL / FRANCE Contact: Jerome Hugot e-mail: [email protected] Manufacturer Valeo Schalter und Sensoren GmbH Laiernstrasse 12 74321 Bietigheim-Bissingen / GERMANY Test standard/s 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 210 Issue 8 Spectrum Management and Telecommunications Radio Standards Specification - Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Parkman ECU Model name: 12PM1H /12PM1E FCC ID: VE2-12PM1 IC: 7173A-12PM1 Frequency: 2400 MHz to 2483.5 MHz DTS Band (lowest channel 2402 MHz; highest channel 2480 MHz) Technology tested: Bluetooth® LE V.4.0 Antenna: External monopole antenna Power supply: 12V DC by Battery Temperature range: -40°C to +85°C This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorised: Test performed: Andreas Luckenbill David Lang Radio Communications & EMC Radio Communications & EMC Test report no.: 1-8532/14-01-05-C Page 2 of 53 1 Table of contents 1 Table of contents ............................................................................................................................................ 2 2 General information ....................................................................................................................................... 3 2.1 Notes and disclaimer .......................................................................................................................... 3 2.2 Application details ............................................................................................................................... 3 3 Test standard/s ............................................................................................................................................... 3 4 Test environment ............................................................................................................................................ 4 5 Test item .......................................................................................................................................................... 4 5.1 Additional information ........................................................................................................................ 4 6 Test laboratories sub-contracted ................................................................................................................. 4 7 Summary of measurement results ............................................................................................................... 5 8 Additional comments ..................................................................................................................................... 6 9 Measurement results ...................................................................................................................................... 7 9.1 Antenna gain ........................................................................................................................................ 7 9.2 Power spectral density ....................................................................................................................... 8 9.3 Carrier frequency separation ........................................................................................................... 11 9.4 Number of hopping channels ........................................................................................................... 13 9.5 Time of occupancy (dwell time) ....................................................................................................... 15 9.6 Spectrum bandwidth of a FHSS system – 6 dB bandwidth .......................................................... 16 9.7 Spectrum bandwidth of a FHSS system – 20 dB bandwidth ........................................................ 19 9.8 Maximum output power .................................................................................................................... 22 9.9 Band edge compliance conducted .................................................................................................. 25 9.10 Band edge compliance radiated ................................................................................................... 28 9.11 TX spurious emissions conducted .............................................................................................. 30 9.12 TX spurious emissions radiated .................................................................................................. 33 9.13 RX spurious emissions radiated .................................................................................................. 44 9.14 Spurious emissions radiated < 30 MHz ....................................................................................... 48 1 Test equipment and ancillaries used for tests .......................................................................................... 50 2 Observations .....................................................................…

Text truncated - open the document above for the full version.

Test report no.: 1-8532/14-01-01_AnnexD 2014-11-14 Page 1 of 4 Annex D This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: David Lang Specialist Radio Communications & EMC Test report no.: 1-8532/14-01-01_AnnexD 2014-11-14 Page 2 of 4 EUT Test setup photos Photo 1: Photo 2: Test report no.: 1-8532/14-01-01_AnnexD 2014-11-14 Page 3 of 4 Photo 3: Photo 4: Test report no.: 1-8532/14-01-01_AnnexD 2014-11-14 Page 4 of 4 Document history Version Applied changes Date of release Initial release 2014-11-14
