VEIANT-188FM Transmitter

OWNER'S MANUAL2007 © Volvo Cars of North Amer ica, LLC. All rights reserved. Mobile Multi-Media Entertainment System.book Page 1 Wednesday, June 6, 2007 1:49 PM 2 Mobile Multi-Media Entertainment System.book Page 2 Wednesday, June 6, 2007 1:49 PM REAR SEAT ENTERTAINMENT SYSTEM WITH DUAL DVD PLAYERS General information ......................................................... 4System overview.............................................................. 5Buttons on the front panel ............................................... 6Remote control ................................................................ 7Monitor ............................................................................ 9RSE and the vehicle’s audio system.............................. 11DVD player..................................................................... 12Handling discs ............................................................... 16Troubleshooting ............................................................. 17Warranty ........................................................................ 18 Mobile Multi-Media Entertainment System.book Page 3 Wednesday, June 6, 2007 1:49 PM Rear Seat Entertainment System with Dual DVD Players 4 General information Important notice• Before operating the unit, please read these instructions carefully. • Retain the manual for future reference. • You are advised to follow the instructions carefully when operating the unit. • Do not use any chemical solvents, cleaning agents or corrosive detergents to clean dirt off the surface of the screen. By doing so, you may cause irreversible damage to the surface of the TFT screen. To clean off dirt or fingerprints, we recommend using a soft, damp, lens cleaning cloth. • Damage caused by unauthorized repairs or upgrades may void your warranty. • When operating the display unit, avoid touching or pressing the LCD glass panel. • Excessive force may cause irreparable damage to the LCD screen. • Never operate your rear seat entertainment system in a way that will create a distraction from driving. • Lock the LCD screen in the fully closed position when it is not in use. Federal Communications Commission Interference StatementThis equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency en-ergy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer-ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to cor-rect the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your Volvo retailer. CAUTION To assure continued FCC compliance: Any changes or modifications not expressly approved by the guarantee of this device could void the user's authority to operate the equipment. Mobile Multi-Media Entertainment System.book Page 4 Wednesday, June 6, 2007 1:49 PM Rear Seat Entertainment System with Dual DVD Players 5 System overview Main features • 7" 16:9 WIDE SCREEN TFT-LCD HEADREST MONITOR • BUILT IN DVD PLAYER • BUILT IN WIRELESS HEADPHONE IR TRANSMITTER• 1 AUDIO/VIDEO INPUT• FULL FUNCTION WIRELESS REMOTE CONTROL • (OSD) ON SCREEN DISPLAY FOR CONTROL OF PICTURE QUALI- TY AND FUNCTIONS • FULL BAND FM MODULATOR WITH OSD CONTROL Main specifications • DISPLAY: 7.0" wide screen TFT LCD active matrix • RESOLUTION: 480 (W) X 234 (H) x 3 (R.G.B.) • DOT PITCH: 0.107mm(W) X 0.370mm(H)• VIEWING ANGLE: 65° /50° /65° /65° (Top/Bottom/Left/Right) • BRIGHTNESS: 400 cd/m2 • CONTRAST RATIO: 300:1 • POWER SOURCE: DC 12V (Negative Ground) • POWER CONSUMPTION: 20W (Max.) • OPERATING TEMPERATURE: 0°C~60°C (32°F~140°F) • STORAGE TEMPERATURE: -20°C~70°C (-4°F~158°F)• DIMENSIONS: 175mm x 60mm x 135 mm. (W x D x H) • BUILT-IN TEMPERATURE CONTROL SYSTEM DVD player Supports DVD, VCD, AUDIO CD R/RW, and CD with downloaded MP3 files. Monitor 7.0" wide screen TFT LCD active matrixStandard accessories package contents• Remote controls (2)• AAA batteries (2 for each remote control) • Operating manual • Audio/Game input adapter cable• Dual channel wireless IR headphones (2) • Installation Instructions Optional accessories Additional dual channel wireless IR headphones, Volvo P/N 8640196 Mobile Multi-Media Entertainment System.book Page 5 Wednesday, June 6, 2007 1:49 PM Rear Seat Entertainment System with Dual DVD Players 6 Buttons on the front panel Controls and connectors1. SOURCE button - Press to toggle between desired sources (DVD/ AV1/GAME). When AV1 is chosen as a source for one screen, that screen's menus, display, and audio output will controlled from the other screen and remote control. 2. POWER button - Press to turn the monitor on/off. 3. PLAY - Plays DVD, VCD, AUDIO CD R/RW, and CD with downloaded MP3 files. 4. STOP - Press button to stop the DVD playing. STOP -> STOP -> PLAY : Play the disc from the beginning. STOP-> PLAY : Resume play from last position. 5. IR transmitter - transmit audio to wireless headphones. 6. IR sensor - Receives infrared signals from the remote control. 7. LCD Screen 8. Locking tab - Lift tab for monitor angle adjustment and to access DVD slot. 9. EJECT - With POWER on, press the Eject button near the DVD slot to eject the disc. 10. DISC LOADING SLOT - Insert / Eject the disc. 11. AUDIO and GAME INPUT - RCA jacks located on the underside of the headrest under the arches. (1) Red: Audio -…

Text truncated - open the document above for the full version.

910805 4 Federal Communications Commission FCC ID: VEIANT-188 Product Name: FM Transmitter Module Model Name: ANT-188 Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics and Operation Description. By: By: Ben Liu (Signature) (Printed) Title : Director Applicant : CENEC CORP. Address : 9F, No. 27, Ciao-an St., Jhonghe City, Taipei County, Taiwan, R.O.C. Tel : 886-2-22405816 Fax: 886-2-22405896 Date : Jun. 15, 2007

http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=113b610a24c2fc8e&ww=1131&cvap=0&qt=&zx=pmqly9-qoitj3 Response to Inquiry to FCC (Tracking Number 529727) Inbox Reply from Generic Office of Engineering Technology <[email protected]> hide details 12:15 pm (2 minutes ago) to [email protected] date Jul 11, 2007 12:15 PM subject Response to Inquiry to FCC (Tracking Number 529727) Inquiry: First Inquiry Category: TCB Procedures Second Inquiry Category: Permit but Ask Third Inquiry Category: Permit but Ask List #1. FM band modulators / transmitters operating under 15.239 of the FCC rules New Application Grantee: Cenec Corp.FCC ID: VEIANT-188 EUT Description: FM Transmitter Equipment Class: DXX Rule Part: 15.239 Attached please find FCC Permit But Ask questions document and the test report for review. Please advise if it is OK to file 731. Thank you, Tim Dwyer Compliance Certification Services. Response: Based on the test report, this device is acceptable for Certification. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&sear...h=113b610a24c2fc8e&ww=1131&cvap=0&qt=&zx=pmqly9-qoitj3 7/11/2007 12:19:41 PM FCC Home | Search | Updates | E-Filing | Initiatives | For Consumers | Find People Office of Engineering and Technology FCC > FCC E-filing > Inquiry System Home Page > Inquiry Confirmation FCC Site Map OET Home Page Site Options Knowledge DataBase Search Detail Criteria Search Submit An Inquiry Reply to an Inquiry Response Category List FAQ Search View Instructions Related Sites Equipment Authorization System (EAS) Telecommunications Certification Bodies (TCB) Inquiry Tracking Number: 529727 Date of Submission: 07/04/2007 Subject: 15.239 FCCID VEIANT-188 CENEC CORP Question:First Inquiry Category: TCB Procedures Second Inquiry Category: Permit but Ask Third Inquiry Category: Permit but Ask List #1. FM band modulators / transmitters operating under 15.239 of the FCC rules New Application Grantee: Cenec Corp.FCC ID: VEIANT-188 EUT Description: FM Transmitter Equipment Class: DXX Rule Part: 15.239 Attached please find FCC Permit But Ask questions document and the test report for review. Please advise if it is OK to file 731. Thank you, Tim Dwyer Compliance Certification Services. Please send any comments or suggestions for this site to OET Systems Support Federal Communications Commission 445 12th Street, SW Washington, DC 20554 More FCC Contact Information... Phone: 888-CALL-FCC (225-5322) TTY: 888-TELL-FCC (835-5322) Fax: 202-418-0232 E-mail: [email protected] - Privacy Policy - Web Policies & Notices - Customer Service Standards - Freedom of Information Act Page 1 of 2Inquiry Submission Confirmation 7/4/2007https://gullfoss2.fcc.gov/oetcf/kdb/forms/InquiryConfirmation.cfm?inquiry_id=31611&is_r ... Page 2 of 2Inquiry Submission Confirmation 7/4/2007https://gullfoss2.fcc.gov/oetcf/kdb/forms/InquiryConfirmation.cfm?inquiry_id=31611&is_r ...

FCC Laboratory Jun. 26, 2007 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner / Reviewing Engineer Re: Confirmation Letter for FM Transmitter Applicant: CENEC CORP., FCC ID: VEIANT-188 To whom it may concern, We, Electronics Testing Center, Taiwan, would like to answer following questions for requesting by the TCB, Compliance Certification Services Inc on behalf of our customer, CENEC CORP. 1. How does this device operate? Î The device is operated from 88.1MHz to 107.9 MHz. It transmits the audio signal from an external audio source, a Rear Seat Entertainment system, and the audio signal can be received by a common FM broadcasting radio which is tuned to same transmitted frequency of the FM transmitter and regenerate the transmitted signal through the FM broadcasting radio. 2. Provide information on the device and its antenna Î The device is a simple audio FM transmitter tuned from 88.1MHz to 107.9 MHz to transmit an audio source to a FM broadcasting radio. The block diagram and circuit diagram are attached for your reference. The antenna is an integrated antenna. 3. How is it installed? Î The EUT works as a radio station which converts the audio signal from a Rear Seat Entertainment system into a radio signal and sends it to nearby radios. Before active the device, it is connected the audio input socket to the external audio source. Then supplying DC 12V power to the device and switching on the FM broadcasting radio. And then, playing the audio from the external audio source tuning the FM broadcasting radio to the frequencies which do not occupied by other FM broadcasted channel. After that, tuning the FM transmitter to that frequency, the audio signal from the external audio source will be heard. 4. What test procedure was used? Î ANSI C 63.4: 2003 5. If tested in a car, how was it configured/tested? Î It was not tested in a car, but it was tested in an open area test site, because the device does not have external antenna input port. 6. Was the tuning range properly verified? Î Yes, the low channel is 88.1MHz, and the highest channel is 107.9MHz. The tuning controls were manually adjusted. 7. Was the bandwidth properly tested with maximum audio input? Î The EUT has an audio input port, so the input port was connected to a cssette player and played a real music. The volume control of cassette player was set to maximum. If you have questions or need further information, please contact the undersigned. Sincerely, Will Yauo / Manager of EMC Testing Department II Electronics Testing Center, Taiwan

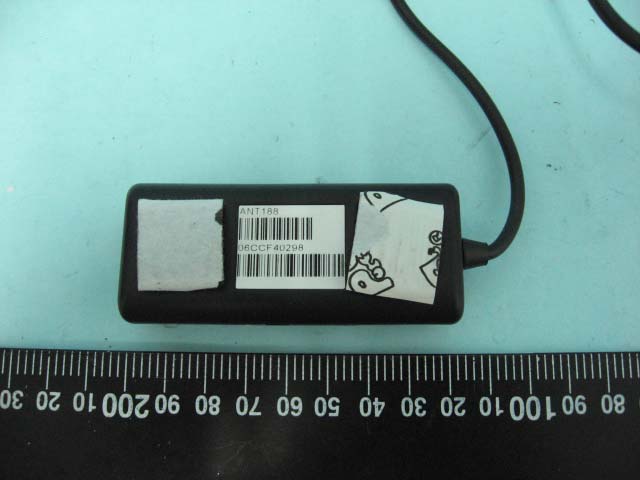

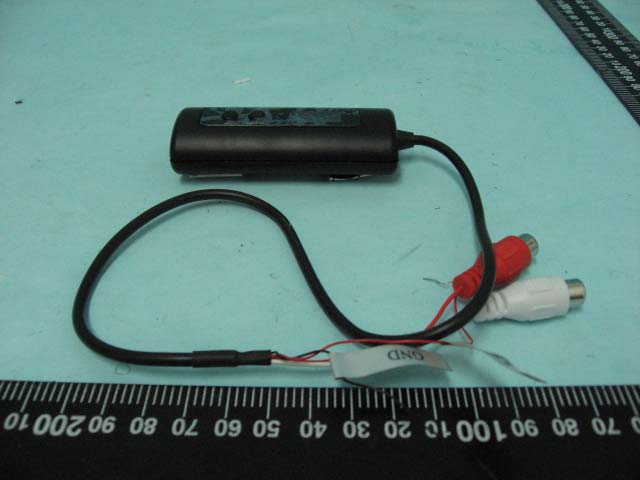

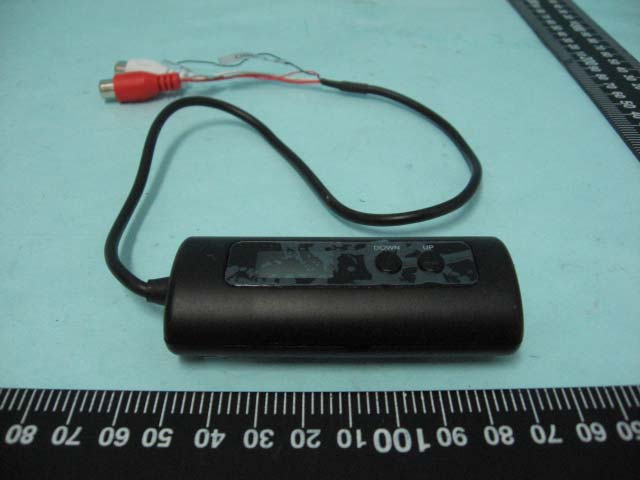

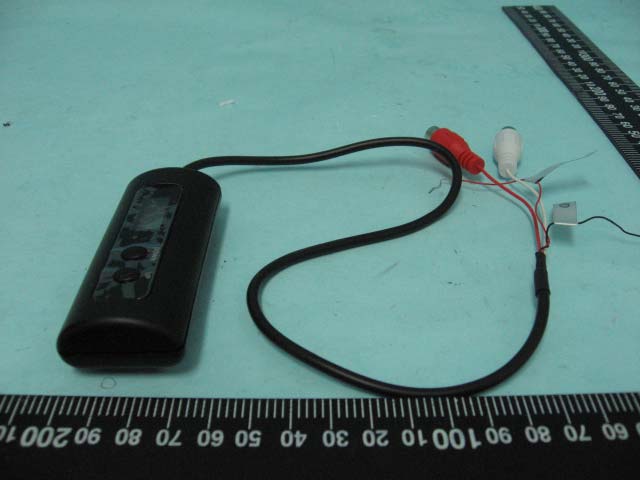

ETC Report No.:07-06-RBF-090-01 Sheet 1 of 9 Sheets FCC ID.: VEIANT-188 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model: ANT-188 1. Top View of EUT 2. Side View of EUT ETC Report No.:07-06-RBF-090-01 Sheet 2 of 9 Sheets FCC ID.: VEIANT-188 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model: ANT-188 3. Side View of EUT 4. Side View of EUT ETC Report No.:07-06-RBF-090-01 Sheet 3 of 9 Sheets FCC ID.: VEIANT-188 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model: ANT-188 5. Side View of EUT 6. Side View of EUT ETC Report No.:07-06-RBF-090-01 Sheet 6 of 9 Sheets FCC ID.: VEIANT-188 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model: ANT-199; AVLV-199 1. Top View of EUT 2. Side View of EUT ETC Report No.:07-06-RBF-090-01 Sheet 7 of 9 Sheets FCC ID.: VEIANT-188 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model: ANT-199; AVLV-199 3. Side View of EUT 4. Side View of EUT

910805 5 LABEL CENEC CORP. FCC ID: VEIANT-188 Model: ANT-188 25mm 20mm

ETC Report No.:07-06-RBF-090-01 Sheet 4 of 9 Sheets FCC ID.: VEIANT-188 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model: ANT-188 7. Internal View of EUT ETC Report No.:07-06-RBF-090-01 Sheet 5 of 9 Sheets FCC ID.: VEIANT-188 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model: ANT-188 8. Component View of Main’s PCB 9. Solder View of Main’s PCB ETC Report No.:07-06-RBF-090-01 Sheet 8 of 9 Sheets FCC ID.: VEIANT-188 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model: ANT-199; AVLV-199 5. Side View of EUT 6. Internal View of EUT ETC Report No.:07-06-RBF-090-01 Sheet 9 of 9 Sheets FCC ID.: VEIANT-188 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model: ANT-199; AVLV-199 7. Component View of Main’s PCB 8. Solder View of Main’s PCB

Rev. No 2.0 FCC Part 15 Subpart C TEST REPORT Of E.U.T. : FM Transmitter Module Model : ANT-188 FCC ID : VEIANT-188 Working Frequency : 88.1 – 107.9 MHz for APPLICANT : CENEC CORP. ADDRESS : 9F., No.27, Ciao-an St., Jhonghe City, Taipei County 235, Taiwan, R.O.C Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. http://www.etc.org.tw ; e-mail : [email protected] Tel:(02)26023052 Fax:(02)26010910 Report Number: 07-06-RBF-090-01 ETC Report No.:07-06-RBF-090-01 FCC ID.: VEIANT-188 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : CENEC CORP. 9F., No.27, Ciao-an St., Jhonghe City, Taipei County 235, Taiwan, R.O.C Manufacture : CENEC CORP. 9F., No.27, Ciao-an St., Jhonghe City, Taipei County 235, Taiwan, R.O.C Description of Device : a) Type of EUT : FM Transmitter Module b) Trade Name : Myron & Davis c) Model No. : ANT-188 d) Serial Model : ANT-199; AVLV-199 d) Power Supply : DC 12V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2006) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Date Test Item Received : Jun. 07, 2007 Date Test Campaign Completed: Jun. 14, 2007 Date of Issue : Jun. 14, 2007 Test Engineer : ( Vincent Chang ) Approve & Authorized : : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:07-06-RBF-090-01 FCC ID.: VEIANT-188 Rev. No 2.0 Table of Contents Page 1. GENERAL INFORMATION .................................................................................................. 1 1.1 Product Description............................................................................................ 1 1.2 Characteristics of Device: .................................................................................. 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ........................................................................................................ 1 2. DEFINITION AND LIMITS.................................................................................................... 2 2.1 Definition............................................................................................................ 2 2.2 Restricted Bands of Operation ........................................................................... 2 2.3 Limitation ........................................................................................................... 2 2.4 Labeling Requirement ........................................................................................ 3 2.5 User Information ................................................................................................ 3 3. SYSTEM TEST CONFIGURATION ..................................................................................... 4 3.1 Justification ........................................................................................................ 4 3.2 Devices for Tested System ................................................................................. 4 4 RADIATED EMISSION MEASUREMENT.......................................................................... 5 4.1 Applicable Standard ........................................................................................... 5 4.2 Measurement Procedure ..................................................................................... 5 4.3 Measuring Instrument ........................................................................................ 7 4.4 Test Data............................................................................................................. 8 4.5 Field Strength Calculation................................................................................ 10 4.6 Radiated Measurement Photos......................................................................... 11 5 CONDUCTED EMISSION MEASUREMENT ................................................................... 12 5.1 Standard Applicable ......................................................................................... 12 6 ANTENNA REQUIREMENT................................................................................................ 13 6.1 Standard Applicable ......................................................................................... 13 6.2 Antenna Construction....................................................................................... 13 7 EMISSION BAND MEASUREMENT.................................................................................. 14 7.1 Standard Applicable ......................................................................................... 14 7.2 Measurement Procedure ................................................................................... 14 7.3 Measurement Equipment.................................................................................. 14 7.4 Measurement Data............................................................................................ 14 ETC Report No.:07-06-RBF-090-01 Sheet 1 of 19 Sheets FCC ID.: VEIANT-188 Rev. No 2.0 1. GENERAL INFORMATION 1.1 Product Description a) Type of EUT : FM Transmitter Module b) Trade Name : Myron & Davis c) Model No : ANT-188 d) Serial Model : ANT-199; AVLV-199 d) Frequency Modulation : 88.1~107.9 MHz e) Power Supply : DC 12V 1.2 Characteristics of Device: The EUT is an FM transmitter which is designed to be installed on a vehicle. It works as a radio station which converts the audio signal from a Rear Seat Entertainment system into a radio signal and sends it to nearby radios of your car. Model ANT-188 is the most complicate one which includes channel selection bottons and LED display. The serial model ANT-199 is t…

Text truncated - open the document above for the full version.

ETC Report No.:07-06-RBF-090-01 Sheet 11 of 19 Sheets FCC ID.: VEIANT-188 Rev. No 2.0 4.6 Radiated Measurement Photos
