VEIMANDDACCM85FM Transmitter

OWNER’S MANUAL Mobile Multi-Media Entertainment System A A A C C C C C C M M M 8 8 8 5 5 5 I I M M P P O O R R T T A A N N T T N N O O T T I I C C E E
Before operating the unit, please read these instr uctions carefully.
Retain the manual for future reference.
You are advised to follow the instructions careful ly when operating the unit.
Do not use any chemical solvent, clean agent or co rrosive detergent to clean away dirt of the surface of the screen. By doing so, you may cause irreversible dam age to the surface of the TFT screen. To clean off dirt or fingerprints, we recommend the use of a soft damp l ens cleaning cloth.
Using spare parts from another manufacturer may ca used permanent damage to the unit.
When operating the display unit, avoid touching or pressing the LCD glass panel. Excessive force may cause irreparable damage to the LCD screen.
It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a s creen that is located in the motor vehicle at any point forward o f the back of the driver’s seat, or that is visible , directly or indirectly, to the driver while operating the vehic le. In the interesting of safety, this monitor shou ld never be installed where it will be visible, directly or ind irectly, by the operator of the motor vehicle.
Lock the LCD screen in the fully closed position w hen not in use.
Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights can drain the vehicle’s battery. - 1 - MAIN FEATURES
AU PANEL 8.5” 16:9 WIDE SCREEN TFT-LCD MONITOR
BUILT IN DVD Player
BULIT IN USB INPUT
BUILT IN WIRELESS HEADPHONE IR TRANSMITTER
1 AUDIO/VIDEO INPUT
FULL FUNCTION WIRELESS REMOTE CONTROL
(OSD) ON SCREEN DISPLAY FOR CONTROL OF PICTURE QUA LITY AND FUNCTIONS
DYNAMIC LED BACKLIGHT OF TOUCH PAD CONTROL
MULTI LANGUAGE SUPPORTED (ENGLISH/ FRENCH/ GERMAN) MAIN SPECIFICATIONS DISPLAY: 8.5” wide scre en TFT LCD active matrix RESOLUTION: 800RGB(W) X 480( H) PIXEL PITCH(mm): 0.13(W) X 0.45( H) VIEWING ANGLE: Left/Right 130°, Up/Down 45°/65° BRIGHTNESS: 250 NITS CONTRAST RATIO: 300:1 POWER SOURCE: DC 12V (NEGATIVE G ROUND) POWER CONSUMPTION: 20W ( Max.) OPERATING TEMPERATURE: 0 °C ~60 °C (32 °F ~140 °F ) STORAGE TEMPERATURE: -20 °C ~70 °C (-4 °F ~158 °F ) DIMENSIONS (W x D x H): 290 x 280 x 45 mm NET WEIGHT: 2.15Kgs. (4.7lbs ) - 2 - .. DVD PLAYER Supports DVD, SVCD, VCD, AUDIO CD, MP3 and MPEG vid eo, JPEG and BMP format. MEDIA PLAYER
Support USB Drive.
Equipped with USB Socket.
Plays MPEG1 and MPEG2 format movies. (JPEG 、 AVI 、 BMP).
Plays MP3 music.
Applies to NTSC or PAL system. STANDARD ACCESSORIES PACKAGE CONTENTS
Remote control (ART300 x 2 AAA Batteries)
Operating manual
Power connection cable - 3 - BUTTONS ON THE FRONT PANEL CONTROLS & CONNECTORS D E A F B C
A: RCA jack (Red/white/yellow)
B: USB port
C: Backlight switch - 4 -
D: IR
E: Monitor lock
F: Disc slot port TOUCH PAD KEY DESCRIPTION 4 7 11 1 2 3 4 5 4 6 7 5 4 8 9 10 1. POWER button : Press to turn the monitor on/off 2. MENU button : Press menu button to active OSD feature and selec t OSD features 3. STOP button : DVD Stop 4. / / / LEFT/DOWN/RIGHT/UP buttons : OSD / DVD Menu Item Select Left/Down/Right/Up 5. / : DVD Previous / Next Chapter 6. OK button : OSD / DVD Enter Key 7. / : DVD Backward / Forward (2x, 4x, 8x, 20x) 8. : PLAY / PAUSE button : DVD Play / Pause 9. TITLE button : DVD Title 10. SOURSE button : AV Source Select.(DVD ﹑ GAME ﹑ CROSSLINK ﹑ AUX) 11. : DVD Eject - 5 - REMOTE CONTROL OPERATION MONITOR FUNCTION DESCRIPTIONS 2 1. POWER button Press this button to turn on the selected monitor, press again to turn off the monitor. 1 3 2. SOURCE button Press SOURCE button to toggle between sources on se lected 4 monitor. 8 3. DRIVER / PASSENGER buttons 5 Press these buttons to select which monitor you wou ld like to control with the remote control. 9 10 4. MUTE button 11 13 Press to mute the audio, press the button again to restore 12 14 sound to the previous audio level. 15 16 5. VOLUME buttons 17 19 Use these buttons to raise and lower the volume lev el of the 18 audio output. 21 20 6. PIC MENU button 22 7 Press this button to activate the on-screen display (OSD) menu. 7. CTRL buttons Use these buttons to change the function or value o f the monitor settings. 6 - 6 - REMOTE CONTROL OPERATION DVD FUNCTION DESCRIPTIONS 8. Number buttons [1]... [10+], direct access for CD tracks, DVD chapte rs, and password setting. 9. ENTER button Press this button to confirm selection. 10. DISPLAY button Press to display current media information. 11. SETUP button Allows the user to select the DVD player’s options (General, Audio, Video, Preference, Password, Exit Setup). 12. PBC MENU button Toggles available subtitles when playing VCD 2.0, o r shortcut to DVD selection title menu. 13. TITLE button Certain DVDs come with title selections. For such c ases, the TITLE button allows the user to select de sired title. 14. ZOOM button Allows the user to zoom in or zoom out the image, p ress the “LEFT/RIGHT/UP/DOWN” buttons to move the zoomed image to move in the direction of the remain ing portion of the image. 15. / buttons Allows the user to search in a backward or forward direction. - 7 - REMOTE CONTROL OPERATION 16. SUBTITLE button Toggles the displayed subtitiles if available on yo ur selection. 17. / / / buttons Move the selection or cursor left, right, up or dow n. 18. button Starts playback or starts a feature while a disc is loaded in the disc player or pauses media playback . 19. A-B button Allows the user to repeat play of a DVD or CD from point A to point B. Press button once to set point A once again to set point B. 20. / buttons Returns to the previous or advances to the next cha pter or track. 21. REPEAT button Allows the user to repeat play various positions of a DVD, CD or MP3 (Track/Chapter/All). 22. ■ STOP button Media playback will be halted. - 8…

Text truncated - open the document above for the full version.

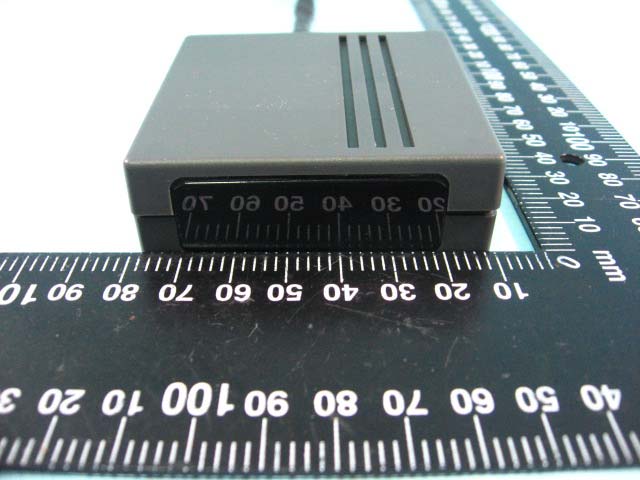

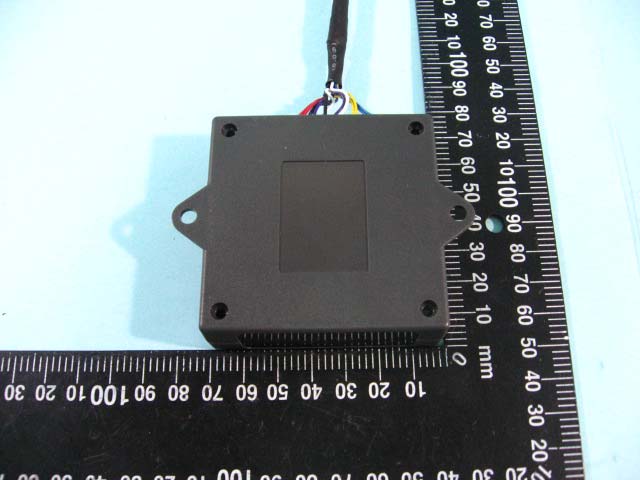

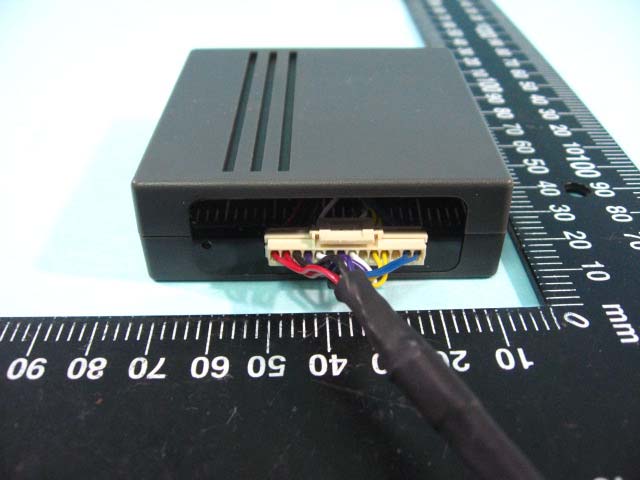

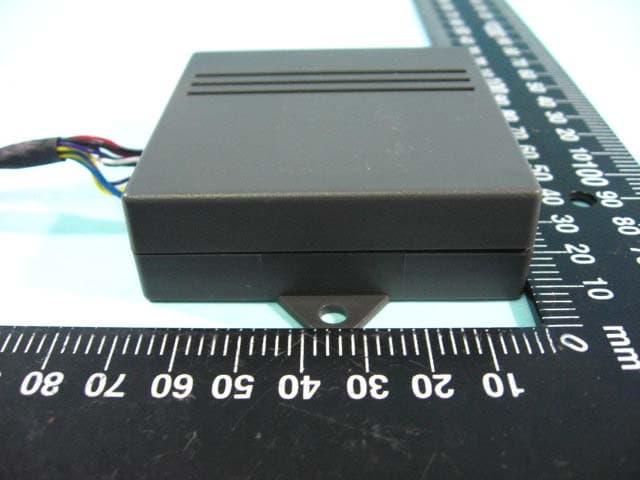

ETC Report No.:09-11-RBF-040-01 FCC ID.: VEIMANDDACCM85 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Total View of EUT Front View of EUT ETC Report No.:09-11-RBF-040-01 FCC ID.: VEIMANDDACCM85 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Rear View of EUT ETC Report No.:09-11-RBF-040-01 FCC ID.: VEIMANDDACCM85 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Bottom View of EUT

910805 1 LABEL FCC ID: VEIMANDDACCM85 Model: ANT-135 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 58.5mm 19.5m

ETC Report No.:09-11-RBF-040-01 FCC ID.: VEIMANDDACCM85 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT ETC Report No.:09-11-RBF-040-01 FCC ID.: VEIMANDDACCM85 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Component View of PCB

Rev. No 2.0 FCC Part 15 Subpart C TEST REPORT of E.U.T. : FM Transmitter (of an 8.5” tft lcd seat back hanging Monitor With Built-In DVD) FCC ID. : VEIMANDDACCM85 MODEL : ANT-135 Working Frequency : 88.1~107.9 MHz for APPLICANT : CENEC Corp. ADDRESS : 10F., No.63, Sec. 1, Sanmin Rd., Banciao City, Taipei County 220, Taiwan(R.O.C.) Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. http://www.etc.org.tw ; e-mail : [email protected] Tel:(02)26023052 Fax:(02)26010910 Report Number: 09-11-RBF-040-01 ETC Report No.:09-11-RBF-040-01 FCC ID.: VEIMANDDACCM85 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : CENEC Corp. 10F., No.63, Sec. 1, Sanmin Rd., Banciao City, Taipei County 220, Taiwan(R.O.C.) Manufacturer : CENEC Corp. 10F., No.63, Sec. 1, Sanmin Rd., Banciao City, Taipei County 220, Taiwan(R.O.C.) Description of EUT : a) Type of EUT : FM Transmitter (of an 8.5” tft lcd seat back hanging Monitor With Built-In DVD) b) Trade Name : Myron&davis c) Model No : ANT-135 d) Working Frequency : 88.1~107.9 MHz e) Power Supply : Power from host DVD monitor (DC 12V) Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2008) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Issued Date : Jan. 25, 2010 Test Engineer : ( Vincent Chang, Engineer ) Test Engineer : (Charles Wang, Supervisor ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:09-11-RBF-040-01 FCC ID.: VEIMANDDACCM85 Rev. No 2.0 Table of Contents 1. GENERAL INFORMATION .................................................................................................. 1 1.1 Product Description ................................................................................................... 1 1.2 Test Methodology ...................................................................................................... 1 1.3 Test Facility .......................................................................................................... 1 2. DEFINITION AND LIMITS.................................................................................................... 2 2.1 Definition .......................................................................................................... 2 2.2 Restricted Bands of Operation .................................................................................. 2 2.3 Limitation .......................................................................................................... 2 2.4 Labeling Requirement ............................................................................................... 3 2.5 User Information ........................................................................................................ 3 3. SYSTEM TEST CONFIGURATION ..................................................................................... 4 3.1 Justification .......................................................................................................... 4 3.2 Devices for Tested System ........................................................................................ 4 4 RADIATED EMISSION MEASUREMENT.......................................................................... 5 4.1 Applicable Standard ................................................................................................... 5 4.2 Measurement Procedure ............................................................................................ 5 4.3 Measuring Instrument ................................................................................................ 7 4.4 Test Data .......................................................................................................... 8 4.5 Field Strength Calculation ......................................................................................11 4.6 Radiated Measurement Photos ...............................................................................12 5 CONDUCTED EMISSION MEASUREMENT ................................................................... 13 5.1 Standard Applicable .................................................................................................13 6 ANTENNA REQUIREMENT ............................................................................................... 14 6.1 Standard Applicable .................................................................................................14 6.2 Antenna Construction ..............................................................................................14 7 EMISSION BAND MEASUREMENT.................................................................................. 15 7.1 Standard Applicable .................................................................................................15 7.2 Measurement Procedure ..........................................................................................15 7.3 Measurement Equipment .........................................................................................15 7.4 Measurement Data ...................................................................................................15 ETC Report No.:09-11-RBF-040-01 Sheet 1 of 20 Sheets FCC ID.: VEIMANDDACCM85 Rev. No 2.0 1. GENERAL INFORMATION 1.1 Product Description a) Type of EUT : FM Transmitter (of an 8.5” tft lcd seat back hanging Monitor With Built-In DVD) b) Trade Name : Myron&davis c) Model No. : ANT-135 d) Frequency Modulation : 88.1~107.9 MHz e) Power Supply : Power from host DVD monitor (DC 12V) 1.2 Test Methodology Both conducted and radiated testing was performed according to the procedures in chapter 13 of ANSI C63.4 (2003) The FM TRANSMITTER was operated in its normal o…

Text truncated - open the document above for the full version.

ETC Report No.:09-11-RBF-040-01 FCC ID.: VEIMANDDACCM85 Rev. No 2.0 Radiated Measurement Photos
