VF2-WPC04WIRELESS CONTROLLER FOR SWIMMING POOL PERIPHERALS

http://www.fiberstars.co 79-15103-00 REV. B e 1 of 11 ETL LISTED Conforms to UL STD 508; Certified to CSA STD C22.2 No. 14 Installation Instructions: Read these instructions in their entirety before performing any installation work. Rated for use on 110/120VAC 60Hz and 220/240VAC 60Hz applications WPC-04R FOR USE WITH POOL AND SPA PRODUCTS m Pag http://www.fiberstars.com 79-15103-00 REV. B Page 2 of 11 The WPC-04R consists of the following parts: Item No. Qty. Component part No. Description 1 1 42-15032-00 Timer 2 1 41-15004-08 8 Position Terminal Block 3 12 10-15089-01 M3 Screw, 4MM Length 4 2 10-15089-07 M3 Screw, 14MM Length 5 1 37-15000-00 Relay 6 1 02-15287-00 Base Plate 7 1 02-15286-00 Timer and Switch Plate 8 1 02-15285-00 Relay Cover 9 1 38-15012-00 3 Position Rocker Switch 10 3 A10670 Screw, 8-32 x .25” 11 4 14-15032-00 PCB Standoff 12 1 94-15108-01 PCB 13 1 04-15045-00 Enclosure 14 1 94-15092-00 WPC Repeater Accessory Items: FP 1/2 Temperature Freeze Device WE-65 65 ft Repeater Cord Extension Kit DL-HUB Direct Light Hub Connection Kit 1 2 3 3 3 3 3 4 5 6 7 8 9 3 10 13 14 12 11 http://www.fiberstars.com 79-15103-00 REV. B Page 3 of 11 FCC WARNING 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by Fiberstars Inc. could void the user's authorit y to operate the equipment. SAVE THESE INSTRUCTIONS! ELECTRICAL RATINGS Do not exceed the maximum electrical ratings of the WPC-04R. Install a 20Amp 120VAC Circuit Breaker in the Breaker Panel for connection to the Time Clock Input. This Circuit Breaker is also used for Light Input. Refer to pages 4 and 5 for installation instructions. Light circuit is rated for 8Amp 120VAC Max. Basic safety precautions should be observed when operating the WPC-04R product and other associated equipment. 1. A qualified electrician must install the WPC-04R in accordance to the National and Local Electrical Codes. 2. The WPC-04R must not be less then 5 feet (3 meters in Canada) from inside edge of pool. ONLY USE COPPER CONDUCTORS. 3. Do not exceed the maximum ratings of individual components, wiring devices, and current carrying capacity of conductors. 4. For the bonding, grounding, installing, and wiring of underwater lights to the WPC-04R, refer to Article 680 of the National Electrical Code or Article 68 of the Canadian Electrical Code. 5. This device should never operate an equipment that could cause property damage, bodily injury, or death should it be activated unexpectedly. 6. Never allow children to operate the WPC-04R unsupervised. IMPORTANT SAFETY INFORMATION http://www.fiberstars.com 79-15103-00 REV. B Page 4 of 11 Power Connections: To wire the WPC-04R use insulated COPPER wire only, 12 gauge m Run a ½” to ¾” conduit from the ma breaker panel to the WPC-04R. Pul appropriate wires from the main breaker panel to the WPC-04R unit. To make power connections remove 3/8 inch insulation from wire ends. Insert the bare end of wires under the pressure plate of terminals (Power Input, HOT Use 1/8-in. flat head screwdriver to tighten terminal screws firmly (4.4 lb minimum). Connect the house comm to the Power Inputs NEUTRAL terminal. Connect another HOT wire the Timeclocks T/C POWER term Connect a house common to the Timeclocks T/C NEUTRAL. In 20 Amp circuit breaker in the main breaker panel and connect the HOT wires from the WPC-04R. in l es of ). -in on to inal. stall a inimum. GFCI GROUND NEUTRAL 120V LINE INPUT NEUTRAL FROM GFCI LOAD 120V POWER FROM GFCI LOAD T C 120V I N PUT TC NE UTRA L LOCATION Install the WPC-04R enclosure using the mounting plates included with each enclosure. The WPC-04R is housed in a Type 3R rainproof enclosure and can be mounted anywhere between the pool equipment and the breaker panel. WIRING INSTRUCTIONS FOLLOW PROPER WIRING PRACTICES IN ACCORDANCE WITH ALL LOCAL REGULATORY REQUIREMENTS. WARNING • TURN OFF INCOMING POWER BEFORE SERVICING EQUIPMENT. • ALL INSTALLATION AND MAINTENANCE WORK MUST BE PERFORMED BY QUALIFIED ELECTRICAL PERSONELL ONLY. • VERIFY ALL ELECTRICAL RATINGS BEFORE INSTALLATION IS COMPLETE. http://www.fiberstars.com 79-15103-00 REV. B Page 5 of 11 to the LIGHT GROUND LIGHT NEUTRAL LIGHT HOT Hooking up Lights to Circuit 1 To connect a lighting product to the C 1 switch, pull wires from the product WPC-04R through conduits connected to the bottom of the WPC-04R. As illustrated, connect the light that will be operated by the Rocker Switch to the Light Hot terminal. Connect the Neutral to the Light Neutral terminal. Connect the Ground to the Light Ground terminal. Do not exceed 8Amps per circuit. ircuit http://www.fiberstars.com 79-15103-00 REV. B Page 6 of 11 240VAC PUMP SECONDARY PRIMARY CONNECTING A 240VAC PUMP Connect the 240VAC pump to the relay as illustrated. Connect the Line Power to a 240VAC Circuit Breaker on the breaker panel. Circuit Breaker should be rated to correspond to Horsepower and Amperes rating of Pump being used. NOT TO EXCEED 1.5HP 120V/3HP 240V – 30Amps. http://www.fiberstars.com 79-15103-00 REV. B Page 7 of 11 Flathead Screwdriver Repeater Mounting The WPC-04R is equipped with a signal repeater that can be mounted up to 10 feet from the WPC-04R unit. This repeater receives signals from the wireless remote and sends that signal to the WPC-04R via the 10 foot cable. Establish a location for the Repeater that is in line of sight from where the wireless remote will be used most frequently and that is no more then 75 feet from furthest where the remote will be used. NOTE: If extension is needed, use Fiberstars part number 94-15098-00 and follow installation instructions supplied with the Repeater Extension. To mount the Repeater, carefully insert a small flathead screwdriver into groove between the Dome and Base appr…

Text truncated - open the document above for the full version.

TIMER PUMP OFF REMOTE INPUT VOLTAGE RELAY WPC-04 BLOCK DIAGRAM LIGHT BASIC FUNCTION The WPC-04 industrial controller operates on either 120Vac or 240Vac. It may contain one timer that controls pool equipment such as a pool/spa pump and has one remote capable circuit for the control of a lighting fixture such as a Sam or a Sal underwater lighting fixture.

ITC Engineering Services Over 20 years experience in Compliance Testing and Engineering Consulting Services ———————————————————————————————————————————————————————— ————————————————ISO 17025, NVLAP and VCCI Accredited Laboratory———————————————— 9959 Calaveras Road, Box 543, Sunol, CA 94586-0543 Phone: (925) 862-2944 • (888) 336-7625 • Fax: (925) 862-9013 E-mail: [email protected] • Web: www.itcemc.com Date: Thursday July 19, 2007 Timco Engineering Inc. 849 NW State Road 45 Newberry, Florida 32669 Subject: Request for Confidentiality To Whom It May Concern, Pursuant to 47CFR 0.575(d) of the commissions rules and section 552(b)(4) of the Freedom of Information Act (which authorizes the withholding from public inspection materials which would be privileged as a matter of law, such as trade secrets), we are hereby requesting that the following documents are to be handled with confidentiality and removed from display on the FCC Status Query Form Display of Exhibits: • Transmitter WPC04 schematic, layout, BOM.pdf • Repeater schematic.pdf • Receiver schematic.pdf If there are any questions or if further information is needed, please call me at (925) 862-2944. Thank you. Yours sincerely, John Caizzi Compliance Engineer ITC Engineering Services Inc.

External Photos for Fiberstars WPC04 Wireless Pool Controller The WPC04 consists of the WPC04 transmitter and the WPC04 relay controller with repeater. Figure 1. WPC04 transmitter, front. Figure 2. WPC04 transmitter, back.

NOTE: THE SMALL LABEL WILL GO ON THE BACK OF EACH REMOTE. WPC2 WPC-3 WPC-04 WPC1

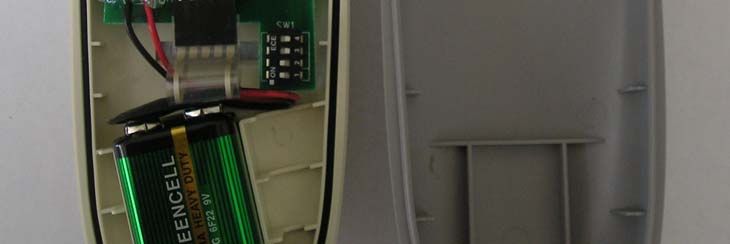

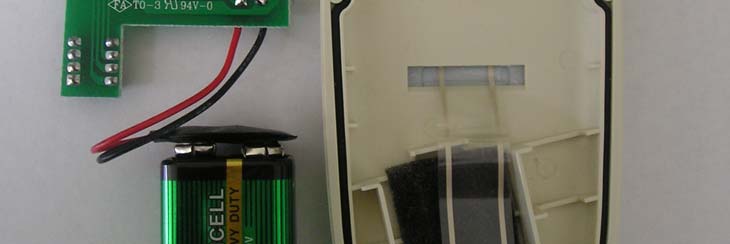

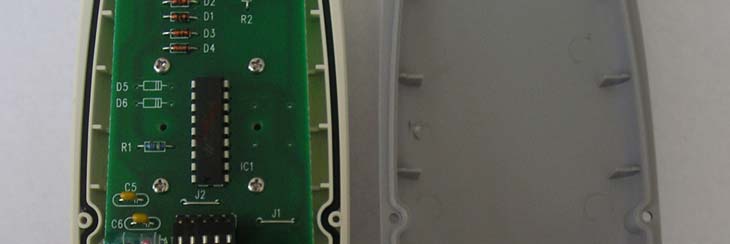

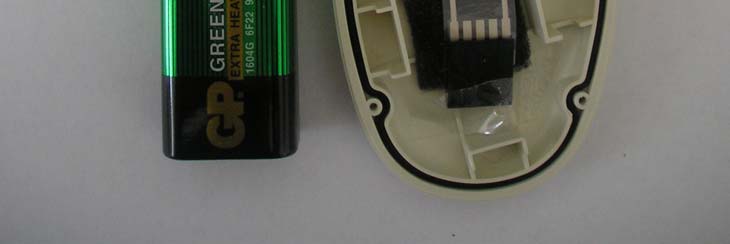

Internal Photos for Fiberstars WPC04 Wireless Pool Controller The WPC04 consists of the WPC04 transmitter and WPC04 relay controller with repeater. Figure 1. WPC04 transmitter, PCB bottom. Figure 2. WPC04 transmitter, PCB top.

TIMER PUMP OFF REMOTE INPUT VOLTAGE RELAY WPC-04 BLOCK DIAGRAM LIGHT BASIC FUNCTION The WPC-04 industrial controller operates on either 120Vac or 240Vac. It may contain one timer that controls pool equipment such as a pool/spa pump and has one remote capable circuit for the control of a lighting fixture such as a Sam or a Sal underwater lighting fixture.

EMI/EMC per 47CFR Part 15 Test Report For Fiberstars Inc. On Wireless Pool Controllers Models WPC-1, WPC-2, WPC-3, WPC-04R Test data in this report include: Emissions Test Methods per 47CFR15 Subpart B, Unintentional Radiators 47CFR15 Subpart C, Intentional Radiators Report No. 20070604-01FCC Judgement Complies as Tested Test Unit Provided for Evaluation by Fiberstars, Inc. 32000 Aurora Road Solon, Ohio 44139 Tests and Report by ITC Engineering Services, Inc. 9959 Calaveras Road, Box 543 Sunol, California 94586-0543 Tel: (925) 862-2944 Fax: (925) 862-9013 Email: [email protected] Web Site: www.itcemc.com  ISO 17025 Accredited Compliance Laboratory Lab Code 200172-0 Applicant: Fiberstars Inc. Report Number: 20070604-01FCC Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: +1(925) 862-2944 Fax: +1(925) 862-9013 Email: [email protected] Web: www.itcemc.com Page 2 of 39 Product: Wireless Pool Controller Models: WPC-1, WPC-2, WPC-3, WPC-04R Table of Contents TABLE OF CONTENTS ............................................................................................................................................ 2 TABLE OF FIGURES................................................................................................................................................ 3 LIST OF TABLES...................................................................................................................................................... 4 1 DOCUMENTATION ............................................................................................................................. 5 1.1 GENERAL INFORMATION.................................................................................................................................. 5 1.2 SUMMARY OF TEST......................................................................................................................................... 5 1.2.1 Emissions Test Methods:.........................................................................................................................5 1.3 DECLARATION/DISCLAIMER.............................................................................................................................. 6 1.4 EUT PORT AND CONNECTORS........................................................................................................................ 6 1.5 EUT DESCRIPTION.......................................................................................................................................... 6 1.6 LIST OF PERIPHERALS USED DURING TEST...................................................................................................... 6 1.7 GENERAL TEST REMARKS...............................................................................................................................7 2 EMISSIONS TESTS: ........................................................................................................................... 8 2.1 UNINTENTIONAL RADIATED EMISSIONS PER 47CFR15.109A............................................................................. 8 2.1.1 Test Description .......................................................................................................................................8 2.1.2 Administrative and Environmental Details ...............................................................................................8 2.1.3 Test Equipment ........................................................................................................................................8 2.1.4 Test Results .............................................................................................................................................8 2.1.5 Test Data..................................................................................................................................................9 2.1.6 Test Setup Photos .................................................................................................................................15 2.2 INTENTIONAL AND SPURIOUS RADIATED EMISSIONS PER 47CFR15.231B........................................................ 17 2.2.1 Test Description .....................................................................................................................................17 2.2.2 Administrative and Environmental Details .............................................................................................17 2.2.3 Test Equipment ......................................................................................................................................17 2.2.4 Test Results ...........................................................................................................................................17 2.2.5 Test Data................................................................................................................................................18 2.2.6 Test Setup Photos .................................................................................................................................22 2.3 OCCUPIED BANDWIDTH PER 47CFR15.231C................................................................................................. 24 2.3.1 Test Description .....................................................................................................................................24 2.3.2 Administrative and Environmental Details .............................................................................................24 2.3.3 Test Equipment ......................................................................................................................................25 2.3.4 Test Results ...........................................................................................................................................25 2.3.5 Test Data..............................................…

Text truncated - open the document above for the full version.

Figure 5. WPC3 transmitter, configured for continuous transmission. Figure 6. WPC3 transmitter test setup. Figure 7. Intentional & spurious radiated emissions, occupied bandwidth setup, 200-1000 MHz. Figure 8. Intentional and spurious radiated emissions setup, 1-3.15 GHz. Figure 9. Unintentional conducted emissions setup.
