VF2-WPC3WIRELESS CONTROLLER FOR SWIMMING POOL PERIPHERALS

http://www.fiberstars.com 79-15097-00 REV B Page 1 of 20 Installation Instructions: Read these instructions in their entirety before performing any installation work. Rated for use on 110/120VAC 60Hz and 220/240VAC 60Hz applications WPC-3 ETL LISTED Conforms to UL STD 508; Certified to CSA STD C22.2 No. 14 FOR USE WITH POOL AND SPA PRODUCTS 2 1 3 4a, 4b 9 7 21 14 6 8 15 18 19 10 11 10 12 13 17 20 5 The WPC-3 single speed consists of the following parts: Item Qty. Component part No. Description 1 1 94-15106-00 WPC-3 Enclosure 2 1 94-15089-00 WPC-3 Enclosure Door 3 2 37-15000-00 Relay 4a 1 41-15004-12 12-Position Terminal Block 4b 1 41-15004-05 5-Position Terminal Block 5 1 42-15032-00 Timer 6 1 02-15269-00 Load Center Cover Plate 7 2 02-15267-00 WPC-2 Mounting Bracket 8 1 41-15003-00 Grounding Bar 9 2 94-15090-00 WPC Receiver 10 6 10-15086-04 Load Center Cover Plate, Switch Bracket, and Mounting Bracket Screws 11 5 10-15089-06 Terminal Block Mounting Screw 12 4 10-15060-01 Relay Mounting Screw 13 2 10-15089-03 Timer Mounting Screws 14 3 38-15012-00 3-Position Rocker Switch 15 1 94-15092-00 WPC Repeater 16 1 10-15089-02 Freeze Device Mounting Screw (Optional equipment) 17 1 20-15013-00 Strain Relief 18 1 02-15283-00 WPC-3 Timer and Switch Bracket 19 1 17-15005-00 Latch 20 2 10-15089-01 Latch Mounting Screws 21 1 43-15021-00 WPC-3 Antenna Splitter 10 16 http://www.fiberstars.com 79-15097-00 REV B Page 2 of 20 http://www.fiberstars.com 79-15097-00 REV B Page 3 of 20 2 1 3 9 18 14 6 4a, 4b 7 21 8 5 19 22 15 10 10 11 12 13 17 20 10 10 Accessory Items: FP 1/2 Temperature Freeze Device WE-65 65 ft Repeater Cord Extension Kit WPC-2/3 ST GFCI Mounting Kit DL-HUB Direct Light Hub Connection Kit TC-2 Additional Timeclock/Dust Cover WPC-TRANS 24V Transformer for Fiberstars Light Streams LED Products or JVA Control The WPC-3 dual speed consists of the following parts: Item Qty. Component part No. Description 1 1 94-15106-00 WPC-3 Enclosure 2 1 94-15089-00 WPC-3 Enclosure Door 3 2 37-15000-00 Relay 4a 1 41-15004-12 12-Position Terminal Block 4b 1 41-15004-05 5-Position Terminal Block 5 2 42-15032-00 Timer 6 1 02-15269-00 Load Center Cover Plate 7 2 02-15267-00 WPC-2 Mounting Bracket 8 1 41-15003-00 Grounding Bar 9 2 94-15090-00 WPC Receiver 10 6 10-15086-04 Load Center Cover Plate, Switch Bracket, and Mounting Bracket Screws 11 5 10-15089-06 Terminal Block Mounting Screw 12 4 10-15060-01 Relay Mounting Screw 13 4 10-15089-03 Timer Mounting Screws 14 3 38-15012-00 3-Position Rocker Switch 15 1 94-15092-00 WPC Repeater 16 1 10-15089-02 Freeze Device Mounting Screw (Optional equipment) 17 1 20-15013-00 Strain Relief 18 1 02-15283-00 WPC-3 Timer and Switch Bracket 19 1 17-15005-00 Latch 20 2 10-15089-01 Latch Mounting Screws 21 1 43-15021-00 WPC-3 Antenna Splitter 22 1 37-15001-00 DPDT Relay 16 http://www.fiberstars.com 79-15097-00 REV B Page 4 of 20 FCC WARNING 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by Fiberstars Inc. could void the user's authorit y to operate the equipment. SAVE THESE INSTRUCTIONS! Basic safety precautions should be observed when operating the WPC-3 product and other associated equipment. 1. A qualified electrician must install the WPC-3 in accordance to the National and Local Electrical Codes. 2. The WPC-3 must not be less then 5 feet (3 meters in Canada) from inside edge of pool. ONLY USE COPPER CONDUCTORS. 3. Do not exceed the maximum ratings of individual components, wiring devices, and current carrying capacity of conductors. 4. For the bonding, grounding, installing, and wiring of underwater lights to the WPC-3, refer to Article 680 of the National Electrical Code or Section 68 of the Canadian Electrical Code. 5. This device should never operate an equipment that could cause property damage, bodily injury, or death should it be activated unexpectedly. 6. Never allow children to operate the WPC-3 unsupervised. IMPORTANT SAFETY INFORMATION ELECTRICAL RATINGS Do not exceed the maximum electrical ratings of the WPC-3. A circuit breaker rated at 20Amps at 120VAC must installed in the breaker panel to connect to the WPC-3 power input. Circuit 1 and Circuit 2 are each rated for use of up to 8Amps @ 120VAC. The Pump Relay is rated at a maximum of 3HP @ 240VAC. SINGLEDOUBLETWINQUADGFCB Thomas & BettsTBTBTBBDTBBQGFBFP-1C-TB Cutler-HammerBRBRBRDBRDGFCBBRFP Sq uare DHOMHOMHOMTHOMTHOM-GFIHOM FP MurrayMP-TMP-TMH-TMH-TMP-GTLX100FP Siemens/ITEQPQPQTQTQPFQF-3 ChallengerC-A-CT-HAGF# FC-1C West inghouse or BryantBR-BQ-GFCBFP-1 Cro use Hind sM P-TRIPLEX-M P-GF- GE Reg ularTHOP---THOP-GFTQLFP-1 SUITA B LE LISTED B REAKERS CIRCUIT BREAKER M ANUFACTURERFILLER PLA TE 120V240V AWGAMPLB-INLB-INHPHPAMPAMP 14153 52 01/ 211512 12203520122016 103035201 1/233024 8504025254032 6654535--6044 4854535---- 310050----- 2100/12550----- General Pur p o se Branch Circuit Breaker Rating General Pur p o se Branch Circuit Maximum Current Capacity W i r ing Inf o r mat io n - Co p p er Co nduct o r s Only Terminal Torque* Wire Size 75°C mi n. Insulat io n Sup p ly Circuit Breaker Rating Line and Neutral Main Lug s Neutral and Gro und Max Motor Load (Continuous Duty) http://www.fiberstars.com 79-15097-00 REV B Page 5 of 20 WARNING • TURN OFF INCOMING POWER BEFORE SERVICING EQUIPMENT. • ALL INSTALLATION AND MAINTENANCE WORK MUST BE PERFORMED BY QUALIFIED ELECTRICAL PERSONELL ONLY. • VERIFY ALL ELECTRICAL RATINGS BEFORE INSTALLATION IS COMPLETE. LOCATION Install the WPC-3 enclosure using the mounting plates included with each enclosure. The WPC- 3 is housed in a Type 3R rainproof enclosure and can be mounted anywhere between the pool equipment and the breaker panel. NOTE: If a freeze protect device is required, please see Fiberstars part no.…

Text truncated - open the document above for the full version.

WPC - 3 BLOCK D IAGRAM TIM E R PUMP OFF REMO TE LIGHT LIGHT INP U T VOL TA GE CIRCUIT BREAKER REMO TE OFF PUMP RELAY OFF REMO TE CIRCUIT BREAKER CIRCUIT BREAKER CIRCUIT BREAKER RELAY PUMP RELAY TIM E R CIRCUIT BREAKER CIRCUIT BREAKER RELAY TIM E R PUMP BASIC F U NCTION The W P C-3 industrial controller operates on either 120Vac or 240Vac. It m a y also com e equi pped with a circuit breaker panel for added protection of incom i ng power . It m a y contain one, two, or three tim er s that control pool equipm ent such as pool/spa pumps, and has three rem o te capab le circuits for the control of lighting fixtures such as S a m and Sal underwater lighting f i xtures and an optiona l add ition a l pum p such as a po ol cle a ner p u m p. The remote is also able to sync hronize the lights, circuits two and three.

ITC Engineering Services Over 20 years experience in Compliance Testing and Engineering Consulting Services ———————————————————————————————————————————————————————— ————————————————ISO 17025, NVLAP and VCCI Accredited Laboratory———————————————— 9959 Calaveras Road, Box 543, Sunol, CA 94586-0543 Phone: (925) 862-2944 • (888) 336-7625 • Fax: (925) 862-9013 E-mail: [email protected] • Web: www.itcemc.com Date: Thursday July 19, 2007 Timco Engineering Inc. 849 NW State Road 45 Newberry, Florida 32669 Subject: Request for Confidentiality To Whom It May Concern, Pursuant to 47CFR 0.575(d) of the commissions rules and section 552(b)(4) of the Freedom of Information Act (which authorizes the withholding from public inspection materials which would be privileged as a matter of law, such as trade secrets), we are hereby requesting that the following documents are to be handled with confidentiality and removed from display on the FCC Status Query Form Display of Exhibits: • Transmitter WPC3 schematic, layout, BOM.pdf • Repeater schematic.pdf • Receiver schematic.pdf • WPC3 splitter schematic If there are any questions or if further information is needed, please call me at (925) 862-2944. Thank you. Yours sincerely, John Caizzi Compliance Engineer ITC Engineering Services Inc.

External Photos for Fiberstars WPC3 Wireless Pool Controller The WPC3 consists of the WPC3 transmitter and the WPC3 relay controller with repeater. Figure 1. WPC3 transmitter, front. Figure 2. WPC3 transmitter, back.

NOTE: THE SMALL LABEL WILL GO ON THE BACK OF EACH REMOTE. WPC2 WPC-3 WPC-04 WPC1

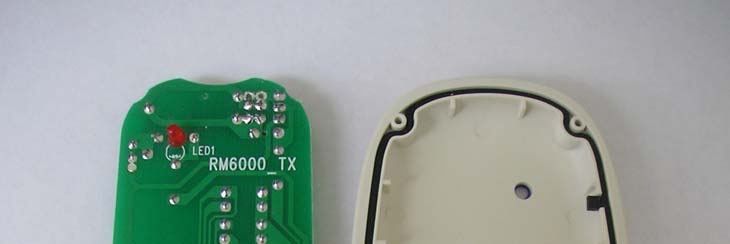

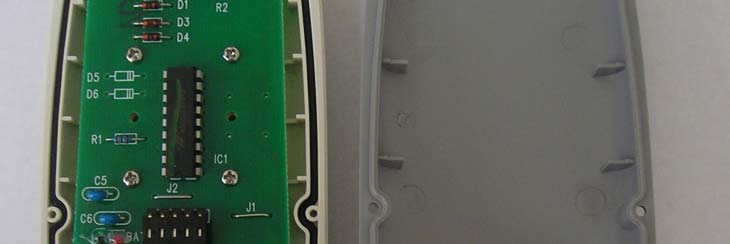

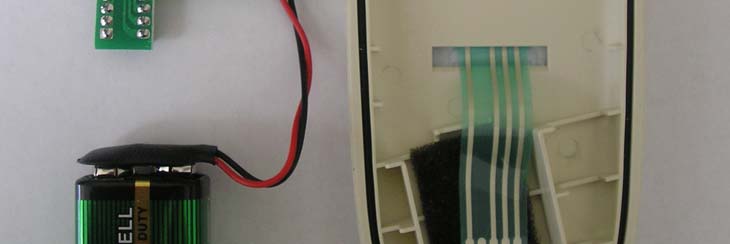

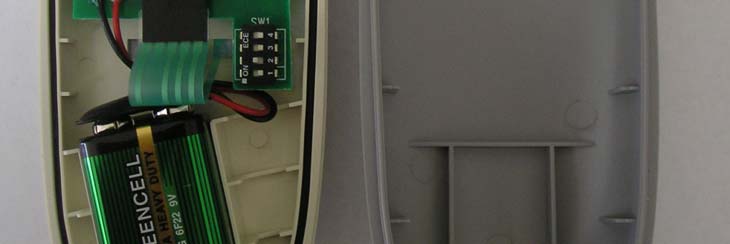

Internal Photos for Fiberstars WPC2 Wireless Pool Controller The WPC2 consists of the WPC transmitter and WPC2 relay controller with repeater. Figure 1. WPC transmitter, PCB bottom. Figure 2. WPC transmitter, PCB top.

WPC - 3 BLOCK D IAGRAM TIM E R PUMP OFF REMO TE LIGHT LIGHT INP U T VOL TA GE CIRCUIT BREAKER REMO TE OFF PUMP RELAY OFF REMO TE CIRCUIT BREAKER CIRCUIT BREAKER CIRCUIT BREAKER RELAY PUMP RELAY TIM E R CIRCUIT BREAKER CIRCUIT BREAKER RELAY TIM E R PUMP BASIC F U NCTION The W P C-3 industrial controller operates on either 120Vac or 240Vac. It m a y also com e equi pped with a circuit breaker panel for added protection of incom i ng power . It m a y contain one, two, or three tim er s that control pool equipm ent such as pool/spa pumps, and has three rem o te capab le circuits for the control of lighting fixtures such as S a m and Sal underwater lighting f i xtures and an optiona l add ition a l pum p such as a po ol cle a ner p u m p. The remote is also able to sync hronize the lights, circuits two and three.

EMI/EMC per 47CFR Part 15 Test Report For Fiberstars Inc. On Wireless Pool Controllers Models WPC-1, WPC-2, WPC-3, WPC-04R Test data in this report include: Emissions Test Methods per 47CFR15 Subpart B, Unintentional Radiators 47CFR15 Subpart C, Intentional Radiators Report No. 20070604-01FCC Judgement Complies as Tested Test Unit Provided for Evaluation by Fiberstars, Inc. 32000 Aurora Road Solon, Ohio 44139 Tests and Report by ITC Engineering Services, Inc. 9959 Calaveras Road, Box 543 Sunol, California 94586-0543 Tel: (925) 862-2944 Fax: (925) 862-9013 Email: [email protected] Web Site: www.itcemc.com  ISO 17025 Accredited Compliance Laboratory Lab Code 200172-0 Applicant: Fiberstars Inc. Report Number: 20070604-01FCC Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: +1(925) 862-2944 Fax: +1(925) 862-9013 Email: [email protected] Web: www.itcemc.com Page 2 of 39 Product: Wireless Pool Controller Models: WPC-1, WPC-2, WPC-3, WPC-04R Table of Contents TABLE OF CONTENTS ............................................................................................................................................ 2 TABLE OF FIGURES................................................................................................................................................ 3 LIST OF TABLES...................................................................................................................................................... 4 1 DOCUMENTATION ............................................................................................................................. 5 1.1 GENERAL INFORMATION.................................................................................................................................. 5 1.2 SUMMARY OF TEST......................................................................................................................................... 5 1.2.1 Emissions Test Methods:.........................................................................................................................5 1.3 DECLARATION/DISCLAIMER.............................................................................................................................. 6 1.4 EUT PORT AND CONNECTORS........................................................................................................................ 6 1.5 EUT DESCRIPTION.......................................................................................................................................... 6 1.6 LIST OF PERIPHERALS USED DURING TEST...................................................................................................... 6 1.7 GENERAL TEST REMARKS...............................................................................................................................7 2 EMISSIONS TESTS: ........................................................................................................................... 8 2.1 UNINTENTIONAL RADIATED EMISSIONS PER 47CFR15.109A............................................................................. 8 2.1.1 Test Description .......................................................................................................................................8 2.1.2 Administrative and Environmental Details ...............................................................................................8 2.1.3 Test Equipment ........................................................................................................................................8 2.1.4 Test Results .............................................................................................................................................8 2.1.5 Test Data..................................................................................................................................................9 2.1.6 Test Setup Photos .................................................................................................................................15 2.2 INTENTIONAL AND SPURIOUS RADIATED EMISSIONS PER 47CFR15.231B........................................................ 17 2.2.1 Test Description .....................................................................................................................................17 2.2.2 Administrative and Environmental Details .............................................................................................17 2.2.3 Test Equipment ......................................................................................................................................17 2.2.4 Test Results ...........................................................................................................................................17 2.2.5 Test Data................................................................................................................................................18 2.2.6 Test Setup Photos .................................................................................................................................22 2.3 OCCUPIED BANDWIDTH PER 47CFR15.231C................................................................................................. 24 2.3.1 Test Description .....................................................................................................................................24 2.3.2 Administrative and Environmental Details .............................................................................................24 2.3.3 Test Equipment ......................................................................................................................................25 2.3.4 Test Results ...........................................................................................................................................25 2.3.5 Test Data..............................................…

Text truncated - open the document above for the full version.

Figure 5. WPC3 transmitter, configured for continuous transmission. Figure 6. WPC3 transmitter test setup. Figure 7. Intentional & spurious radiated emissions, occupied bandwidth setup, 200-1000 MHz. Figure 8. Intentional and spurious radiated emissions setup, 1-3.15 GHz. Figure 9. Unintentional conducted emissions setup.
