OWNER’S MANUAL - REVERIE ® 4.1 BLUETOOTH ® SPEAKER AM-BT-SO1 E L AT I O N ™ SURROUND SOUND SPEAKERS CONTENTS 4 Introduction 5 Safety 8 Parts List 9 Technical Specs 10 Setup 12 Troubleshooting 13 Warranty 3 INTRODUCTION 4 BEFORE YOU BEGIN: Thank you for choosing Reverie ® Elation surround sound bed speakers. Your speakers are designed to attach to your bed legs and push sound up and around the bed. Now you can better amplify the bedroom entertainment experience with high performing Bluetooth ® -enabled surround sound speakers. Benefits of your Elation speaker system: • Specially-designed subwoofer for the bed that pushes sound up • Freedom to move around the bedroom using a smart device • Speakers easily clip on to bed foundation legs • Eco Power feature automatically turns off when not in use / turns on with music trigger Carefully unpack your speakers and save all of the packing materials, which provide the safest means for shipping or transporting. If any part appears damaged, do not attempt to use it. Contact Reverie ® directly at 1-800-973-8374. WARNING: To avoid danger of suffocation, keep the plastic bags that wrap this speaker system out of the reach of children. 5 Please read this guide carefully before using this product. After you have finished reading, please keep for future reference. The lightning flash with arrowhead symbol within an equilateral triangle alerts the user to the presence of uninsulated, dangerous voltage within the system enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle, as marked on the system, is intended to alert the user to the presence of important operating and maintenance instructions in this owner’s guide. WARNING: This product contains magnetic material. Please contact your physician if you have any questions on whether this might affect the operation of your implantable medical device. CAUTION: Make no modifications to the system or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and system performance. WARNING: To reduce the risk of fire or electrical shock, do not expose this product to water. CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK), NO USER-SERVICABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL SAFETY WARNINGS: • Do not operate the device outside of normal operating environment temperature of 32° to 113°F (0° to +45°C). • Do not place any naked flame source on or near the device. • Do not use any charger other than the one officially supplied by Reverie ® . • The short wave radio frequency signals of a Bluetooth ® device may impair the operation of other electronic and medical devices. • Keep this device at least 20 cm from pacemakers and other medical devices. • Switch off the device where it is prohibited. Do not use the device in medical facilities, aircraft, refueling points, close to automatic doors, automatic fire alarms or other automatically controlled devices. • Disconnect from the power source when the device is expected to unused for several days. IMPORTANT SAFETY INSTRUCTIONS: 1) Read these instructions before using the device. 2) Keep these instructions for future reference. 3) Heed all warnings. 4) Follow all instructions while using the device. 5) Clean only with a soft, dry cloth. 6) Do not block any ventilation openings. 7) Do not install near any heat sources. 8) Unplug from the wall outlet during lightning storms or when unused for long periods of time. 9) Refer all servicing to qualified service personnel. 10) This product is not intended for use outdoors. NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to 6 SAFETY radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any alterations or modifications not expressly approved by Reverie ® may void the user’s right to operate this equipment. NOTE ON ELECTRICAL NOISE: This device complies with FCC and Industry Canada RF radiation exposure limits set forth for the general population. It must not be co-located or operating in conjunction with any other antenna or transmitters. FCC WARNING: This device complies with Part 15 of FCC Rules. Operation is subject to the followingtwo conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CANADA: This Class B digital apparatus complies with Canadian ICES-003. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. NOTE: The model number and serial number of this equipment are on the rear or bottom. Please record these numbers on your enclosed warranty card and keep in a safe place for future re…

Text truncated - open the document above for the full version.

FCC Confidentiality Request Letter Number: CF303 Version: V05 Date: 21-05-2012 2014/7/11 Martin Rawls-Meehan/CEO Ascion LLC 341 Central Avenue Silver Creek, NY 14136 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: PHOENIX TESTLAB GmbH 7F., No. 12, Ln. 321, Yangguang St., Neihu Dist., Taipei City 114, Taiwan Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Ascion, LLC Address 341 Central Avenue Silver Creek, NY 14136 City New York Country U.S.A request for this certification filing under: Grantee Code Product Number FCC ID: VFK -AM-BT-S01 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description Operational Description explaining the functioning of the block diagram Block Diagrams showing the systematic building blocks of the EUT Schematics Diagrams showing components, their values and interconnection Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation:

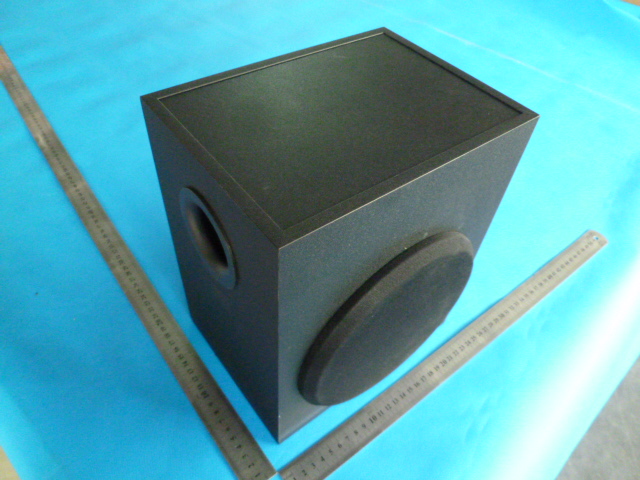

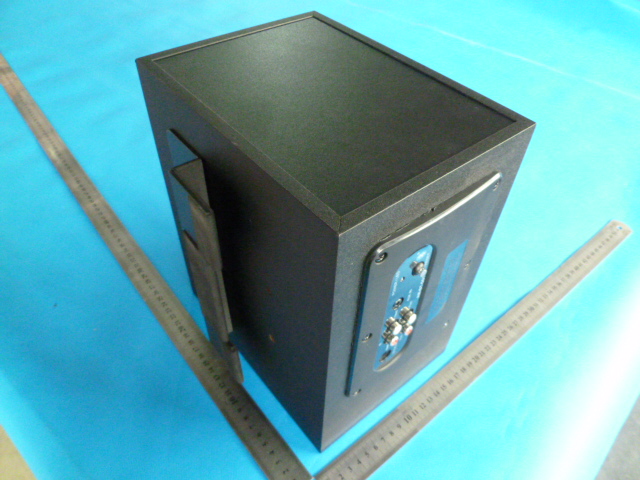

Report No.: E-F1406001-1& E-F1406001-2 Page 1 of 2 Rev: None Asia Institute Technology (Dongguan) Limited No. 22, JinQianLing Street 3, JiTiGang Village HuangJiang Town, DongGuan, GuangDong, China. External View of EUT Model: AM-BT-S01 Photo 1 Model: AM-BT-S01 Photo 2 Report No.: E-F1406001-1& E-F1406001-2 Page 2 of 2 Rev: None Asia Institute Technology (Dongguan) Limited No. 22, JinQianLing Street 3, JiTiGang Village HuangJiang Town, DongGuan, GuangDong, China. Model: AM-BT-S01 Photo 3 Model: AM-BT-S01 Photo 4
