VFK-RC-WM-E54-V2REMOTE CONTROL

Remote Control Operation Guide HEAD AND FOOT ADJUSTMENTS (A,B) Adjusts the head and foot sections to the desired positions. FLAT (C) Returns both head and foot to the flat position. MEMORY POSITION PRESETS (D) You can store 4 personalized memory positions. Press and hold the Memory button for 5 seconds until the LED light flashes 3 times to store the setting. To recall a Memory Position, press the corresponding button. NOTE: Do not hold the memory position for more than 5 seconds or the setting will overwrite. ZERO GRAVITY (E) Allows your legs to be lifted to a position slightly above the chest, which enables blood flow to easily circulate back to the heart, thus reducing stress and fatigue. ANTI SNORE (F) Raises the HEAD slightly for easier breathing. HEAD AND FOOT MASSAGE CONTROLS (G,H) Turns on the corresponding massage unit and slowly increases or decreases massage intensity. NOTE: The lowest setting will turn off the corresponding massage unit. NOTE: The massage feature is designed to automatically shut off after 30 minutes of continuous use. A. RAISE & LOWER HEAD SECTION B. RAISE & LOWER FOOT SECTION C. FLAT D. MEMORY POSITIONS E. ZERO GRAVITY F. ANTI - SNORE G. HEAD MASSAGE INTENSITY H. FOOT MASSAGE INTENSITY I. STOP MASSAGE J. WAVE MASSAGE PATTERN K. NIGHTLIGHT ON/OFF MASSAGE STOP (I) Press to stop all massage features. WAVE MASSAGE PATTERN (J) Turns on both head and foot massage motors to one of 2 different wave presets. NIGHTLIGHT ON/OFF (K) Toggle the lightbulb button for on/off functions. NOTE: Any control button on the remote will interrupt and stop the FLAT, ZERO-G, Anti-Snore and Memory Position presets. REMOTE LOCKOUT FEATURE (A,C) We created the remote lockout feature to help owners prevent unintended use of the base. Activating Remote Lockout At the same time, press and hold the HEAD UP and FLAT buttons for 3 seconds. The LED will flash twice to indicate activation. Pressing any buttons on the remote while in lockout mode will result in no movement from the power base. Deactivating Remote Lockout Repeat the same process, press and hold the HEAD UP and FLAT buttons at the same time for 3 seconds. The LED will flash twice to indicate deactivation. The remote and power base will work normally. ADDITIONAL REMOTE FEATURES: • The buttons are back-lit when a button is pressed, to aid the visibility of the remote in low light environments. • Customers can control the remote without facing the receiver (best transmission range is within 30 feet or 10 meters). • This Base uses a RF (Radio Frequency) remote control system. • The included remote is already paired with your power base, so should be operational right out of the box. Please test some of the features to ensure functionality. • Only replacement remote controls require pairing instruction on following pages. If you find that your remote is not paired with the bed, please follow those Bluetooth pairing instructions. NOTE: This power base may have minor intermittent performance due to RF Interference. This is a normal operation of the power base and is not a defect. NOTE: Please remember to recycle all electronics. NOTICE: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. NOTE: This device complies with part 15 of the fcc rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. TANDEM FEATURE If you want 2 sides to move in sync when using one remote (recommended for Split King/Cal King units) you can pair to both sides using the Tandem Feature. You can also pair two remotes to two sides, so that either remote can control both sides at the same time. You’re remote should aready be paired to one of the control boxes. Identify which one this is before you begin. You must pair to the second control box in order to use the tandem feature. Repeat this process if you want 2 remotes paired to both sides. STEP 1 Press the FLAT button 3 times to enter Tandem Mode. You will see a solid green light on the remote to confirm. STEP 2 Press and hold the pairing button on the second control box then press any button on the remote control. You are now paired to the second control box. The remote light will still be green. STEP 3 To now control both sides in tandem, press the FLAT button 3 times. The remote light will now flash between red and green. TO CHANGE BETWEEN ONE SIDE AND TANDEM CONTROL To change between one side and tandem control, press the FLAT button three times, repeat this to toggle between sides and the Tandem Feature.

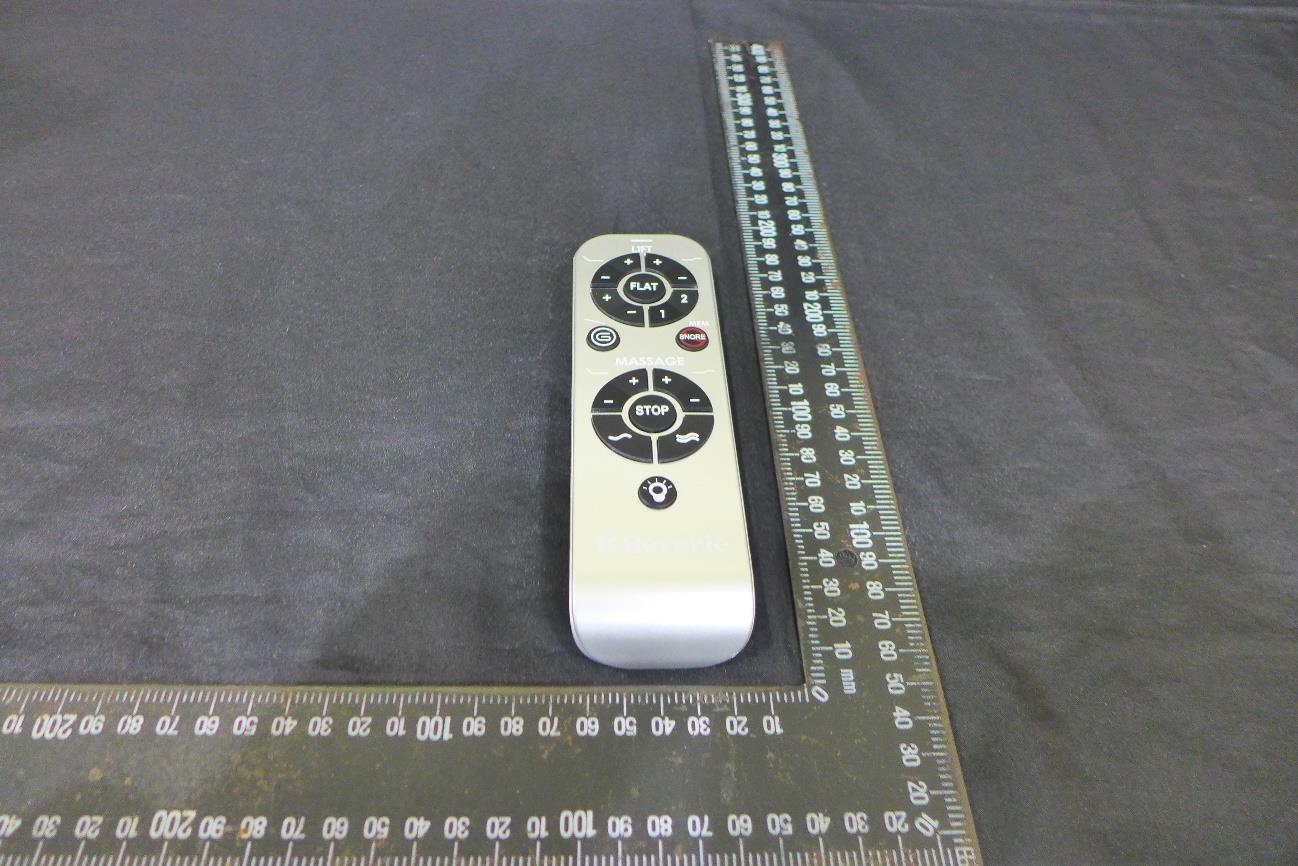

Appendix No.: EP-2204T066-1 APPENDIX-EUT PHOTOS Project No.: 2204T066 Page 1 of 12 RC-WM-E53 Appendix No.: EP-2204T066-1 APPENDIX-EUT PHOTOS Project No.: 2204T066 Page 2 of 12 Appendix No.: EP-2204T066-1 APPENDIX-EUT PHOTOS Project No.: 2204T066 Page 3 of 12 Appendix No.: EP-2204T066-1 APPENDIX-EUT PHOTOS Project No.: 2204T066 Page 4 of 12 RC-WM-E54 Appendix No.: EP-2204T066-1 APPENDIX-EUT PHOTOS Project No.: 2204T066 Page 5 of 12 Appendix No.: EP-2204T066-1 APPENDIX-EUT PHOTOS Project No.: 2204T066 Page 6 of 12 Appendix No.: EP-2204T066-1 APPENDIX-EUT PHOTOS Project No.: 2204T066 Page 7 of 12 RC-WM-E54-001 Appendix No.: EP-2204T066-1 APPENDIX-EUT PHOTOS Project No.: 2204T066 Page 8 of 12 Appendix No.: EP-2204T066-1 APPENDIX-EUT PHOTOS Project No.: 2204T066 Page 9 of 12

Label Label location FCC label S/N label

Appendix No.: EP-2204T066-1 APPENDIX-EUT PHOTOS Project No.: 2204T066 Page 10 of 12 Appendix No.: EP-2204T066-1 APPENDIX-EUT PHOTOS Project No.: 2204T066 Page 11 of 12 Antenna Appendix No.: EP-2204T066-1 APPENDIX-EUT PHOTOS Project No.: 2204T066 Page 12 of 12

Report No.: BTL-FCCP-1-2204T066 Project No.: 2204T066 Page 1 of 30 Report Version: R00 FCC Radio Test Report FCC ID: VFK-RC-WM-E54-V2 Prepared by : Eric Lee, Engineer Approved by : Jerry Chuang, Supervisor BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Report No. : BTL-FCCP-1-2204T066 Equipment : REMOTE CONTROL Model Name : RC-WM-E53, ERCE53W00, RC-WM-E53-006, RC-WM-E54, RC-WM-E54-001, ERCE54W01, ERCE54W00, RC-WM-E55, RC-WM-E56 Brand Name : Reverie Applicant : Ascion, LLC Address : 2066 Franklin Rd, Bloomfield Hills, MI, 48302 United States Radio Function : 433.92 MHz FCC Rule Part(s) : FCC CFR Title 47, Part 15, Subpart C Measurement Procedure(s) : ANSI C63.10-2013 Date of Receipt : 2022/4/22 Date of Test : 2022/4/22 ~ 2022/6/1 Issued Date : 2022/6/20 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Report No.: BTL-FCCP-1-2204T066 Project No.: 2204T066 Page 2 of 30 Report Version: R00 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2204T066 Project No.: 2204T066 Page 3 of 30 Report Version: R00 CONTENTS REVISION HISTORY 4 1 SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 1.3 TEST ENVIRONMENT CONDITIONS 6 1.4 DUTY CYCLE 7 2 GENERAL INFORMATION 8 2.1 DESCRIPTION OF EUT 8 2.2 TEST MODES 9 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 SUPPORT UNITS 10 3 RADIATED EMISSIONS TEST 11 3.1 LIMIT 11 3.2 TEST PROCEDURE 12 3.3 DEVIATION FROM TEST STANDARD 13 3.4 TEST SETUP 13 3.5 EUT OPERATING CONDITIONS 14 3.6 TEST RESULT – BELOW 30 MHZ 14 3.7 TEST RESULT – 30 MHZ TO 1 GHZ 14 3.8 TEST RESULT –ABOVE 1 GHZ 14 4 20 DB SPECTRUM BANDWIDTH MEASUREMENT 15 4.1 LIMIT 15 4.2 MEASURING INSTRUMENTS AND SETTING 15 4.3 TEST PROCEDURE 15 4.4 DEVIATION FROM TEST STANDARD 15 4.5 EUT OPERATING CONDITIONS 15 4.6 TEST RESULT 15 5 TIMING TESTING 16 5.1 LIMIT 16 5.2 MEASURING INSTRUMENTS AND SETTING 16 5.3 TEST PROCEDURE 16 5.4 DEVIATION FROM TEST STANDARD 16 5.5 TEST SETUP 16 5.6 EUT OPERATING CONDITIONS 16 5.7 TEST RESULT 16 6 LIST OF MEASURING EQUIPMENTS 17 7 EUT TEST PHOTO 18 8 EUT PHOTOS 18 APPENDIX A RADIATED EMISSIONS - 30 MHZ TO 1 GHZ 19 APPENDIX B RADIATED EMISSIONS - ABOVE 1000 MHZ 24 APPENDIX C 20 dB SPECTRUM BANDWIDTH 27 APPENDIX D TIMING TESTING 29 Report No.: BTL-FCCP-1-2204T066 Project No.: 2204T066 Page 4 of 30 Report Version: R00 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-1-2204T066 R00 Original Report. 2022/6/20 Valid Report No.: BTL-FCCP-1-2204T066 Project No.: 2204T066 Page 5 of 30 Report Version: R00 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards. Standard(s) Section Description Test Result Judgement Remark 15.207 AC Power Line Conducted Emissions ------ N/A NOTE(1) 15.209 15.231(b) Radiated Emissions APPENDIX A APPENDIX B Pass ------ 15.231(c) 20 dB Spectrum Bandwidth APPENDIX C Pass ------ 15.231(a)(1) Timing Testing APPENDIX D Pass ------ NOTE: (1) ”N/A” denotes test is not applicable in this Test Report. (2) The report format version is TP.1.1.1. Report No.: BTL-FCCP-1-2204T066 Project No.: 2204T066 Page 6 of 30 Report Version: R00 1.1 TEST FACILITY The test facilities used to collect the test data in this report: No. 68-1, Ln. 169, Sec. 2, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan The test sites and facilities are covered under FCC RN: 674415 and DN: TW0659. ☐ C05 ☐ CB08 ☐ CB11 ☒ CB15 ☐ CB16 ☒ SR05 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expanded uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k = 2, providing a level of confidence of approximately 95 %. The measurement instrumentation uncertainty considerations contained in CISPR 16-4-2. The BTL measurement uncertainty is less than the CISPR 16-4-2 U cispr requirement. A. Radiated emissions test : Test Site Measurement Frequency Range U,(dB) CB15 0.03 GHz ~ 0.2 GHz 4.17 0.2 GHz ~ 1 GHz 4.72 1 GHz ~ 6 GHz 5.21 6 GHz ~ 18 GHz 5.51 18 GHz ~ 26 GHz 3.69 26 GHz ~ 40 GHz 4.23 C. Conducted test : Test Item U,(dB) 20 dB Spectrum Bandwidth 0.5338 NOTE: Unless specifical…
