VG8AC042AYYMicrowave Oven

SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. Model:AC042A2GN-SH0A0A Convection/Grill AC042A2GN-SH0A0A 120 V~ 60 Hz 1500 W 1000 W 1500 W/1500 W PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allows soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven d oor c lose proper ly and t hat t her e i s n o d amage to t he: (1) DOOR (bent) (2) HINGES AND LATCHES (broken o r l oosened) (3) DOOR SEALS AND SEALING SURFACES (d ) The oven s hould n ot b e adjusted o r r epai red b y anyone except p roper ly qual ified s er vice per sonnel . Specifications Model Rated Voltage Microwave Input Micr owave Output 3 1. Read all instructions before using the appliance. 2. Read and follow the specific: " PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 3. 3. This appliance must be grounded. Connect only to properly grounded outlet. See " GROUNDING INSTRUCTIONS" found on page 6. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs and sealed containers - for example, closed glass jars - are able to explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location. 12. Do not immerse cord or plug in water. 13. Keep cord away from heated surface. 14. Do not let cord hang over edge of table or counter. 15. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth. 16. To reduce the risk of fire in the oven cavity: 1). Do not overcook food. Carefully attendappliance when paper, plastic, or o ther combustible materials are placed inside the oven to facilitate cooking. 2). Remove wire twist-ties from paper or plastic bag before placing bag in oven. 3). If material inside of the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. 4). Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. WARNING - To reduce the risk of burns, electric shock, f ire, injury to persons or exposure to excessive microwave energy: When using electrical appliances basic safety precautions should be followed, including the following: 4 17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT I N VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: 1) Do not overheat the liquid. 2) Stir the liquid both before and halfway through heating it. 3) Do not use straight-sided containers with narrow necks. 4) After heating, allow the container to stand in the microwave oven for a short time before removing the container. 5) Use extreme care when inserting a spoon or other utensil into the container. 18. Oversized food or oversized metal utensils should not be inserted in a microwave/ toaster oven as they may create a fire or risk of electric shock. 19. Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving a risk of electric shock. 20. Do not use paper products when appliance is operated in the toaster mode. 21. Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use. 22. Do not cover racks or any other part of the oven with metal foil. This will cause over- heating of the oven. SAVE THESE INSTRUCTIONS 5 GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING - Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance. DA…

Text truncated - open the document above for the full version.

041521-14 THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD Authority to Act as Agent Date: November 7, 2022 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: __Jawen Yin from ECMG Electronic Technical Testing Corp (Shenzhen)___ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we ar e not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 2 1 U.S.C. 862. Further, n o party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided t o the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____May 7, 2023____ Ye Jilin By: __________________________ ________________________ (Signature 1 ) (Print name) Title: ___Certification engineer_______ On behalf of: _Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd.____ Telephone: (Company Name) ___86-757-2633 9595____ 1 - Must be signed by app licant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

THIS MUST BE SIGNED BY THE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD 041521-14 Request for Confidentiality Date: November 7, 2022 Subject: Confidentiality Request for: ____FCC ID: VG8AC042AYY____ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐Short Term☒PermanentBlock Diagrams ☐Short TermExternal Photos ☐Short Term☐Permanent * 1 Internal Photos ☐Short Term☒PermanentOperation Description/Theory of Operation ☐Short Term☐Permanent Parts List & Placement/BOM ☐Short Term☐PermanentTune-Up Procedure ☐Short Term☒PermanentSchematics ☐Short Term Test Setup Photos ☐Short Term☐Permanent * 3 User’s Manual ___Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd_____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Ye Jilin (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the sp ecific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for app licant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

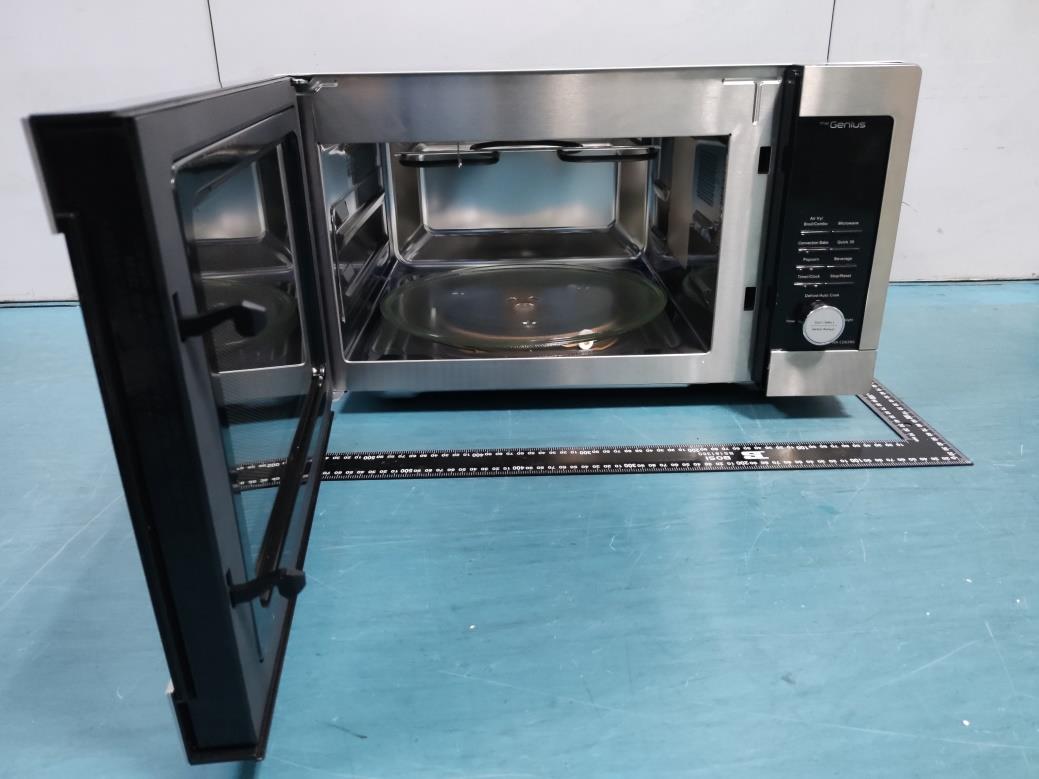

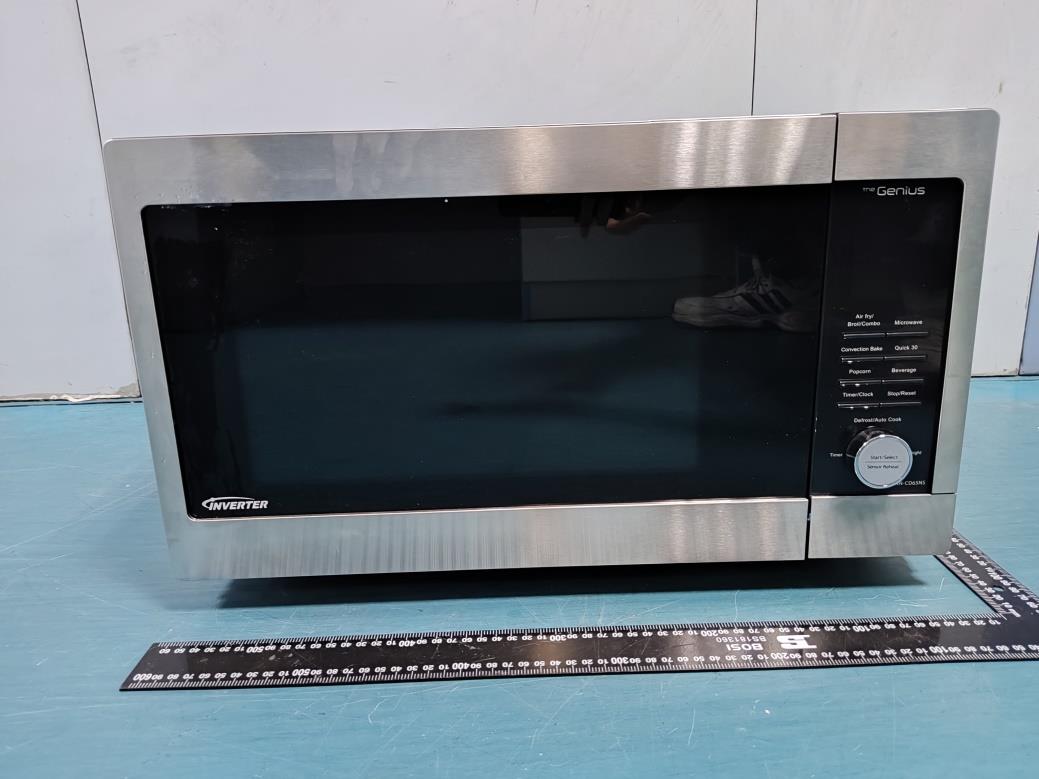

Report No.: SET2022-15350 APPENDIX II: PHOTOGRAPHS OF PRODUCT PHOTO External Photo CCIC-SET/TRF: IEMC (2019-03-12) Report No.: SET2022-15350 CCIC-SET/TRF: IEMC (2019-03-12) Report No.: SET2022-15350 CCIC-SET/TRF: IEMC (2019-03-12)

FCC Label: FCC Label Location:

Report No.: SET2022-15350 Internal Photo CCIC-SET/TRF: IEMC (2019-03-12) Report No.: SET2022-15350 CCIC-SET/TRF: IEMC (2019-03-12) Report No.: SET2022-15350 CCIC-SET/TRF: IEMC (2019-03-12) Report No.: SET2022-15350 ※※※ End of Report ※※※ CCIC-SET/TRF: IEMC (2019-03-12)

Report No.: SET2022-15350 CCIC-SET/TRF:IEMC(2019-03-12) Page 1 of 26 FCC PART 18 TEST REPORT Report No.: SET2022-15350 Product Name: Microwave Oven Trade Name: Midea Model No. : AC042A##-SH0A0A, AC042A***-SH0A0A FCC ID : VG8AC042AYY Applicant: Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Received Date: 2022.11.10 Test Data: 2022.11.10-2022.11.17 Issued by: CCIC Southern Testing Co., Ltd. Lab Location: Electronic Testing Building, No.43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 26 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2022-15350 CCIC-SET/TRF:IEMC(2019-03-12) Page 2 of 26 Test Report Product Name ................. : Microwave Oven Model No. ...................... : AC042A##-SH0A0A, AC042A***-SH0A0A Trade name ...................... Midea Applicant ......................... : Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Applicant Address.......... : No.6, Yong An Road, Beijiao, Shunde, Foshan, China Manufacturer .................. : Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Manufacturer Address ... : No.6, Yong An Road, Beijiao, Shunde, Foshan, China Test Standards ............... : 47 CFR Part 18 47 CFR Part 15 Subpart B Test Result ...................... : PASS Tested by ....................... : Ruihong Xie Test Engineer 2022.11.17 Reviewed by ................... : Chris You Senior Engineer 2022.11.17 Approved by ................... : 2022.11.17 Shuangwen Zhang, Manager Report No.: SET2022-15350 CCIC-SET/TRF:IEMC(2019-03-12) Page 3 of 26 TABLE OF CONTENTS 1.GENERAL INFORMATION .................................................................................................... 5 1.1 GENERAL DESCRIPTION OF EUT ...................................................................................... 5 1.2 Test Standards and Results ........................................................................................................ 7 1.3 Facilities and Accreditations ...................................................................................................... 8 1.3.1 Facilities .................................................................................................................................... 8 1.3.2 Test Environment Conditions .................................................................................................... 8 1.3.3 Measurement Uncertainty ......................................................................................................... 8 2.EQUIPMENTS LIST ................................................................................................................. 9 3.EMC EMISSION TEST ........................................................................................................... 10 3.1 Test Procedure ........................................................................................................................... 10 3.1.1 Frequency For Normal Voltage ............................................................................................... 10 3.1.2 Frequency For Line Voltage .................................................................................................... 10 3.1.3 Measurement data ................................................................................................................... 11 3.2 RADIATION HAZARD TEST ................................................................................................ 11 3.2.1 Test Setup ................................................................................................................................ 11 3.2.2 Limit ........................................................................................................................................ 11 3.2.3 Test results ............................................................................................................................... 11 3.3 RF OUTPUT POWER MEASUREMENT ............................................................................ 12 3.3.1 Test Standard ........................................................................................................................... 12 3.3.2 EUT Operating mode .............................................................................................................. 12 3.3.3 Test Data .................................................................................................................................. 12 4.CONDUCTED EMISSION ..................................................................................................... 13 4.1.1 Conducted Emission Limit ...................................................................................................... 13 4.1.2 Test Procedure ......................................................................................................................... 13 4.1.3 Test Setup ................................................................................................................................ 13 5.RADIATED EMISSION .......................................................................................................... 18 5.1.1 Radiated Emission Limits ....................................................................................................... 18 5.1.2 Test Setup ....................................................................…

Text truncated - open the document above for the full version.

Report No.: SET2022-15350 CCIC-SET/TRF:IEMC(2019-03-12) Page 25 of 26 APPENDIX I：PHOTOGRAPHS OF EMC TEST CONFIGURATION 1. Radiated Emission Measurement below 1GHz 2. Radiated Emission Measurement above 1GHz Report No.: SET2022-15350 CCIC-SET/TRF:IEMC(2019-03-12) Page 26 of 26 3. Conducted emission at AC mains input/output port Measurement
