VG8AM145AYY-PKMicrowave Oven

2 R e a d a l l i n s tRu c t i o n s caRe f u l ly b e f oRe u s i n g t h e o v e n . C O N T E N T S • For Customer Assistance ..... 3 • Precautions to Avoid Possible Exposure to Excessive Microwave Energy .................... 2 •Consumer Limited Warranty ....................... 4 • Important Safety Instructions ..................... 5 • Federal Communication Commission Radio Frequency Interference Statement ............ 6 • Grounding Instructions .............................. 6 • Installation Guide ........................................ 7 • Specifications .............................................. 8 • Features Diagram ........................................ 9-10 • Operation Procedure .................................. 11 • Controls ....................................................... 12-21 • Care of Your Microwave Oven ................... • Questions and Answers ............................. • Cooking Instructions .................................. 25-34 MODELS M I C R O W A V E O V E N OPERATION MANUAL SMC1660KS SMC1662KS 22-23 24 PRecautions to avoid Possible eXPosuRe to eXcessive MicRoWave eneRgy (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. 2 CUSTOMER ASSISTANCE UNITED STATES ONLY REGISTER YOUR PRODUCT Registering your new product is easy and offers benefits that help you get the most out of your Sharp product including: 9Convenience: If you ever need warranty support, your product information is already on file. 9Communication: Stay up to date with important notifications and special offers from SHARP. 9Support:Quickly access support content including Owner’s Manuals, FAQ’s, How-to Videos, and much more. 3 EASY WAYS TO REGISTER TODAY! PRODUCT SUPPORT If you have questions about the setup or operation of your product, please refer to the corresponding section within this manual. Additionally, visit www.sharpusa.com/support to access exclusive content about your product including: ÆFAQ’s and How-To Videos ÆFind or Request Service ÆExtended Warranty Options ÆDownloads including the Installation Guide, Spec Sheet, and Owner’s Manual CONTACT US If at any time you have questions or comments concerning your SHARP product, please contact the SHARP Customer Assistance Center. We are available to assist you through multiple contact methods for your convenience: Scan this QR Code on your mobile deviceVisit http://www.sharpusa.com/register ONLINE Visit our sites to learn more about your product at sharpusa.com and sbl.sharpusa.com See the Contact Us section on our sitesU.S. | www.sharpusa.com/supportContact a Sharp Advisor on the phone Contact a Sharp Advisor on the phone CALL US US 800-BE-SHARP 800-237-4277 Mon-Fri: 7am-7pm CST Sat-Sun: 9am-7pm CST CALL US US 800-BE-SHARP 800-237-4277 Mon-Fri: 7am-7pm CST Sat-Sun: 9am-7pm CST EMAIL Available 24/7 US: sharpusa.com CHAT ONLINE Mon-Fri: 7am-7pm CST Sat-Sun: 9am-7pm CST SCAN Use the camera or QR code scanning application on your mobile device For more information on the Child-Resistant Door Feature, please scan the below QR code or visit https://delivr.com/25tnt-qr Æ 3 SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to pur- chasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by any…

Text truncated - open the document above for the full version.

ArentFox Schiff LLP 1717 K Street, NW Washington, DC 20006 202.857.6000MAIN 202.857.6395FAX afslaw.com Jeffrey E. Rummel Partner and Communications & Technology Practice Leader 202.715.8479DIRECT [email protected] U.S. Agent Designation for Serviceof Process (Applicant and U.S. Agent are Separate Parties) TO: Nemko North America, Inc. 303 River Road, Ottawa, Ontario, Canada K1V 1H2 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name:ArentFox Schiff LLP Contact Name:Jeffrey Rummel Street Address:1717 K St., nw City/Province/Zip:Washington, D.C. 20006 Telephone No: (202)715-8479 Email:[email protected] FRN #: 0021243860 This letter is to confirm that we(“ArentFox Schiff LLP”) have accepted the responsibility to act asthe Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date:4/4/2023 Signed by (Printed Name/Title):Jeffrey Rummel The Applicantacknowledges that they must maintain an agentfor no less than one year after terminatingall marketing and importation ORthe conclusion of any Commission- related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent informationabove changes. 022423-17 Rev 6 Applicant Company name: Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Grantee Code: VG8 FRN: 0019079995 Contact Name: Jilin Ye Street Address : No.6, Yong An Road, Beijiao, Shunde City/Province/Zip: Foshan, Guangdong, China Telephone No: +86-0757-26339595 Email: [email protected] om Applicant Signature: Date:2023/3/28 Signed by (Printed Name/Title): Jilin Ye

GUANGDONG MIDEA KITCHEN APPLIANCES MANUFACTURING CO., LTD. Covered Equipment Certification Attestation Letter 2/1/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: VG8AM145AYY-PK Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Ye Jilin Title: Engineer Company Name: Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Date: 2/1/2024

GUANGDONG MIDEA KITCHEN APPLIANCES MANUFACTURING CO., LTD. Request for Confidentiality Date: February 1, 2024 Subject: Confidentiality Request for: FCC ID: VG8AM145AYY-PK Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐Short Term☒Permanent Block Diagrams ☐Short Term External Photos ☐Short Term☐Permanent Internal Photos ☐Short Term☒Permanent Operation Description/Theory of Operation ☐Short Term☐Permanent Parts List & Placement/BOM ☐Short Term☐Permanent Tune-Up Procedure ☐Short Term☒Permanent Schematics ☐Short Term Test Setup Photos ☐Short Term☐Permanent User’s Manual ___Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd_____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanen t Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Ye Jilin (Signature/Title) (Print name)

GUANGDONG MIDEA KITCHEN APPLIANCES MANUFACTURING CO., LTD. ___________________________________________________________________________________________________ Model Difference Declaration Date: February 1, 2024 Subject: Model difference declaration for FCC ID: VG8AM145AYY-PK We, Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd, apply FCC certificate for Our product Microwave Oven. EM145A##-PK, EM145A***-PK, SMC1662KS, SMC166#K# model designations as follows: E: Film type keypad; M: Indicates Microwave; 145: "1" indicates the microwave output power is 1100W, “45” indicates cavity capacity is 45 liters; A: Indicates the design No.; ## or ***: "#", "*" may be 0~9, A~Z or blank, indicates different appearance; -P: Indicates Painted (Steel) Cavity; K: Indicates Frequency conversion + humidity sensing. Customer models as “ SMC1662KS, SMC166#K#” with trade mark as “SHARP”, they are identical to EM145A2SR-PK except for model number, trade mark and appearance. Model of EM145A2SR-PK was selected for final testing. Sincerely, By: _ Ye Jilin _ (Signature) (Print name)

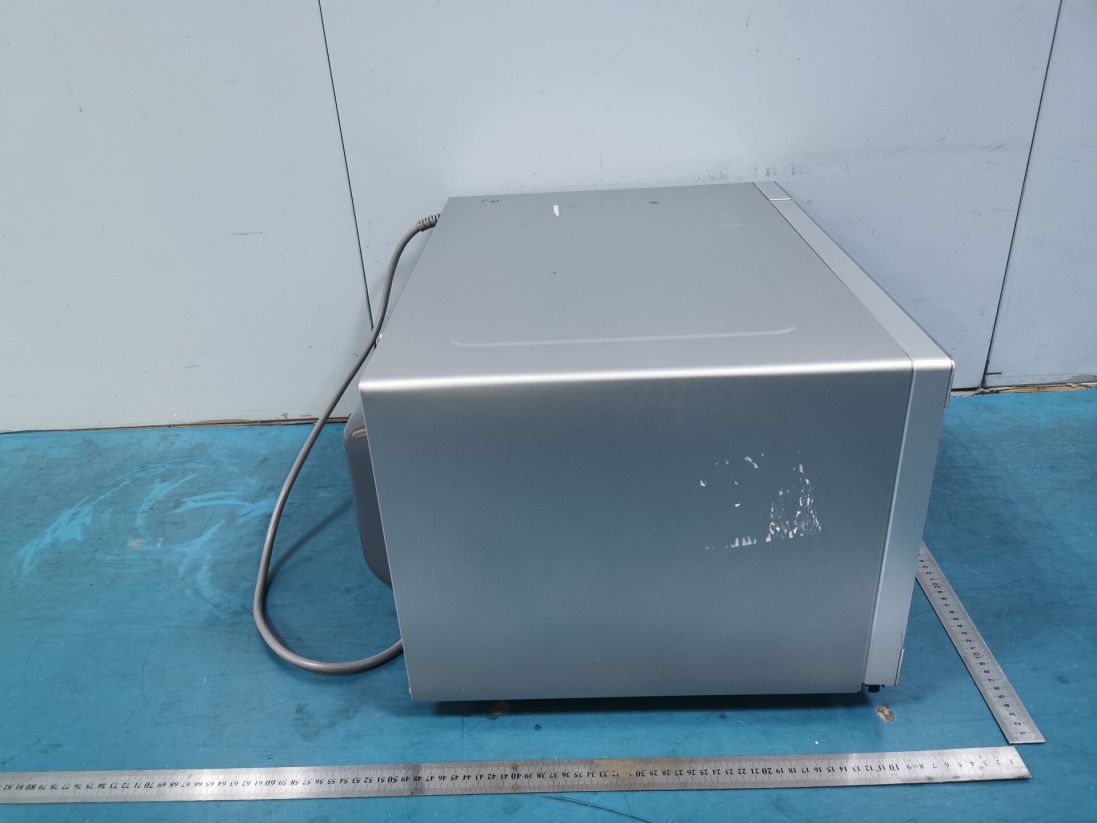

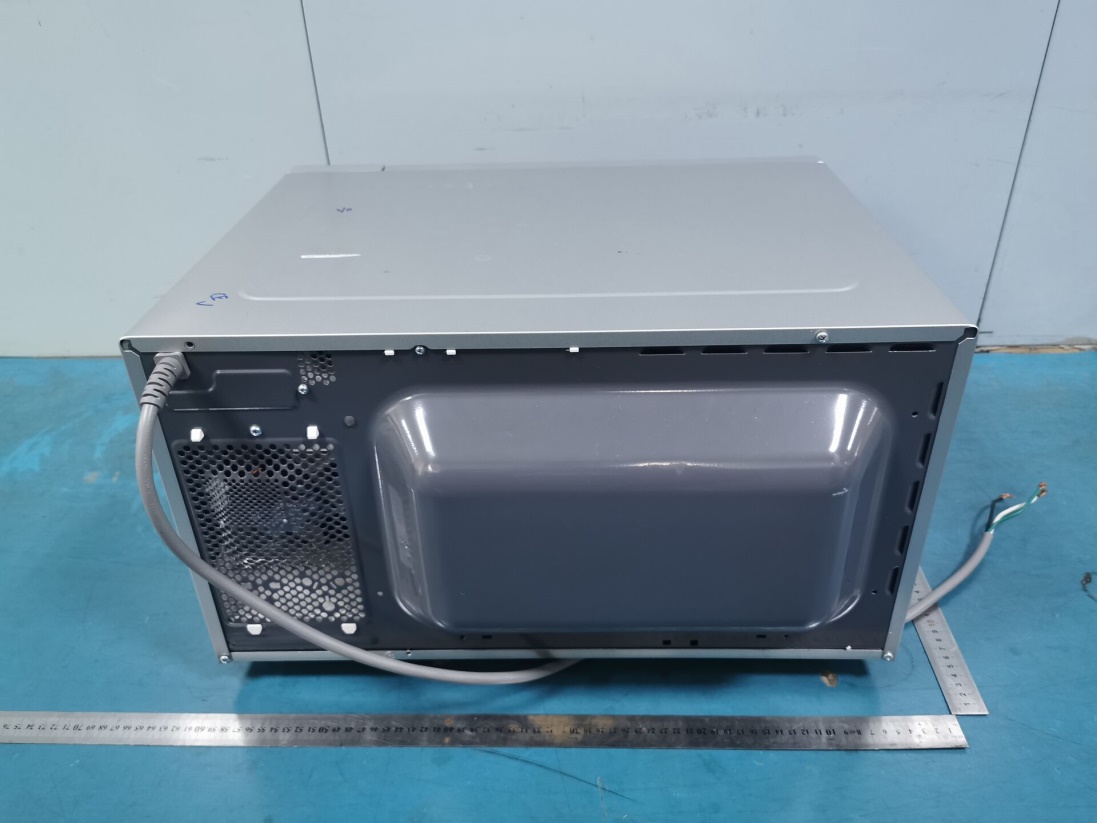

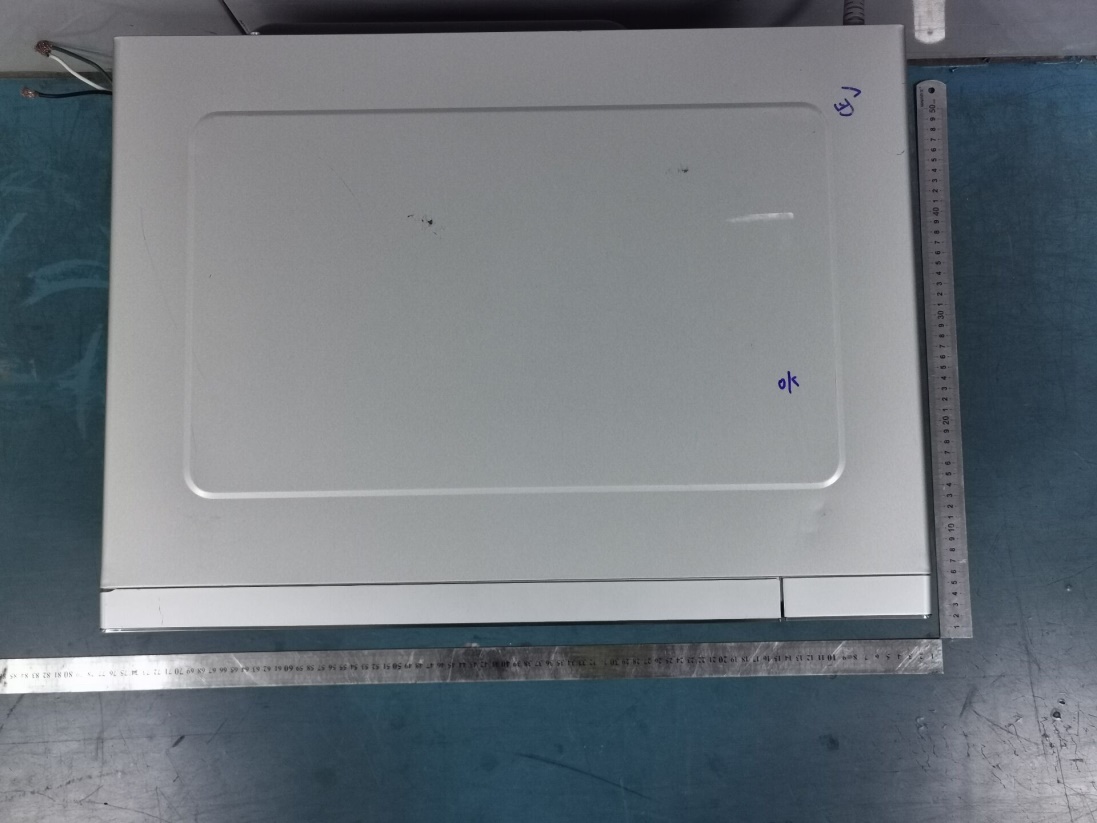

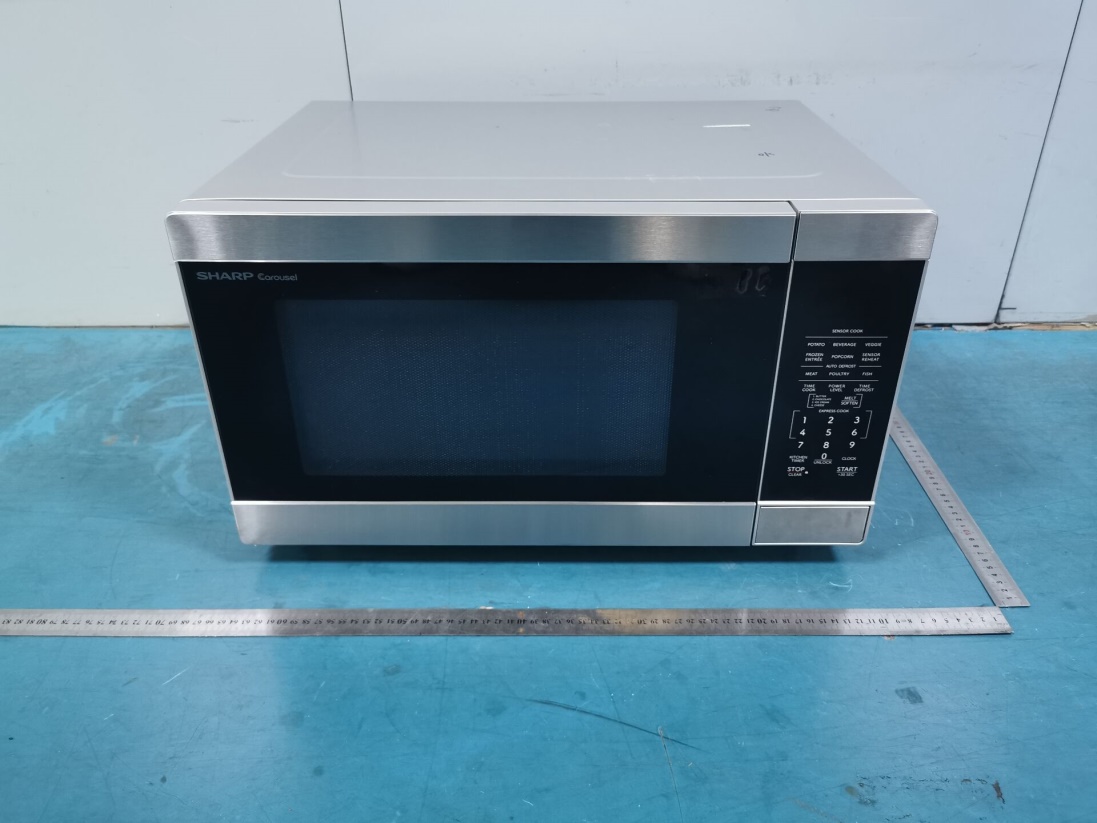

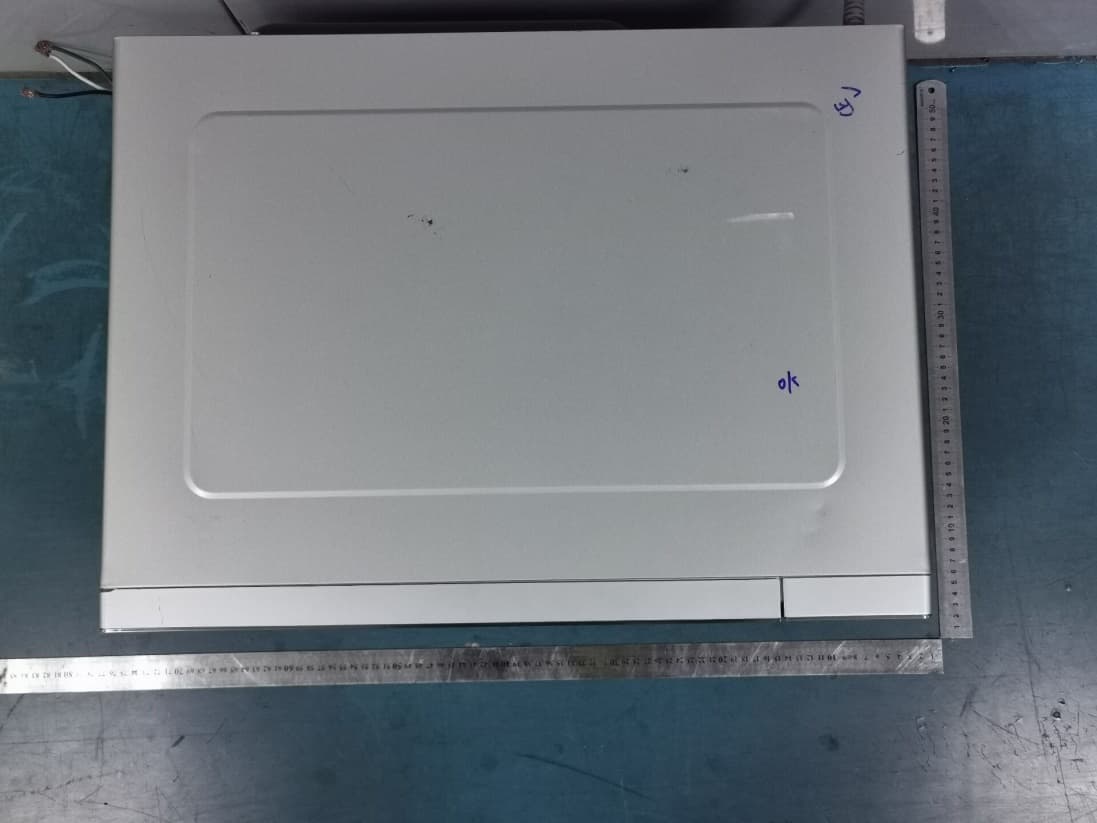

Report No.: 20240317G03673X-E APPENDIX II: PHOTOGRAPHS OF PRODUCT PHOTO Exte rnal Photo CCIC-SET/TRF: IEMC (2019-03-12) Report No.: 20240317G03673X-E CCIC-SET/TRF: IEMC (2019-03-12) Report No.: 20240317G03673X-E CCIC-S ET/TRF: IEMC (2019-03-12)

FCC Label: FCC Label Location:

Report No.: 20240317G03673X-E Internal Photo CCIC-SET/TRF: IEMC (2019-03-12) Report No.: 20240317G03673X-E CCIC-SET/TRF: IEMC (2019-03-12) Report No.: 20240317G03673X-E CCIC-SET/TRF: IEMC (2019-03-12) Report No.: 20240317G03673X-E CCIC-SET/TRF: IEMC (2019-03-12) Report No.: 20240317G03673X-E ※※※ End of Report ※※※ CCIC-SET/TRF: IEMC (2019-03-12)

Report No.: 20240317G03673X-E-1 CCIC-SET/TRF:IEMC(2019-03-12) Page 1 of 5 FCC MPE REPORT Report No.: 20240317G03673X-E-1 Product Name: Microwave Oven Trade Name: Midea Model Tested: EM145A2SR-PK FCC ID: VG8AM145AYY-PK Applicant: Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Received Date: 2024.02.04 Test Data: 2024.02.18-2024.03.11 Issued by: CCIC Southern Testing Co., Ltd. Lab Location: Electronic Testing Building, No.43, Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 5 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: 20240317G03673X-E-1 CCIC-SET/TRF:IEMC(2019-03-12) Page 2 of 5 MAXIMUM PERMISSIBLE EXPOSURE (MPE) Product Name ................. : Microwave Oven Model Tested ................. : EM145A2SR-PK Trade Name ...................... Midea Applicant ......................... : Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Applicant Address.......... : No.6, Yong An Road, Beijiao, Shunde, Foshan, China Manufacturer .................. : Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Manufacturer Address ... : No.6, Yong An Road, Beijiao, Shunde, Foshan, China Standard(s) ..................... : FCC/OST MP-5(1986), OET Bulletin 56(1999) Test Result ...................... : PASS Tested by ....................... : Ruihong Xie Test Engineer 2024.03.11 Reviewed by ................... : Chris You Senior Engineer 2024.03.11 Approved by ................... : 2024.03.11 Yang Fan, Manager Report No.: 20240317G03673X-E-1 CCIC-SET/TRF:IEMC(2019-03-12) Page 3 of 5 1.1 Facilities and Accreditations 1.1.1 Facilities FCC-Registration No.: CN1283 CCIC Southern Testing Co., Ltd EMC Laboratory has been registered and fully described in a report filed with the FCC (Federal Communications Commission). The acceptance letter from the FCC is maintained in our files. Designation Number: CN1283, valid time is until Sep.30, 2023. A2LA Code: 5721.01 CCIC-SET is a third-party testing organization accredited by A2LA according to ISO/IEC 17025. The accreditation certificate number is 5721.01. 1.1.2 Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 15°C- 35°C Relative Humidity (%): 25% -75% Atmospheric Pressure (kPa): 86kPa-106kPa 1.1.3 Measurement Uncertainty The uncertainty is calculated using the methods suggested in the "Guide to the Expression of Uncertainty in Measurement" (GUM) published by ISO. Uncertainty of Radiation Hazard Test: Uc = 2.4 dB (k=2) EQUIPMENTS LIST A. Equipment List: Description Manufacturer Model Serial No. Calibration Date Calibration Due. Date Portable Spectrometer Rohde & Schwarz FSH8 A1140401672 2023.02.14 2024.02.13 Probe Rohde & Schwarz TSEMF-B1 A1140401671 2023.02.14 2024.02.13 Report No.: 20240317G03673X-E-1 CCIC-SET/TRF:IEMC(2019-03-12) Page 4 of 5 1.2 RADIATION HAZARD TEST 1.2.1 Radiation Hazard (Health) Requirement For ISM equipment operating on higher frequencies (above 900 MHz), in particulars microwave ovens and medical diathermy equipment, radiation leakage should be measured in accordance with the current Bureau of Radiological Health standard, employing an electromagnetic radiation monitor. This test is made primarily to assure that personnel will not be exposed to radiation hazard in testing the equipment. Equipment submitted to the FCC which have radiation leakage apparently in excess of BRH limit will be reported to BRH for their evaluation. See FCC Bulletin OST 56, "Questions and Answers about Biological Effects and Potential Hazards of Radiofrequency Radiation". 1.2.2 Test Procedure The EUT was set-up according to the FCC MP-5 and FCC Part 18 for radiation Hazard measurement. The measurement was using a microwave leakage meter to measure the radiation leakage in the as- received condition with the oven door closed A 770mL water load in a breaker was located in the center of the oven and the microwave oven was set to maximum power. While the oven operating, the microwave meter will check the leakage and then record the maximum leakage. 1.2.3 Limit Limits for General Population/Uncontrolled Exposure NOTE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Report No.: 20240317G03673X-E-1 CCIC-SET/TRF:IEMC(2019-03-12) Page 5 of 5 NOTE 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. A maximum of 1.0mW/cm 2 is allowed in according with the applicable FCC standards 1.2.4 Test results Test location: Test result (mW/cm 2 ) Limit (mW/cm 2 ) Verdict Left side 0.28 1.0 Pass Right side 0.35 1.0 Pass Front 0.42 1.0 Pass Rear 0.25 1.0 Pass There was no microwave leakage exceeding a power level of 0.42 mW/cm 2 Observed at any point 5cm or more from the external surface of the oven. 1.2.5 Test setup ph…

Text truncated - open the document above for the full version.

Report No.: 20240317G03673X -E CCIC-SET/TRF:IEMC(2019-03-12) Page 1 of 21 FCC PART18 TEST REPORT Report No.: 20240317G03673X-E Product Name: Microwave Oven Trade Name: Midea, SHARP Model No. : EM145A##-PK, EM145A***-PK, SMC1662KS, SMC166#K# FCC ID : VG8AM145AYY-PK Applicant: Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Received Date: 2024.02.04 Test Data: 2024.02.18-2024.03.11 Issued by: CCIC Southern Testing Co., Ltd. Lab Location: Electronic Testing Building,No.43ShaheRoad,Xili Street, Nanshan District, Shenzhen, Guangdong, China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 21 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: 20240317G03673X-E CCIC-SET/TRF:IEMC(2019-03-12) Page 2 of 21 Test Report Product Name .................... Microwave Oven Model No. ......................... EM145A##-PK(PAN), EM145A***-PK(PAN), SMC1662KS, SMC166#K# Trade name ........................ Midea, SHARP Applicant ............................ Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Applicant Address............. No.6, Yong An Road, Beijiao, Shunde, Foshan, China Manufacturer ..................... Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Manufacturer Address ...... No.6, Yong An Road, Beijiao, Shunde, Foshan, China Test Standards .................. 47 CFR Part 18 Test Result ......................... PASS Tested by .......................... Sun Jiaohui Test Engineer 2024.03.11 Reviewed by ...................... Chris You Senior Engineer 2024.03.11 Approved by ...................... 2024.03.11 Yang Fan, Manager[盖章] Report No.: 20240317G03673X-E CCIC-SET/TRF:IEMC(2019-03-12) Page 3 of 21 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 5 1.1 GENERAL DESCRIPTION OF EUT ...................................................................................... 5 1.2 Test Standards and Results ........................................................................................................ 6 1.3 Facilities and Accreditations ...................................................................................................... 7 1.3.1 Facilities .................................................................................................................................... 7 1.3.2 Test Environment Conditions .................................................................................................... 7 1.3.3 Measurement Uncertainty ......................................................................................................... 8 2. EQUIPMENTS LIST ................................................................................................................. 8 3. EMC EMISSION TEST ............................................................................................................. 9 3.1 Test Procedure ............................................................................................................................. 9 3.1.1 Frequency For Normal Voltage ................................................................................................. 9 3.1.2 Frequency For Line Voltage ...................................................................................................... 9 3.1.3 Measurement data ................................................................................................................... 10 3.2 RADIATION HAZARD TEST ................................................................................................ 10 3.2.1 Test Setup ................................................................................................................................ 10 3.2.2 Limit ........................................................................................................................................ 10 3.2.3 Test results ............................................................................................................................... 10 3.3 RF OUTPUT POWER MEASUREMENT ............................................................................ 10 3.3.1 Test Standard ........................................................................................................................... 10 3.3.2 EUT Operating mode .............................................................................................................. 11 3.3.3 Test Data .................................................................................................................................. 11 4. CONDUCTED EMISSION ..................................................................................................... 12 4.1.1 Conducted Emission Limit ...................................................................................................... 12 4.1.2 Test Procedure ......................................................................................................................... 12 4.1.3 Test Setup ................................................................................................................................ 12 5. RADIATED EMISSION .......................................................................................................... 15 5.1.1 Radiated Emission Limits ....................................................................................................... 15 5.1.2 Test Setup .........…

Text truncated - open the document above for the full version.

Report No.: 20240317G03673X-E CCIC-SET/TRF:IEMC(2019-03-12) Page 20 of 21 APPENDIX I：PHOTOGRAPHS OF EMC TEST CONFIGURATION 1. Radiated Emission Measurement below 1GHz 2. Radiated Emission Measurement above 1GHz Report No.: 20240317G03673X-E CCIC-SET/TRF:IEMC(2019-03-12) Page 21 of 21 3. Conducted emission at AC mains input/output port Measurement 4. Radiation Hazard Test
