VG8AM925AYYMicrowave Oven

IMPORTANT! Register within 10 days of purchase. Register ONLINE at www.sharpusa.com/productregistration To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. MODEL NUMBER _______________________ SERIAL NUMBER _____________ DATE OF PURCHASE ______________________ DEALER ___________________________ TELEPHONE ________________ SERvICER ___________________________ TELEPHONE ________________ PRecautions to avoid Possible eXPosuRe to eXcessive MicRoWave eneRgy (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. TO PHONE: DIAL 1-800-BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and COOKBOOK TO WRITE: Sharp Electronics Corporation Attn: Customer Assistance Center Sharp Plaza Blvd Memphis, Tennessee 38193 TO ACCESS INTERNET: www.sharpusa.com Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. F O R C U S T O M E R A S S I S T A N C E 2 SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to pur- chasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. Your Product Model Number & Description: R-248BS Home Use Carousel Microwave Oven. (Be sure to have this information available when you need service for your Product.) Warranty Period for this Product: One (1) year parts and labor. The warranty period continues for an additional four (4) years, for a total of five (5) years, with respect to the magnetron tube in the Product for parts only; labor and service are not provided free of charge for this additional period. Additional Item(s) Excluded from Warranty Coverage (if any): Non-functional accessories, turntable and light bulb. Where to Obtain Service: From a Sharp Authorized Servicer located in the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP (1-800-237-4277). What to do to Obtain Service: Ship prepaid or carry in your Product to a Sharp Authorized Servicer. Be sure to have Proof of Purchase available. If you ship the Product, be sure it is insured and packaged securely. TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.sharpusa.com. SAVE THE PROOF OF PURCHASE AS IT IS NEEDED SHOULD YOUR OVEN EVER REQUIRE WARRANTY SERVICE. C O N S U M E R L I M I T E D W A R R A N T Y 3 When using electrical appliances, basic safety precautions should be followed, including …

Text truncated - open the document above for the full version.

Web Site: www.midea.com.cn No.6, Yong An Road, Beijiao, Shunde, Foshan E-Mail: [email protected] Guangdong, P.R. China Phone : +86-757-23606480 FAX : +86-757-26656995 AGENCY AUTHORIZATION LETTER FCC ID: VG8AM925AYY Date: 2014-12-1 To whom it may concern: We, the undersigned, hereby authorize ECMG to act on our behalf , as our agent ,in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to the matters. and any other lawful activity necessary to obtain such certification. Any act carried out by ECMG within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date , if you have any question regarding the authorization , please don’t hesitate to contact us , thank you. Sincerely, Xue wenfei Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd. Phone : +86-757-26306480 FAX :+86-757-22607341 E-Mail: [email protected]

FCC ID: VG8AM925AYY Date: 2014-12-1 Federal communications commission Authorization and Evaluation Division Confidentiality Request Pursuant to section 0.457 and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of information accompanying this application as outline below: 1 Schematics 2 Block diagram 3 Operational description The above materials contain trade secrets and proprietary information not customarily released to the public, the public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application.

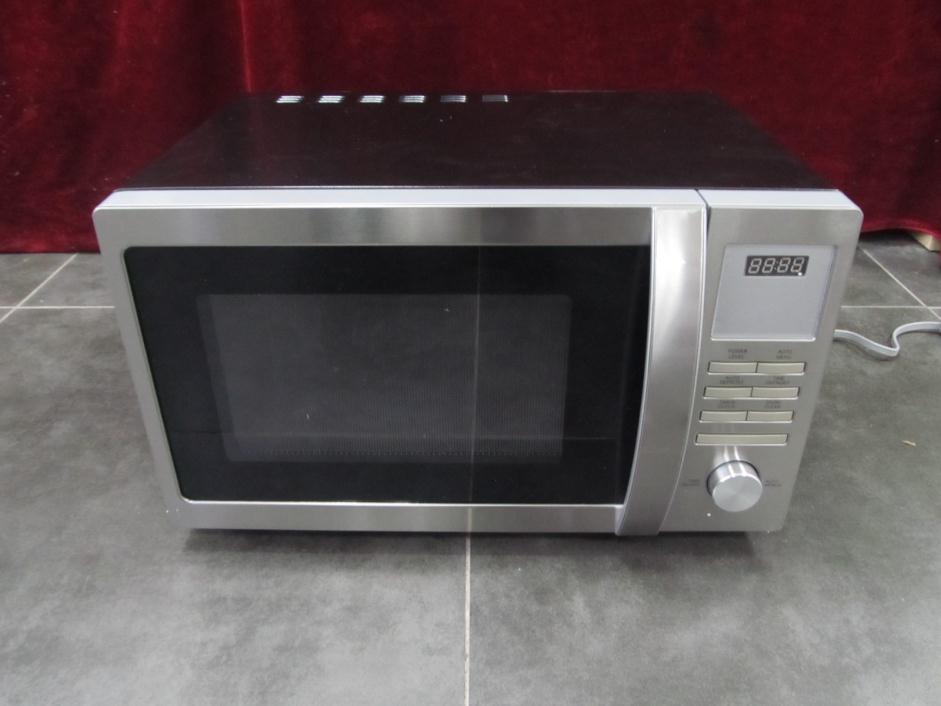

EUT Sample Photos for Model AM925A4P-P1 EUT -Front View EUT -Rear View Door Opend View

Label location

EUT Internal Photos for Model AM925A4P-P1 Inside View Magnetron Front View Power Filter Board Top View Power Filter Board Bottom View Mother board+Power board view Mother board+Power board – PCB Top View Mother board+power board- PCB Bottom View

w w w .ecmg-global.net EMI TEST REPORT On Model Name: Microwave Oven Model Number: AM925AYY-P1 Brand Name: Prepared for Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd. FCC ID Number: VG8AM925AYY According to FCC Part 18(2014) Industrial, Scientific and Medical Equipment FCC/OST MP-5(1986) FCC methods of measurements of radio noise emission from industrial,scientific and medical equipment Test Report #: GUA-1410-11253-FCC Tested by: ECMG Sewen Guo/Engineer Company Name Reviewed by: ECMG Jawen Yin/Senior Engineer Company Name QC Manager: ECMG Swall Zhang/QC Manager Company Name Test Report Released by: December 5 th ,2014   Swall Zhang Date Test Location Tests performed in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location : GD WILOT VACUUM ELECTRONIC EMC TEST LABORATORY BeiJiao,ShunDe,FoShan,GuangDong, 528311, China Tel : (86)-757-26326917 Fax : (86)-757- 22607341 Test Facility The test facility was recognized, certified, or accredited by the following organizations: FCC – Registration No.: 910385 GD WILOT VACUUM ELECTRONIC EMC TEST LABORATORY has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC was maintained in our files. Table of Contents LIST ATTACHED FILES ___________________________________________________________ 1 GOVERNMENT DISCLAIMER NOTICE_______________________________________________ 2 REPRODUCTIO N CLA USE _________________________________________________________ 2 OPINIONS AND INTERPRETATIONS________________________________________________ 2 STATEMENT OF MEASUREMENT UNCERTAINTY ____________________________________ 2 ADMINISTRATIVE DATA __________________________________________________________ 3 EUT DESCRIPTION _______________________________________________________________ 4 EUT MO DEL DERIVED ____________________________________________________________ 5 TEST SUMMARY__________________________________________________________________ 6 LOAD FOR MICROWAVE OVEN ____________________________________________________ 7 EUT EXERCISE SOFTWARE ________________________________________________________ 8 EQUIPMENT MODIFICATION ______________________________________________________ 8 EUT SAMPLE PHOTOS FOR MODEL AM925A4P-P1 _________________________________ 9 TEST SYSTEM DETAILS __________________________________________________________ 14 CONFIGURATION OF TESTED SYSTEM ____________________________________________ 15 ATTACHMENT 1 –RADIATION HA ZARD TEST _____________________________________ 16 ATTACHMENT 2 – INPUT POWER MEASUREMENT _________________________________ 19 ATTACHMENT 3 – RF O UTPUT POWER MEASUREMENT ____________________________ 22 ATTACHMENT 4 – OPERATING FREQUENCY MEASUREMENT _______________________ 25 ATTACHMENT 5 – CONDUCTED EM ISSION TEST RESULTS _________________________ 28 ATTACHMENT 6 - RA DIATED EMISSIO N TEST RESULTS ___________________________ 33 FCC Test Report #: GUA-1410-11253-FCC Prepared for Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd. Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 1 of 37 List Attached Files Exhibit Type File Description File Name Test Report Test Report VG8AM925AYY _Test Report_rev01.pdf Operation Description Technical Description VG8AM925AYY _Operation Description.pdf Ex ternal Photos Ex ternal Photos VG8AM925AYY _Ex ternal Photos.pdf Internal Photos Internal Photos VG8AM925AYY _Internal Photos_rev01.pdf Block Diagram Block Diagram VG8AM925AYY _Block Diagram.pdf Schematics Circuit Diagram VG8AM925AYY _Schematics_rev01.pdf ID Label/Location Label and Location VG8AM925AYY _Label & Location.pdf User Manual User Manual VG8AM925AYY _User’s Manual.pdf Test set-up photos Test set-up photos VG8AM925AYY _Test Set-up Photos_rev01.pdf FCC Test Report #: GUA-1410-11253-FCC Prepared for Guangdong Midea Kitchen Appliances M anufacturing Co.,Ltd. Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 2 of 37 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from ECMG Electronic Technical Testing Corp (Shenzhen). Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT).Without the permission of ECMG Electronic Technical Testing Corp (Shenzhen) Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. FCC Test Report #: GUA-1410-11253-FCC Prepared for Guangdong Midea Kitchen Appliances M anufacturing Co.,Ltd. Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 3 of 37 Administrative Data Test Sample : Mic…

Text truncated - open the document above for the full version.

Test Photos For Model AM925A4P-P1 Conducted Emission Test Set-up Radiated Emission Test Set-up (30 -1,000MHz) Radiated Emission Test Set-up (1-25GHz)
