VG8EG034DYYMicrowave Oven

SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. Model:EG034DW1 PRECAUTIONS TO AVOID POSSIBLE MICROWAVE ENERGY 120V~ 60Hz 1500W Specifications EG Model: Rated Voltage: Rated Input Power(Microwave): Rated Output Power(Microwave): Oven Capacity: Turntable Diameter: External Dimensions (WxHxD): Net Weight: Rated Input Power(Grill): 1400W Cu.ft. 1 inch Approx 29.1 Lbs 19.1*16.1*11.3 inch 034DW1 1000W 1.2 2.4 EXPOSURE TO EXCESSIVE Note: (1) The maximum volume of the food is 370*370*145 mm. (The height cannot be higher than 145mm.) ( ) The maximum of the food is 2weight5kg. (a) Do not attempt to operate this oven with the door open since operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allows soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particular important that the oven door close properly and that there is no damage to the: (1) DOOR (bent) (2) HINGES AND LATCHES (broken or loosened) (3) DOOR SEALS AND SEALING SURFACE (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. open-door S ly 2 IMPORTANT SAFETY INSTRUCTIONS WARNING - 1. Read all instructions before using the appliance. 2. Read and follow the specific: EXCESSIVE MICROWAVE ENERGY" found on page 2. combustible materials are placed inside the oven to facilitate cooking. only to properly grounded outlet. See found on page 5. accordance with the provided installation instructions. To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 3. This appliance must be grounded. Connect "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO "GROUNDING INSTRUCTIONS" 4. Install or locate this appliance only in 5. Some products such as whole eggs and sealed containers - for example, closed glass jars - are able to explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. supervision is necessary when used by children. 7. As with any appliance, close damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 8. Do not operate this appliance if it has a by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment. 9. This appliance should be serviced only 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location. 1 . Do not immerse cord or plug in water.2 1. Keep cord away from heated surface. 14. Do not let cord hang over edge of table or counter. 3 15. When cleaning surfaces of door and oven that comes together on closing the door, 16. To reduce the risk of fire in the oven cavity: 1). Do not overcook food. Carefully attend appliance when paper, plastic, or other 2). Remove wire twist-ties from paper or plastic bag before placing bag in oven. 3). If material inside of the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, shut off power at the fuse or circuit breaker panel. 4). Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. 17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling precautions should be followed, including When using electrical appliances basic safety following:the use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth. or 3 stand in the microwave oven for a short time before removing the container. spoon or other utensil into thecontainer. This appliance must be grounded. In the event of an electrical short circuit, grounding of electric shock by providing an escape wire for the appliance is equipped with a cord having a plugged into an outlet that is properly installed and grounded. GROUNDING INSTRUCTIONS THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: 1) Do not overheat the liquid. 2) Stir the liquid both before and halfway through heating it. 3) Do not use straight-sided containers with narrow necks. 4) After heating, allow the container to 5) Use extreme care when inserting a grounding wire with a grounding plug. reduces the risk electric current. This The plug WARNING - Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely or if doubt exists as to whether the appliance is properly grounded. extension cord, use only a 3-wire extension cord that has a The marked rating of the extension cord shall be equal to or greater than the electrical appliance. understood, If it is necessary to use an 3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance. rating of the Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. disassemble this appliance. DANGER - Do not Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. WARNING - SAE THESE INS…

Text truncated - open the document above for the full version.

Web Site: www.midea.com.cn No.6, Yong An Road, Beijiao, Shunde, Foshan E-Mail: [email protected] Guangdong, P.R. China Phone : +86-757-23606480 FAX : +86-757-26656995 AGENCY AUTHORIZATION LETTER FCC ID: VG8EG034DYY Date: 2014-7-8 To whom it may concern: We, the undersigned, hereby authorize ECMG to act on our behalf , as our agent ,in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to the matters. and any other lawful activity necessary to obtain such certification. Any act carried out by ECMG within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date , if you have any question regarding the authorization , please don’t hesitate to contact us , thank you. Sincerely, Xue wenfei Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Phone : +86-757-26306480 FAX :+86-757-22607341 E-Mail: [email protected]

Date: 2014-7-8 Federal communications commission Authorization and Evaluation Division Confidentiality Request Pursuant to section 0.457 and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of information accompanying this application as outline below: 1 Schematics 2 Block diagram 3 Operational description The above materials contain trade secrets and proprietary information not customarily released to the public, the public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Xue wenfei Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Phone : +86-757-26306480 FAX :+86-757-22607341 E-Mail: [email protected]

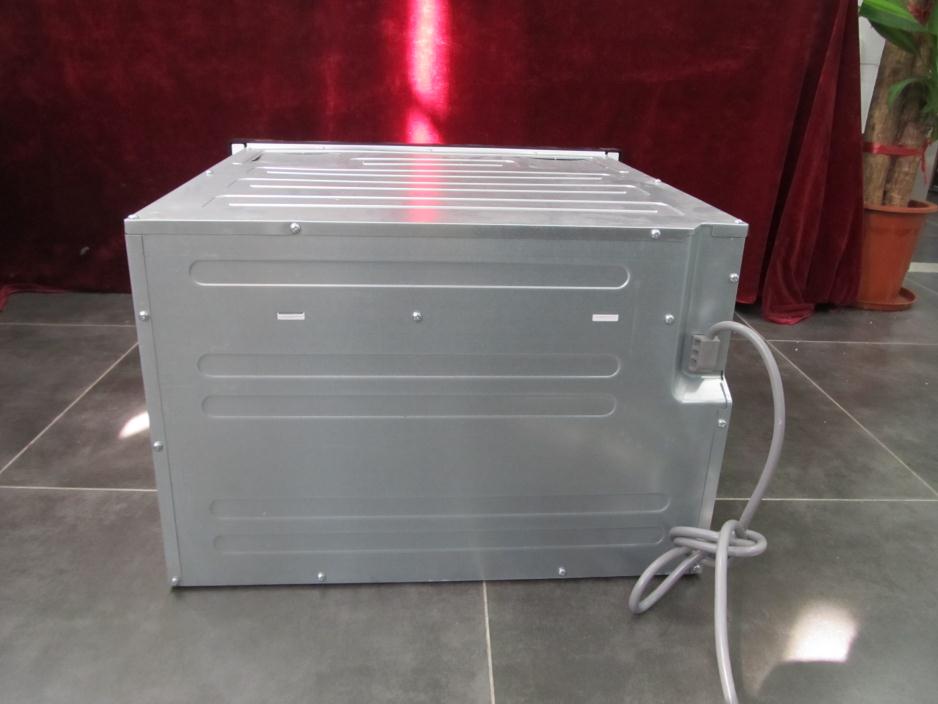

EUT External Photos for Model EG034DW1 EUT Front View EUT Back View

FCC Label Format&Location: SIZE:120X40mm LABEL LOCATION

EUT Internal Photos for Model EG034DW1 EUT Uncovered View #1 EUT Uncovered View #2 Magnetron Front View Power Filter Board -Top View Power Filter Board Bottom View Mother board #1 -Top View Mother board #1-Bottom View Mother board #2-Top View Mother board #2 -Bottom View

www.ecmg-global.net EMI TEST REPORT On Model Name: Microwave Oven Model Number: EG034DYY Brand Name: Prepared for Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd FCC ID Number: VG8EG034DYY According to FCC Part 18(2014) Industrial, Scientific and Medical Equipment FCC/OST MP-5(1986) FCC methods of measurements of radio noise emission from industrial,scientific and medical equipment Test Report #: GUA-1407-11176-FCC Tested by: ECMG Sewen Guo/Engineer Company Name Reviewed by: ECMG Jawen Yin/Senior Engineer Company Name QC Manager: ECMG Swall Zhang/QC Manager Company Name Test Report Released by: July 9 th , 2014   Swall Zhang Date Test Location Tests performed in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location : GD WILOT VACUUM ELECTRONIC EMC TEST LABORATORY BeiJiao,ShunDe,FoShan,GuangDong, 528311,China Tel : (86)-757-26326917 Fax : (86)-757- 22607341 Test Facility The test facility was recognized, certified, or accredited by the following organizations: FCC – Registration No.: 910385 GD WILOT VACUUM ELECTRONIC EMC TEST LABORATORY has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC was maintained in our files. Table of Contents LIST ATTACHED FILES ______________________________________________________________ 1 GOVERNMENT DISCLAIMER NOTICE ________________________________________________ 2 REPRODUCTION CLAUSE ___________________________________________________________ 2 OPINIONS AND INTERPRETATIONS _________________________________________________ 2 STATEMENT OF MEASUREMENT UNCERTAINTY _____________________________________ 2 ADMINISTRATIVE DATA ____________________________________________________________ 3 EUT DESCRIPTION __________________________________________________________________ 4 EUT MODEL DERIVED _______________________________________________________________ 5 TEST SUMMARY ____________________________________________________________________ 6 LOAD FOR MICROWAVE OVEN ______________________________________________________ 7 EUT EXERCISE SOFTWARE __________________________________________________________ 7 EQUIPMENT MODIFICATION ________________________________________________________ 7 EUT SAMPLE PHOTOS FOR MODEL EG034DW1 ______________________________________ 8 TEST SYSTEM DETAILS ____________________________________________________________ 14 CONFIGURATION OF TESTED SYSTEM _____________________________________________ 15 ATTACHMENT 1 –RADIATION HAZARD TEST ______________________________________ 16 ATTACHMENT 2 – INPUT POWER MEASUREMENT __________________________________ 18 ATTACHMENT 3 – RF OUTPUT POWER MEASUREMENT _____________________________ 20 ATTACHMENT 4 – OPERATING FREQUENCY MEASUREMENT ________________________ 23 ATTACHMENT 5 – CONDUCTED EMISSION TEST RESULTS __________________________ 26 ATTACHMENT 6 - RADIATED EMISSION TEST RESULTS_____________________________ 30 FCC Test Report #: GUA-1407-11176-FCC Prepared for Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 1 of 33 List Attached Files Exhibit Type File Description File Name Test Report Test Report VG8EG034DYY _Test Report.pdf Operation Description Technical Description VG8EG034DYY _Operation Description.pdf External Photos External Photos VG8EG034DYY _External Photos Internal Photos Internal Photos VG8EG034DYY _Internal Photos Block Diagram Block Diagram VG8EG034DYY _Block Diagram.pdf Schematics Circuit Diagram VG8EG034DYY _Schematics.pdf ID Label/Location Label and Location VG8EG034DYY _Label & Location.pdf User Manual User Manual VG8EG034DYY _User’s Manual.pdf Test set-up photos Test set-up photos VG8EG034DYY _Test Set-up Photos FCC Test Report #: GUA-1407-11176-FCC Prepared for Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 2 of 33 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from ECMG Electronic Technical Testing Corp (Shenzhen). Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT).Without the permission of ECMG Electronic Technical Testing Corp (Shenzhen). Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. FCC Test Report #: GUA-1407-11176-FCC Prepared for Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 3 of 33 Administrative Data Test Sample : Microwave Oven Model Number…

Text truncated - open the document above for the full version.

EUT Test Photos for Model EG034DW1 Radiation Hazard Test Set-up Input Power Test Set-Up RF Output Power Test Set-Up Operating Frequency Test Set-up Conducted Emission Test Set-up Radiated Emission Test Set-up (30 -1,000MHz) Radiated Emission Test Set-up (1-18GHz)
