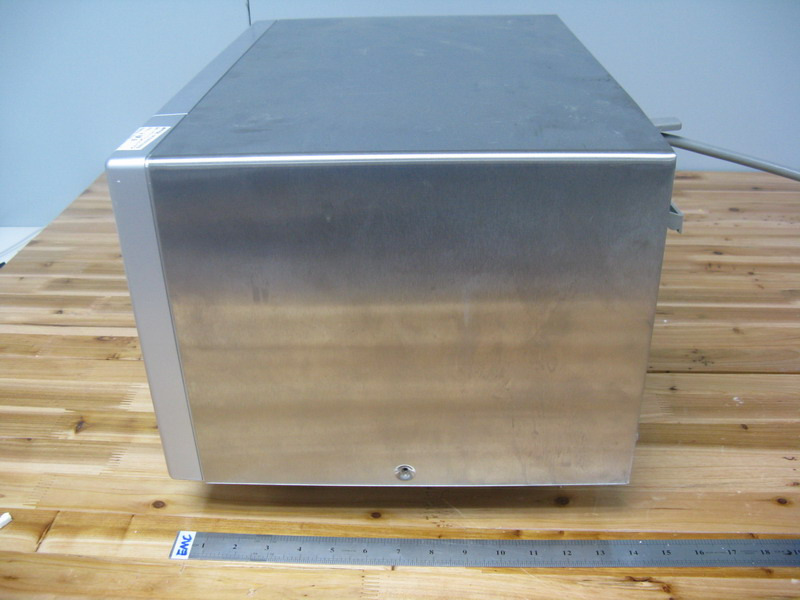

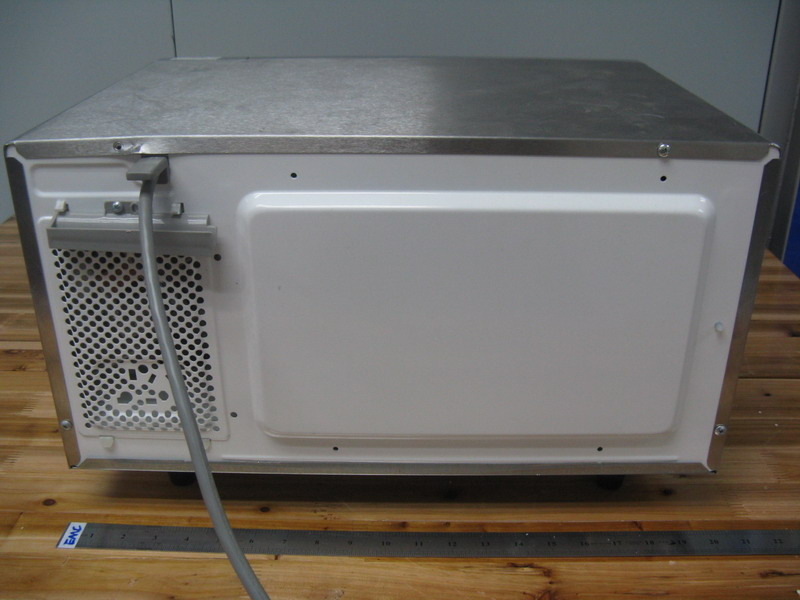

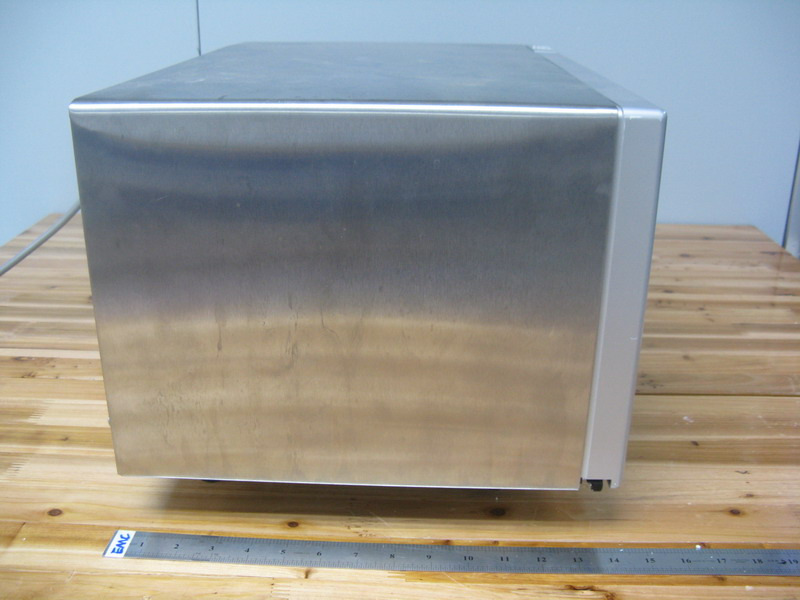

VG8EM025FXX-YMicrowave Oven

SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. INSTRUCTION MANUAL Microwave Oven MODEL:EM025FTR-P(S)00A 2 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) DOOR (bent) (2) HINGES AND LATCHES (broken or loosened) (3) DOOR SEALS AND SEALING SURFACE (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. 120V~ 60Hz 1500W 1000W 0.9 Cu.ft. Specifications Model: Rated Voltage: Rated Input Power(Microwave): Rated Output Power(Microwave): Oven Capacity: External Dimensions : Net Weight: 20.1X16.9X12.2 inch Approx. 32.4 Lbs EM025FTR-P(S)00A 3 IMPORTANT SAFETY INSTRUCTIONS WARNING 1. Read all instructions before using the appliance. 2. Read and follow the specific: "PRECAU- TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 2. 3. As with most cooking appliances, close supervision is necessary to reduce the risk of a fire in the oven cavity. 4.To reduce the risk of fire in the oven cavity: i). Do not overcook food. Carefully attend the appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. ii).Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. iii). If materials inside the oven ignite, keep the oven door closed. Turn the oven off, and unplug the appliance. Disconnect the power cord, shut off power at the fuse or circuit breaker panel. iv). Do not use the oven cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. 5. This oven must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page 4. 6. Install or locate this oven only in accordance with the installation instructions provided. 7. Some products such as whole eggs and sealed containers-for example, closed glass jars-are able to explode and should not be heated in the oven. To reduce the risk of burns, electric shock, fire,injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic safety precautions, including the following: 8. Use this appliance only for its intended uses as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat or cook or dry food. It is not designed for industrial or laboratory use. 9. As with any appliance, close supervision is necessary when used by children. 10. Do not operate this oven if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. 11. This appliance should be serviced only by qualified service technicians. Contact the nearest authorized service facility for examination, repair or adjustment. 12. Do not cover or block any openings on the oven. 13. Do not store or use this appliance outdoors. 14. Do not use this oven near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations. 15. Do not immerse cord or plug in water. 16. Keep cord away from heated surfaces. 17. Do not let cord hang over edge of table or counter. 18. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. 4 i) Do not overheat the liquid. ii) Stir the liquid both before and halfway through heating it. iii) Do not use straight-sided containers with narrow necks. iv) After heating, allow the container to stand in the microwave oven for a short time before removing the container. v) Use extreme care when inserting a spoon or other utensil into the container. 19. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. GROUNDING INSTRUCTIONS SAVE THESE INSTRUCTIONS WARNING DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. (grounding) plug Three-pronged The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance. 5 CAUTION Personal Injury Hazard Tightly-closed utensils could explode. Close…

Text truncated - open the document above for the full version.

Declaration TO: TUV SUD We, Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. Beijiao, Shunde, Foshan City, Guangdong . P. R. China. officially notify TUV SUD that the following models:EM025FXX-Y(x should be 0-9 or A-Z stand for different appearance; Y =P;S) have same door system construction include interlock switch; hinge; viewing screen; door frame; choke; door sealing system; door latches ,plastic material and PCB schematic and layout with model EM025FTR-P The difference just lays in appearance. Applicant: Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. (Date) (Applicant’s authorized signature and company)

SIZE:160X50mmCCCC Commercial Microwave Oven (Not for householduse) Input 120V~60Hz, Single Phase 1500W Output 1000W, 2450MHz Serial No./ N'de serie: Four micro-ondes commercial (non destine a l'usage familial) Alinentation 120V~60Hz, monophase1500W Puissance1000W, 2450MHz Made in Shunde China / Fabricado en Shunde-China M odel/M odelo:EM025FXX-Y Manufacture Date / Date de fabrication: Foshan Shunde Midea Microwave & Electrical Appliances THIS DEVICE COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21 CFR SUBCHAPTER J. FCC ID:VG8EM025FXX-Y Mfg. Co.,Ltd.

ID Label location

Control PCB Mains filter PCB Thermostat for magnetron Thermostat for safety

12345678 A B C D 87654321 D C B A Title NumberRevisionSize A3 Date:14-Jun-2010Sheet of File:C:\Documents and Settings\欧阳\桌面\PCB垃圾\商业微波炉.DDBDrawn By: D18 4148 R41 4K7 R35 1K C3 104 E1 1000U/25V TR2 8050 C4 104C5 104 +12 Z1 5V6 E3 1000U/25V E2 470U/25V 12 R7 390/1/4W D6 4007 D12 4007 D13 4007 D7 4007 D8 4007 D9 4007 D10 4007 D11 4007 1 3 4 52 6 T1 CSA1 4MHz C18 15P C17 15P R49 2K C16 471 C19 0.1uF VCC VCC L LAMP R19 330 R20 330 R21 330 R22 330 R23 330 R24 330 R25 330 R26 330 R14 1K R13 1K R12 1K R11 1K R10 1K R9 1K R8 1K TR3 8050 J RLY4 INRUSH D14 4148 DOOR1 N LAMP J RLY3 D194148 TR7 8050 R36 1K TR9 8550 +12 R45 4.7K TR8 8550 R44 4.7K R46 10K R48 220C22 10uF/16V R47 10K R27 3K3 VCC VCC C20 0.1uF VCC DOOR BUZZER 1 2 3 4 5 6 7 8 9 10 11 12 CN2 FAN LED share kathode （共阴极数码管） LED: 4X8 key in 0(键入0) key in 2(键入2) key in 1(键入1) key in 3(键入3) key in 4(键入4) key in 5(键入5) key in 6(键入6) KSCAN0 KSCAN1 KSCAN2 DOOR LAMP KSCAN3 RESET ZERO LED-1 LED-2 LED-4 C8 471 C9 471 C10 471 C11 471 C12 471 C7 471 C13 471 BUZ1 TR1 8050 R3 4.7K +12 R1 3.3k BUZZER R2 2K C1 471 C2 103 R5 10k R4 2K ZERO D5 4148 VCC LED-3 A0 1 A1 2 A2 3 Vss 4 SDA 5 SCL 6 WP 7 Vcc 8 IC2 24C08 C21 104/25V R43 10K R42 10K VCC CLK SDA 注意: SDA/KSCAN0在不做键扫描时设为输出口高电平, KSCAN1,KSCAN2,KSCAN3不做键扫描时设为输入口. TR4 8050 J RLY5 MICRO2 D15 4148 R28 3K3 N CN1 CN-4P FAN LAMP PT6329B(120V) 68912 123457 1011 DIG1DIG2DIG3DIG4 abcdefgh LED1 D1 4148 D2 4148 D3 4148 D4 4148 CMP4/PG.2 1 CMP3/PG.3 2 CMP2/PE.3 3 CMP1/PE.2 4 CMPN/PE.1 5 CMPOUT/PE.0 6 T0/PC.2 7 RESET/PC.3 8 GND 9 LED-C/PA.0 10 LED-C/PA.1 11 LED-C/PA.2 12 LED-C/PA.3 13 LED-C/PD.0 14 LED-C/PD.1 15 LED-D/PH.0 16 PH.1/LED-D 17 PD.2/LED-D 18 PD.3/LED-D 19 PB.0/LED-D 20 PB.1/LED-D 21 PB.2/LED-D 22 PB.3/LED-D 23 VDD 24 PC.0/OSCI 25 PC.1/OSCO 26 PF.0/TONE 27 PF.1/T2 28 PF.2 29 PF.3 30 PG.0/CMP6 31 PG.1/CMP5 32 SINO-SH69P26 IC1 SH69P26 32pin C15 471 C14 471 MICRO TR5 8050 J RLY1 MICRO1 D164148 R30 3K3 TR6 8050 J RLY2 FAN D174148 R31 3K3 FAN R18 1K R17 1K R16 1K R15 1K +12 R374K7 SWB SWA R384K7 R394K7 R404K7 SWC SWD C6 104 E447uF/16V C14,C15尽量靠近IC放置 E4,C6尽量靠近IC放置 1 2 3 R29 3K3 R32 3K3 R33 3K3 R34 3K3 R6 4K7 PTC1 PTC ZR1 10D561

标 记 处数 更改单号 签 名 日 期 设 计 校 对 审 核 会 签 标准化 批 准共1页 第1页 产品 名称 图名 图号 电路原理图 MDFLT12B-3 美的微波炉滤波板 MDFLT12B-3 1 L1 LT-T22 FILTER L(IN) L(OUT) N(IN) N(OUT) FUSE 15 A12 5V-20 A/12 5V/25 0V ） C1 0.22UF C2 472 C3 472 R1510K/0.5W GND

FCC ID: VG8EM025FXX-Y Report Number: 64.790.10.368.01 Page 1 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 E M I S S I O N - T E S T R E P O R T Report Number : 64.790.10.368.01 Date of Issue: September 10, 2010 Model / Serial No. : VG8EM025FXX-Y (X should be 0-9 or A-Z stand for different appearance;Y=P,S)/ NIL Product Type : Commercial Microwave oven Applicant : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing Co., Ltd. Manufacturer : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing Co., Ltd. License holder : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing Co., Ltd. Address : NO.18 Huanzhen West Road,Beijiao,Shunde, Foshan, : Guangdong, China Test Result :



Positive    Negative Total pages including Appendices : 19 The test result only responds to the tested sample. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. FCC ID: VG8EM025FXX-Y Report Number: 64.790.10.368.01 Page 2 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 D I R E C T O R Y Pages A) Documentation Directory 2 Test Regulations 3 General information 3 - 4 Equipment used 5 B) Test Data Radiation Hazard Measurement 6 Input Power Measurement 7 RF Output Power Measurement 8 Operating Frequency Measurement 9 Conducted Emission 10-12 Radiated Emission 13-15 C) Photographs of The Test Set-Up Set-up for radiation measurement below 1GHz 18 Set-up for radiation measurement above 1GHz 19 FCC ID: VG8EM025FXX-Y Report Number: 64.790.10.368.01 Page 3 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 TEST REGULATIONS : The tests were performed according to the following regulations:
- 47 CFR Part 18 Test Facilities Registration Number: 910385
- GUANGDONG WITOL VACUUM ELECTRONIC EMC TEST LABORATORY. Add: BeiJiao,ShunDe,FoShan,GuangDong,528311,China Environmental Conditions Temperature: : 21 °C Relative Humidity: : 56 % Atmospheric Pressure: : 1006 mBar Power Supply System Utilized: Power supply system : 120V/60Hz/1ø STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. Short Description of the Equipment under Test(EUT) VG8EM025FTR-P is a microwave oven operates in the frequency 2.450GHz. Communication type: VG8EM025FTR-P Power Consumption: 120V~60Hz, 1500W (microwave) Output power: 1000W Operation Frequency: 2450MHz Magnetron Manufacturer: Toshiba Magnetron Model Number: 2M248J Power Cable: 150cm FCC ID: VG8EM025FXX-Y Report Number: 64.790.10.368.01 Page 4 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 Definitions For Symbols Used In This Test Report
- Black box indicates that the listed condition, standard or equipment is applicable for this report  - Blank box indicates that the listed condition, standard or equipment was not applicable for this report. Status of Facility Used for Testing GUANGDONG WITOL VACUUM ELECTRONIC EMC TEST LABORATORY. BeiJiao, ShunDe, FoShan, GuangDong , 528311, China is listed in the US Federal Communications Commission list of facilities approved to perform measurements. Load for Microwave Ovens For all measurements, the energy developed by the oven was absorbed by a dummy load consisting of a quantity of tap water in a beaker. If the oven was provided with a shelf or other utensil support, this support was in its initial normal position. For ovens rated at 1000 watts or less power output, the beaker contained quantities of water as listed in the following subparagraphs. For ovens rated at more than 1000 watts output, each quantity was increased by 50% for each 500 watts or fraction thereof in excess of 1000 watts. Additional beakers were used if necessary. ● Load for power Input and output measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for frequency measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for radiation hazard measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for measurement of radiation on second and third harmonic: Two loads, one of 700 and the other of 300 milliliters, of water are used. Each load is tested both with the beaker located in the center of the oven and with it in the right front corner. ● Load for other measurement: 700 milliliters of water in the beaker located in the center of the oven. FCC ID: VG8EM025FXX-Y Report Number: 64.790.10.368.01 Page 5 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 Test Equipment Used: Serial No. Equipment Manufacturer Model No. Last Cal. Cal. Interval 00052558 Microwave survey meter Holaday HI-1710A 2009.10.21 1 Year 508015 power meter Ainuo AN8726C 2010.05.22 1 Year 93130026 Digital thermometer FLUKE 51II 2010.08.26 1 year 100091 LISN R&S ESH2-Z5 2010.01.21 1 Year 100267 EMI Receiver R&S ESCS30 20…

Text truncated - open the document above for the full version.

FCC ID: VG8EM025FXX-Y Report Number: 64.790.10.368.01 Page 18 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 Photographs of the Test Set-Up Set-up for Conducted Emission measurement below 1GHz Set-up for radiation emission measurement below 1GHz FCC ID: VG8EM025FXX-Y Report Number: 64.790.10.368.01 Page 19 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 Set-up for radiation emission measurement above 1GHz
