VG8EM048KYY1Microwave Oven

MODEL:EM048K6DM-PH Read these instructions carefully before using your micr owave oven, and keep it carefull y. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allows soil or cleaner residue to accumulate on sealing surfaces. the oven door close properly and that there is no damage to the: (1) DOOR (bent) (2) HINGES AND LATCHES (broken or loosened) (3) DOOR SEA L S A ND SEA L ING SURFA CE (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. S Specifications 120 V~ 60 Hz 1500 W 1000 W Mod Microwave Input Microwave Out put el Rated Volt age 2 EM048K6DM-PH (a) Do not attempt to operate this oven with the door open since open door (c) Do not operate the oven if it is damaged. It is particularly important that 1.Read all instructions before using the appliance. 2.Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on p age 2. 3.This appliance must be grounded. Connect only to properly grounded outlet. See " GROUNDING INSTRUCTIONS" found on page 5. 4.Install or locate this appliance only in accordance with the provided installation instructions. 5.Some products such as whole eggs and sealed containers - for example, closed glass jars - are able to explode and should not be heated in this oven. 6.Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. 7.“HOT CONTENTS CAN CAUSE SEVERE BURNS. DO NOT ALLOW CHILDREN TO USE THE MICROWAVE. Use caution when removing hot items.” 8.Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9.This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment. 10.Do not cover or block any openings on the appliance. 11.Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location. 12.Do not immerse cord or plug in water. 13.Keep cord away from heated surface. 14.Do not let cord hang over edge of table or counter. 15.When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth. 16.To reduce the risk of fire in the oven cavity: 1). Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. 2). Remove wire twist-ties from paper or plastic bag before placing bag in oven. 3). If material inside of the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. 4). Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. WARNING - To reduce the risk of burns, electric shock, fire , injury to persons o r exposure to excessive microwave energy: IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following: 3 17.Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS C OULD RESULT I N VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: 1)Do not overheat the liquid. 2)Stir the liquid both before and halfway through heating it. 3)Do not use straight-sided containers with narrow necks. 4)After heating, allow the container to stand in the microwave oven for a short time before removing the container. 5) Use extreme care when inserting a spoon or other utensil into the container. 18.Oversized food or oversized metal utensils should not be inserted in a microwave/ toaster oven as they may create a fire or risk of electric shock. 19.Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving a risk of electric shock. 20.Do not use paper products when appliance is operated in the toaster mode. 21.Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use. 22.Do not cover racks or any other part of the oven with metal foil. This will cause over- heating of the oven. 23. Clean Ventilation Hoods Frequently - Grease should not be allowed to accumulate on hood or fil ter. 24. When flaming foods under the hood, turn the fan on. 25.Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lye- based oven cleaners, may damage th e filter. 26.Suitable for use above both gas and electri c cooking equipment. SAVE THESE INSTRUCTIONS 4 GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING - Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if do…

Text truncated - open the document above for the full version.

ArentFox Schiff LLP 1717 K Street, NW Washington, DC 20006 202.857.6000MAIN 202.857.6395FAX afslaw.com Jeffrey E. Rummel Partner and Communications & Technology Practice Leader 202.715.8479DIRECT [email protected] U.S. Agent Designation for Serviceof Process (Applicant and U.S. Agent are Separate Parties) TO: Nemko North America, Inc. 303 River Road, Ottawa, Ontario, Canada K1V 1H2 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name:ArentFox Schiff LLP Contact Name:Jeffrey Rummel Street Address:1717 K St., nw City/Province/Zip:Washington, D.C. 20006 Telephone No: (202)715-8479 Email:[email protected] FRN #: 0021243860 This letter is to confirm that we(“ArentFox Schiff LLP”) have accepted the responsibility to act asthe Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date:4/4/2023 Signed by (Printed Name/Title):Jeffrey Rummel The Applicantacknowledges that they must maintain an agentfor no less than one year after terminatingall marketing and importation ORthe conclusion of any Commission- related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent informationabove changes. 022423-17 Rev 6 Applicant Company name: Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Grantee Code: VG8 FRN: 0019079995 Contact Name: Jilin Ye Street Address : No.6, Yong An Road, Beijiao, Shunde City/Province/Zip: Foshan, Guangdong, China Telephone No: +86-0757-26339595 Email: [email protected] om Applicant Signature: Date:2023/3/28 Signed by (Printed Name/Title): Jilin Ye

GUANGDONG MIDEA KITCHEN APPLIANCES MANUFACTURING CO., LTD. Covered Equipment Certification Attestation Letter 1/16/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: VG8EM048KYY1 Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Ye Jilin Title: Engineer Company Name: Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Date: 1/16/2024

Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd Request for Confidentiality Date: January 16 , 2024 Subject: Confidentiality Request for: ____FCC ID: VG8EM048KYY1___ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐Short Term☒PermanentBlock Diagrams ☐Short TermExternal Photos ☐Short Term☐Permanent Internal Photos ☐Short Term☒PermanentOperation Description/Theory of Operation ☐Short Term☐Permanent Parts List & Placement/BOM ☐Short Term☐PermanentTune-Up Procedure ☐Short Term☒PermanentSchematics ☐Short Term Test Setup Photos ☐Short Term☐PermanentUser’s Manual ___Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd_____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Ye Jilin (Signature/Title) (Print name)

GUANGDONG MIDEA KITCHEN APPLIANCES MANUFACTURING CO., LTD. ___________________________________________________________________________________________________ Model Difference Declaration Date: January 16, 2024 Subject: Model difference declaration for FCC ID: VG8EM048KYY1 We, Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd, apply FCC certificate for Our product Microwave Oven. EM048K##-P, EM048K***-P, EM048K##-PH, EM048K***-PH, 505.876.25, 005.876.18, MMO17S3ASTC, MCO170SST model designations as follow: E: Film type keypad; M: Indicates microwave function; 048: “0” indicates the microwave output power is 1000W; “48” indicate cavity capacity is 48 liters; K: Indicate the design No.; ## or ***: "#", "*" may be 0~9, A~Z or blank, indicates different appearance; -P: Indicates Painted (Steel) Cavity; H: Indicates with humidity. Customer models as “505.876.25, 005.876.18” for trade mark as “IKEA”, customer model as “MMO17S3ASTC” for trade mark as “Midea”, customer model as “MCO170SST” for trade mark as “Magic Chef”. They are identical to Midea model except for model name, trade mark and appearance. Model of EM048K6DM-PH was selected for final testing. Sincerely, By: _ Ye Jilin _ (Signature) (Print name)

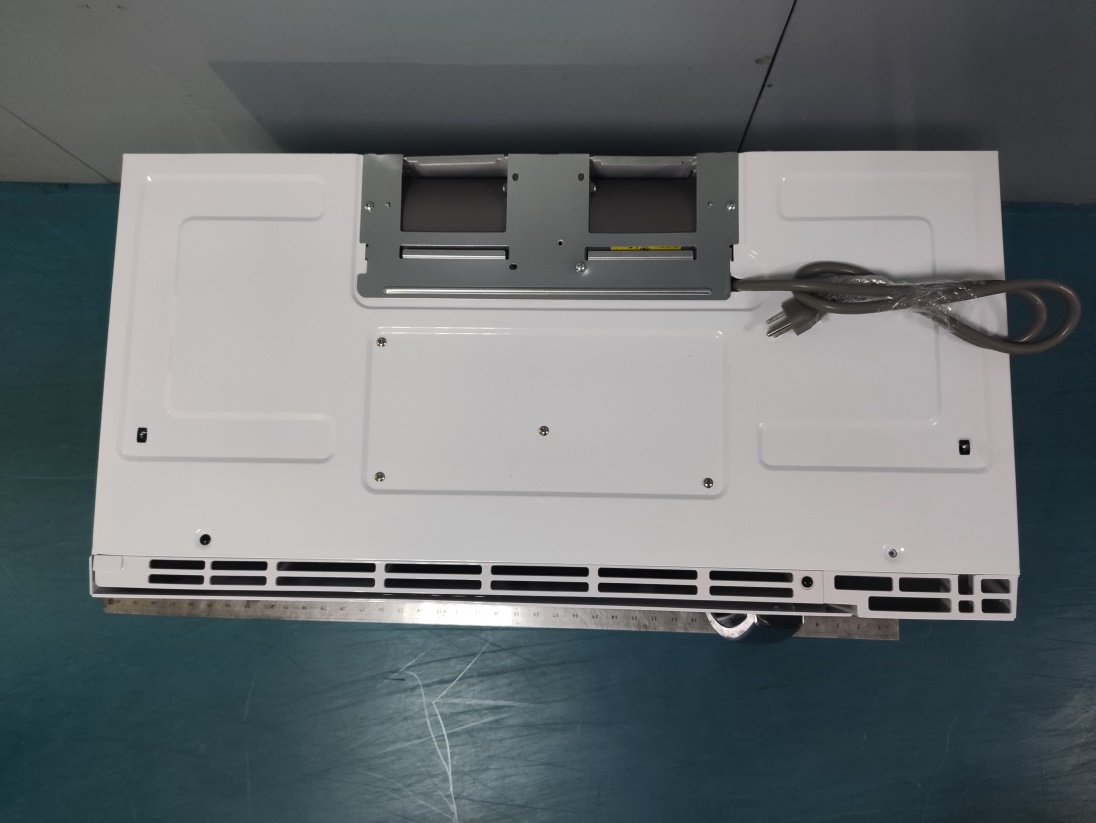

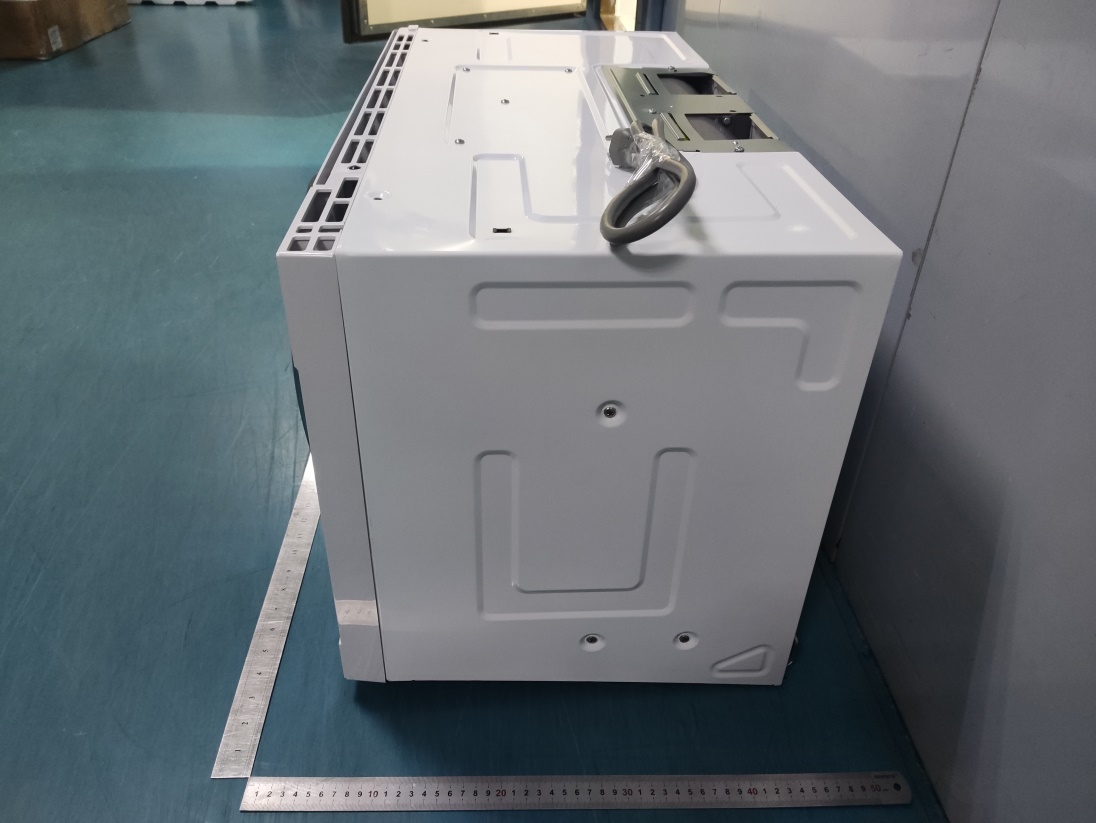

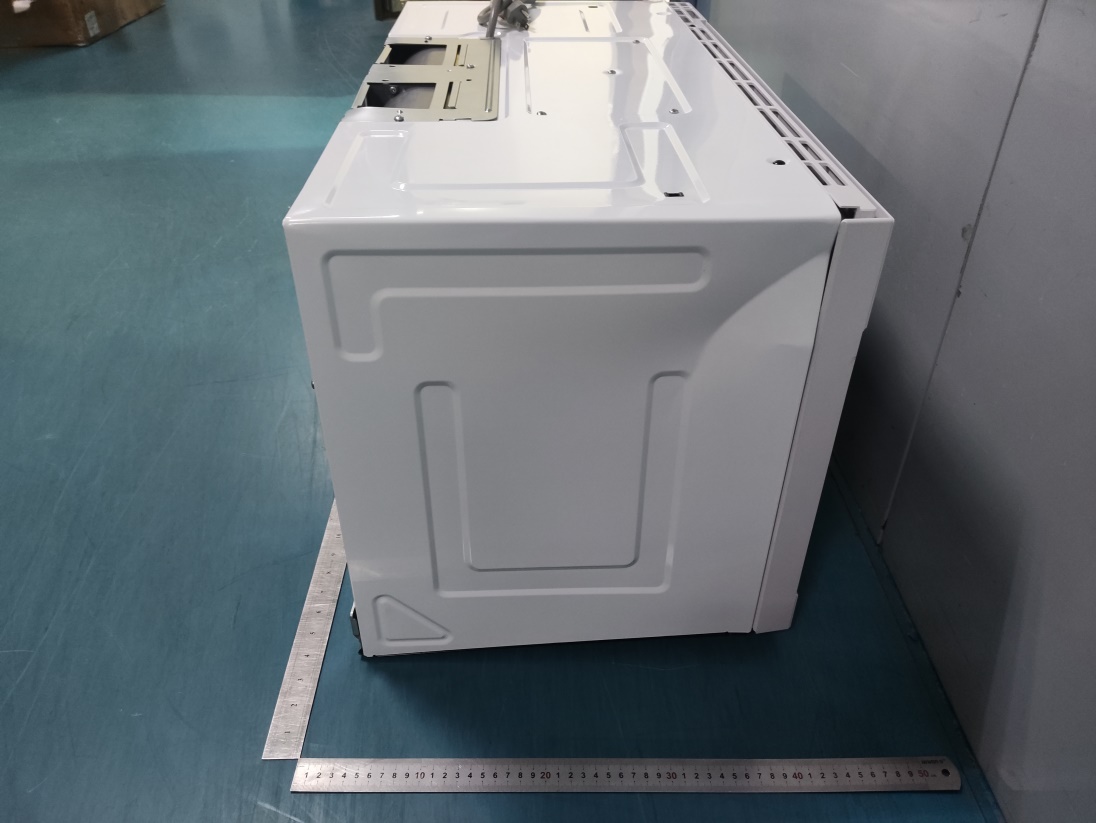

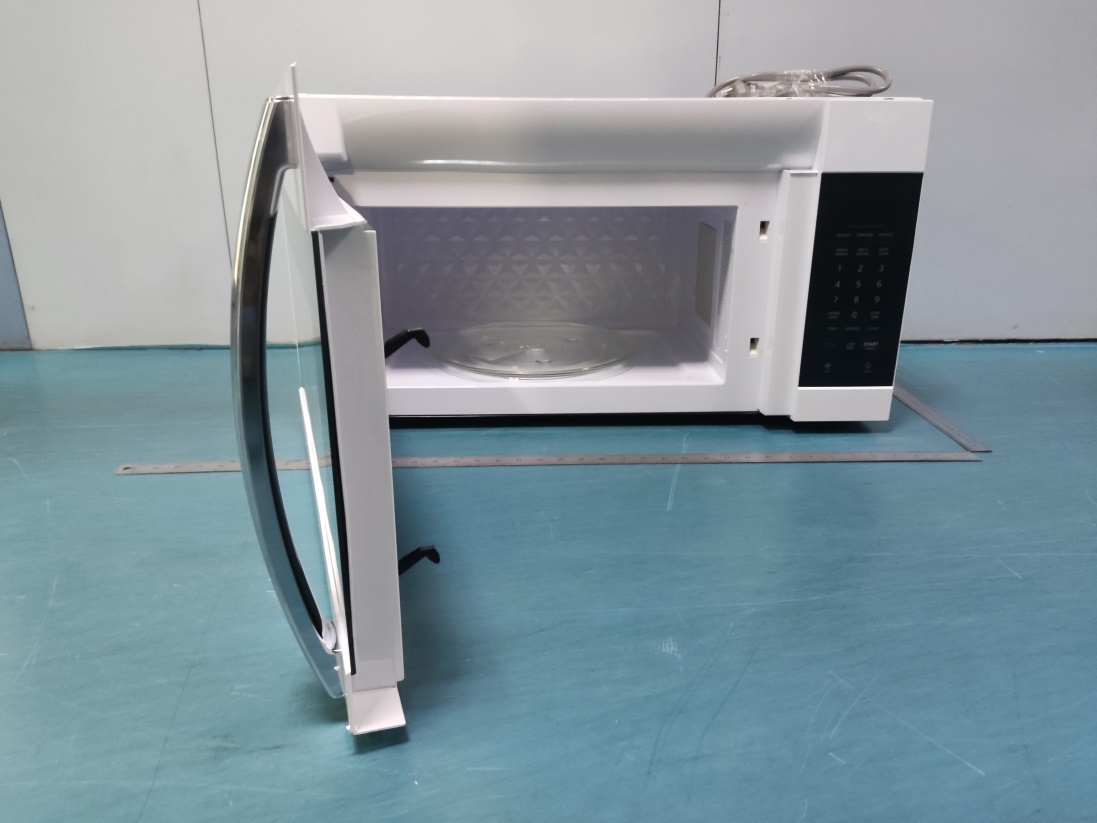

Report No.: 20240117G01442X-E APPENDIX II: PHOTOGRAPHS OF PRODUCT PHOTO Ext ernal Photo CCIC-SET/TRF: IEMC (2019-03-12) Report No.: 20240117G01442X-E CCIC-SET/TRF: IEMC (2019-03-12) Report No.: 20240117G01442X-E CCIC-S ET/TRF: IEMC (2019-03-12)

FCC Label: FCC Label Location:

Report No.: 20240117G01442X-E Internal Photo CCIC-SET/TRF: IEMC (2019-03-12) Report No.: 20240117G01442X-E CCIC-SET/TRF: IEMC (2019-03-12) Report No.: 20240117G01442X-E CCIC-SET/TRF: IEMC (2019-03-12) Report No.: 20240117G01442X-E CCIC-SET/TRF: IEMC (2019-03-12) Report No.: 20240117G01442X-E ※※※ End of Report ※※※ CCIC-SET/TRF: IEMC (2019-03-12)

Report No.: 20240117G01442X-E-1 CCIC-SET/TRF:IEMC(2019-03-12) Page 1 of 5 FCC MPE REPORT Report No.: 20240117G01442X-E-1 Product Name: Microwave Oven Trade Name: Midea Model Tested: EM048K6DM-PH FCC ID: VG8EM048KYY1 Applicant: Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Received Date: 2024.01.19 Test Data: 2024.01.22-2024.01.23 Issued by: CCIC Southern Testing Co., Ltd. Lab Location: Electronic Testing Building, No.43, Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 5 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: 20240117G01442X-E-1 CCIC-SET/TRF:IEMC(2019-03-12) Page 2 of 5 MAXIMUM PERMISSIBLE EXPOSURE (MPE) Product Name ................. : Microwave Oven Model Tested ................. : EM048K6DM-PH Trade Name ...................... Midea Applicant ......................... : Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Applicant Address.......... : No.6, Yong An Road, Beijiao, Shunde, Foshan, China Manufacturer .................. : Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Manufacturer Address ... : No.6, Yong An Road, Beijiao, Shunde, Foshan, China Standard(s) ..................... : FCC/OST MP-5(1986), OET Bulletin 56(1999) Test Result ...................... : PASS Tested by ....................... : Ruihong Xie Test Engineer 2024.01.24 Reviewed by ................... : Chris You Senior Engineer 2024.01.24 Approved by ................... : 2024.01.24 Yang Fan, Manager[盖章] Report No.: 20240117G01442X-E-1 CCIC-SET/TRF:IEMC(2019-03-12) Page 3 of 5 1.1 Facilities and Accreditations 1.1.1 Facilities FCC-Registration No.: CN1283 CCIC Southern Testing Co., Ltd EMC Laboratory has been registered and fully described in a report filed with the FCC (Federal Communications Commission). The acceptance letter from the FCC is maintained in our files. Designation Number: CN1283, valid time is until Sep.30, 2023. A2LA Code: 5721.01 CCIC-SET is a third-party testing organization accredited by A2LA according to ISO/IEC 17025. The accreditation certificate number is 5721.01. 1.1.2 Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 15°C- 35°C Relative Humidity (%): 25% -75% Atmospheric Pressure (kPa): 86kPa-106kPa 1.1.3 Measurement Uncertainty The uncertainty is calculated using the methods suggested in the "Guide to the Expression of Uncertainty in Measurement" (GUM) published by ISO. Uncertainty of Radiation Hazard Test: Uc = 2.4 dB (k=2) EQUIPMENTS LIST A. Equipment List: Description Manufacturer Model Serial No. Calibration Date Calibration Due. Date Portable Spectrometer Rohde & Schwarz FSH8 A1140401672 2023.02.14 2024.02.13 Probe Rohde & Schwarz TSEMF-B1 A1140401671 2023.02.14 2024.02.13 Report No.: 20240117G01442X-E-1 CCIC-SET/TRF:IEMC(2019-03-12) Page 4 of 5 1.2 RADIATION HAZARD TEST 1.2.1 Radiation Hazard (Health) Requirement For ISM equipment operating on higher frequencies (above 900 MHz), in particulars microwave ovens and medical diathermy equipment, radiation leakage should be measured in accordance with the current Bureau of Radiological Health standard, employing an electromagnetic radiation monitor. This test is made primarily to assure that personnel will not be exposed to radiation hazard in testing the equipment. Equipment submitted to the FCC which have radiation leakage apparently in excess of BRH limit will be reported to BRH for their evaluation. See FCC Bulletin OST 56, "Questions and Answers about Biological Effects and Potential Hazards of Radiofrequency Radiation". 1.2.2 Test Procedure The EUT was set-up according to the FCC MP-5 and FCC Part 18 for radiation Hazard measurement. The measurement was using a microwave leakage meter to measure the radiation leakage in the as- received condition with the oven door closed A 770mL water load in a breaker was located in the center of the oven and the microwave oven was set to maximum power. While the oven operating, the microwave meter will check the leakage and then record the maximum leakage. 1.2.3 Limit Limits for General Population/Uncontrolled Exposure NOTE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Report No.: 20240117G01442X-E-1 CCIC-SET/TRF:IEMC(2019-03-12) Page 5 of 5 NOTE 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. A maximum of 1.0mW/cm 2 is allowed in according with the applicable FCC standards 1.2.4 Test results Test location: Test result (mW/cm 2 ) Limit (mW/cm 2 ) Verdict Left side 0.34 1.0 Pass Right side 0.33 1.0 Pass Front 0.41 1.0 Pass Rear 0.31 1.0 Pass There was no microwave leakage exceeding a power level of 0.41mW/cm 2 Observed at any point 5cm or more from the external surface of the oven. 1.2.5 Test setup…

Text truncated - open the document above for the full version.

Report No.: 20240117G01442X-E CCIC-SET/TRF:IEMC(2019-03-12) Page 1 of 21 FCC PART18 TEST REPORT Report No.: 20240117G01442X-E Product Name: Microwave Oven Trade Name: Midea, IKEA, Magic Chef Model No. : EM048K##-P, EM048K***-P, EM048K##-PH, EM048K***-PH, 505.876.25, 005.876.18, MMO17S3ASTC, MCO170SST FCC ID : VG8EM048KYY1 Applicant: Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Received Date: 2024. 01.19 Test Data: 2024. 01.22-2024. 01.23 Issued by: CCIC Southern Testing Co., Ltd. Lab Location: Electronic Testing Building,No.43ShaheRoad,Xili Street, Nanshan District, Shenzhen, Guangdong, China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 22 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: 20240117G01442X-E CCIC-SET/TRF:IEMC(2019-03-12) Page 2 of 21 Test Report Product Name .................... Microwave Oven Model No. ......................... EM048K##-P, EM048K***-P, EM048K##-PH, EM048K***-PH, 505.876.25, 005.876.18, MMO17S3ASTC, MCO170SST Trade name ........................ Midea, IKEA, Magic Chef Applicant ............................ Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Applicant Address............. No.6, Yong An Road, Beijiao, Shunde, Foshan, China Manufacturer ..................... Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd. Manufacturer Address ...... No.6, Yong An Road, Beijiao, Shunde, Foshan, China Test Standards .................. 47 CFR Part 18 Test Result ......................... PASS Tested by .......................... Ruihong Xie Test Engineer 2024.01.24 Reviewed by ...................... Chris You Senior Engineer 2024.01.24 Approved by ...................... 2024.01.24 Yang Fan, Manager[盖章] Report No.: 20240117G01442X-E CCIC-SET/TRF:IEMC(2019-03-12) Page 3 of 21 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 5 1.1 GENERAL DESCRIPTION OF EUT ...................................................................................... 5 1.2 Test Standards and Results ........................................................................................................ 6 1.3 Facilities and Accreditations ...................................................................................................... 7 1.3.1 Facilities .................................................................................................................................... 7 1.3.2 Test Environment Conditions .................................................................................................... 7 1.3.3 Measurement Uncertainty ......................................................................................................... 8 2. EQUIPMENTS LIST ................................................................................................................. 8 3. EMC EMISSION TEST ............................................................................................................. 9 3.1 Test Procedure ............................................................................................................................. 9 3.1.1 Frequency For Normal Voltage ................................................................................................. 9 3.1.2 Frequency For Line Voltage ...................................................................................................... 9 3.1.3 Measurement data ................................................................................................................... 10 3.2 RADIATION HAZARD TEST ................................................................................................ 10 3.2.1 Test Setup ................................................................................................................................ 10 3.2.2 Limit ........................................................................................................................................ 10 3.2.3 Test results ............................................................................................................................... 10 3.3 RF OUTPUT POWER MEASUREMENT ............................................................................ 10 3.3.1 Test Standard ........................................................................................................................... 10 3.3.2 EUT Operating mode .............................................................................................................. 11 3.3.3 Test Data .................................................................................................................................. 11 4. CONDUCTED EMISSION ..................................................................................................... 12 4.1.1 Conducted Emission Limit ...................................................................................................... 12 4.1.2 Test Procedure ......................................................................................................................... 12 4.1.3 Test Setup ................................................................................................................................ 12 5. RADIATED EMISSION .......................................................................................................... 15 5.1.1 Radiated Emission Limits ...................…

Text truncated - open the document above for the full version.

Report No.: 20240117G01442X-E CCIC-SET/TRF:IEMC(2019-03-12) Page 20 of 21 APPENDIX I：PHOTOGRAPHS OF EMC TEST CONFIGURATION 1. Radiated Emission Measurement below 1GHz 2. Radiated Emission Measurement above 1GHz Report No.: 20240117G01442X-E CCIC-SET/TRF:IEMC(2019-03-12) Page 21 of 21 3. Conducted emission at AC mains input/output port Measurement 4. Radiation Hazard Test
