VG8EM134AYYMicrowave Oven

SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. INSTRUCTION MANUAL MODEL:EM134AC2 Microwave Oven 120V~ 60Hz 1500W 1100W 1. Cu.ft. Specifications EM134AC2 Handling the cord on this press or cords associated with accessories sold with this product, will expose you to lead a chemical known to the state of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handle. PRECAUTIONS TO AVOID POSSIBLE TO EXCESSIVE MICROWAVE (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) DOOR (bent) (2) HINGES AND LATCHES (broken or loosened) (3) DOOR SEALS AND SEALING SURFACE (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. Model: Rated Voltage: Rated Input Power(Microwave): Rated Output Power(Microwave): Oven Capacity: Turntable Diameter: External Dimensions : Net Weight: Warning: 1 inch 20.4X17.2X12.4 inch Approx. 35.3 Lbs If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. ADDENDUM 2.4 EXPOSURE ENERGY 2 2 SAFETY 1. The oven must be on a leveled surface. 2. The turntable and turntable roller rest must be in the oven during cooking. Place the cookware gently on the turntable and handle it carefully to avoid possible breakage. 3. Incorrect use of browning dish may cause the turntable to break. 4. Use only the specified bag size when using Direct Access Popcorn. 5. The oven has several built-in safety switches to ensure that the power remains off when the door is open. Do not tamper with these switches. 6. Do not operate the microwave oven empty. Operating the oven with no food or food that is extremely low in moisture can cause fire, charring or sparking. 7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable may cause the turntable to break. 8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating may occur and could cause physical injury. 9. Do not heat narrow-necked containers, such as syrup bottles. 10. Do not attempt to deep-fry in your microwave oven. 11. Do not attempt home canning in this microwave oven, as it is impossible to be sure all contents of the jar have reached boiling temperature. 12. Do not use this microwave oven for commercial purpose. This microwave oven is made for household use only. 13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself, stir liquid before placing the container in the oven and again halfway through cooking time. Let stand in the oven for a short time and stir again before removing the container. 14. Use carefully when cooking food in the microwave oven to avoid burning due to excessive cooking. 15. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. 16. Failure to maintain the oven in a clean condition could lead to deterioration that could adversely affect the life of the appliance and possibly result in a hazardous situation. 3 IMPORTANT SAFETY INSTRUCTIONS WARNING 1. Read all instructions before using the appliance. 2. Read and follow the specific: "PRECAU- TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 2. 3. As with most cooking appliances, close supervision is necessary to reduce the risk of a fire in the oven cavity. If materials inside the oven ignite: 1. Keep the oven door closed. 2. Turn the oven off, and unplug the appliance. 3. Disconnect the power cord, shut off power at the fuse or circuit breaker panel. 4. Do not overcook food. Carefully attend the appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. 5. Do not use the oven cavity for storage purposes. Do not store combustible items such as bread, cookies, paper products, etc. inside the oven. 6. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. 7. This oven must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" on page 5. 8. Install or locate this oven only in accordance with the installation instructions provided. 9. Some products such as whole eggs, water with oil or fat, sealed to explode and therefore should not be heated in this oven. To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 10. Use this appliance only for its intended uses as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat or cook food. It is not designed for industrial or laboratory use. 11. As with any appliance, close supervision is necessary when used by children. 12. Do not operate this oven if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. 13. This appliance should be serviced only by qualified service technicians. Contact the nearest authorized service facility for examination, repair or adjustment. 14. Do not cover or block any vents on the oven. 15. Do not store or use this appliance outdoors. 16. Do not use this oven near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar…

Text truncated - open the document above for the full version.

Web Site: www.midea.com.cn No.6, Yong An Road, Beijiao, Shunde, Foshan E-Mail: [email protected] Guangdong, P.R. China Phone : +86-757-23606480 FAX : +86-757-26656995 AGENCY AUTHORIZATION LETTER FCC ID: VG8EM134AYY Date: 2015-11-18 To whom it may concern: We, the undersigned, hereby authorize ECMG to act on our behalf , as our agent ,in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to the matters. and any other lawful activity necessary to obtain such certification. Any act carried out by ECMG within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date , if you have any question regarding the authorization , please don’t hesitate to contact us , thank you. Sincerely, Xue wenfei Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd. Phone : +86-757-26306480 FAX :+86-757-22607341 E-Mail: [email protected]

Date: 2015-11-18 FCC ID: VG8EM134AYY Federal communications commission Authorization and Evaluation Division Confidentiality Request Pursuant to section 0.457 and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of information accompanying this application as outline below: 1 Schematics 2 Block diagram 3 Operational description The above materials contain trade secrets and proprietary information not customarily released to the public, the public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application.

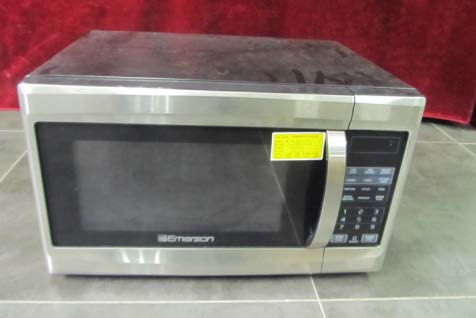

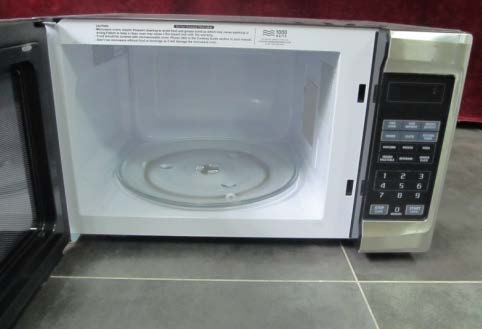

EUT Sample Photos for Model EM134AC2 EUT Front View EUT Back View Door Opend View

SIZE:160X50mm Household Microwave Oven (Not for commercial use) Input 120V~60Hz, Single Phase 15 00W Output 1100W, 2450MHz Serial No./ N'de serie: Four micro-ondes familial (non destine a l'usage commercial) Alinentation 120V~60Hz, monophase 15 00W Puissance 1100W, 2450MHz Made in Shunde China / Fabricado en Shunde-China Model/Modelo: EM134AC2 Manufacture Date / Date de fabrication: Guangdong Midea Mi crowave & Electrical Appliances THIS DEVICE COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21 CFR SUBCHAPTER J. FCC ID:VG8EM134AYY Mfg. Co.,Ltd. Label location

EUT Internal Photos for Model EM134AC2 EUT Uncovered View 01 EUT Uncovered View 02 Magnetron Front View Power Filter Board Top View Power Filter Board Bottom View Mother b oard - Top View Mother board - Bottom View

www.ecmg-global.net EMI TEST REPORT On Model Name: Microwave Oven Model Numbers: XM134AYY Brand Name: FCC ID Number: VG8EM134AYY Prepared for Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd. According to FCC Part 18(2015) Industrial, Scientific and Medical Equipment FCC/OST MP-5(1986) FCC methods of measurements of radio noise emission from industrial, scientific and medical equipment Test Report #: GUA-1511-11383-FCC Prepared by: ECMG ViVi Huang/Assistant Company Name Reviewed by: ECMG Jawen Yin/Senior Engineer Company Name QC Manager: ECMG Swall Zhang/QC Manager Company Name Test Report Released by: December 10 th , 2015     Swall Zhang Date Test Location Tests performed in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location : GD WITOL VACUUM ELECTRONIC EMC TEST LABORATORY BeiJiao,ShunDe,FoShan,GuangDong, 528311, China Tel : (86)-757-26326917 Fax : (86)-757- 22607341 Test Facility Th e test facility was recognized, certified, or accredited by the following organizations: FCC – Registration No.: 910385 GD WITOL VACUUM ELECTRONIC EMC TEST LABORATORY has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC was maintained in our files Table of Contents GOVERNMENT DISCLAIMER NOTICE _______________________________________________ 2 REPRODUCTION CLAUSE __________________________________________________________ 2 OPINIONS AND INTERPRETATIONS ________________________________________________ 2 STATEMENT OF MEASUREMENT UNCERTAINTY ____________________________________ 2 ADMINISTRATIVE DATA ___________________________________________________________ 3 EUT DESCRIPTION _________________________________________________________________ 4 EUT MODEL DERIVED ______________________________________________________________ 4 TEST SUMMARY ___________________________________________________________________ 5 LOAD FOR MICROWAVE OVEN _____________________________________________________ 6 EUT EXERCISE SOFTWARE _________________________________________________________ 6 EQUIPMENT MODIFICATION _______________________________________________________ 6 EUT SAMPLE PHOTOS FOR MODEL EM134AC2 _____________________________________ 7 TEST SYSTEM DETAILS ___________________________________________________________ 12 CONFIGURATION OF TESTED SYSTEM ____________________________________________ 13 ATTACHMENT 1 –RADIATION HAZARD TEST _____________________________________ 14 ATTACHMENT 2 – INPUT POWER MEASUREMENT _________________________________ 16 ATTACHMENT 3 – RF OUTPUT POWER MEASUREMENT ____________________________ 18 ATTACHMENT 4 – OPERATING FREQUENCY MEASUREMENT _______________________ 20 ATTACHMENT 5 – CONDUCTED EMISSION TEST RESULTS _________________________ 23 ATTACHMENT 6 - RADIATED EMISSION TEST RESULTS ____________________________ 28 List Attached Files Exhibit Type File Description File Name Test Report Test Report VG8EM134AYY _Test Report.pdf Operation Description Technical Description VG8EM134AYY _Operation Description.pdf External Photos External Photos VG8EM134AYY _External Photos.pdf Internal Photos Internal Photos VG8EM134AYY _Internal Photos.pdf Block Diagram Block Diagram VG8EM134AYY _Block Diagram.pdf Schematics Circuit Diagram VG8EM134AYY _Schematics.pdf ID Label/Location Label and Location VG8EM134AYY _Label & Location.pdf User Manual User Manual VG8EM134AYY _User’s Manual.pdf Test set-up photos Test set-up photos VG8EM134AYY _Test Set-up Photos FCC Test Report #: GUA-1511-11383-FCC Prepared for Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd. Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 1 of 32 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from ECMG Electronic Technical Testing Corp (Shenzhen). Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT).Without the permission of ECMG Electronic Technical Testing Corp (Shenzhen) Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. FCC Test Report #: GUA-1511-11383-FCC Prepared for Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd. Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 2 of 32 Administrative Data Test Sample : Microwave Oven Model Numbers : XM134AYY Model Tested : EM134AC2 Brand Name : Receipt Date : December 2 th , 2015 Date Tested : December 5 th , 2015 Applicant : Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd. Address No.6, Yong An Road, Beijiao, Shunde, Foshan. Telephone : (86)-7…

Text truncated - open the document above for the full version.

Test Set up photos: Conducted Emission Test Set-up: Radiated Emission Test Set-up (30-1000MHz): Radiated Emission Test Set-up (1-25GHz):
