SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. INSTRUCTION MANUAL Microwave Oven Guangdong Midea Microwave and Electrical Appliances Manufacturing Co.,Ltd. MD Microwave Oven Manufacturing Yongan 6 Road, Beijiao, Shunde, Guandong， P.R.C Model:EM134GTQ-S Model: .kg 34L Rated Voltage: Rated Input Power(Microwave): Rated Output Power(Microwave): Oven Capacity: External Dimensions: Net Weight: Approx Specifications 575 527 368mm 0V~60Hz 00W EM134GTQ-S PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) DOOR (bent) (2) HINGES AND LATCHES (broken or loosened) (3) DOOR SEALS AND SEALING SURFACE (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. 2 12 1700W 11 25. IMPORTANT SAFETY INSTRUCTIONS WARNING 1. Read all instructions before using the appliance. 2 . Read and follow the specific: "PRECAU- TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 2. 3. As with most cooking appliances, close supervision is necessary to reduce the risk of a fire in the oven cavity. 4.To reduce the risk of fire in the oven cavity: i). Do not overcook food. Carefully attend the appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. ii).Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. iii). If materials inside the oven ignite, keep the oven door closed. Turn the oven off, and unplug the appliance. Disconnect the power cord, shut off power at the fuse or circuit breaker panel. iv). Do not use the oven cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. 5. This oven must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page 4. 6. Install or locate this oven only in accordance with the installation instructions provided. 7. Some products such as whole eggs and sealed containers-for example, closed glass jars-are able to explode and should not be heated in the oven. 8. Use this appliance only for its intended uses as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat or cook or dry food. It is not designed for industrial or laboratory use. 9. As with any appliance, close supervision is necessary when used by children. 10. Do not operate this oven if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. 11. This appliance should be serviced only by qualified service technicians. Contact the nearest authorized service facility for examination, repair or adjustment. 12. Do not cover or block any openings on the oven. 13. Do not store or use this appliance outdoors. 14. Do not use this oven near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations. 15. Do not immerse cord or plug in water. 16. Keep cord away from heated surfaces. 17. Do not let cord hang over edge of table or counter. 18. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. 3 W hen using electrical appliances basic safety precautions should be followed,including the following: WARNING-To reduce the risk of burns,electric shock, fire,injury to persons,or exposure to excessive microwave energy : :: i) Do not overheat the liquid. ii) Stir the liquid both before and halfway through heating it. iii) Do not use straight-sided containers with narrow necks. iv) After heating, allow the container to stand in the microwave oven for a short time before removing the container. v) Use extreme care when inserting a spoon or other utensil into the container. 19. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. GROUNDING INSTRUCTIONS SAVE THESE INSTRUCTIONS WARNING DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. The marked rating of the extension cord shall be equal to or greater t…

Text truncated - open the document above for the full version.

Web Site: www.midea.com.cn No.6, Yong An Road, Beijiao, Shunde, Foshan E-Mail: [email protected] Guangdong, P.R. China Phone : +86-757-23606480 FAX : +86-757-22607341 AGENCY AUTHORIZATION LETTER FCC ID:VG8EM134GYY Date: 2013-9-12 To whom it may concern: We, the undersigned, hereby authorize ECMG to act on our behalf , as our agent ,in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to the matters. and any other lawful activity necessary to obtain such certification. Any act carried out by ECMG within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date , if you have any question regarding the authorization , please don’t hesitate to contact us , thank you. Sincerely, Xue wenfei Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Phone : +86-757-26306480 FAX :+86-757-22607341 E-Mail: [email protected]

Date:2013-9-12 Federal communications commission Authorization and Evaluation Division Confidentiality Request Pursuant to section 0.457 and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of information accompanying this application as outline below: 1 Schematics 2 Block diagram 3 Operational description The above materials contain trade secrets and proprietary information not customarily released to the public, the public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, xue wenfei Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Phone : +86-757-26306480 FAX :+86-757- 22607341 E-Mail: [email protected]

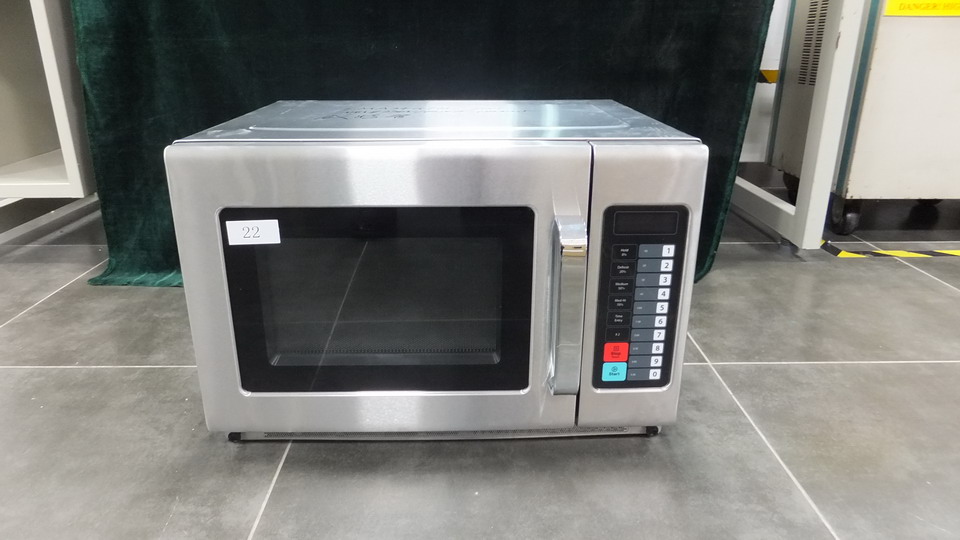

External photos EUT Sample Photos for Model EM134GTQ-S EUT Front View EUT Rear View Door Opend View

FCC Label Format&Location: SIZE:160X50mm Label location

Internal Photos EUT Model: EM134GTQ-S EUT Uncovered View Magnetron Front View Power Filter Board Top View Power Filter Board Bottom View Motherboard Top View Motherboard -Bottom View

www.ecmg-global.net EMI TEST REPORT On Model Name: Microwave Oven Model Number: EM134GYY-S Brand Name: Prepared for Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd FCC ID Number: VG8EM134GYY According to FCC Part 18(2013) Industrial, Scientific and Medical Equipment FCC/OST MP-5(1986) FCC methods of measurements of radio noise emission from industrial,scientific and medical equipment Test Report #: GUA-1309-11064-FCC Tested by: ECMG Sewen Guo/Engineer Company Name Reviewed by: ECMG Jawen Yin/Senior Engineer Company Name QC Manager: ECMG Swall Zhang/QC Manager Company Name Test Rep th ort Released by: October 8, 2013 ⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯⎯ Swall Zhang Date Test Location Tests performed in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location : GD WILOT VACUUM ELECTRONIC EMC TEST LABORATORY BeiJiao,ShunDe,FoShan,GuangDong, 528311, China Tel : (86)-757-26326917 Fax : (86)-757- 22607341 Test Facility The test facility was recognized, certified, or accredited by the following organizations: FCC – Registration No.: 910385 GD WILOT VACUUM ELECTRONIC EMC TEST LABORATORY has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC was maintained in our files. Table of Contents LIST ATTACHED FILES________________________________________________________________ 1 GOVERNMENT DISCLAIMER NOTICE__________________________________________________ 2 REPRODUCTION CLAUSE____________________________________________________________ 2 OPINIONS AND INTERPRETATIONS___________________________________________________ 2 STATEMENT OF MEASUREMENT UNCERTAINTY________________________________________ 2 ADMINISTRATIVE DATA_____________________________________________________________ 3 EUT DESCRIPTION___________________________________________________________________ 4 EUT MODEL DERIVED________________________________________________________________ 4 TEST SUMMARY_____________________________________________________________________ 6 LOAD FOR MICROWAVE OVEN_______________________________________________________ 7 EUT EXERCISE SOFTWARE____________________________________________________________ 8 EQUIPMENT MODIFICATION_________________________________________________________ 8 EUT SAMPLE PHOTOS FOR MODEL EM134GTQ-S______________________________________ 9 TEST SYSTEM DETAILS_____________________________________________________________ 14 CONFIGURATION OF TESTED SYSTEM_______________________________________________ 15 ATTACHMENT 1 –RADIATION HAZARD TEST_________________________________________ 16 ATTACHMENT 2 – INPUT POWER MEASUREMENT_____________________________________ 18 ATTACHMENT 3 – RF OUTPUT POWER MEASUREMENT________________________________ 21 ATTACHMENT 4 – OPERATING FREQUENCY MEASUREMENT___________________________ 24 ATTACHMENT 5 – CONDUCTED EMISSION TEST RESULTS_____________________________ 27 ATTACHMENT 6 - RADIATED EMISSION TEST RESULTS_______________________________ 31 List Attached Files Exhibit Type File Description File Name Test Report Test Report VG8EM134GYY _Test Report.pdf Operation Description Technical Description VG8EM134GYY _Operation Description.pdf External Photos External Photos VG8EM134GYY _External Photos Internal Photos Internal Photos VG8EM134GYY _Internal Photos Block Diagram Block Diagram VG8EM134GYY _Block Diagram.pdf Schematics Circuit Diagram VG8EM134GYY _Schematics.pdf ID Label/Location Label and Location VG8EM134GYY _Label & Location.pdf User Manual User Manual VG8EM134GYY _User’s Manual.pdf Test set-up photos Test set-up photos VG8EM134GYY _Test Set-up Photos FCC Test Report #: GUA-1309-11064-FCC Prepared for Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 1 of 35 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from ECMG Electronic Technical Testing Corp (Shenzhen). Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT).Without the permission of ECMG Electronic Technical Testing Corp (Shenzhen). Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. FCC Test Report #: GUA-1309-11064-FCC Prepared for Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 2 of 35 Administrative Data Test Sample : Microwave Oven Model Numbers : EM134GYY-S Model Tested : EM134GTQ-S Brand Name : Receipt Date : September 29 th , 2013 Date Tested : October 7 th , 2013 Applicant : Guangdong Midea Kitc…

Text truncated - open the document above for the full version.

Test Set-up photos Radiation Hazard Test Set-up Input Power Test Set-Up RF Output Power Test Set-Up Operating Frequency Test Set-up Conducted Emission Test Set-up Radiated Emission Test Set-up (30 -1,000MHz) Radiated Emission Test Set-up (1-18GHz)
