VG8EM136AXXMicrowave Oven

Sears Canada Inc. Toronto, Ontario, Canada, M5B 2C3 V isit us on the internet at: www.sears.ca Microwave Oven Use & Care Guide Models: P/N:316902436 EM136ALQ Kenmore Appliance Warranty.....................................................................................3 Important Safety Instructions....................................................................................4-6 Microwave Features.....................................................................................................7 Setting Up Your Oven..................................................................................................8 Countertop Installation.................................................................................................9 Microwave Operation..................................................................................................10 Setting the Clock.........................................................................................................11 Setting the Timer.........................................................................................................11 Microwave Cooking.....................................................................................................12 Defrosting by Weight...................................................................................................13 Defrosting by Time......................................................................................................13 Memory Cooking.........................................................................................................13 Multi-Stage Cooking....................................................................................................14 Express Cooking.........................................................................................................14 Product Record In the space below, record the date of purchase, model and serial number of your product. You will find the model and serial number printed on an identification plate. This serial plate is located on the right side of the oven front frame in the storage or warmer drawer compartment. See next page for the serial plate location. Save these instructions and your sales receipt for future reference. Model No. Serial No. Date of Purchase Table of Contents 2 Sensor Cooking......................................................................................................16-17 Changing Your Overlay to French...............................................................................18 Solutions to Common Problems..................................................................................19 Repair..........................................................................................................................20 Kenmore Microwave Warranty....................................................................................21 WARNING CAUTION KENMORE APPLIANCE WARRANTY One Year Limited Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® for replacement. NOT FOR COMMERCIAL USE. This warranty covers only defects in material and workmanship. Sears will NOT pay for: 1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags. 2. A service technician to instruct the user in correct product installation, operation, or maintenance. 3. A service technician to clean or maintain this product. 4. Damage to or failure of this product if it is not installed, operated, or maintained according to all instructions supplied with the product. 5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose. 6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product. 7.Damage to or failure of parts or systems resulting from unauthorized modifications made to this product. Disclaimer of implied warranties; limitation of remedies Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year of the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties or merchantability or fitness, so these exclusions or limitations may not apply to you. This warranty applies only while this appliance is used in the United States or Canada. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Serial Plate Location You will find the model and serial number printed on the serial plate. The serial plate is located on the back of the microwave. Please see the illustration for the exact location. Remember to record the serial number for future reference (see Product Record on previous page). 3 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. This symbol will alert you to situations that may cause serious bodily harm, death, or property damage. This symbol will alert you to situations that may cause bodily injury or property damage. A)Do not attemptto operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is im…

Text truncated - open the document above for the full version.

Declaration TO: TUV SUD We, Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. Beijiao, Shunde, Foshan City, Guangdong . P. R. China. officially notify TUV SUD that the following models:EM136AXX(x should be 0-9 or A-Z stand for different appearance) have same door system construction include interlock switch; hinge; viewing screen; door frame; choke; door sealing system; door latches ,plastic material and PCB schematic and layout with model EM136ALQ The difference just lays in appearance. Applicant: Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. (Date) (Applicant’s authorized signature and company)

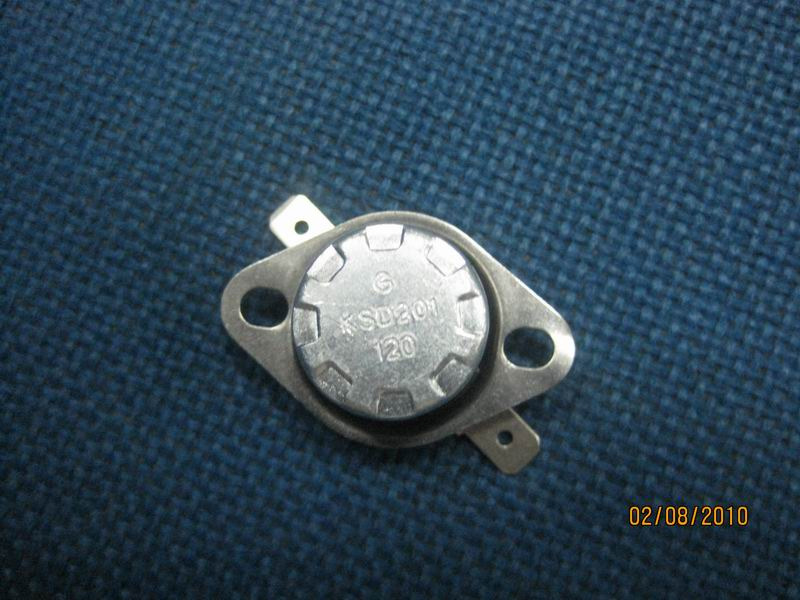

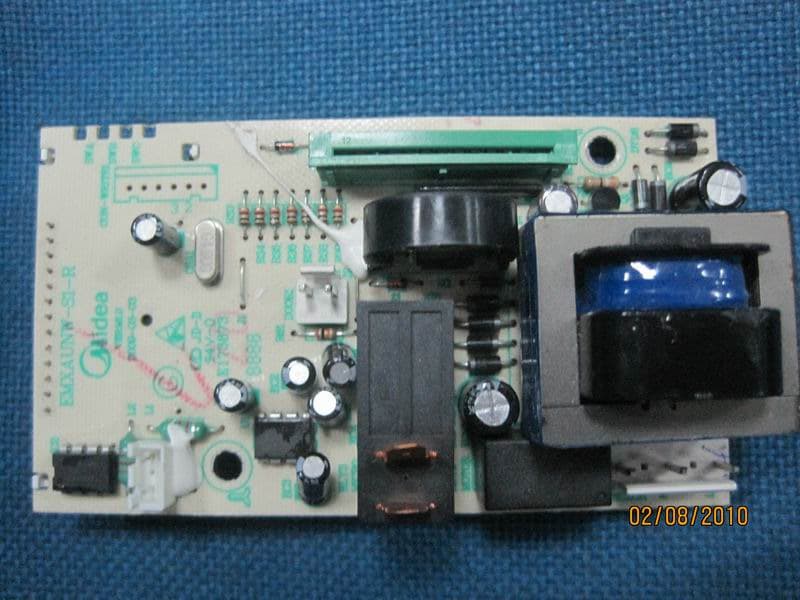

External photos Internal photos Thermostat for safety Thermostat for Magnetron Control PCB

SIZE:160X50mm Household Microwave Oven (Not for commercial use) Input 120V~60Hz, Single Phase 1500W Output 1100W, 2450MHz Serial No./ N'de serie: Four micro-ondes familial (non destine a l'usage commercial) Alinentation 120V~60Hz, monophase1500W Puissance1100W, 2450MHz Made in Shunde China / Fabricado en Shunde-China M odel/M odelo:EM136AXX Manufacture Date / Date de fabrication: Foshan Shunde Midea Microwave & Electrical Appliances THIS DEVICE COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21 CFR SUBCHAPTER J. FCC ID:VG8EM136AXX Mfg. Co.,Ltd.

ID label Location of Label ID Labe location

External photos Internal photos Thermostat for safety Thermostat for Magnetron Control PCB

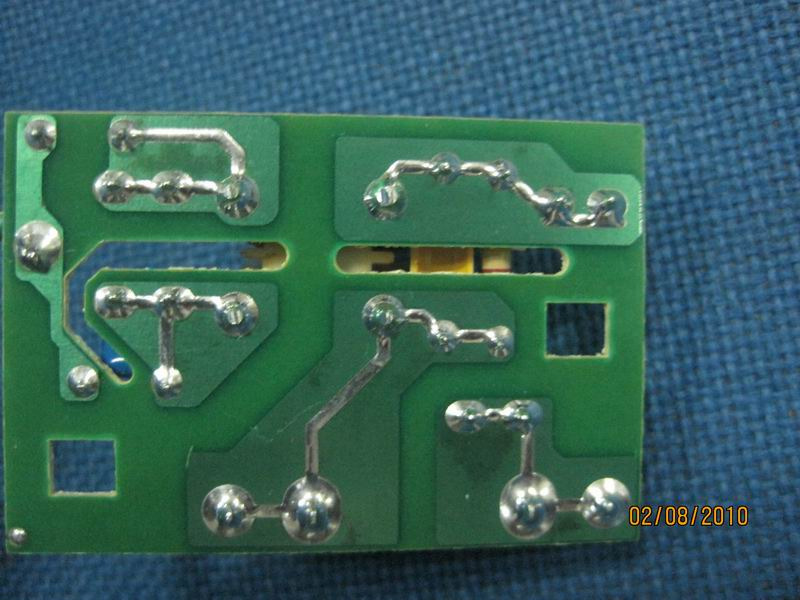

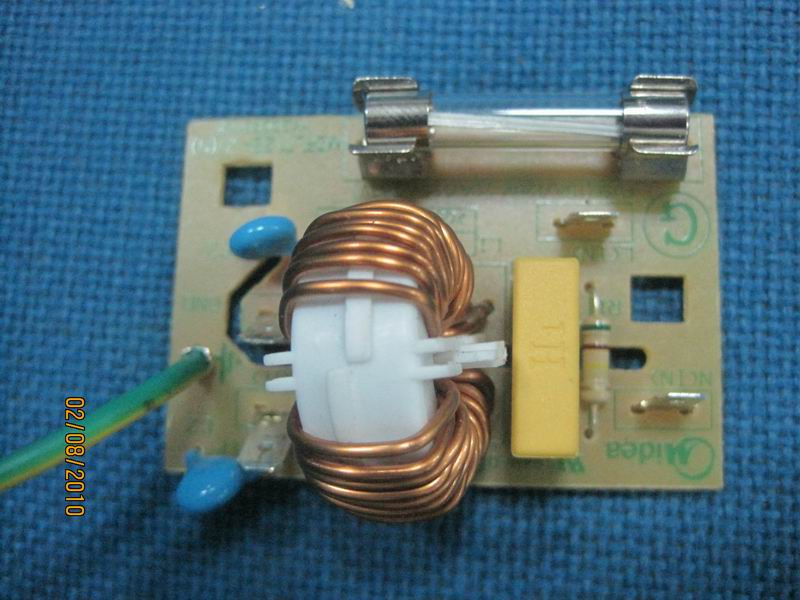

Function diagram Circuit diagram Circuit of Control PCB Circuit of power filter PCB

FCC ID: VG8EM136AXX Report Number: 64.790.10.336.01 Page 1 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 E M I S S I O N - T E S T R E P O R T Report Number : 64.790.10.336.01 Date of Issue: August 9, 2010 Model / Serial No. : VG8EM136AXX (X should be 0-9 or A-Z stand for different appearance )/ NIL Product Type : Microwave oven Applicant : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing Manufacturer : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing License holder : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing Address : NO.18 Huanzhen West Road,Beijiao,Shunde, Foshan, : Guangdong, China Test Result :



Positive    Negative Total pages including Appendices : 19 The test result only responds to the tested sample. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. FCC ID: VG8EM136AXX Report Number: 64.790.10.336.01 Page 2 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 D I R E C T O R Y Pages A) Documentation Directory 2 Test Regulations 3 General information 3 - 4 Equipment under Test 5 B) Test Data Radiation Hazard Measurement 6 Input Power Measurement 7 RF Output Power Measurement 8 - 9 Operating Frequency Measurement 10 - 11 Conducted Emission 12 - 15 Radiated Emission 16 - 18 C) Photographs of The Test Set-Up Set-up for radiation measurement below 1GHz 21 Set-up for radiation measurement above 1GHz 22 FCC ID: VG8EM136AXX Report Number: 64.790.10.336.01 Page 3 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 TEST REGULATIONS : The tests were performed according to the following regulations:
- 47 CFR Part 18 Test Facilities Registration Number: 910385
- GUANGDONG WITOL VACUUM ELECTRONIC EMC TEST LABORATORY. Add: BeiJiao,ShunDe,FoShan,GuangDong,528311,China Environmental Conditions Temperature: : 21 °C Relative Humidity: : 56 % Atmospheric Pressure: : 1006 mBar Power Supply System Utilized: Power supply system : 120V/60Hz/1ø STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. Short Description of the Equipment under Test(EUT) VG8EM136ALQ is a microwave oven operates in the frequency 2.450GHz. Communication type: VG8EM136ALQ Power Consumption: 120V~60Hz, 1500W (microwave) Output power: 1100W Operation Frequency: 2450MHz Magnetron Manufacturer: Toshiba Magnetron Model Number: 2M248J Power Cable: 100cm FCC ID: VG8EM136AXX Report Number: 64.790.10.336.01 Page 4 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 Definitions For Symbols Used In This Test Report
- Black box indicates that the listed condition, standard or equipment is applicable for this report  - Blank box indicates that the listed condition, standard or equipment was not applicable for this report. Status of Facility Used for Testing GUANGDONG WITOL VACUUM ELECTRONIC EMC TEST LABORATORY. BeiJiao, ShunDe, FoShan, GuangDong , 528311, China is listed in the US Federal Communications Commission list of facilities approved to perform measurements. Load for Microwave Ovens For all measurements, the energy developed by the oven was absorbed by a dummy load consisting of a quantity of tap water in a beaker. If the oven was provided with a shelf or other utensil support, this support was in its initial normal position. For ovens rated at 1000 watts or less power output, the beaker contained quantities of water as listed in the following subparagraphs. For ovens rated at more than 1000 watts output, each quantity was increased by 50% for each 500 watts or fraction thereof in excess of 1000 watts. Additional beakers were used if necessary. ● Load for power Input and output measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for frequency measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for radiation hazard measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for measurement of radiation on second and third harmonic: Two loads, one of 700 and the other of 300 milliliters, of water are used. Each load is tested both with the beaker located in the center of the oven and with it in the right front corner. ● Load for other measurement: 700 milliliters of water in the beaker located in the center of the oven. Test Equipment Used: FCC ID: VG8EM136AXX Report Number: 64.790.10.336.01 Page 5 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 Serial No. Equipment Manufacturer Model No. Last Cal. Cal. Interval 99171 Microwave survey meter Holaday HI-1501 2010.01.21 1 Year 508015 power meter EVERFINE PF9808B 2010.01.21 1 Year 2552 Digital thermometer Anritsu HFT-90V/90 2010.01.21 1 year 00003 LISN SCHAFFNER NNB42 2010.01.21 1 Year 100267 EMI Receiver R&S ESCS30 2010.01.21 1 Year 100247 Pulse limiter R&S…

Text truncated - open the document above for the full version.

FCC ID: VG8EM136AXX Report Number: 64.790.10.336.01 Page 1 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 E M I S S I O N - T E S T R E P O R T Report Number : 64.790.10.336.01 Date of Issue: August 9, 2010 Model / Serial No. : VG8EM136AXX (X should be 0-9 or A-Z stand for different appearance )/ NIL Product Type : Microwave oven Applicant : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing Manufacturer : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing License holder : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing Address : NO.18 Huanzhen West Road,Beijiao,Shunde, Foshan, : Guangdong, China Test Result :



Positive    Negative Total pages including Appendices : 19 The test result only responds to the tested sample. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. FCC ID: VG8EM136AXX Report Number: 64.790.10.336.01 Page 2 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 D I R E C T O R Y Pages A) Documentation Directory 2 Test Regulations 3 General information 3 - 4 Equipment under Test 5 B) Test Data Radiation Hazard Measurement 6 Input Power Measurement 7 RF Output Power Measurement 8 - 9 Operating Frequency Measurement 10 - 11 Conducted Emission 12 - 15 Radiated Emission 16 - 18 C) Photographs of The Test Set-Up Set-up for radiation measurement below 1GHz 21 Set-up for radiation measurement above 1GHz 22 FCC ID: VG8EM136AXX Report Number: 64.790.10.336.01 Page 3 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 TEST REGULATIONS : The tests were performed according to the following regulations:
- 47 CFR Part 18 Test Facilities Registration Number: 910385
- GUANGDONG WITOL VACUUM ELECTRONIC EMC TEST LABORATORY. Add: BeiJiao,ShunDe,FoShan,GuangDong,528311,China Environmental Conditions Temperature: : 21 °C Relative Humidity: : 56 % Atmospheric Pressure: : 1006 mBar Power Supply System Utilized: Power supply system : 120V/60Hz/1ø STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. Short Description of the Equipment under Test(EUT) VG8EM136ALQ is a microwave oven operates in the frequency 2.450GHz. Communication type: VG8EM136ALQ Power Consumption: 120V~60Hz, 1500W (microwave) Output power: 1100W Operation Frequency: 2450MHz Magnetron Manufacturer: Toshiba Magnetron Model Number: 2M248J Power Cable: 100cm FCC ID: VG8EM136AXX Report Number: 64.790.10.336.01 Page 4 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 Definitions For Symbols Used In This Test Report
- Black box indicates that the listed condition, standard or equipment is applicable for this report  - Blank box indicates that the listed condition, standard or equipment was not applicable for this report. Status of Facility Used for Testing GUANGDONG WITOL VACUUM ELECTRONIC EMC TEST LABORATORY. BeiJiao, ShunDe, FoShan, GuangDong , 528311, China is listed in the US Federal Communications Commission list of facilities approved to perform measurements. Load for Microwave Ovens For all measurements, the energy developed by the oven was absorbed by a dummy load consisting of a quantity of tap water in a beaker. If the oven was provided with a shelf or other utensil support, this support was in its initial normal position. For ovens rated at 1000 watts or less power output, the beaker contained quantities of water as listed in the following subparagraphs. For ovens rated at more than 1000 watts output, each quantity was increased by 50% for each 500 watts or fraction thereof in excess of 1000 watts. Additional beakers were used if necessary. ● Load for power Input and output measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for frequency measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for radiation hazard measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for measurement of radiation on second and third harmonic: Two loads, one of 700 and the other of 300 milliliters, of water are used. Each load is tested both with the beaker located in the center of the oven and with it in the right front corner. ● Load for other measurement: 700 milliliters of water in the beaker located in the center of the oven. Test Equipment Used: FCC ID: VG8EM136AXX Report Number: 64.790.10.336.01 Page 5 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 Serial No. Equipment Manufacturer Model No. Last Cal. Cal. Interval 99171 Microwave survey meter Holaday HI-1501 2010.01.21 1 Year 508015 power meter EVERFINE PF9808B 2010.01.21 1 Year 2552 Digital thermometer Anritsu HFT-90V/90 2010.01.21 1 year 00003 LISN SCHAFFNER NNB42 2010.01.21 1 Year 100267 EMI Receiver R&S ESCS30 2010.01.21 1 Year 100247 Pulse limiter R&S…

Text truncated - open the document above for the full version.
