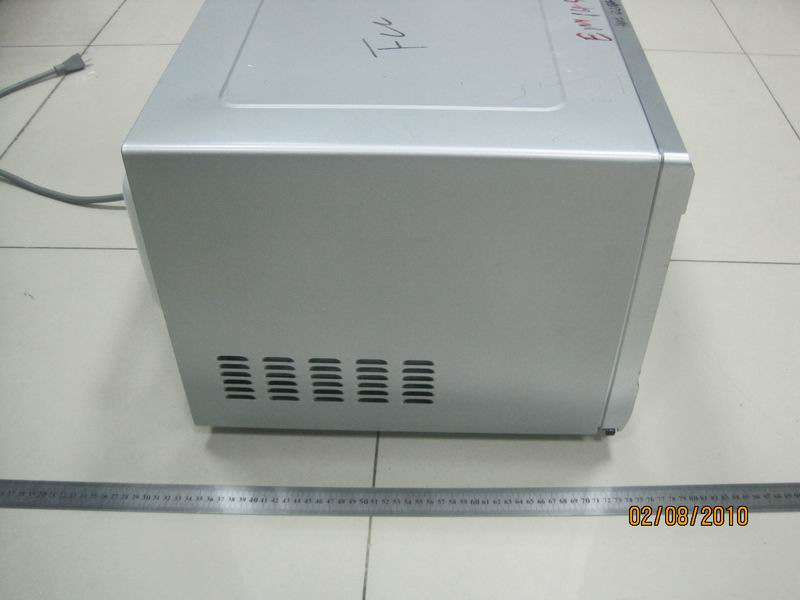

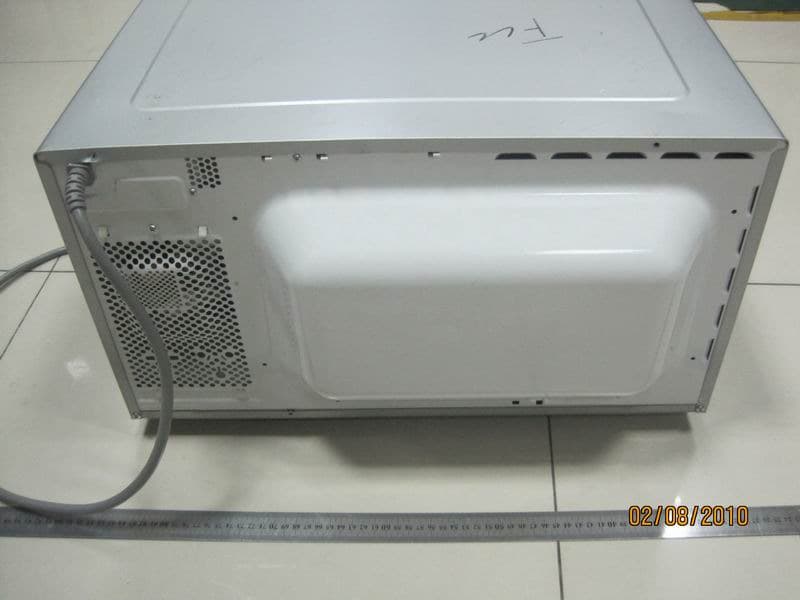

VG8EM145AXX-PMicrowave Oven

SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. INSTRUCTION MANUAL Model:EM145AXX-P Microwave Oven 2 120V~ 60Hz 1550W 1100W Specifications EM145AXX-P Handling the cord on this press or cords associated with accessories sold with this product, will expose you to lead a chemical known to the state of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Model: Rated Voltage: Rated Input Power(Microwave): Rated Output Power(Microwave): Oven Capacity: Turntable Diameter: External Dimensions: Net Weight: Warning: PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) DOOR (bent) (2) HINGES AND LATCHES (broken or loosened) (3) DOOR SEALS AND SEALING SURFACE (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. 3 IMPORTANT SAFETY INSTRUCTIONS WARNING 1. Read all instructions before using the appliance. 2. Read and follow the specific: "PRECAU- TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 2. 3. As with most cooking appliances, close supervision is necessary to reduce the risk of a fire in the oven cavity. 4.To reduce the risk of fire in the oven cavity: i). Do not overcook food. Carefully attend the appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. ii).Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. iii). If materials inside the oven ignite, keep the oven door closed. Turn the oven off, and unplug the appliance. Disconnect the power cord, shut off power at the fuse or circuit breaker panel. iv). Do not use the oven cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. 5. This oven must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page 4. 6. Install or locate this oven only in accordance with the installation instructions provided. 7. Some products such as whole eggs and sealed containers-for example, closed glass jars-are able to explode and should not be heated in the oven. 8. Use this appliance only for its intended uses as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat or cook or dry food. It is not designed for industrial or laboratory use. 9. As with any appliance, close supervision is necessary when used by children. 10. Do not operate this oven if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. 11. This appliance should be serviced only by qualified service technicians. Contact the nearest authorized service facility for examination, repair or adjustment. 12. Do not cover or block any openings on the oven. 13. Do not store or use this appliance outdoors. 14. Do not use this oven near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations. 15. Do not immerse cord or plug in water. 16. Keep cord away from heated surfaces. 17. Do not let cord hang over edge of table or counter. 18. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. 44 i) Do not overheat the liquid. ii) Stir the liquid both before and halfway through heating it. iii) Do not use straight-sided containers with narrow necks. iv) After heating, allow the container to stand in the microwave oven for a short time before removing the container. v) Use extreme care when inserting a spoon or other utensil into the container. 19. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. GROUNDING INSTRUCTIONS SAVE THESE INSTRUCTIONS WARNING DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. (grounding) plug Three-pronged The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance. 5 CAUTION Personal Injury Hazard Tightly-closed utensils …

Text truncated - open the document above for the full version.

Declaration TO: TUV SUD We, Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. Beijiao, Shunde, Foshan City, Guangdong . P. R. China. officially notify TUV SUD that the following models:EM145AXX-P (x should be 0-9 or A-Z stand for different appearance) have same door system construction include interlock switch; hinge; viewing screen; door frame; choke; door sealing system; door latches ,plastic material and PCB schematic and layout with model EM145ANW-P The difference just lays in appearance. Applicant: Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. 2010-08-09 (Date) (Applicant’s authorized signature and company)

SIZE:160X50mm Household Microwave Oven (Not for commercial use) Input 120V~60Hz, Single Phase 1550W Output 1100W, 2450MHz Serial No./ N'de serie: Four micro-ondes familial (non destine a l'usage commercial) Alinentation 120V~60Hz, monophase1550W Puissance1100W, 2450MHz Made in Shunde China / Fabricado en Shunde-China M odel/M odelo:EM145AXX-P Manufacture Date / Date de fabrication: Foshan Shunde Midea Microwave & Electrical Appliances THIS DEVICE COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21 CFR SUBCHAPTER J. FCC ID:VG8EM145AXX-P Mfg. Co.,Ltd.

ID Labe location

Control PCB Mains filter PCB Thermostat for magnetron Thermostat for safety

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:2-Aug-2010 Sheet of File:D:\MyData\桌面\临时文件\EMXAUNW-S2-R(大功率专用)8.DDBDrawn By: P3.2 P3.1 1 2 3 4 5 6 CON-WRITE1 6PIN +5V TR11 S8550 Z3 3.3V/DO35C23 104 C22 104 +5V +5V R46 1M C13 20P C12 20P EC6 47U/16V C11 104/50V s18/int0/p3.3 1 tout/int1/p3.4 2 tack/int2/p3.5 3 tacap/int3/p3.6 4 Vdd 5 Vss 6 Xouot 7 Xin 8 test 9 XTin/p0.0 10 XTout/p0.1 11 p0.2/resetb 12 p0.3/adc8 13 p0.4/com7/adc7 14 AVref 15 p0.5/com6/adc6 16 p0.6/com5/adc5 17 p0.7/com4/adc4 18 p1.0/adc3/tbpwm 19 p1.1/adc2/buz 20 p1.2/adc1 21 p1.3/adc0 22 p1.4/com3 23 p1.5/com2 24 p1.6/com1 25 p1.7/com0 26 p4.0/s0 27 p4.1/s1 28 p4.2/s2 29 p2.0/s3 30 p2.1/s4 31 p2.2/s5 32 p2.3/s6 33 s7/p2.4 34 s8/p2.5 35 s9/p2.6 36 s10/p2.7 37 s11/p4.3 38 s12/p4.4 39 s13/p4.5 40 s14/p4.6 41 s15/p3.0 42 s16/rxd/p3.1 43 s17/txd/p3.2 44 44-QFP IC1 S3F9488-QFP EC9 470UF/25V EC8 220UF/16V EC10 470UF/25V C17 104 C19 104 C18 104 Q1 8050/TO92 R59 390/1/4W Z2 5.6V/DO35 +5V +12 P1.1/BUZ P3.4P3.5P3.6 RESET D5 1N4007D7 1N4007D4 1N4007 D6 1N4007 D12 1N4007D13 1N4007 D10 1N4007 D11 1N4007 TEST N L C15 103 C16 471 Z1 4.7V P4.2 1 2 3 4 RLY3 MICRO D14 4148 +5V N D8 4148 1 2 3 4 RLY2 MOTOR D24148 +12 C20 471 R65 2K MOTOR R66 1K +12 P1.3 P1.2 P1.0 P4.1 P0.3 P0.1P0.0 TR8 S8550 P1.1/BUZ +12 R74 2K P0.4 P0.5 P0.6 P0.7 MOTOR N LRESET SWA: 机型选择 SWB: 机型选择 SWC: 机型选择 P1.3 P1.4 P1.6 1 2 3 4 5 6 7 8 9 10 11 12 CN3 JE12 +5V C8 471 C7 471 C4 471 C5 471 C6 471 C9 471 P1.5 P1.2 SEG1SEG2SEG3SEG4 SEG5 SEG6 SEG7 SEG8 A0 1 A1 2 A2 3 Vss 4 SDA 5 SCL 6 WP 7 Vcc 8 IC2 24C02 C21 104 R78 10K R76 10K +5V P1.7 +5V 1 2 3 4 5 6 7 8 9 10 11 12 13 LED1 LED4047 5*8 GREEN COMMON ANODE C10 471 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 COM1COM2COM3COM4COM5 COM1 COM2 COM3 COM4 COM5 P3.2 P3.1 P3.3 P0.0 P0.1 P0.3 P0.4 P0.5 P0.6 P0.7 P3.4P3.5P3.6 P1.4P1.5P1.6P1.7P4.0P4.1P4.2 R86 4K7 R85 4K7 R81 1M R17 680K R16 150K R82 1M RJ1 2K RJ3 43K R83 1M RJ2 2K RJ4 10K RJ5 10K R32 470R R80 56K C1 47nF C2 104 C3 104 EC5 1uF/16V EC3 47uF/16V EC4 2.2uF/50V EC1 1uF/50V EC2 0.47uF/50V OUT 1 IN- 2 IN+ 3 4 8 U1A LM358 OUT 7 IN- 6 IN+ 5 U1B LM358 D1 1N4148 +5V P1.0 P4.0 1 2 3 CN1 CN3 L2 2.2MH L1 2.2MH SWASWBSWC E C B TR1 S8550 E C B TR2 S8550 E C B TR3 S8550 E C B TR4 S8550 E C B TR5 S8550 R1 4K7 R2 4K7 R3 4K7 R10 4K7 R11 4K7 R4 220R R5 220R R6 220R R7 220R R8 220R R9 220R R44 220R R45 220R 567 1 8432 RP1 10K B C E TR7 S8050 B C E TR9 S8050 B C E TR12 S8050 R40 1K R41 1K R42 1K R43 1K R67 2K R68 2K R69 2K P3.6 P3.5 TEST RESET 1 3 5 CN2 POWER_SOCKT 2 6 7 9 4 10 7V 11V IN 1 TRAN1 PT6329B CSA1 4MHz R33 1K R34 1K R35 1K R36 1K R37 1K R38 1K R39 1K R87 2K 1 2 3 4 RLY1 INRUSH PTC1 PTC D9 1N4148 B C E TR6 S8050 R12 3K3 R13 2K P3.3 D3 4148 R73 3K3 R72 5K1 1/4W R75 2K BUZ1 BUZ C24 471 C25 471 R77 2K R61 10K 12 GND CN? DOOR R70 1K R71 1K R79 10K R63 3K3 R52 3K3 R51 3K3 R56 2K R58 1K R57 2K PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 炣 www.fineprint.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 炣 www.fineprint.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 炣 www.fineprint.cn 第 1 页 、 共 3 页 序号名称物料编码 规格型号 数量单位供应商 代号 备注更改 1 电解电容 253001200012 ROHS电解电容E_470u_25_D8H14_M_105 2 个伯鸿/景光/ 众之城EC9、EC10 2 电解电容 253001200006 ROHS电解电容E_220u_16_D6.3H11_M_105 1 个伯鸿/景光/众之城 EC8 3 电解电容 253001200139 RoHS 电解电容E_47u_16_D5H11_M_105 2 个伯鸿/景光/众之城EC3、EC6 4 电解电容 253001200181 RoHS 电解电容 E_1u_50_D5H11_M_105 1 个伯鸿/景光/众之城 EC1 5 电解电容 253001200186 RoHS 电解电容 E_0.47u_50_D5H11_M_105 1 个伯鸿/景光/众之城 EC2 6 电解电容 253001200177 RoHS 电解电容 E_2.2u_50_D5H11_M_105 1 个伯鸿/景光/众之城 EC4 7 电解电容 253001200180 RoHS 电解电容 E_1u_16_D5H11_M_105 1 个伯鸿/景光/众之城 EC5 8 线插 253005500021 RoHS 电源插座CN_VH-5A_B3P7.92_W 1 华富 CN2 9 色环电感 263005300002 RoHS色环电感 L_LGA0410-222KT26E_2.2mH_K_T262L1、L2 10 线插 253005500022 ROHS门插座CN_VH-2A_B2P3.96_W 1 个华富 DOOR1 11 蜂鸣器 253005900018 ROHS蜂鸣器BUZ_23220_2K_立 1 个声辉/鼎天/振华 BUZ1 12 三极管 263002100002 RoHS ROHS三极管Q_8050D_TO-92(1W) 1 个风华/蓝箭/粤晶 Q1 13 继电器 253005100002 RoHS 继电器RLY_SC_302WP-1AH-C_T85_12VDC_H 1 个松川 RLY3 14 继电器 253005100003 ROHS继电器 RLY_ZW_JZC-40F_T85_12VDC_H 2 个紫薇 RLY1,RLY2 15 数码管 263003000093 ROHS数码管LED_4047BHG-46 1 个健隆达 LED1 16 变压器 253005200059 RoHS 变压器 T_DZ_PT6329B_120V-60Hz 1 个大忠 TRAN1 热敏电阻 253000500299 RoHS 热敏电阻 PTC_PPTL-10390M-A2B2B10_CKD 1 个 PTC1 17 排阻 253000300140 RoHS 排阻RP_A_08_103_J 1 个 RP1 18 薄膜开关 253005500032 RoHS 薄膜开关插座 CN_JE501S_12P2.54 1 个快利 CN3 19 插座 253005500376 ROHS湿度传感器插座CN_XH-3A_B2P5.08_W 1 个快利 CN1 20 集成电路 253005000024 RoHS 集成电路 IC_AT24C02B_8PIN_PDIP 1 个朗普 IC2 21 集成电路 253005000175 RoHS 集成电路 IC_LM358_8PIN_DIP 1 个朗普 U1 22 晶振 253005400020 ROHS晶振OSC_4M_2_30PPM 1 个 铜陵日科/宝通/荣泰 CSA1 23 热溶胶 262600200014 ROHS热溶胶 LP-38H2 (耐高温胶) 0.004KG 朗普 24 防潮油稀释剂 253006200062 RoHS防潮油稀释剂 TF-2131 0.0002 千克同方 25 ￠0.8mm无铅锡线 253006200063 RoHS无铅锡线_D0.8mm_Sn98.8_Ag0.5_Cu0.7 0.0008KG 亿诚达 26 无铅锡条 253006200067 RoHS无铅锡条 Sn98.8-Ag0.5-Cu0.7 0.0027KG 亿诚达 27 无铅助焊剂 253006200060 RoHS无铅助焊剂 TF-747 0.0032 升同方 28 防潮油 253006200066 RoHS防潮油 TF-2131-H3 0.0004 千克同方 29 贴片组件 263620200498 ROHS SMT组件_微波炉电脑板EMXAUNW-S2-R 1 套 备注： 修改次数 ROHS电路板EMXAUNW-S2-R BOM表 打印日期： 装配件：微波炉ROHS电脑板_EMXAUNW-S2-R、 物料编码: 261400118970 日期： 日期: 日期: 日期: 编制： 工艺会签: 标准化: 审核: PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn 第 2 页 、 共 3 页 序号名称物料编码 规格型号 数量单位供应商 代号 备注更改 1251402000683 ROHS IC三星S3F9488三星 IC1 2263007100286 微波编程芯片EMXAUNW-S2-R V1.0 3 贴片电容 253001100037 RoHS 贴片电容C_0603_471_50_X7R_K 10 个 风华 C1、C4-C10、C16、C20 4 贴片电容 253001100034 RoHS 贴片电容C_0603_103_50_X7R_K 1 个 风华 C15 5 贴片电容 253001100039 RoHS 贴片电容C_0603_104_50_Y5V_Z 9 个 风华 C2、C3、C11、C17、C18、C19 、 C21、C22、C23 6 贴片电容 263001100004 RoHS 贴片电容C_0805_20P_50_NPO_J 2 个 风华 C12、C13 7 贴片电阻 253000400035 ROHS贴片电阻R_0805_220R_1/10W_J 8 个风华R4-R9、R44、R45 8 贴片电阻 253000400040 RoHS 贴片电阻R_0805_0R_1/10W_J 1 个风华 JR2 9 贴片电阻 253000400043 RoHS 贴片电阻 R_1206_0R_1/8W_J 4 个风华JR1、JR3、JR4、JR5 10 贴片电阻 253000400371 RoHS 贴片电阻 R_0805_2001_1/10W_F 2 个风华RJ1、RJ2 11 贴片电阻 253000400370 RoHS 贴片电阻 R_0805_1002_1/10W_F 2 个风华RJ4、RJ5 12 贴片电阻 253000400367 RoHS 贴片电阻 R_0805_4302_1/10W_F 1 个风华 RJ3 13 贴片电阻 253000400171 RoHS 贴片电阻 R_0805_154_1/10W_J 1 个风华 R16 14 贴片电阻 25300040…

Text truncated - open the document above for the full version.

标 记 处数 更改单号 签 名 日 期 设 计 校 对 审 核 会 签 标准化 批 准共1页 第1页 产品 名称 图名 图号 电路原理图 MDFLT12B-2-C004 美的微波炉滤波板 MDFLT12B-2-C004 1 L1 LT-T22-12 FILTER L(IN) L(OUT) N(IN) N(OUT) FUSE 15 A12 5V-20 A/12 5V/25 0V ） C1 0.1UF C2 222 C3 222 R1510K/0.5W GND

FCC ID: VG8EM145AXX-P Report Number: 64.790.10.337.01 Page 1 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 E M I S S I O N - T E S T R E P O R T Report Number : 64.790.10.337.01 Date of Issue: August 10, 2010 Model / Serial No. : VG8EM145AXX-P (X should be 0-9 or A-Z stand for different appearance )/ NIL Product Type : Microwave oven Applicant : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing Manufacturer : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing License holder : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing Address : NO.18 Huanzhen West Road,Beijiao,Shunde, Foshan, : Guangdong, China Test Result :



Positive    Negative Total pages including Appendices : 19 The test result only responds to the tested sample. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. FCC ID: VG8EM145AXX-P Report Number: 64.790.10.337.01 Page 2 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 D I R E C T O R Y Pages A) Documentation Directory 2 Test Regulations 3 General information 3 - 4 Equipment under Test 5 B) Test Data Radiation Hazard Measurement 6 Input Power Measurement 7 RF Output Power Measurement 8 - 9 Operating Frequency Measurement 10 - 11 Conducted Emission 12 - 15 Radiated Emission 16 - 18 C) Photographs of The Test Set-Up Set-up for radiation measurement below 1GHz 21 Set-up for radiation measurement above 1GHz 22 FCC ID: VG8EM145AXX-P Report Number: 64.790.10.337.01 Page 3 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 TEST REGULATIONS : The tests were performed according to the following regulations:
- 47 CFR Part 18 Test Facilities Registration Number: 910385
- GUANGDONG WITOL VACUUM ELECTRONIC EMC TEST LABORATORY. Add: BeiJiao,ShunDe,FoShan,GuangDong,528311,China Environmental Conditions Temperature: : 21 °C Relative Humidity: : 56 % Atmospheric Pressure: : 1006 mBar Power Supply System Utilized: Power supply system : 120V/60Hz/1ø STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. Short Description of the Equipment under Test(EUT) VG8EM145ANW-P is a microwave oven operates in the frequency 2.450GHz. Communication type: VG8EM145ANW-P Power Consumption: 120V~60Hz, 1550W (microwave) Output power: 1100W Operation Frequency: 2450MHz Magnetron Manufacturer: Toshiba Magnetron Model Number: 2M248J Power Cable: 100cm FCC ID: VG8EM145AXX-P Report Number: 64.790.10.337.01 Page 4 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 Definitions For Symbols Used In This Test Report
- Black box indicates that the listed condition, standard or equipment is applicable for this report  - Blank box indicates that the listed condition, standard or equipment was not applicable for this report. Status of Facility Used for Testing GUANGDONG WITOL VACUUM ELECTRONIC EMC TEST LABORATORY. BeiJiao, ShunDe, FoShan, GuangDong , 528311, China is listed in the US Federal Communications Commission list of facilities approved to perform measurements. Load for Microwave Ovens For all measurements, the energy developed by the oven was absorbed by a dummy load consisting of a quantity of tap water in a beaker. If the oven was provided with a shelf or other utensil support, this support was in its initial normal position. For ovens rated at 1000 watts or less power output, the beaker contained quantities of water as listed in the following subparagraphs. For ovens rated at more than 1000 watts output, each quantity was increased by 50% for each 500 watts or fraction thereof in excess of 1000 watts. Additional beakers were used if necessary. ● Load for power Input and output measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for frequency measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for radiation hazard measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for measurement of radiation on second and third harmonic: Two loads, one of 700 and the other of 300 milliliters, of water are used. Each load is tested both with the beaker located in the center of the oven and with it in the right front corner. ● Load for other measurement: 700 milliliters of water in the beaker located in the center of the oven. FCC ID: VG8EM145AXX-P Report Number: 64.790.10.337.01 Page 5 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 Test Equipment Used: Serial No. Equipment Manufacturer Model No. Last Cal. Cal. Interval 99171 Microwave survey meter Holaday HI-1501 2010.01.21 1 Year 508015 power meter EVERFINE PF9808B 2010.01.21 1 Year 2552 Digital thermometer Anritsu HFT-90V/90 2010.01.21 1 year 00003 LISN SCHAFFNER NNB42 2010.01.21 1 Year 100267 EMI Receiver R&S ESCS30 2010.01.21 1 Year 100247 …

Text truncated - open the document above for the full version.

FCC ID: VG8EM145AXX-P Report Number: 64.790.10.337.01 Page 1 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 E M I S S I O N - T E S T R E P O R T Report Number : 64.790.10.337.01 Date of Issue: August 10, 2010 Model / Serial No. : VG8EM145AXX-P (X should be 0-9 or A-Z stand for different appearance )/ NIL Product Type : Microwave oven Applicant : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing Manufacturer : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing License holder : Foshan Shunde Midea Microwave and Electrical Appliance Manufacturing Address : NO.18 Huanzhen West Road,Beijiao,Shunde, Foshan, : Guangdong, China Test Result :



Positive    Negative Total pages including Appendices : 19 The test result only responds to the tested sample. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. FCC ID: VG8EM145AXX-P Report Number: 64.790.10.337.01 Page 2 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 D I R E C T O R Y Pages A) Documentation Directory 2 Test Regulations 3 General information 3 - 4 Equipment under Test 5 B) Test Data Radiation Hazard Measurement 6 Input Power Measurement 7 RF Output Power Measurement 8 - 9 Operating Frequency Measurement 10 - 11 Conducted Emission 12 - 15 Radiated Emission 16 - 18 C) Photographs of The Test Set-Up Set-up for radiation measurement below 1GHz 21 Set-up for radiation measurement above 1GHz 22 FCC ID: VG8EM145AXX-P Report Number: 64.790.10.337.01 Page 3 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 TEST REGULATIONS : The tests were performed according to the following regulations:
- 47 CFR Part 18 Test Facilities Registration Number: 910385
- GUANGDONG WITOL VACUUM ELECTRONIC EMC TEST LABORATORY. Add: BeiJiao,ShunDe,FoShan,GuangDong,528311,China Environmental Conditions Temperature: : 21 °C Relative Humidity: : 56 % Atmospheric Pressure: : 1006 mBar Power Supply System Utilized: Power supply system : 120V/60Hz/1ø STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. Short Description of the Equipment under Test(EUT) VG8EM145ANW-P is a microwave oven operates in the frequency 2.450GHz. Communication type: VG8EM145ANW-P Power Consumption: 120V~60Hz, 1550W (microwave) Output power: 1100W Operation Frequency: 2450MHz Magnetron Manufacturer: Toshiba Magnetron Model Number: 2M248J Power Cable: 100cm FCC ID: VG8EM145AXX-P Report Number: 64.790.10.337.01 Page 4 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 Definitions For Symbols Used In This Test Report
- Black box indicates that the listed condition, standard or equipment is applicable for this report  - Blank box indicates that the listed condition, standard or equipment was not applicable for this report. Status of Facility Used for Testing GUANGDONG WITOL VACUUM ELECTRONIC EMC TEST LABORATORY. BeiJiao, ShunDe, FoShan, GuangDong , 528311, China is listed in the US Federal Communications Commission list of facilities approved to perform measurements. Load for Microwave Ovens For all measurements, the energy developed by the oven was absorbed by a dummy load consisting of a quantity of tap water in a beaker. If the oven was provided with a shelf or other utensil support, this support was in its initial normal position. For ovens rated at 1000 watts or less power output, the beaker contained quantities of water as listed in the following subparagraphs. For ovens rated at more than 1000 watts output, each quantity was increased by 50% for each 500 watts or fraction thereof in excess of 1000 watts. Additional beakers were used if necessary. ● Load for power Input and output measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for frequency measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for radiation hazard measurement: 1000 milliliters of water in the beaker located in the center of the oven. ● Load for measurement of radiation on second and third harmonic: Two loads, one of 700 and the other of 300 milliliters, of water are used. Each load is tested both with the beaker located in the center of the oven and with it in the right front corner. ● Load for other measurement: 700 milliliters of water in the beaker located in the center of the oven. FCC ID: VG8EM145AXX-P Report Number: 64.790.10.337.01 Page 5 of 19 Rev.No 1.7 Jiangsu TÜV Product Service Ltd. Guangzhou Branch 5F, Communication Building, 163 Pingyun Rd. Guangzhou 510656 P.R.China, Fax: +86 20 3832 0478 Tel.: +86 20 3832 0668 Test Equipment Used: Serial No. Equipment Manufacturer Model No. Last Cal. Cal. Interval 99171 Microwave survey meter Holaday HI-1501 2010.01.21 1 Year 508015 power meter EVERFINE PF9808B 2010.01.21 1 Year 2552 Digital thermometer Anritsu HFT-90V/90 2010.01.21 1 year 00003 LISN SCHAFFNER NNB42 2010.01.21 1 Year 100267 EMI Receiver R&S ESCS30 2010.01.21 1 Year 100247 …

Text truncated - open the document above for the full version.
