VG8RSFEM308AYTMicrowave Oven

##

Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. NO.18 Huanzhen West Road,Beijiao,Shunde,Foshan,Guangdong,528311,China FCC Confidential Authorization Date: 2010-07-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: VG8RSFEM308AYT Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Detailed Circuit Schematics of EUT--- (Short term) ƒ BOM--- (Short term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Typed or Printed Name: David Title: Engineer Company Name: Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd.

Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. Declaration We, Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd., declare that the test model of Microwave Oven model series, and all called as ：more detail description as follows Suffix could be from 0 to 9 or from A to Z (Cosmetic Design). All the models have the same circuit diagram, PCB diagram. The only different exist in model name.Thank you! Sincerely. Signature: Title: Engineer Company: Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. is EM308AYT,which have diffrent EM308A## 1.where“##”is alphabetic characters,“##” ave and Electrical Appliances ave and Electrical Appliances We, Foshan Shunde Midea Microw

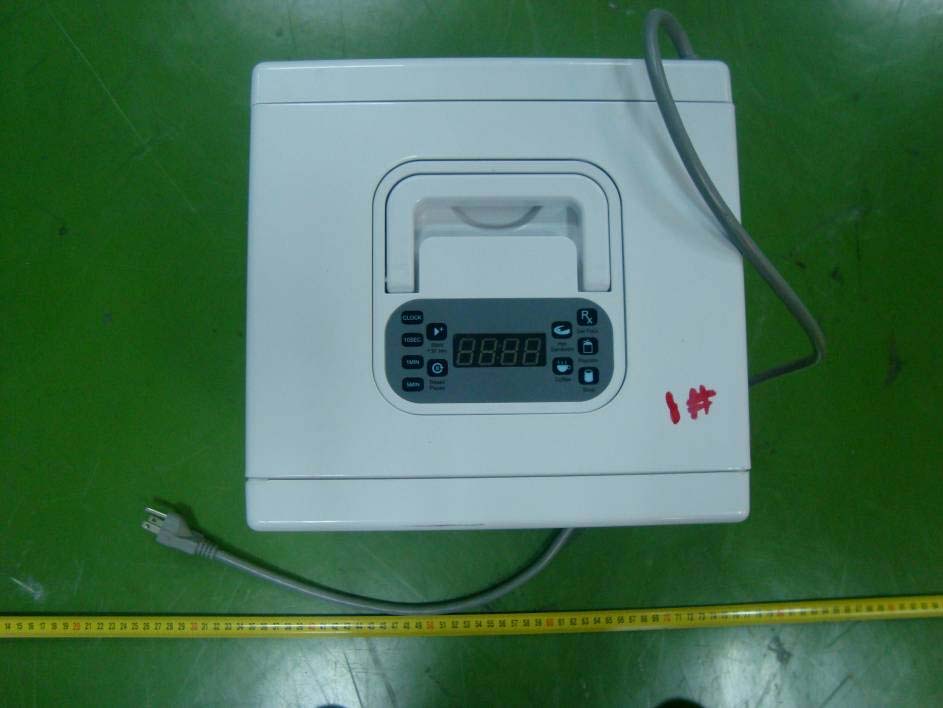

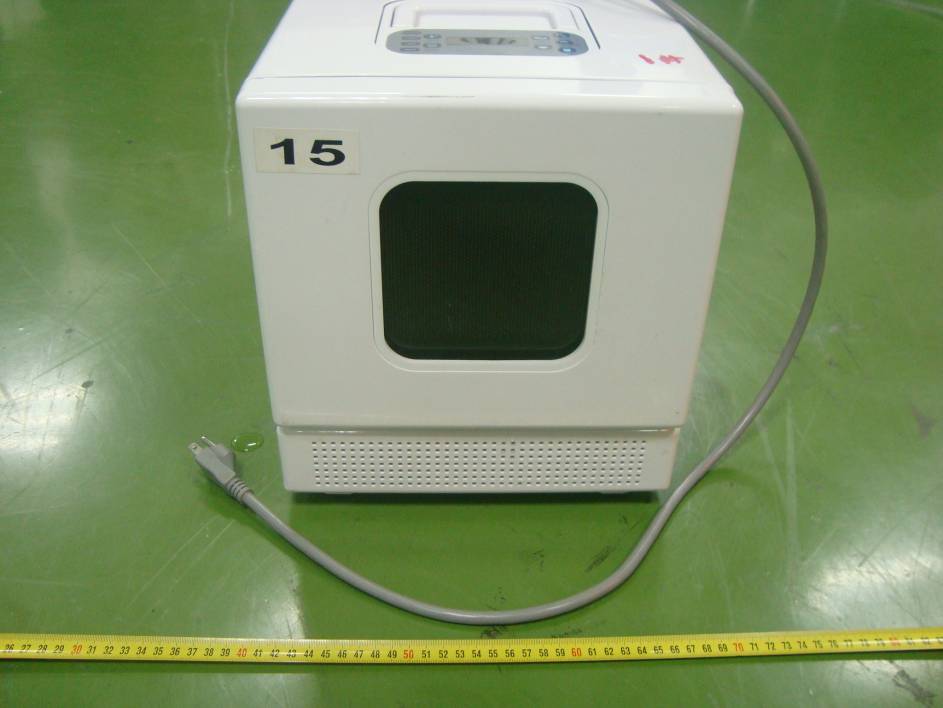

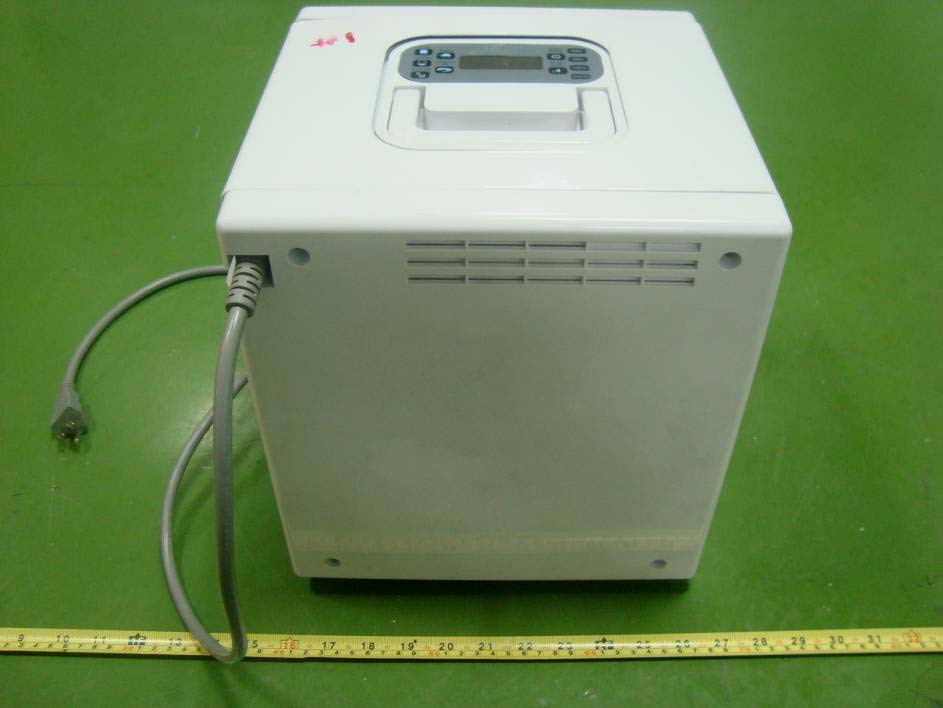

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Label here Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT.

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Disassemble View EUT – Magnetron View EUT – Main Board Top View EUT – Main Board Bottom View EUT – Control Board Top View EUT – Control Board Bottom View EUT – Filter Board Top View EUT – Filter Board Bottom View EUT – Button Board Top View EUT – Button Board Bottom View

Page 1, total 3 pages r ial num b Name Coding Specification Quantity Unit Suppliers Code Notes Change 1 Carbon Film Resistors 263000200001 RoHS Carbon Film Resistors RX_22R_2W_J 1 A zhongzhicheng RX1 2 Color wheel inductors 263005300012 ROHS Color wheel inductors L_LGA0410-1 0 2KT2 6 E1mHKT2 6 1 A fenghua L2 3 Color wheel inductors 263005300001 ROHS Color wheel inductors L_LGA0410-4R7KT2 6 E 4.7 u HKT2 6 1 A fenghua L1 4 Porcelain capacitors 263001000001 ROHS Porcelain capacitors C_102_1KV_Y5P_M_F5.0 2 A yusi C1,C4 5 Safety Capacitor 263001300029 RoHS Safety Capacitor Y1_CT707bY5V102M_400V_B 1 A yusi C3 6 Electrolytic Ca p acitor 253001200012 RoHS Electrolytic Capacitor E_470u_25_D8H14_M_105 3 A zhongzhicheng/yide E3,E4,E5 7 Electrolytic Ca p acitor 253001200192 RoHS Electrolytic Capacitor E_10u_25_D5H11_M_105 3 A zhongzhicheng/yide E6,E7,E8 9 Electrolytic Capacitor 263001200006 RoHSElectrolytic CapacitorE_15u_400_D13H15.5_M_105 2 A zhongzhicheng/yide E1,E2 10 Electrolytic Capacitor 253001200181 RoHS Electrolytic Capacitor E_1u_50_D5H11_M_105 1 A zhongzhicheng/yide C2 11 Coupler 263005000024 ROHS Coupler_SHARP_PC817C_4PIN 1 A SHARP U2 12 IC 263005000052 ROHS IC_TNY176PN_8PIN_DIP 1 A PI U1 13 INSERT 263005500016 ROHS Door jack CN_VH-2A_S2P3.96_W 1 A huafu DOOR1 14 INSERT 263005500015 ROHS Power outlet CN_VH-3A_S2P7.92_W 1 A huafu CN1 15 INSERT 253005500026 RoHS Membrane switch socket CN_JE501S_8P2.54 1 A beidening CON1 16 INSERT 263005500043 ROHS Cable outlet CN_XH-3A_B3P2.54_R 1 A huafu CN5 17 INSERT 253005500262 RoHS Cable outlet CN_XH-2A_B2P2.54_W 1 A huafu CN2 18 Cable with plug 263005500021 ROHS Cable with plugCP_SM_JC25_26AWG_2P65_80_D 2 A CN3,CN4 19 Buzzer 263005900001 RoHS Buzzer BUZ_P1440B5_4K_Stand 1 A nghui/dingtian/zhen h BUZ1 20 Transistor 253002100268 RoHS Transistor Q_D667AC_TO-92L 2 A lanjian Q4,Q5 21 Relay 253005100028 RoHS Relay RLY_SC_833H-1C-C_T85_12VDC_Z 1 A songchuan RLY1 22 Digital tube 263003000040 RoHS Digital tube LED_5401AG 1 A jianlongda/dayuan LED1 23 Transformer 263005200035 ROHS Switching Transformer T_DZ_BCK19-073T _ 120V-60Hz 1 A jingshi T1 24 Single Insert 253005500057 RoHS Insert ACN_187_T0.5_W4.8 2 A jieyingda P1,P2 25 Crystal 253005400020 RoHS Crystal OSC_4M_2_30PPM 1 A g lingrike/baotong/ro n CSA1 26 IC 251402000687 RoHS Chip SH69P26 zhongyingdianzi 28feet zhongying IC2 27 IC 263007100301 RoHS Programming chip EMXAAYT-04-K V1.14 28 Hot melt 262600200021 RoHS Hot melt UB-618L 0.00063 KG haorui 29 Moisture oil diluent 253006200062 RoHS Moisture oil diluent TF-2131 0.0002 KG tongfang 30 ¢ 0.8mm Lead-free Solder wire 253006200063 RoHS ¢ 0.8mm Lead-free Solder wireSn98.8 A g 0.5 Cu0.7 0.0008 KG yichengda 31 Free solder bar(Switching Power 253006200067 RoHS Free solder bar Sn98.8-Ag0.5-Cu0.7 0.0035 KG yichengda 32 Lead-free flux 253006200060 RoHS Lead-free flux TF-747 0.0028 L tongfang 33 Moisture oil 253006200066 RoHS Moisture oil TF-2131-H3 0.0004 KG tongfang 34 SMT components EMXAAYT-04- 263620200538 RoHS Microwave PC Board SMT components_EMXAAYT-04-K 1 Set BOM Print Date ： 1 A Page 2 of 3 r ial num b Name Coding Specification Quantity Unit Code Notes Change 1 Chip Capacitors 253001100037 RoHS Chip Capacitors C_0603_471_50_X7R_K 5 A fenghua C9-C11,C14,C16 2 Chip Capacitors 253001100121 RoHS Chip Capacitors C_0603_102_50_Y5V_Z 2 A fenghua C17,C18 3 Chip Capacitors 253001100039 RoHS Chip Capacitors C_0603_104_50_Y5V_Z 4 A fenghua C5,C6,C8,C15 4 Chip Capacitors 253001100246 RoHS Chip Capacitors C_0805_15P_50_NOP_J 2 A fenghua C12,C13 5 SMD diode 253002300068 RoHS SMD diode D_LL4148_150mA_100V_LL-34 3 A g uang/yangjie/zhong z D14,D16,D17 6 SMD resistor 253000400043 ROHS SMD resistor R_1206_0R_1/8W_J 2 A fenghua JMP,JMP1 7 SMD resistor 263000400056 RoHS SMD resistor R_1206_100R_1/8W_J 1 A fenghua R2 8 SMD resistor 263000400025 RoHS SMD resistor R_0805_560R_1/10W_J 1 A fenghua R23 9 SMD resistor 263000400055 ROHS SMD resistor R_0805_272_1/10W_J 1 A fenghua R22 10 SMD resistor 253000400041 RoHS SMD resistor R_0805_202_1/10W_J 2 A fenghua R8,R42 11 SMD resistor 253000400036 RoHS SMD resistor R_0805_330R_1/10W_J 8 A fenghua R10,R11,R12,R13,R14,R15, R16,R17 12 SMD resistor 253000400042 RoHS SMD resistor R_0805_332_1/10W_J 8 A fenghua R7,R41,R49,R51,R52,R53,R54, R55 13 SMD resistor 253000400097 RoHS SMD resistor R_0805_100R_1/10W_J 4 A fenghua R4,R5,R46,R47 14 SMD resistor 253000400184 RoHS SMD resistor R_0805_470R_1/10W_J 2 A fenghua R48,R50 15 SMD resistor 253000400035 RoHS SMD resistor R_0805_220R_1/10W_J 1 A fenghua R38 16 SMD resistor 253000400402 ROHS SMD resistor R_0805_510R_1/10W_J 1 A fenghua R21 17 SMD resistor 253000400046 RoHS SMD resistor R_0805_472_1/10W_J 5 A fenghua R6,R33,R34,R35,R36 18 SMD resistor 263000400054 RoHS SMD resistor R_0805_432_1/10W_J 1 A fenghua R19 19 SMD resistor 253000400044 RoHS SMD resistor R_0805_103_1/10W_J 4 A fenghua R18,R20,R37,R39 20 SMD resistor 253000400047 RoHS SMD resistor R_0805_102_1/10W_J 2 A fenghua R32,R40 21 SMD Transistor 253002400048 RoHS SMD Transistor Q_8050M-D_SOT-23 3 A u ejing/lanjiang/fengh u Q2,Q6,TR1 22 SMD Transistor 253002400050 RoHS SMD Transistor Q_8550M-D_SOT-23 4 A jing/lanjiang/fen g Q1,Q3,Q7,Q8 23 Red gum 253006200065 RoHS Red gum_NE-8800T_Fuji 0.0002835 Support dewansi 24 SMT Componen t Points 66 Point 25 AI component EMXAAYT-04-K 263620300483 RoHS AI component _ microwave computer boardEMXAAYT-04-K 1 set BOM Print Date ： Page 3 of 3 r ial num b Name Coding Specification Quantity Unit Code Notes Change 1 Rectifiers 253002000011 RoHS Rectifiers D_1N4007_1KV_DO-41 6 A dechuangli D1,D2,D3,D4,D11,D12 2 Switching Diode 253002000013 RoHS Switching Diode D_1N4148_150mA_100V_DO-35 1 A z hongzhi/dechuangl i D15 3 Switching Diode 263002000022 RoHS Fast Recovery Rectifiers D_SR210_2A_100V_DO-15 2 A T a i wan Semiconductor(Ete rnal Asia Agent) D5 ， D6 4 Zener diode 263002200013 ROHS Zener diode Z_4V3_1/2W_B(Accuracy:2%)_DO-35_T26 Tape 1 A dechuangli ZD2 5 Zener diode 253002200261 RoHS Zener diode Z_13V_1/2…

Text truncated - open the document above for the full version.

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size C Date: 23-Aug-2007 Sheet of Drawn By: D11 4148 R35 10K R28 1K CSA14MHz C1615PC1515P R34 2K C14 471 C17 0.1uF VCC R8330 R9330 R10330 R11330 R12330 R13330 R14330 R15330 R27 2K R26 2K R25 2K R24 2K TR2 8050 J RLY1 MICRO D12 4148 DOOR1 R333K3 VCC VCC DOOR BUZZER microwave DOOR Motor PE1/CMPN 3 PE0/CMPO 4 PC2/T0 5 PC3/RESER 6 GND 7 PA0/LED-C 8 PA1/LED-C 9 PA2/LED-C 10 PA3/LED-C 11 PD0/LED-C 12 PD1/LED-C 13 PH0/LED-D 14 PE3/CMP2 1 PE2/CMP1 2 LED-D/PH1 15 LED-D/PD2 16 LED-D/PD3 17 LED-D/PB0 18 LED-D/PB1 19 LED-D/PB2 20 LED-D/PB3 21 VDD 22 OSCI/PC0 23 OSCO/PC1 24 TONE/PF0 25 T2/PF1 26 PF2 27 PF3 28 SINO SH69P26 IC1SH69P26-28PIN RESET ZERO LED-1LED-2LED-4 C10471 C11471 C12471 C13471 BUZ1 TR1 8050 R7 4.7K +12 R5 3.3k BUZZER R6 2K SWBSWA R29 4K7 LED-3 R30 4K7 R31 4K7 R32 4K7 SWCSWD V1.0A 6 8 9 12 1 2 3 4 5 7 10 11 DIG1 DIG2 DIG3 DIG4 a b c d e f g h LED1 12345678 CON1CON8 C19102 R36 100 123 1 红色变频接口 R37 100 Micro_Data Micro_Data Micro_CLK Micro_CLK C20102 Q2 D667 R42 390(1/4W) D134148 12 CN2 DC13V +12 R43 100K Z213V Q1 D667 R403K R411.2K +12V N 12 CN1LED( 炉灯） TR3 8050 R383K R39500 +12 Lamp Lamp C1 0.1uF/250VAC C8 22uF/50V Control FB Vdd Drain Source U3VIPer12A C10 470uF/25V C2 15uF/400V D4 1N4007 C9 4.7nF/Y1CAP D1 1N4007 D21N4007 D31N4007 R104R7-1/4W D71N4148 C5 470uF/16V R4100R/1W C3 100PF/1kV T1 D6 1N5819 D8 BYW100-200 R99K1-1/4W C7103/50V R1 15R/1W +12V Z13.9V/2%/0.5W +5V AC_LAC_N AC INPUT 85VAC~265VAC 4 3 12 5678 D51N4007 R3100K/0.5W C4103 Zero R2100K/0.5W U1 PC817 R520K +5V U2PC817 R11100R R12100R 线绕电阻 L1 10uH C6 100uF/16V Key in 4 Key in 3 Key in 2 Key in 1

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 18 EMI MEASUREMENT AND TEST REPORT For Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. NO.18 Huanzhen West Road, Beijiao, Shunde, Foshan,Guangdong 528311,China FCC ID: VG8RSFEM308AYT Report Type: Original Product Type: Microwave Oven Test Engineer: Andy Xiong Report No.: RSZ10070251 Report Date: 2010-07-15 Reviewed By: Lisa Zhu EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong,China Tel: +86-755-33320018 Fax: +86-755-33320008 Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. FCC ID: VG8RSFEM308AYT Report #: RSZ10070251 Page 2 of 18 FCC Part 18 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 OPERATING CONDITION/TEST CONFIGURATION..........................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 EXTERNAL CABLE LIST AND DETAILS.........................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSIONS ........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................7 RADIATION HAZARD MEASUREMENT .............................................................................................................10 TEST ENVIRONMENTAL CONDITIONS.........................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 RADIATION HAZARD MEASUREMENT........................................................................................................................10 INPUT POWER.............................................................................................................................................................10 LOAD FOR MICROWAVE OVENS.................................................................................................................................11 RF OUTPUT POWER MEASUREMENT..........................................................................................................................11 OPERATING FREQUENCY MEASUREMENT..................................................................................................................12 RADIATED EMISSIONS...........................................................................................................................................14 MEASUREMENT UNCERTAINTY..............................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conduction Emissions - Front View Conduction Emissions - Side View Radiated Emissions - Front View (30 MHz-1 GHz) Radiated Emissions - Rear View (30 MHz-1 GHz) Radiated Emissions - Front View (Above 1 GHz) Radiated Emissions - Rear View (Above 1 GHz)
