VG8XC9P03YYWMicrowave Oven

MICROWAVE OVEN INSTRUCTION MANUAL EC9P032SV-SSHA Please review this instruction manual before operating. CONTENTS PRODUCT SAFETY Precautions to avoid possible exposure to excessive microwave energy Important safety instructions Grounding instructions Radio interference Utensils Materials you can use in microwave oven Materials can not be used in microwave oven 01 02 05 06 06 07 09 PRODUCT SETTING Setting up your oven 10 INSTRUCTION FOR USE Before using for the first time Operation 1. Power levels 2. Clock setting 3. Kitchen timer 4. Microwave cook 5. Grill Function 6. Combination function (convection + microwave) 7. Convection With Preheat 9. Auto Menu 10. Home Fry 13 14 15 15 16 17 17 18 19 20 21 8.Convection Without Preheat 19 11. Weight Defrost 13. Sensor Cook 14. Speed Cooking 15. Lock Function 16. Silent Mode 17. ECO Function 18. Inquiring Function Cleaning 21 23 24 24 25 25 25 27 19. Wi Connection 26 12. Time Defrost 22 MAINTENANCE Trouble shooting One year limited warranty 28 29 BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS. BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE. NOTE 01 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a). Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b). Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c). Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1). DOOR (bent) (2). HINGES AND LATCHES (broken or loosened) (3). DOOR SEALS AND SEALING SURFACES (d). The oven should not be adjusted or repaired by anyone except properly qualified service personnel. PRODUCT SAFETY SPECIFICATIONS RATED VOLTAGE RATED INPUT POWER(MICROWAVE) RATED OUTPUT POWER( (GRILL) MICROWAVE) RATED INPUT POWER RATED INPUT POWER(CONVECTION) MODEL EC9P032SV-SSHA 120 V~ 60 Hz 1450 W 900 W 1000 W 1800 W When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth. Keep cord away from heated surface. To reduce the risk of fire in the oven cavity: 1. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. 2. Remove wire twist-ties from paper or plastic bag before placing bag in oven. 3. If material inside of the oven ignite, keep oven door closed, turn oven o, and disconnect the power cord, or shut o power at the fuse or circuit breaker panel. 4. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 1. 02 IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following. To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy. Read all instructions before using the appliance. Install or locate this appliance only in accordance with the provided installation instructions. As with any appliance, close supervision is necessary when used by children. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment. This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page 5. WARNING 03 IMPORTANT SAFETY INSTRUCTIONS Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location. Do not immerse cord or plug in water or any other liquid. Oversized food or oversized metal utensils should not be inserted in a microwave/toaster oven as they may create a fire or risk of electric shock. Some products such as whole eggs and sealed containers, for example, closed glass jars are able to explode and should not be heated in this oven. Liquids, such as water, coee, or tea are able to overheat beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: 1. Do not overheat the liquid. 2.Stir the liquid both before and halfway through heating it. 3. Do not use straight-sided con- tainers with narrow necks. 4. After heating, allow the container to stand in the microwave oven for a short time before removing the container. 5. Use extreme care when inserting a spoon or other utensil into the container. 04 IMPORTANT SAFETY INSTRUCTIONS Do not let cord hang over edge of table or counter. HOUSEHOLD USE ONLY(NOT FOR COMMERCIAL USE) SAVE THESE INSTRUCTIONS Do not cover or block any openings on the appliance. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. Do not clean with metal scouring pads. Pieces can burn o the pad and touch electrical parts involving a risk of electric shock. Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use. Do not use paper products when appliance is operated in the toaster mode. Do not cover…

Text truncated - open the document above for the full version.

Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Address: No.6, Yong An Road, Beijiao, Shunde, Foshan,Guangdong,China Tel: +86-0757-26339595 Email: [email protected] FCC Confidential Authorization Date: 2022-8-6 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: VG8XC9P03YYW In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd hereby requests long- term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confident Signature: ial information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Print Name: Ye Jilin Titel: Engineer

Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Address: No.6, Yong An Road, Beijiao, Shunde, Foshan,Guangdong,China Tel: +86-0757-26339595 Email: [email protected] Declaration of Difference 2022-8-6 To Whom It May Concern, We, Guangdong Midea Kitchen Appliances Manufacturing Co., Ltd, hereby declare that Products Name Microwave Oven Model EC9P032SV-SSHA Multiple Models ML2-SEC09SA(BS) □No Difference √ Differences as the below Testing Products Multiple Models Details EC9P032SV-SSHA ML2-SEC09SA(BS) EC9P032SV-SSHA is the factory model, ML2-SEC09SA(BS) is the market model, only the models are different, and the products are exactly the same. Notes: Products tested - the products tested by Shenzhen Accurate Technology Co., Ltd., FCC ID: VG8XC9P03YYW Multiple Model have the same appearance, structure, PCB, material and function to the testing products. Besides the differences in the table above, we declare the products are identical. We guarantee that all the information provided above is true, and note that we will bear all the consequences of any false information or concealing. Best Regards, Signature: Print Name: Ye Jilin Titel: Engineer there are some differences between our Multiple Models and test products. Details as below:

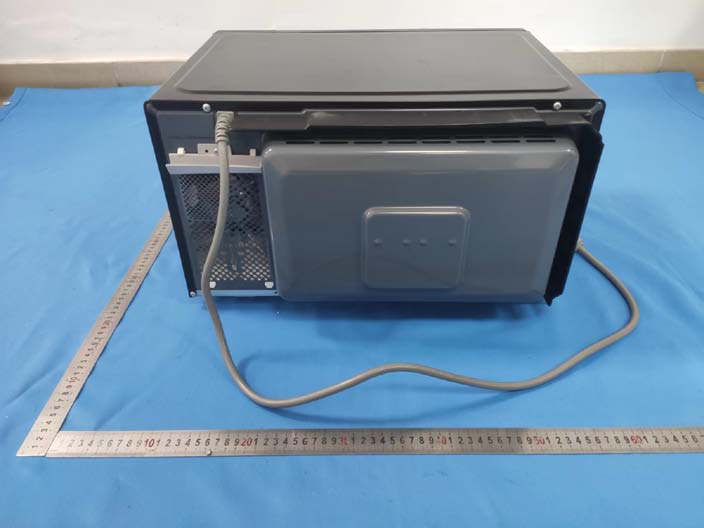

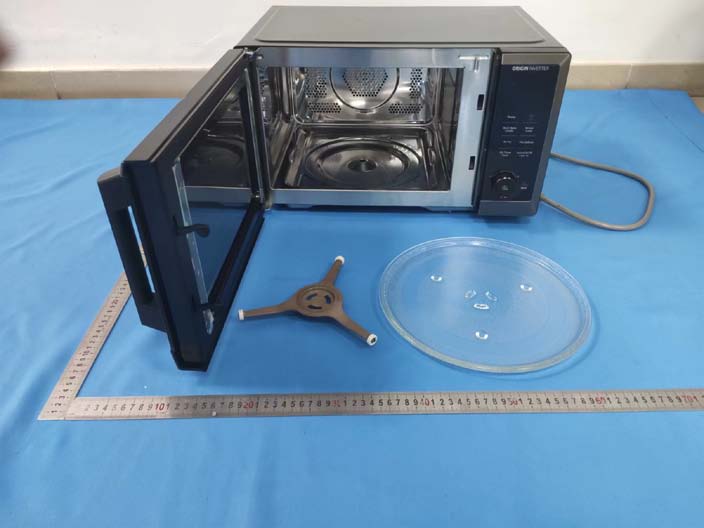

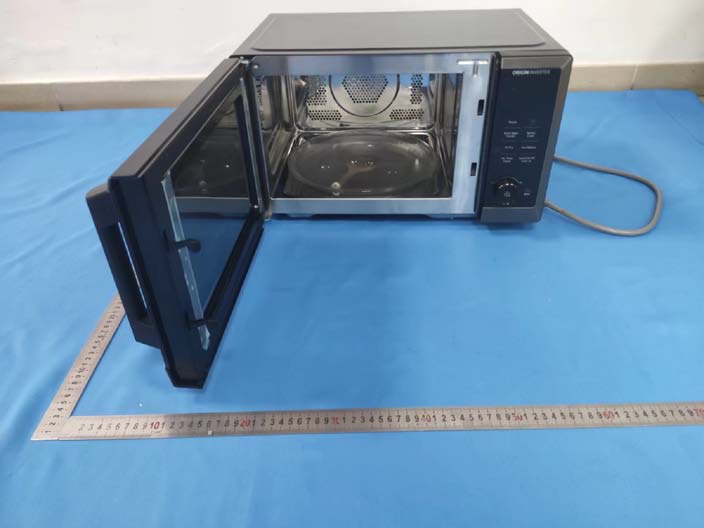

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 4 of 4

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 EXHIBITA-FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the time purchase (Labeling requirements per 2.295)

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 1 of 9 Internal Photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 2 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 3 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 4 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 5 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 6 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 7 of 9 Radio Module Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 8 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 9 of 9

★ Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 25: 2021-11-15 Page 1 of 25 FCC-Part 18 TEST REPORT Applicant Name : Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Address : No.6, Yong An Road, Beijiao, Shunde, Foshan ,Guangdong,China Report Number : SZ2220707-30852E-EM-01 FCC ID: VG8XC9P03YYW Test Standard (s) FCC Part 18 Sample Description Product Type: Microwave Oven Model No.: EC9P032SV-SSHA Multiple Model: ML2-SEC09SA(BS) Trade Mark: MIDEA, TOSHIBA Date Received: 2022-07-07 Date of Test: 2022-07-16 to 2022-07-27 Report Date: 2022-08-01 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Zeki.Ma Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZ2220707-30852E-EM-01 Version 25: 2021-11-15 Page 2 of 25 FCC-Part 18 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 3 TEST FACILITY ............................................................................................................................................................. 4 OPERATING CONDITION/TEST CONFIGURATION .......................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 SPECIAL ACCESSORIES ................................................................................................................................................. 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 EXTERNAL CABLE LIST AND DETAILS ......................................................................................................................... 5 CONFIGURATION OF TEST SETUP ................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULT ................................................................................................................................. 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC §18.313, §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE ......................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 MEASUREMENT .......................................................................................................................................................... 10 CONDUCTED EMISSIONS ...................................................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 EUT SETUP ................................................................................................................................................................ 11 EMI TEST RECEIVER SETUP ....................................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 12 FACTOR & MARGIN CALCULATION ........................................................................................................................... 12 TEST DATA ...................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 1 of 2 Photo of Power Line Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: SZ2220707-30852E-EM-01 Page 2 of 2 Photo of Radiated Emission Measurement 30 MHz - 1 GHz Above 1GHz
