For your safety and continued enjoyment of this product, always read the instruction book carefully before using. Cuisinart ® Microwave Oven CMW-100 INSTRUCTION BOOKLET IB-6798 Recipe Booklet Reverse Side  IMPORTANT sAfeTy INsTRucTIONs WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: When using electrical appliances basic safety precautions should be followed including the following: 1. Read all instructions before using the appliance. 2. Read and follow the specific warning: “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY,” page 3. 3. This appliance must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 3. 4. Install or locate this appliance only in accordance with the provided installation instructions, pages 7-8. 5. Some products such as whole eggs and sealed containers – for example, closed glass jars – are able to explode and should not be heated in this oven. 6. Use this appliance only for its intend - ed use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat or cook food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervi - sion is necessary when it is used by children. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified service technicians. Contact 1-800-726-0190. 10. Do not cover or block any openings on the appliance. 11. Do not store or use this appliance out- doors. 12. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations. 13. Do not immerse cord or plug in water. 14. Keep cord away from heated surfaces. 15. Do not let cord hang over edge of table or counter. 16. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth. 17. To reduce the risk of fire in the oven interior: a) Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b) Remove wire twist-ties from paper or plastic bags before placing bag in oven. c) If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 18. Liquids such as water, coffee, or tea can be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the micro- wave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. 19. To reduce the risk of injury to persons: a. Do not overheat the liquid. b. Stir the liquid both before and half - way through heating it.  c. Do not use straight-sided contain- ers with narrow necks. Use a wide mouth container. d. After heating, allow the container to stand in the microwave oven for at least 20 seconds before remov- ing the container. e. Use extreme care when inserting a spoon or other utensil into the container. This may also cause delayed eruptive boiling. sAVe THese INsTRucTIONs fOR HOuseHOLD use ONLy PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 1. Do not attempt to operate this oven with the door open as this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. 2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. 3. Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the door (for example, make sure that it is not bent); hinges and latches (for example, make sure that they are not broken or loosened); door seals and sealing surface. 4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. If the microwave unit is not kept clean, its surface could be degraded and lead to a hazardous situation. SPECIAL CORD SET INSTRUCTIONS DANGER - Electric Shock Hazard Touching some of the internal compo- nents can cause serious personal injury or death. Do not disassemble this appliance. WARNING - Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord with a grounding wire and grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or service- man if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire exten- sion cord that has a 3-pronged grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. 1. A short power-supply cord is provid - ed to reduce the risks resulting from becoming entangled in or tripping over a longer cord. 2. Longer cord sets or an extension cord should not be used unless the following precautions are followed (see 3, below). 3. If a long cord or extension cord is used: • The marked electrical rating of the cord set or extension cord should  be at least as …

Text truncated - open the document above for the full version.

Web Site: www.midea.com.cn No.6, Yong An Road, Beijiao, Shunde, Foshan E-Mail: [email protected] Guangdong, P.R. China Phone : +86-757-23606480 FAX : +86-757-26656995 AGENCY AUTHORIZATION LETTER FCC ID: VG8XM028AYY Date: 2012-8-1 To whom it may concern: We, the undersigned, hereby authorize ECMG to act on our behalf , as our agent ,in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to the matters. and any other lawful activity necessary to obtain such certification. Any act carried out by ECMG within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date , if you have any question regarding the authorization , please don’t hesitate to contact us , thank you. Sincerely, Xue wenfei Guangdong Midea Microwave and Electrical Appliances Manufacturing Co.,Ltd Phone : +86-757-26306480 FAX :+86-757- 22607341 E-Mail: [email protected]

Date: 2012-8-1 Federal communications commission Authorization and Evaluation Division FCC ID: VG8XM028AYY Confidentiality Request Pursuant to section 0.457 and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of information accompanying this application as outline below: 1 Schematics 2 Block diagram 3 Operational description The above materials contain trade secrets and proprietary information not customarily released to the public, the public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, xue wenfei Guangdong Midea Microwave and Electrical Appliances Manufacturing Co.,Ltd Phone : +86-757-26306480 FAX :+86-757- 22607341 E-Mail: [email protected]

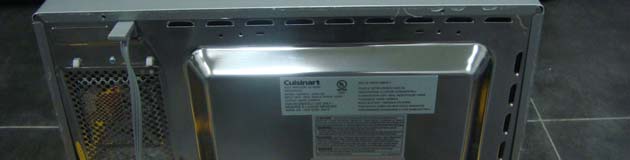

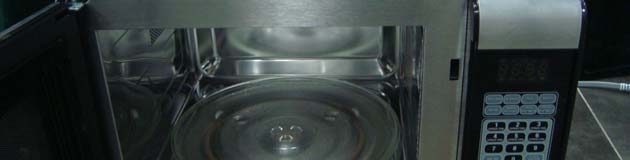

External photos EUT model：EM028AYY EUT- Front View EUT- Rear View Door Opened View

Internal photos EUT model: EM028AYY EUT- Inside View Magnetron View Power Filter Board -Front View Power Filter Board -Rear View Motherboard top view#1 Motherboard bottom view#1 Motherboard top view#2 Motherboard bottom view#2

www.ecmg-global.net EMI TEST REPORT On Model Name: Microwave Oven Model Number: E(A)M028AYY,E(A)M028AYY- X1,E(A)C028AYY, E(A)C028BYY Brand Name: Prepared for Guangdong Midea Microwave and Electrical Appliances Manufacturing Co., Ltd FCC ID Number: VG8XM028AYY According to FCC Part 18(2012) Industrial, Scientific and Medical Equipment FCC/OST MP-5(1986) FCC methods of measurements of radio noise emission from industrial,scientific and medical equipment Test Report #: GUA-1207-10857-FCC Tested by: ECMG Engineer Company Name Reviewed by: ECMG Senior Engineer Company Name QC Manager: ECMG QC Manager Company Name Test Report Released by: August 22 nd ,2012, ⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯⎯ Swall Zhang Date Test Location Tests performed in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location : GD WILOT VACUUM ELECTRONIC EMC TEST LABORATORY BeiJiao,ShunDe,FoShan,GuangDong, 528311, China Tel : (86)-757-26326917 Fax : (86)-757- 22607341 Test Facility The test facility was recognized, certified, or accredited by the following organizations: FCC – Registration No.: 910385 GD WILOT VACUUM ELECTRONIC EMC TEST LABORATORY has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC was maintained in our files. Table of Contents LIST ATTACHED FILES______________________________________________________________ 1 GOVERNMENT DISCLAIMER NOTICE ________________________________________________ 2 REPRODUCTION CLAUSE ___________________________________________________________ 2 OPINIONS AND INTERPRETATIONS _________________________________________________ 2 STATEMENT OF MEASUREMENT UNCERTAINTY _____________________________________ 2 ADMINISTRATIVE DATA ____________________________________________________________ 3 EUT DESCRIPTION __________________________________________________________________ 4 EUT MODEL DERIVED_______________________________________________________________ 4 TEST SUMMARY ____________________________________________________________________ 5 LOAD FOR MICROWAVE OVEN ______________________________________________________ 6 EUT EXERCISE SOFTWARE __________________________________________________________ 6 EQUIPMENT MODIFICATION ________________________________________________________ 6 EUT SAMPLE PHOTOS FOR MODEL EM028AYY ______________________________________ 7 TEST SYSTEM DETAILS ____________________________________________________________ 13 CONFIGURATION OF TESTED SYSTEM _____________________________________________ 14 ATTACHMENT 1 –RADIATION HAZARD TEST ______________________________________ 15 ATTACHMENT 2 – INPUT POWER MEASUREMENT __________________________________ 17 ATTACHMENT 3 – RF OUTPUT POWER MEASUREMENT _____________________________ 20 ATTACHMENT 4 – OPERATING FREQUENCY MEASUREMENT ________________________ 23 ATTACHMENT 5 – CONDUCTED EMISSION TEST RESULTS__________________________ 26 ATTACHMENT 6 - RADIATED EMISSION TEST RESULTS_____________________________ 30 FCC Test Report #: GUA-1207-10857-FCC Prepared for Guangdong Midea Microwave and Electrical Appliances Manufacturing Co., Ltd Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 1 of 33 List Attached Files Exhibit Type File Description File Name Test Report Test Report VG8XM028AYY _Test Report_REV02.pdf Operation Description Technical Description VG8XM028AYY _Operation Description.pdf External Photos External Photos VG8XM028AYY _External Photos Internal Photos Internal Photos VG8XM028AYY _Internal Photos Block Diagram Block Diagram VG8XM028AYY _Block Diagram.pdf Schematics Circuit Diagram VG8XM028AYY _Schematics.pdf ID Label/Location Label and Location VG8XM028AYY _Label & Location.pdf User Manual User Manual VG8XM028AYY _User’s Manual.pdf Test set-up photos Test set-up photos VG8XM028AYY _Test Set-up Photos FCC Test Report #: GUA-1207-10857-FCC Prepared for Guangdong Midea Microwave and Electrical Appliances Manufacturing Co., Ltd Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 2 of 33 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from ECMG Electronic Technical Testing Corp (Shenzhen). Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT).Without the permission of ECMG Electronic Technical Testing Corp (Shenzhen) Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. FCC Test Report #: GUA-1207-10857-FCC Prepared for Guangdong Midea Microwave and Electrical Appliances Manufacturing Co., Ltd Prepared by ECMG Electronic Technical Testing C…

Text truncated - open the document above for the full version.

Test photos Radiation Hazard Test Set-up: Input Power Test Set-Up : RF Output Power Test Set-Up : Operating Frequency Test Set-up: Conducted Emission Test Set-up: Radiated Emission Test Set-up (30 -1,000MHz): Radiated Emission Test Set-up (1-25GHz):
