VG8XM131MYYMicrowave Oven

SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. INSTRUCTION MANUAL Model:EM131MZN Microwave Oven 120V~ 60Hz 1500W 1100W 1.1 Cu.ft Specifications EM131MZN 2 Handling the cord on this press or cords associated with accessories sold with this product, will expose you to lead a chemical known to the state of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handle. Model: Rated Voltage: Rated Input Power(Microwave): Rated Output Power(Microwave): Oven Capacity: Turntable Diameter: External Dimensions: Net Weight: Warning: 12.4 inch PRECAUTIONS TO AVOID POSSIBLE EXPOSURE T O EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy . It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) DOOR (bent) (2) HINGES AND LATCHES (broken or loosened) (3) DOOR SEALS AND SEALING SURFACE (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. 20.0 15.5 11.9 inch 32.1 Lbs 3 IMPORTANT SAFETY INSTRUCTIONS WARNING 1. Read all instructions before using the appliance. 2. Read and follow the specific: "PRECAU- TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 2. 3. As with most cooking appliances, close supervision is necessary to reduce the risk of a fire in the oven cavity. 4.To reduce the risk of fire in the oven cavity: i). Do not overcook food. Carefully attend the appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. ii).Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. iii). If materials inside the oven ignite, keep the oven door closed. Turn the oven off, and unplug the appliance. Disconnect the power cord, shut off power at the fuse or circuit breaker panel. iv). Do not use the oven cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. 5. This oven must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page 5. 6. Install or locate this oven only in accordance with the installation instructions provided. 7. Some products such as whole eggs and sealed containers-for example, closed glass jars-are able to explode and should not be heated in the oven. To reduce the risk of burns, electric shock, fire,injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic safety precautions, including the following: 8. Use this appliance only for its intended uses as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat or cook or dry food. It is not designed for industrial or laboratory use. 9. As with any appliance, close supervision is necessary when used by children. 10. Do not operate this oven if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. 11. This appliance should be serviced only by qualified service technicians. Contact the nearest authorized service facility for examination, repair or adjustment. 12. Do not cover or block any openings on the oven. 13. Do not store or use this appliance outdoors. 14. Do not use this oven near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations. 15. Do not immerse cord or plug in water. 16. Keep cord away from heated surfaces. 17. Do not let cord hang over edge of table or counter. 18. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. 4 i) Do not overheat the liquid. ii) Stir the liquid both before and halfway through heating it. iii) Do not use straight-sided containers with narrow necks. iv) After heating, allow the container to stand in the microwave oven for a short time before removing the container. v) Use extreme care when inserting a spoon or other utensil into the container. 19. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. GROUNDING INSTRUCTIONS SAVE THESE INSTRUCTIONS WARNING DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appl…

Text truncated - open the document above for the full version.

FCC Authorization Date: 2009-12-24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. , the und ersigned, Hereby authorizes Bay Area Compliance Laboratory Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. our behalf shall have the same effect as our own action. We, th e undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Typed or Printed Name: William Huang Title: Engineer Company Name: Fosha n Shunde Midea Microwave and Electrical Appliances Ma nufacturing Co., Ltd.

Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. Declaration We, Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd., declare that the Microwave Oven, the test model is EM131MZN，which have different model series, and all called as XM131M##：more detail description as follows 1.where ## is alphabetic characters. ## : Suffix could be from 0 to 9 or from A to Z (Cosmetic Design). 2.X=E or A E: Touch Pad type A: Encoder type All the models have the same circuit diagram, PCB layout, only different in model name, Thank you! Sincerely. Signature: Title: Engineer Company: Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd.

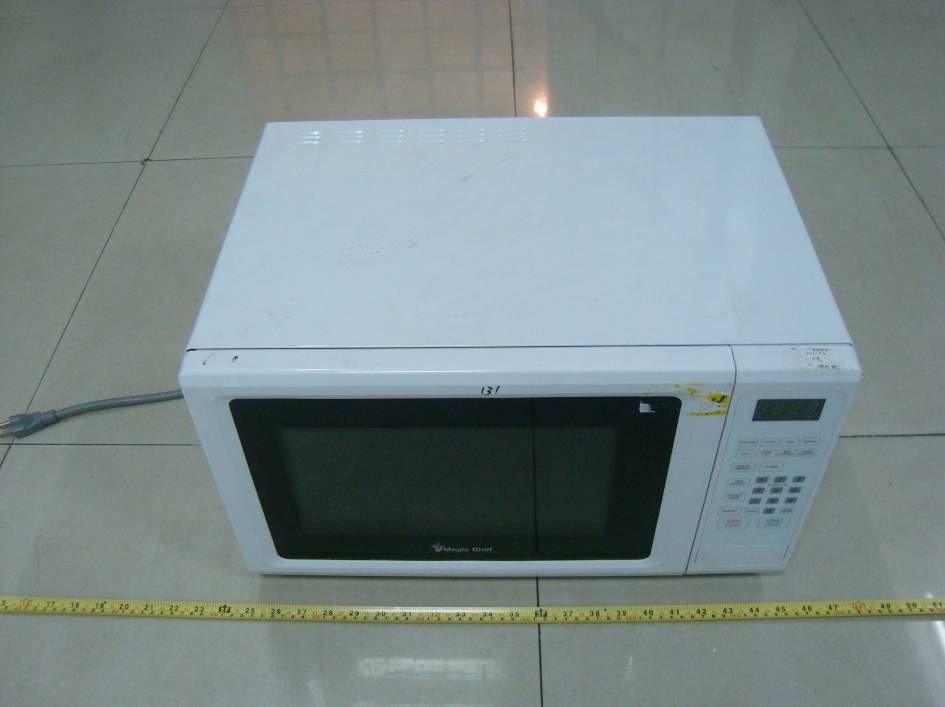

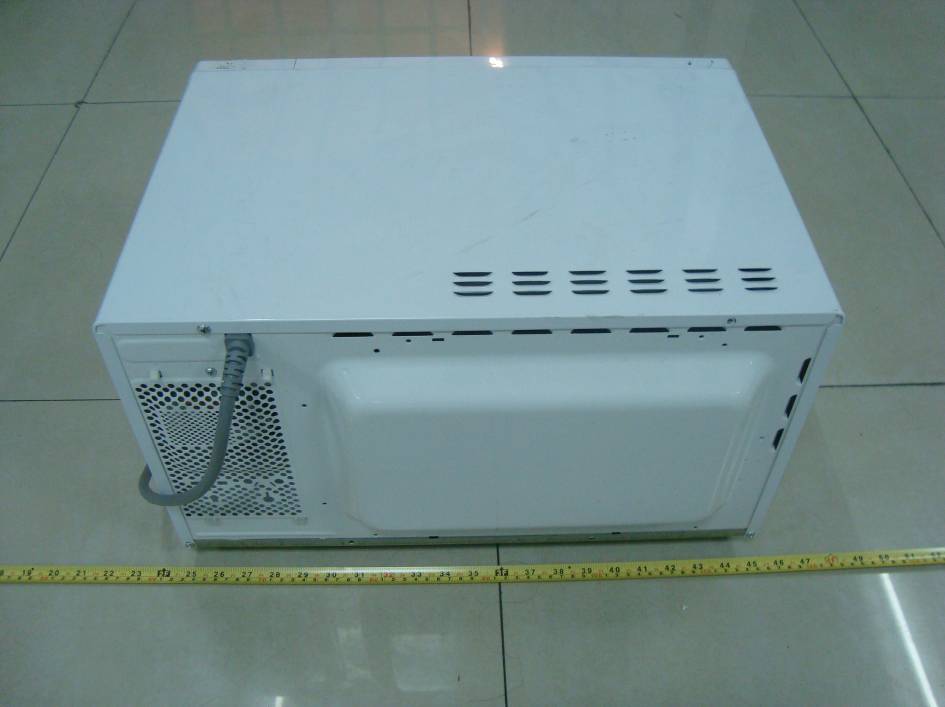

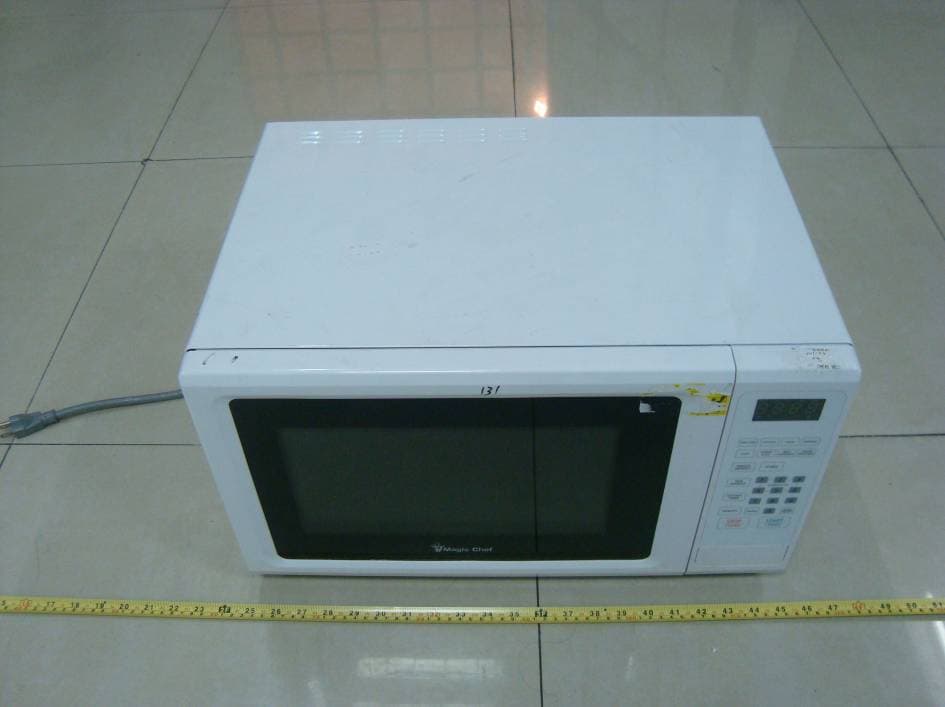

External Photos EUT - Front View EUT - Rear View EUT - Open View

ID Label/Location FCC ID Label FCC ID Label Location Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label here

Internal Photos EUT – Cover off View EUT – Magnetron View EUT – Main Board Top View EUT – Main Board Bottom View EUT – Transformer View EUT – EMI Filter Board Top View EUT – EMI Filter Board Bottom View EUT – Capacitor View

When the microwave oven is plug into a wall outlet, the oven display “0:00”, Press “clock”, the LCD display 00:00, you can set the clock (You can press stop if you don’t want to set the clock). Then you can select cooking mode. There are several cooking modes, you can select power, auto cook, and auto defrosts, and so on. There is program in the Microcontroller of the control board, the cooking time and power level are pre-set in the program. Here we can choose the power level to cook food, so we can see how the microwave oven work. Put the food in the cavity glass tray, then press “power”, we can select one of ten power level (P100 to P10). We can select the difference power level by increasing the impulse ratio. The control of the power elements uses the keyboard commands. Then press “1-9”, we can set cooking time. As a final step, press “start”. (If you want to stop cooking, press “stop” or “pause”). Then magnetron power supply system will work, and High Voltage transformer, High Voltage diode, High Voltage capacitor will supply power to magnetron, and about 3 second the magnetron will work. The magnetron is a radio transmitter. . If it was on a radio mast it would be able to send radio signals a long way. But it is inside a metal box which keeps the signal in. The frequency of the transmitter is 2450MHz (megahertz), which is a wavelength of 12cm, rather than short waves, medium waves or long waves. In microwave cooking, the radio waves penetrate the food and excite water and fat molecules pretty much evenly throughout the food. Anything with water in it has all these molecules being moved this way and that by the electrical field, and heated up. Microwaves in this frequency range have another interesting property: they are not absorbed by most plastics, glass or ceramics. The dishes, walls of the oven , etc, don't pick up radio, so don't get heated up. The cooling system will start working, the lamp will be lighted, and the turntable will rotate, at the same time when the power supply system work. After we press “start”, the fan will running, it can get rid of its excess heat, and cooling the magnetron and High voltage transformer. You mustn't block the vents or the oven will overheat. At the same time, the turntable motor will turn. The turning system including the turntable motor, shaft, roller, and glass tray will start working.It is used for better cooking. An AC motor rotates the plate with constant speed about 5 rpm. When the start button is pushed the motor starts. A light that lights when the door is opened and when the oven is working. So we can see the food in cavity clearly! A ring alarm that makes a sound when cooking is done.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A3 D11 4148 R34 10K R26 1K C3104 E1 470U/25V C4104 C5104 +12 Z15V6 E3 470U/16V E2 220U/16V 1 2 R6 390/1/4W D2 4007 D8 4007 D94007 D34007 D44007D5 4007 D64007 D7 4007 C1315PC1215P R33 2K C17 471 C15 0.1uF VCC VCC LMOTOR a b c d e f g dp R14220 R15220 R16220 R17220 R18220 R19220 R20220 R21220 R13 2K R12 2K R11 2K R10 2K R9 2K R8 2K D12 4148 NMOTOR D14 4148 R41 3.3K +12 R42 4.7K R253K3 VCC VCC DOOR BUZZER MICRO LED share kathode （共阴极数码管） LED: 4X8 key in 0( 0) 键入 key in 2( 2) 键入 key in 1( 1) 键入 key in 3( 3) 键入 key in 4( 4) 键入 key in 5( 5) 键入 SDA/KSCAN0KSCAN1KSCAN2 DOOR LAMP/FAN KSCAN3 PE1/CMPN 3 PE0/CMPO 4 PC2/T0 5 PC3/RESER 6 GND 7 PA0/LED-C 8 PA1/LED-C 9 PA2/LED-C 10 PA3/LED-C 11 PD0/LED-C 12 PD1/LED-C 13 PH0/LED-D 14 PE3/CMP2 1 PE2/CMP1 2 LED-D/PH1 15 LED-D/PD2 16 LED-D/PD3 17 LED-D/PB0 18 LED-D/PB1 19 LED-D/PB2 20 LED-D/PB3 21 VDD 22 OSCI/PC0 23 OSCO/PC1 24 TONE/PF0 25 T2/PF1 26 PF2 27 PF3 28 SINO SH69P26 IC1SH69P26-28PIN RESET ZERO LED-1LED-2LED-4 C7471 C8471 C9471 C10471 C11471 C6471 BUZ1 R3 4.7K +12 R1 3.3k BUZZER R2 2K C1471 C2103 R510k R42K ZERO D1 4148 VCC R27 4K7 R28 4K7 LED-3 R29 4K7 R30 4K7 EG(M)XEEKE-03V1.0A 6 8 9 12 1 2 3 4 5 7 10 11 DIG1 DIG2 DIG3 DIG4 a b c d e f g h LED1 N 123456789 10 CN2CON10 R43 10K 135CN1CN5-3 2 679 4 10 7V11V IN 1 T1PT-6329 12 34 RLY2LAMP 1 2 GND DOORCN2 12 34 RLY1RLY SWASWSWBSWSWCSWSWDSWSWESW EC B Q18550 B CE Q28050 B CE Q38050 B CE Q48050 B C E Q58050 OSC4MHZ

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 18 EMI MEASUREMENT AND TEST REPORT For Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. NO.18 Huanzhen West Road, Beijiao, Shunde, Foshan, Guangdong, China.528311 FCC ID: VG8XM131MYY Report Type: Original Report Product Type: Microwave Oven Test Engineer: Thomas Zhang Report No.: RSZ09122951 Report Date: 2010-01-20 Reviewed By: William Chen EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong,China Tel: +86-755-33320018 Fax: +86-755-33320008 Foshan Shunde Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. FCC ID: VG8XM131MYY Report #: RSZ09122951 Page 2 of 20 FCC Part 18 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 OPERATING CONDITION/TEST CONFIGURATION..........................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 EXTERNAL CABLE LIST AND DETAILS.........................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSIONS ........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................7 RADIATION HAZARD MEASUREMENT .............................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 RADIATION HAZARD MEASUREMENT........................................................................................................................10 INPUT POWER.............................................................................................................................................................11 LOAD FOR MICROWAVE OVENS.................................................................................................................................11 RF OUTPUT POWER MEASUREMENT..........................................................................................................................12 OPERATING FREQUENCY MEASUREMENT..................................................................................................................13 RADIATED EMISSIONS...........................................................................................................................................17 MEASUREMENT UNCERTAINTY.................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos Conduction Emissions - Front View Conduction Emissions - Side View Radiated Emissions - Front View (30 MHz-1 GHz) Radiated Emissions - Rear View (30 MHz-1 GHz) Radiated Emissions - Front View (Above 1 GHz) Radiated Emissions - Rear View (Above 1 GHz)
