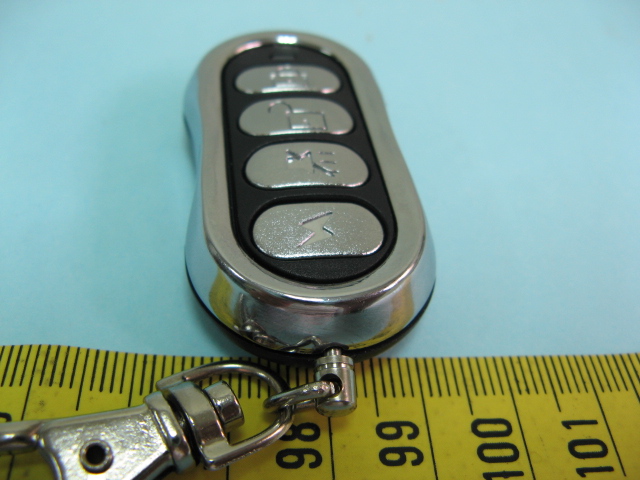

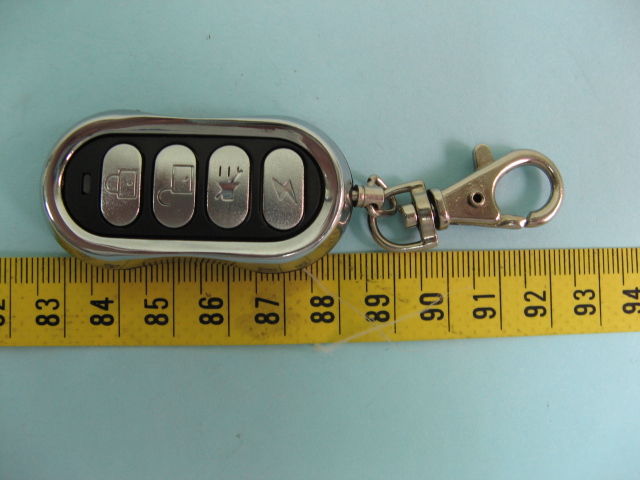

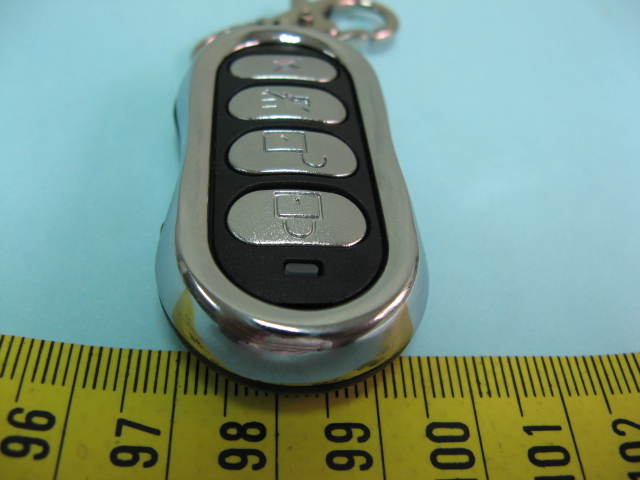

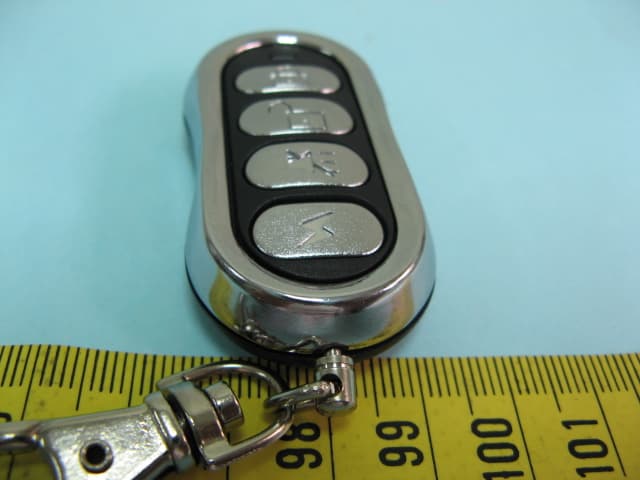

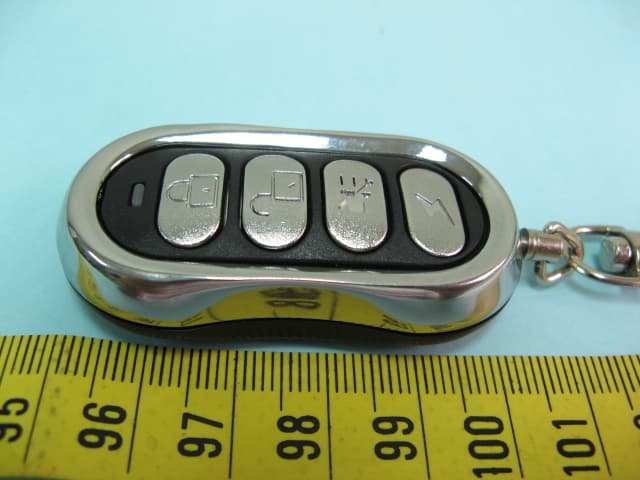

VGA4421TRANSMITTER

Arming: Press & Release the “Lock” button Silent Arming: Press & Release the “3rd” button Twice in 3 sec. Disarming: Press & Release the “Unlock” button Silent Disarming: Press & Release the “3rd” button Twice in 3 sec Page 1 Remote Control Quick Reference Guide THE SIREN WILL CHIRP ONCE THE PARKING LIGHTS WILL FLASH ONCE THE DOORS WILL LOCK (IF CONNECTED) THE PARKING LIGHTS WILL FLASH ONCE THE DOORS WILL LOCK (IF CONNECTED) 2 X THE SIREN WILL CHIRP TWICE THE PARKING LIGHTS WILL FLASH TWICE THE PARKING LIGHTS WILL FLASH TWICE THE DOORS WILL UNLOCK (IF CONNECTED) 2 X THE DOORS WILL UNLOCK (IF CONNECTED) Table Of Contents Owner’s Guide Arming the System ......................... 3 Disarming the System .................. 4 Emergency Override ....................... 4 System Armed & Activated ............ 5 Panic ................................................. 5 Sensor By-Pass .............................. 5 Auxiliary Channel ............................ 6 Remote Controlled Anti-Carjack .. 6 Anti-Carjacking (Door & Ignition).. 7 Valet Mode ........................................ 8 LED Status Indicator ...................... 8 Auxiliary Sensor & Prewarn ........... 9 Installation Instructions How To Program Remote Control ............. 9 How To Program Features ...................... 10 Programmable Features .................. 10 - 12 Wiring Diagram ....................................... 13 Door Lock/Unlocking Systems ................ 14 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions, (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. Emergency Override: Panic:Press & Hold the “Lock” Button for 3 Sec’s, with the ignition “Off” Shock Sensor & Prewarn Bypass: 1) Arm the alarm by, Pressing & Releasing the “Lock” button 2) Within 2 seconds Press & Release the “3rd” button. To Activate the Auxiliary Channel: Press & Hold The “3rd” Button for 3-Seconds To Activate Remote Anti-Carjack: (programmable Dip-Switch # 7) Press & Hold the “4th” button, for 3 Secs, with the ignition “On” Page 2 Hold 3 seconds Open Electric Trunk Operate Window Roll-Up Unit Operate Remote Start Unit THEN WITHIN 10 SECONDS PRESS & RELEASE VALET BUTTON THE SIREN WILL SOUND THE PARKING LIGHTS WILL FLASH Hold 3 seconds Then 2. 1. Hold 3 seconds The system may be "Armed" by any of 3 methods: 1) Remote Control Arming: Press & Release the “Lock” button Page 3 Arming the Alarm 2) SILENT Remote Control Arming: Press & Release the “3rd” button Twice within 3 seconds Upon Arming:• The siren will chirp one time. • The parking lights will flash once. • The doors will lock. (If an optional interface is connected) • The starter interrupt will engage. • The LED Status Indicator will begin to flash slowly. - If a zone is open, (for example a car door), when arming, the alarm will still arm, but will bypass the open zone until the zone is secured. 3) To Passively Arm: Turn Ignition “Off”, Then Close all Doors. Automatic “Last Door Arming” is a programmable feature which allows the alarm to arm itself and lock the doors, (if vehicle’s door locks are connected). If on, anytime the ignition is turned off, and then a door is opened and closed: • The Siren will chirp once to confirm arming countdown has begun. • The LED Status Indicator will begin to flash rapidly. Thirty seconds later: • The siren will chirp & the lights will flash once. • The LED Status Indicator will begin to flash slowly. • The starter interrupt will engage. - The alarm is now fully armed. The doors will lock at this time, if the vehicle is equipped. - The system can not Last Door Arm if a protected zone is open. Should a ve- hicle door be opened during the arming countdown, the countdown will stop and start over again when the door is closed. AUTO REARM (programmable) allows the Alarm to Rearm itself, if it is Disarmed and a vehicle door is not opened. THE SIREN WILL CHIRP ONCE THE PARKING LIGHTS WILL FLASH ONCE THE DOORS WILL LOCK (IF CONNECTED) THE PARKING LIGHTS WILL FLASH ONCE THE DOORS WILL LOCK (IF CONNECTED) 2 X The system may be "Disarmed" by any of 3 methods: 1) Remote Control Disarming: Press & Release the “Unlock” button 2) SILENT Remote Control Disarming: Press & Release the “3rd” button Twice within 3 sec Upon Disarm:• The siren will chirp twice. (4 chirps if alarm has activated & reset) • The parking lights will flash twice. • The doors will unlock. (If an optional interface is connected) • The starter interrupt will disengage. • The LED Status Indicator begins flashing rapidly for Automatic Rearming, until alarm Rearms or a vehicle door is opened. 2-STAGE DISARM: If Disarming the alarm while it is triggered (siren sounding), the first press of any remote control button will only silence the siren/horn. A second press of the “Unlock” button will Disarm the alarm. Step 1:With the system in the armed condition, enter the vehicle via the driver's door (be aware that the alarm will trigger when the door is opened). Step 2:Using your key, turn the vehicle’s ignition to the "On" position. Step 3: Within 10 seconds, Press & Release the Valet/ Override Switch. Page 4 Disarming the Alarm Emergency Override THE SIREN WILL CHIRP TWICE THE PARKING LIGHTS WILL FLASH TWICE THE DOORS WILL UNLOCK (IF CONNECTED) THE PARKING LIGHTS WILL FLASH TWICE THE DOORS WILL UNLOCK (IF CONNECTED) 2 X THEN WITHIN 10 SECONDS Regardless of method used to Arm the alarm, once Armed, the alarm will monitor all protected zones, and if an intrusion attempt is detected it will activate, or “trigger”. A trigger consists of the following: • The electronic siren, or optionally the vehicle’s horn, will start sounding. • The ext…
